Microstructure Optimization in Superalloy Castings Using HIP for High-Temperature Applications
Superalloy castings are critical components in industries that demand materials capable of performing under extreme conditions, such as aerospace, power generation, and oil and gas. These industries require materials that can withstand temperatures, mechanical stress, and corrosive environments over extended periods. However, achieving the desired performance and longevity in superalloy castings requires more than selecting the suitable alloy; optimizing the material’s microstructure is equally essential. This is where advanced post-processing techniques like Hot Isostatic Pressing (HIP) play a pivotal role. HIP helps enhance the mechanical properties of superalloy castings by refining their microstructure, improving their overall performance in high-temperature applications.
By applying high pressure and temperature in an inert gas environment, HIP eliminates internal porosity and strengthens the material’s internal structure. This process ensures that the superalloy is free from internal voids, which could otherwise compromise the alloy’s integrity under stress. Moreover, HIP improves the material's fatigue resistance, making it more reliable for components subjected to repeated loading conditions, such as those found in jet engines, turbine blades, and pressure vessels. The result is a superalloy casting with superior density, uniformity, and mechanical properties that meet the stringent requirements of high-performance applications.
What is Microstructure Optimization in Superalloy Castings?
Microstructure optimization refers to refining and controlling a material's internal structure, precisely the arrangement and size of its grains, phases, and other microstructural features. In superalloy castings, the microstructure directly influences key mechanical properties such as tensile strength, fatigue resistance, creep resistance, and thermal stability. This makes microstructure optimization essential for parts used in high-performance applications, such as gas turbine components and aerospace engine parts.
In high-performance applications, where components are exposed to extreme environments, these properties are essential for the material to maintain its integrity over time. The microstructure of a superalloy can consist of a complex arrangement of various phases and grain boundaries. Grain size, porosity, phase distribution, and defects like microvoids or inclusions all impact the material's performance under stress or thermal cycling. As such, controlling the microstructure ensures critical parts meet the performance standards required in aerospace and power generation industries.
Superalloy castings must meet stringent requirements, particularly those used in gas turbines, jet engines, and reactor components. Slight imperfections or inconsistencies in the microstructure can lead to catastrophic failures. Therefore, optimizing the microstructure is critical to ensure the material’s longevity and reliability in such demanding conditions. This is achieved through advanced casting techniques and post-processing methods like Hot Isostatic Pressing (HIP) and vacuum heat treatment.
How HIP Enhances Microstructure in Superalloy Castings
Hot Isostatic Pressing (HIP) is a post-processing technique that uses high temperature and pressure to improve superalloy castings' material properties. The process is conducted in a sealed vessel where the material is subjected to a gas-filled environment, typically using an inert gas like argon. This process allows the material to be densified, eliminating internal voids, porosity, and defects that can disrupt the material’s microstructure. Carbon sulfur analysis can be integrated to ensure the alloy’s composition remains consistent during HIP processing, helping optimize the overall properties.
The primary way in which HIP enhances the microstructure of superalloy castings is by removing porosity and shrinkage cavities that are often present after the casting process. These voids can significantly weaken the material, making it more susceptible to fatigue and failure under mechanical stress. By applying high pressure and temperature, HIP forces these internal defects to close and compress, resulting in a denser, more uniform material. This process improves fatigue resistance, a key factor for high-performance superalloy components exposed to cyclic loading.
In addition to improving the material’s density, HIP influences the grain structure. The high temperature and pressure conditions promote grain refinement, improving mechanical properties. For instance, finer grains are often associated with better strength and higher resistance to creep, a critical property for superalloy components exposed to high temperatures. X-ray inspection can be employed post-HIP to validate grain refinement and verify that no internal defects remain that could compromise component integrity.
HIP also helps optimize the distribution of phases in the alloy, ensuring that the material has a homogeneous structure, which is key for maximizing performance under harsh conditions. The combination of high pressure and temperature creates an ideal environment for phase equilibrium, which can be verified through advanced metallographic microscopy, ensuring that phase distributions are aligned with design specifications for maximum performance and durability.
Mechanisms of Microstructure Optimization through HIP
Hot Isostatic Pressing (HIP) optimizes the microstructure of superalloy castings by combining pressure, temperature, and time. The process involves several key mechanisms that contribute to improving the material’s properties:
Grain Refinement
One of the most significant effects of HIP is its ability to refine the grain structure of superalloys. Grain size plays a crucial role in determining the strength and flexibility of materials. Smaller, more uniform grains generally result in stronger, more fatigue-resistant materials. The pressure and temperature applied during HIP cause the grains to grow or reorganize, resulting in a more uniform and finer grain structure, which ultimately enhances the mechanical properties of the alloy. This grain refinement is particularly valuable in high-performance components, such as turbine blades, which operate under extreme conditions.
Reduction of Porosity and Microvoids
Porosity and microvoids are common issues in castings, particularly in complex shapes or thin-walled components. These voids can act as stress concentrators, which weaken the material and make it more susceptible to failure under cyclic loading. HIP eliminates these defects by applying pressure, causing the voids to collapse and be absorbed into the surrounding material, resulting in a denser and stronger component. This process is essential for improving the reliability of castings used in demanding applications, such as gas turbines, where high mechanical stresses are a common concern.
Phase Distribution and Homogeneity
The distribution of phases within a superalloy directly impacts its performance. During HIP, the material’s internal phases may undergo transformations that lead to more uniform phase distribution, improving the material’s overall strength and resistance to high-temperature degradation. This is especially important in alloys that require specific phase configurations to optimize their performance, such as nickel-based alloys used in gas turbines and aerospace applications.
Increased Uniformity
HIP helps to create a more uniform microstructure across the entire casting. This is important because uneven microstructures can lead to inconsistent material properties across the part, potentially leading to failure in certain areas. HIP-treated superalloy components can maintain consistent performance throughout their service life by ensuring uniformity. This uniformity is crucial in critical components such as turbine discs, where precise mechanical properties are necessary for optimal performance in the high-stress environments of aerospace and energy generation industries.
HIP and Its Impact on Mechanical Properties in High-Temperature Environments
The microstructure of superalloy castings plays a direct role in their mechanical properties, which are critical in high-temperature applications. By optimizing the microstructure through Hot Isostatic Pressing (HIP), the material’s performance can be significantly improved. Some of the key mechanical properties that HIP enhances include:
Tensile Strength
HIP improves the tensile strength of superalloy castings by reducing defects and refining the grain structure. A more uniform and dense material is less likely to deform under stress, resulting in greater resistance to stretching or breaking under tension. This is particularly important in components like turbine blades, which are exposed to high mechanical loads during operation. The grain refinement achieved through HIP contributes to a material’s ability to withstand these stresses over long periods.
Fatigue Resistance
Fatigue failure occurs when a material is subjected to repeated cycles of stress and strain, which can cause cracks to form and propagate. By eliminating internal voids and refining the microstructure, HIP-treated superalloys exhibit significantly improved fatigue resistance. This makes them ideal for applications in which parts are subjected to continuous thermal cycling, such as gas turbines or aerospace engines. The removal of porosity during HIP ensures that the material performs reliably without premature failure even under repeated mechanical loading.
Creep Resistance
Creep is materials' slow, permanent deformation under high temperature and constant stress. Superalloy components used in turbine engines, reactors, and similar high-temperature applications must resist creep to maintain their dimensional integrity over time. HIP improves creep resistance by refining the material’s microstructure and reducing defects that could act as sites for creep deformation. This makes HIP-treated superalloys better able to withstand the intense heat and stress of high-temperature environments such as reactor vessels and power generation turbines.
Thermal Stability and Oxidation Resistance
In high-temperature applications, superalloys are often exposed to oxidative environments. HIP helps to improve these materials' thermal stability and oxidation resistance by refining the phase distribution and reducing porosity. This results in a more uniform and stable microstructure less likely to degrade under high temperatures. For components in environments such as jet engines, improved oxidation resistance ensures long-term performance without excessive wear or degradation.
Comparing HIP to Other Microstructure Control Techniques
While Hot Isostatic Pressing (HIP) is highly effective in optimizing the microstructure of superalloy castings, it is not the only technique available for improving the material’s properties. Several other methods, such as conventional heat treatment, solid-state diffusion, and precision forging, are also used to control and refine the microstructure of alloys.
Conventional Heat Treatment
Heat treatment processes, such as annealing or quenching, are commonly used to modify the microstructure of superalloys. These processes can alter the material's grain size and phase distribution, but they do not eliminate porosity as effectively as HIP. Heat treatment can be combined with HIP to further enhance the material’s properties. For example, while heat treatment refines the grain structure and improves strength, HIP eliminates porosity, ensuring a more uniform material with better fatigue resistance.
Solid-State Diffusion
In solid-state diffusion processes, atoms in the material move to reduce internal stresses and improve phase distribution. This process can refine the microstructure of superalloys, but it does not address porosity or other internal defects. HIP is often preferred over diffusion processes for its ability to eliminate these types of defects while also improving grain structure. The combination of high pressure and temperature in HIP ensures that voids and internal defects are closed, resulting in more vital, more reliable components for demanding applications like aerospace.
Precision Forging
Precision forging processes can be used to refine the grain structure of superalloy castings by applying mechanical force to the material. However, this process requires solid material, so it cannot be used on castings with significant porosity. HIP, on the other hand, works on castings and can eliminate defects that forging cannot address. While forging is excellent for enhancing fatigue resistance and mechanical strength, HIP-treated parts can achieve superior density and microstructural uniformity, making it an ideal choice for complex castings used in gas turbines and high-stress applications.
Industry Standards and Best Practices for HIP in Microstructure Optimization
The use of HIP in superalloy castings is governed by a range of industry standards that ensure the quality and reliability of the material. Organizations such as ASTM International and the International Organization for Standardization (ISO) provide specifications for superalloy components and the HIP process. These standards define the parameters for temperature, pressure, and cycle time, as well as the testing and inspection methods used to verify the quality of HIP-treated parts.
NewayAero, as a manufacturer of high-temperature alloy parts, adheres to these standards and best practices to ensure that its HIP-treated superalloy components meet the highest levels of quality. The company works closely with its clients in aerospace, power generation, and chemical processing to ensure that the parts are optimized for their specific applications.
Challenges and Considerations in Microstructure Optimization Using HIP
While HIP is highly effective, it does come with some challenges. The process requires specialized equipment, such as HIP furnaces, which can be expensive to maintain and operate. Additionally, the effectiveness of HIP in optimizing the microstructure can be influenced by factors such as alloy composition, part size, and the exact parameters of the HIP cycle. Achieving optimal results may require temperature, pressure, and cycle time adjustments depending on the specific superalloy being treated.
Despite these challenges, HIP remains one of the most reliable methods for improving the microstructure of superalloy castings. NewayAero addresses these challenges by using state-of-the-art HIP equipment and closely monitoring the process to ensure that each part meets the desired specifications.
Applications of HIP-Optimized Superalloy Components in High-Temperature Industries
Hot Isostatic Pressing (HIP) is a crucial post-processing technique for optimizing the mechanical properties of superalloy castings, making them ideal for use in high-temperature industries. The enhanced tensile strength, fatigue resistance, and creep resistance imparted by HIP treatment ensure that these components perform reliably in extreme environments, where durability and performance are paramount. Below are some of the key industries and applications where HIP-optimized superalloy components are widely used:
Aerospace

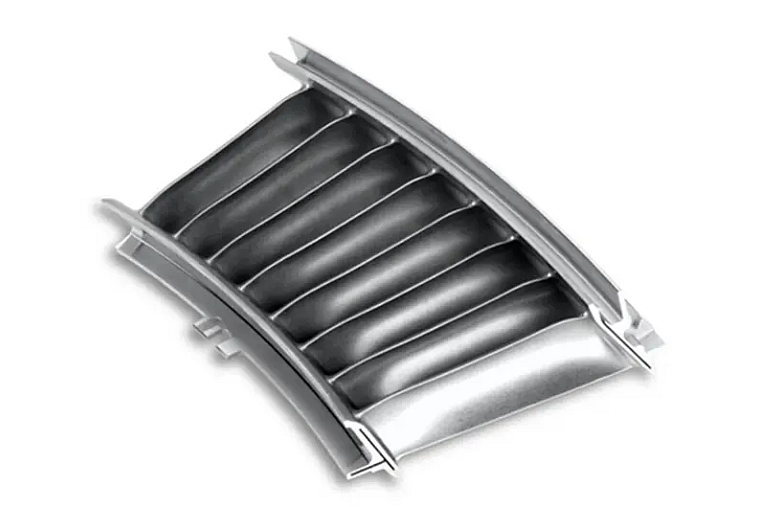

In aerospace and aviation, HIP-treated superalloy castings are essential for critical engine components such as turbine blades, combustion chambers, and nozzle rings. These components must withstand extreme temperatures, high mechanical loads, and thermal cycling. HIP enhances the material’s tensile strength, fatigue, and creep resistance, ensuring that components like superalloy turbine blades maintain their structural integrity and performance under demanding flight conditions. HIP optimization significantly extends the service life of these parts, reducing the risk of failure in jet engines and gas turbines.
Power Generation
In the power generation industry, HIP-optimized superalloy components are critical for high-temperature applications such as gas turbines, reactors, and heat exchangers. Components like turbine blades and superalloy heat exchanger parts are exposed to high thermal and mechanical loads, requiring enhanced material properties to ensure long-term durability and operational efficiency. HIP treatment improves the resistance to creep, fatigue, and thermal degradation, ensuring that components can operate safely and efficiently in power plants for extended periods, reducing maintenance and operational costs.
Oil & Gas
In the oil and gas industry, superalloy components are used in harsh environments, where high temperatures, extreme pressures, and corrosive conditions are expected. HIP-treated superalloys are ideal for components like pump housings, valves, and drilling tools that must endure these challenging conditions. The improved microstructure from HIP treatment ensures that these parts resist wear, corrosion, and high-pressure fatigue, contributing to longer service life and increased reliability in critical operations. For example, HIP optimization in high-temperature pump components enhances their ability to withstand harsh conditions in deep-water drilling and oil extraction.
Marine
The marine industry also benefits from HIP-treated superalloy components used in harsh environments, such as ship propulsion and exhaust systems. Components like propellers, shafts, and exhaust manifolds are exposed to high temperatures, saltwater, and mechanical stress. HIP optimization enhances their corrosion resistance, tensile strength, and fatigue resistance, ensuring they remain reliable and efficient under the demanding conditions of marine operations.
Chemical Processing
In chemical processing, superalloy components are critical for equipment such as reactors, valves, and heat exchangers used in high-temperature and corrosive environments. HIP-treated superalloys offer enhanced resistance to chemical attack, thermal fatigue, and creep, making them ideal for these applications. By optimizing the material structure, HIP treatment ensures that these components can withstand harsh chemical processing conditions, contributing to improved performance and extended service life.
