Melting Titanium Alloys: Ensuring Purity and Preventing Contamination in Casting Processes

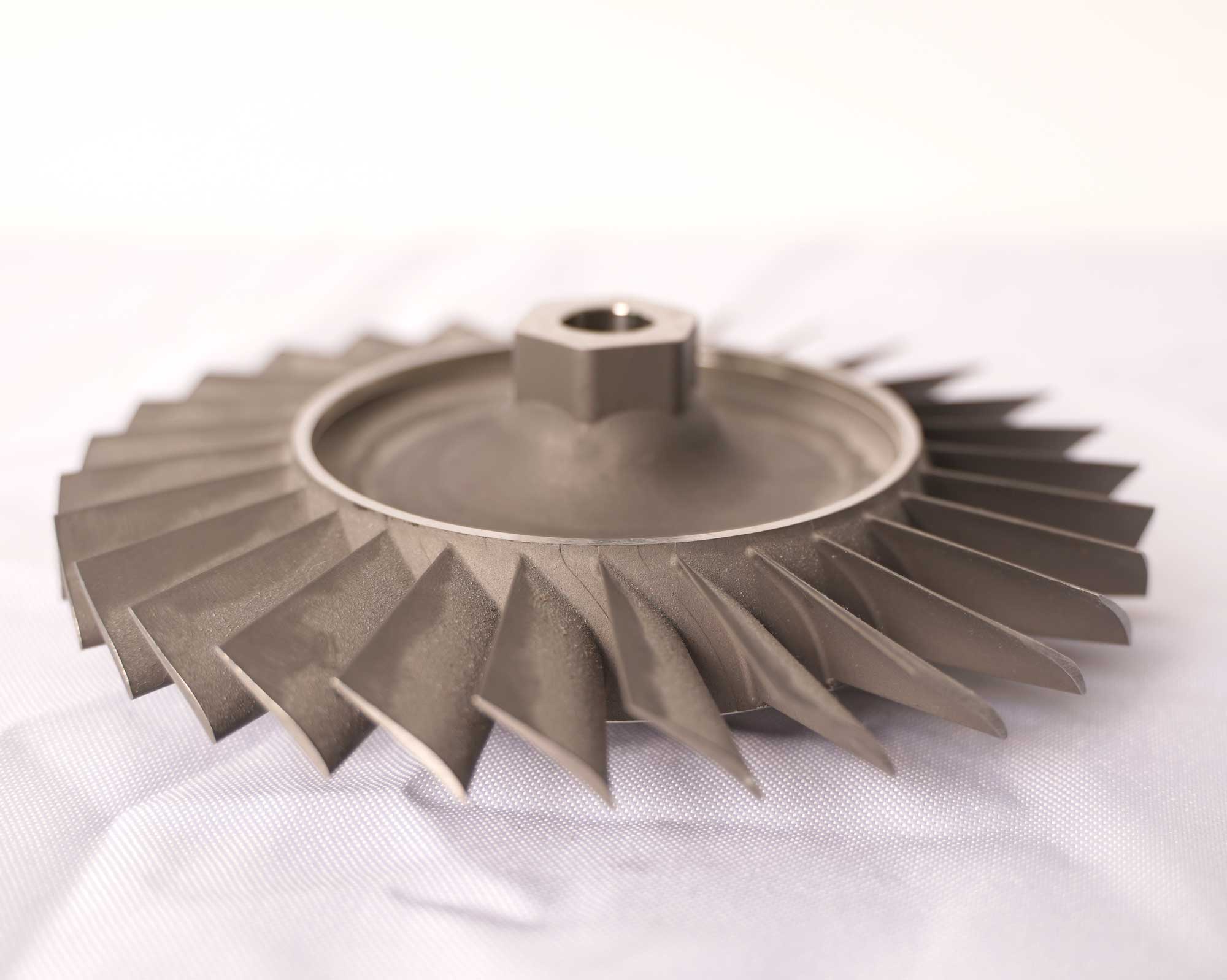

Titanium alloys have become indispensable in industries that demand materials with superior strength-to-weight ratios, corrosion resistance, and high-temperature stability. From aerospace to medical implants, these alloys are critical for advanced applications. However, melting and casting titanium alloys have challenges, particularly in maintaining purity and preventing contamination. Addressing these issues ensures the resulting components meet stringent industry requirements.
Manufacturing Process
The process of manufacturing titanium alloy components begins with the preparation and selection of raw materials. Titanium is reactive at high temperatures, which makes contamination a significant risk during the melting and casting process. To mitigate this, manufacturers use advanced techniques. Ensuring high-purity material and employing controlled conditions is crucial for achieving optimal performance and durability in titanium components.
Material Preparation involves high-purity titanium ingots, often alloyed with elements like aluminum, vanadium, or molybdenum, to achieve the desired mechanical properties. Care is taken to ensure that no impurities are introduced during handling. These measures align with custom melting parameters to tailor properties based on specific application needs.
Melting Techniques are critical to preserving the alloy’s integrity. Common methods include:
Vacuum Arc Remelting (VAR): This process uses a vacuum environment to remelt the titanium alloy ingot, minimizing contamination from oxygen, nitrogen, or hydrogen.
Electron Beam Melting (EBM): EBM involves using an electron beam in a vacuum to melt titanium powders or ingots, ideal for achieving fine microstructures.
Plasma Arc Melting (PAM): This technique utilizes a plasma arc as a heat source in an inert gas atmosphere to melt titanium, reducing contamination risks.
Integrating vacuum induction pouring further ensures a clean and precise casting process.
Casting Methods for titanium alloys include:
Vacuum Investment Casting: This ensures precise dimensional control for complex parts while maintaining a contamination-free environment.
Directional Solidification and Single-Crystal Casting: These advanced methods produce components with superior mechanical properties by controlling the solidification process.
To prevent contamination during these processes, inert gas environments (e.g., argon) and non-reactive crucible materials are employed. These measures are vital to maintaining the high purity of the titanium alloy throughout manufacturing. Manufacturers achieve high-quality titanium components with optimal mechanical properties by implementing advanced casting techniques and ensuring precision at each stage.
Typical Titanium Alloys Used in Casting
Titanium alloys are categorized based on their composition and application. Their versatility makes them suitable for a wide range of industries.
Popular Grades:
Ti-6Al-4V (TC4): Known for its excellent strength, corrosion resistance, and workability, this alloy is widely used in aerospace and medical applications.
Ti-6Al-4V ELI: An extra-low interstitial version of TC4, it is ideal for medical implants due to its enhanced biocompatibility.
Ti-3Al-2.5Sn: This alloy balances strength and corrosion resistance, making it suitable for aerospace tubing and chemical processing.
High-Performance Alloys:
Ti-6Al-2Sn-4Zr-6Mo: Known for its high creep resistance, this alloy is used in high-temperature aerospace applications.
Ti-5Al-5V-5Mo-3Cr (Ti5553): This advanced alloy offers excellent strength and fatigue resistance and is often used in structural components for aircraft.
Each alloy exhibits unique mechanical and thermal properties, making them suitable for specific applications. Proper alloy selection is crucial for optimizing performance and durability.
Post-Processes Comparison
Post-processing plays a crucial role in enhancing the properties of cast titanium alloy components. Various techniques are employed depending on the application.
Hot Isostatic Pressing (HIP) involves applying high pressure and temperature to eliminate internal voids and porosity, improving the component’s mechanical integrity and fatigue resistance. HIP also contributes to enhanced reliability by ensuring uniformity throughout the material.
Heat Treatment is used to modify the microstructure of titanium alloys, enhancing their strength, toughness, and resistance to high-temperature deformation. Refining microstructures through heat treatment helps achieve consistent and durable properties in high-performance components.
Thermal Barrier Coatings (TBC) are applied to titanium components operating in extreme environments, such as jet engines, to protect them from heat and oxidation. The application of TBC enhances durability and extends the lifespan of components used in high-stress conditions.
Superalloy CNC Machining ensures precision and surface finish in post-cast components, especially for complex geometries. This process is critical in aerospace and medical applications where tolerances are critical. Achieving tight tolerances is crucial for components that require high precision.
The selection of post-processing methods depends on the component’s intended application, operating conditions, and required properties.
Testing and Inspection
Ensuring the quality and reliability of titanium alloy components requires rigorous testing and inspection protocols. Advanced testing techniques verify mechanical, chemical, and structural properties.
Standard Testing Protocols Include:
Tensile Testing: Evaluate the alloy’s strength and flexibility.
Fatigue Testing: Assesses the material’s performance under cyclic loading.
Corrosion Resistance Testing: Determines the alloy’s durability in aggressive environments.
Advanced Testing Techniques:
Line Array Industrial CT: Uses computed tomography to detect internal defects like porosity or cracks without destroying the component.
Metallographic Microscopy: Examines the microstructure to ensure proper grain size and phase distribution.
ICP-OES: Provides precise elemental analysis to verify the alloy’s composition.
Manufacturers ensure compliance with industry standards such as ASTM and ISO by combining standard and advanced testing methods.
Prototyping Process
Prototyping is a critical step in developing titanium alloy components, allowing manufacturers to test and refine designs before full-scale production.
3D Printing (Additive Manufacturing) has revolutionized prototyping by enabling the rapid creation of complex geometries with minimal material waste. Manufacturers can produce prototypes directly from CAD designs using techniques like Electron Beam Melting (EBM).
Compared to traditional casting methods, 3D printing offers greater design flexibility, shorter lead times, and reduced costs. This makes it ideal for developing intricate components such as aerospace brackets or medical implants.
Industry and Applications
Titanium alloys are used across diverse industries due to their exceptional properties.
Aerospace and Aviation
In the aerospace and aviation, components such as jet engine blades, airframe structures, and heat exchangers benefit from titanium’s lightweight and high-strength properties. Titanium's versatility enhances performance in critical aerospace components, such as jet engine components, where strength and resistance to high temperatures are key.
Medical and Pharmaceutical
The medical and pharmaceutical industries use biocompatible alloys like Ti-6Al-4V ELI for implants, surgical tools, and sterilization equipment. Due to their excellent biocompatibility, titanium alloys are also employed in complex medical devices and superalloy sterilization equipment parts, ensuring patient safety and long-term performance.
Energy and Power Generation
In energy and power generation, titanium alloys are employed in turbine blades, reactor vessels, and other high-temperature components in nuclear and conventional power plants. These alloys are crucial in applications such as reactor vessel components, providing resistance to high temperatures and harsh environments, thus ensuring reliability in power systems.
Automotive
The automotive industry, particularly in high-performance vehicles, uses titanium for lightweight components like connecting rods and exhaust systems. Transmission component assemblies made from titanium are highly valued for their strength-to-weight ratio, contributing to improved fuel efficiency and vehicle performance.
Marine
In the marine sector, titanium’s corrosion resistance makes it ideal for naval applications, such as submarine hulls and ship components. Titanium alloys are used in naval ship modules, which require durable materials capable of withstanding long-term exposure to seawater and mechanical stresses.
The versatility of titanium alloys ensures their continued relevance in industries where performance and reliability are paramount. Their unique properties—lightweight, high strength, corrosion resistance, and biocompatibility—make them ideal for various demanding applications across multiple sectors.
