Mechanical Property Testing for Reliable Superalloy Components
Superalloys are a critical component in industries that require materials to withstand extreme conditions, such as aerospace, energy, petrochemical, and automotive applications. To ensure that these high-performance alloys function as intended, rigorous testing of their mechanical properties is essential. Mechanical property testing, which includes tensile, fatigue, hardness, creep, and impact testing, provides valuable insights into superalloy parts' strength, durability, and reliability.
This blog explores the materials, manufacturing methods, benefits, post-processing techniques, testing methods, and industry applications of superalloys, highlighting how these contribute to producing reliable and high-performance components.
Superalloy Materials: An Overview
Superalloys are specialized alloys designed for use in environments that subject materials to high stress, high temperatures, and corrosive conditions. These alloys are engineered to maintain their mechanical properties, strength, and oxidation resistance, even under extreme conditions. They typically contain a combination of elements such as nickel, cobalt, and iron, along with other elements like chromium, molybdenum, and tungsten. The purpose of these additions is to enhance the material's performance, making them ideal for high-temperature, high-stress applications in industries such as aerospace, power generation, and chemical processing.
Key Superalloy Materials:
Inconel Alloys
Inconel is a family of nickel-chromium alloys that are highly resistant to oxidation and corrosion, making them ideal for high-temperature applications such as gas turbines and combustion chambers. They retain their strength and resist oxidation even at temperatures exceeding 1000°C, essential for components exposed to extreme thermal cycling.
Common grades:
Inconel 625: Offers excellent fatigue and thermal-fatigue strength, oxidation resistance, and weldability.
Inconel 718: Known for its high strength and resistance to corrosion at elevated temperatures, it is often used in turbine engines.
Inconel 939: Exhibits superior resistance to oxidation and high-temperature strength, suitable for use in combustion chambers and other critical aerospace components.
Monel Alloys
Monel alloys are a group of copper-nickel alloys known for their excellent corrosion resistance, especially in marine environments. They maintain their strength and structural integrity in seawater and other harsh conditions, making them ideal for marine applications, chemical processing, and aerospace components exposed to corrosive environments.
Common grades:
Monel 400: Known for its excellent corrosion resistance in seawater and high-stress environments.
Monel K-500: Provides enhanced strength and corrosion resistance, particularly in harsh marine environments.
Monel 404: Highly corrosion-resistant and widely used in marine and chemical applications.
Hastelloy Alloys
Hastelloy alloys are a family of nickel-based alloys with excellent resistance to a wide range of corrosive environments. These alloys are often used in chemical processing, power generation, and aerospace applications where components are exposed to highly corrosive or high-temperature environments.
Common grades:
Hastelloy C-276 is ideal for chemical processing due to its resistance to aggressive chemicals.
Hastelloy X: It is Known for its high-temperature strength and oxidation resistance and is suitable for aerospace applications.
Hastelloy C-22: Offers excellent resistance to oxidizing and reducing environments, ideal for high-stress chemical processing.
Stellite Alloys
Stellite is a family of cobalt-chromium alloys known for their wear resistance, corrosion resistance, and high-temperature stability. These alloys are commonly used in applications requiring wear resistance, such as turbine blades, valve seats, and cutting tools.
Common grades:
Stellite 6: Known for its exceptional wear resistance and toughness.
Stellite 12: Provides higher corrosion resistance, making it ideal for harsh environments.
Stellite 21: Offers superior wear resistance and stability at high temperatures.
Nimonic Alloys
Nimonic alloys are nickel-based superalloys with high strength, excellent thermal stability, and oxidation resistance, making them ideal for aerospace and gas turbine applications. These alloys are often used for turbine blades and other components that are subjected to high thermal stress.
Common grades:
Nimonic 75: Offers excellent creep resistance and high-temperature strength.
Nimonic 80A: Known for its high strength and resistance to oxidation, it is commonly used in turbine blades and discs.
Nimonic 90: Provides superior fatigue strength and resistance to thermal stress.
Titanium Alloys
Titanium alloys are well-known for their high strength-to-weight ratio, corrosion resistance, and ability to perform in high- and low-temperature environments. They are commonly used in aerospace, medical, and marine applications.
Common grades:
Ti-6Al-4V (TC4): A highly versatile alloy for aerospace and industrial applications.
Ti-6Al-4V ELI (Grade 23): Offers enhanced performance for critical aerospace applications.
Ti-15V-3Cr-3Sn-3Al: Known for its high strength and high-temperature resistance, it is often used in aerospace and high-performance engineering.
Each of these materials is carefully engineered and manufactured to meet the demanding requirements of aerospace, industrial, and marine applications. Neway's expertise in vacuum investment casting ensures that all these materials are processed to the highest standards, providing optimal performance in extreme environments.
Benefits of Superalloy Parts: Manufacturing Techniques
Superalloy parts are manufactured using advanced techniques that ensure high precision, structural integrity, and performance. These techniques allow manufacturers to create parts with complex geometries while maintaining tight tolerances and high material properties. Here, we explore the main manufacturing methods used for superalloy components:
Vacuum Investment Casting
Vacuum investment casting is a popular method for producing high-quality superalloy parts, particularly for turbine blades, impellers, and other intricate designs. This method provides several benefits, including:
Single Crystal Castings: In this process, the material is solidified to create a single crystal structure, which improves the part's resistance to creep and fatigue. Single crystal castings are ideal for high-stress components such as turbine blades.
Equiaxed Crystal Castings: In this method, the crystals grow in all directions, resulting in a more pliable material. Equiaxed castings, such as compressor blades and engine casings, are commonly used in parts that require high mechanical strength and toughness.
Superalloy Directional Castings: Directional solidification techniques control the cooling rate to ensure the formation of columnar grains in specific directions, improving the material's strength and thermal fatigue resistance. This method is widely used for parts like gas turbine blades.
Special Alloy Castings: By adjusting the alloy composition, superalloy casting can be tailored for specific applications. This customization allows the production of parts with superior properties such as enhanced oxidation resistance, fatigue strength, and thermal stability.
Powder Metallurgy Parts
Powder metallurgy involves compressing fine metal powders into shapes and then sintering them at high temperatures. This process is particularly beneficial for creating parts with complex geometries, such as turbine discs and gears. The key advantages include:
High Precision: Powder metallurgy allows for creating parts with complex shapes and tight tolerances.
Controlled Microstructure: By controlling the particle size and distribution, manufacturers can tailor the material's properties for specific applications.
Improved Mechanical Properties: Powder metallurgy can produce parts with excellent strength, toughness, and wear resistance, making it ideal for demanding environments.
Superalloy Precision Forgings
Precision forging is the process of shaping metal by applying compressive forces. Precision forging for superalloy parts allows for creating high-strength components with excellent material integrity. The benefits of precision forging include:
Improved Material Strength: The forging process refines the material's microstructure, enhancing the strength and fatigue resistance of the finished parts.
Uniformity: Precision forging ensures that parts have a uniform structure, reducing the risk of defects and ensuring reliable performance.
Tailored Geometries: The forging process allows for the production of parts with complex shapes, such as turbine discs and blades, essential for aerospace and power generation.
CNC Machined Superalloy Parts
CNC machining involves the use of computer-controlled tools to cut and shape superalloy parts. CNC machining is ideal for creating complex geometries with tight tolerances. Key benefits include:
High Precision: CNC machining provides accurate and repeatable results, essential for parts with intricate shapes or complex internal features.
Reduced Lead Times: CNC machining enables faster production times, which is particularly important for low-volume or custom parts.
Enhanced Surface Finish: CNC machines can produce smooth surfaces that reduce friction and wear, improving the overall performance of parts.
3D Printed Superalloy Parts
Additive manufacturing (3D printing) allows for the creation of superalloy parts layer by layer. This method offers several advantages:
Rapid Prototyping: 3D printing is ideal for creating prototypes quickly and efficiently, enabling designers to test and refine components before full-scale production.
Low-Volume Production: 3D printing is well-suited for low-volume or custom production runs, making it ideal for industries that require specialized parts.
Complex Geometries: 3D printing can produce parts with geometries that would be difficult or impossible to achieve using traditional manufacturing methods.
Post-Processing for Superalloy Components
After manufacturing, superalloy parts often undergo various post-processing treatments to improve their mechanical properties and performance. These processes include heat treatment, hot isostatic pressing (HIP), welding, thermal barrier coatings (TBC), and surface finishing.
Heat Treatment
Heat treatment is a critical process for refining the microstructure of superalloy parts. It involves heating the material to a specific temperature and then cooling it in a controlled manner. The benefits of heat treatment include:
Enhanced Strength and Toughness: Heat treatment can improve the material's strength, hardness, and toughness, making it suitable for high-performance applications.
Improved Fatigue Resistance: Proper heat treatment enhances the material's ability to resist fatigue, essential for parts exposed to cyclic loading.
Hot Isostatic Pressing (HIP)
Hot Isostatic Pressing (HIP) is a process that uses high temperature and pressure to eliminate porosity and improve the density of superalloy parts. The benefits of HIP include:
Reduced Porosity: HIP eliminates internal voids that could compromise the material's strength and reliability.
Improved Material Properties: HIP can improve the overall mechanical properties of superalloy parts, enhancing their performance in high-stress applications.
Superalloy Welding and Thermal Barrier Coatings (TBC)
Superalloy parts are often welded to join different components or repair damaged parts. Thermal barrier coatings are applied to parts to protect against high temperatures. These post-processing treatments ensure that superalloy parts maintain integrity and performance in extreme conditions.
Surface Finishing
Surface finishing techniques such as polishing, coating, and texturing improve superalloy parts' appearance, durability, and functionality. For example, a protective coating can improve corrosion resistance, while polishing can reduce friction and wear. CNC machining is often used for final machining to achieve precise dimensional accuracy and smooth surfaces, ensuring that the superalloy parts meet the desired specifications.

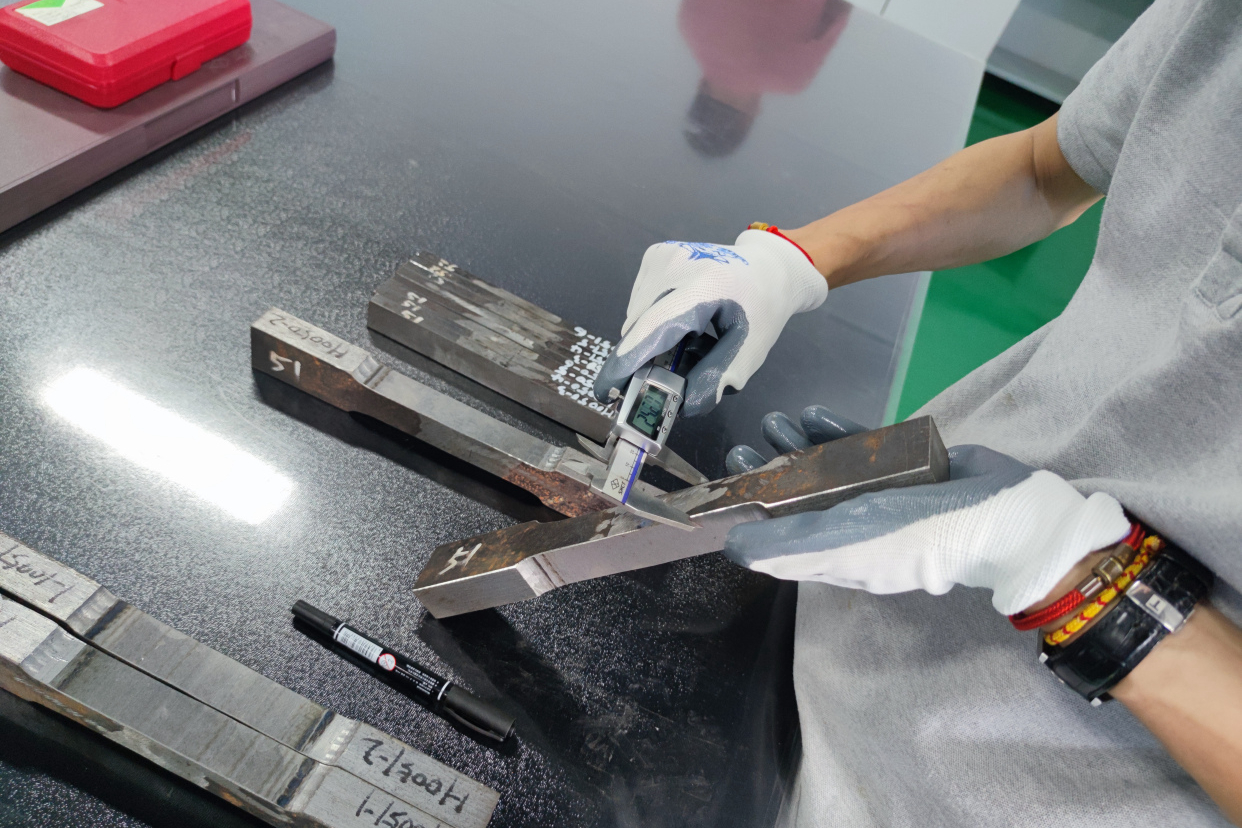

Mechanical Property Testing Methods
Mechanical property testing is essential to ensure the reliability of superalloy components. These tests help evaluate the material's strength, toughness, and resistance to failure under various conditions.
Tensile Testing
Tensile testing is one of the most common methods for evaluating a material's strength. It measures the ultimate tensile strength (UTS), yield strength, and material elongation under tensile stress. This test is crucial for determining whether a superalloy part can withstand the forces it will encounter during operation. Importance of Tensile Testing, Machine Checking in Superalloy Manufacturing, provides further insights into how tensile tests are carried out.
Fatigue Testing
Fatigue testing evaluates a material's ability to withstand repeated loading cycles. Superalloy parts in high-stress environments, such as turbine blades, are subjected to fatigue testing to determine their performance under cyclic loading conditions. The Dynamic and Static Fatigue Tester assesses fatigue resistance and ensures that the parts meet the necessary durability standards.
Hardness Testing
Hardness testing measures a material's resistance to deformation or wear. Superalloy parts are often subjected to hardness tests such as Rockwell or Vickers to withstand harsh environments. Hardness Testing Methods are crucial for evaluating superalloy components for high-stress applications.
Creep Testing
Creep testing evaluates how a material deforms under constant stress at elevated temperatures. This test is critical for superalloy parts used in high-temperature applications, such as turbine blades, where creep resistance is a critical factor in performance and longevity. How Thermal Physical Properties Test Platform Works in Superalloy Manufacturing offers additional details on testing creep resistance and other thermal properties.
Impact Testing
Impact testing measures a material's ability to absorb energy during a sudden impact. It is essential for evaluating superalloy parts' toughness and ability to withstand shocks or sudden stresses during operation. Impact Testing and Material Toughness discusses the importance of impact resistance in superalloy parts.
Inspection Methods for Superalloy Parts
In addition to mechanical testing, non-destructive testing (NDT) methods are used to detect defects and ensure the quality and integrity of superalloy components. Standard NDT methods include ultrasonic testing, X-ray inspection, and magnetic particle testing.
Scanning Electron Microscopy (SEM)
Scanning Electron Microscopy (SEM) is used to analyze the microstructure of superalloy parts, detecting defects such as cracks or inclusions. It provides detailed images of the material's surface and internal structure, essential for identifying potential issues that could affect performance.
Chemical Analysis
Chemical analysis techniques like Glow Discharge Mass Spectrometry (GDMS) and Inductively Coupled Plasma Optical Emission Spectrometry (ICP-OES) are used to verify the composition of superalloy materials. It ensures that the correct alloy mix has been used and the part meets the required specifications.
Industry Applications of Superalloy Components
Superalloy components are used in various industries, including aerospace, energy, petrochemical, and automotive. Their unique properties make them ideal for demanding applications.
Aerospace and Aviation
In the aerospace and aviation industry, superalloy components are essential for turbine blades, compressor discs, and high-temperature engine components used in jet engines and military aircraft. These parts must withstand extreme temperatures and mechanical stresses while maintaining structural integrity. Superalloys like CMSX alloys and Inconel are commonly used in these high-performance applications.
Energy and Power Generation
Superalloys are used in gas turbines, steam turbines, and components for nuclear power plants, where their high-temperature strength and corrosion resistance are critical for energy efficiency and reliability. Superalloy components in these systems help improve overall plant efficiency and extend maintenance intervals. These include parts such as superalloy heat exchangers and turbine blades.
Petrochemical and Chemical Industries
Superalloy valves, pumps, and reactors are used in the petrochemical and chemical industries for their resistance to corrosion and wear, making them ideal for handling corrosive fluids in harsh environments. Superalloys like Hastelloy and Stellite are often used in chemical reactors and valves where chemical resistance and durability are required.
Marine and Shipbuilding
In the marine and shipbuilding industry, superalloy components are used in marine turbines, valves, and engine parts, where their corrosion resistance and strength are vital for durability in seawater and other harsh conditions. Superalloy components also play a critical role in offshore platforms and propulsion systems exposed to seawater corrosion.
Automotive and Manufacturing
In the automotive industry, superalloy components are used in high-performance engines and structural parts that require strength and resistance to high temperatures and stresses. These parts include turbochargers, exhaust systems, and other critical engine components that operate under extreme conditions. Superalloys are also used in automotive turbochargers for performance enhancement and durability.
FAQs
What are the main types of superalloy casting methods, and how do they affect mechanical properties?
How do heat treatment and post-processing improve the mechanical properties of superalloy parts?
Why is mechanical property testing crucial for superalloy components used in high-stress applications?
What is the difference between tensile testing and fatigue testing for superalloy parts?
How does non-destructive testing (NDT) ensure the quality and integrity of superalloy parts?
