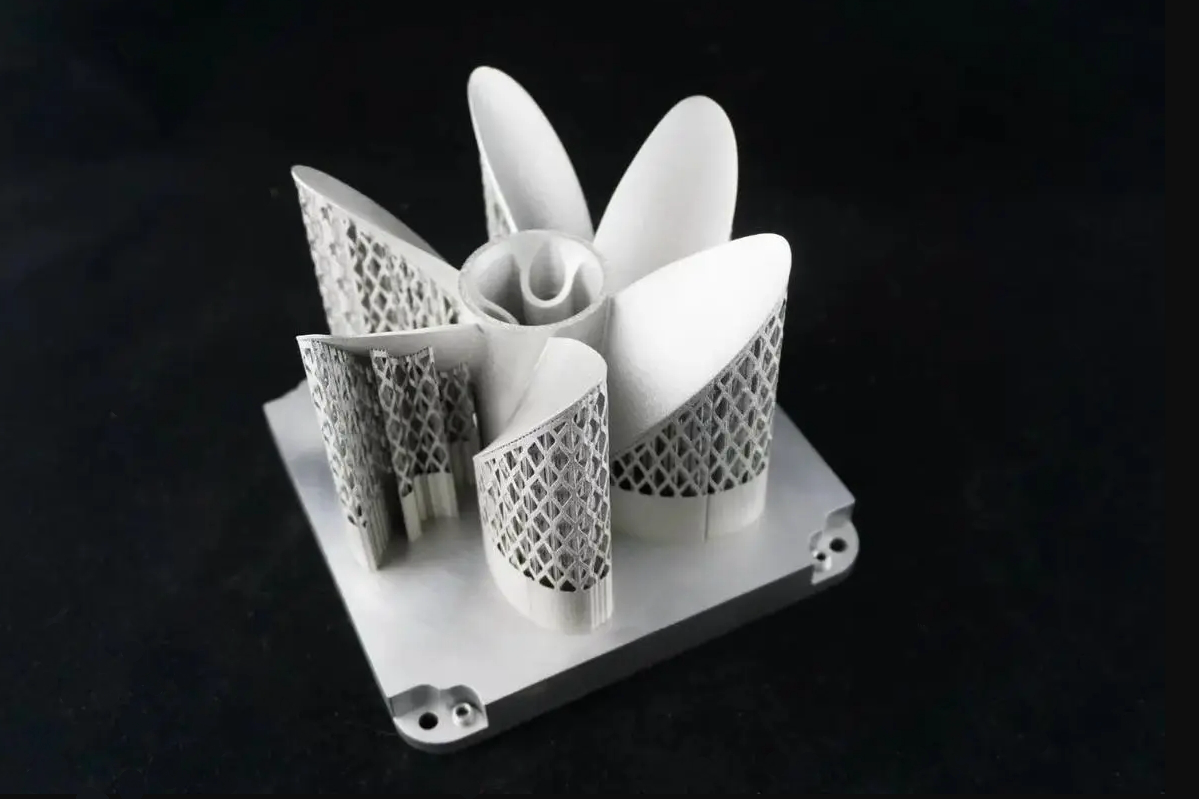

Manufacturing Inconel 718 Parts with SLM 3D Printing Technology
Inconel 718, a high-strength, nickel-chromium-based superalloy, is renowned for its exceptional resistance to extreme temperatures, oxidation, and corrosion. This alloy's unique properties make it ideal for high-stress applications across aerospace, power generation, oil and gas, and automotive industries, where reliability and durability are paramount.
Selective Laser Melting (SLM), an advanced additive manufacturing technology, has transformed manufacturers' production of complex Inconel 718 parts. SLM builds components layer by layer, using a high-powered laser to precisely melt powdered Inconel 718, resulting in high-density parts with fine-tuned properties. The ability of SLM to produce intricate geometries, minimize material waste, and create strong, reliable parts has accelerated the use of Inconel 718 in applications that demand high thermal stability, corrosion resistance, and exceptional mechanical properties.
Combining SLM with Inconel 718's superior material properties has opened new possibilities for complex, performance-critical applications, making this technology valuable for industries facing challenging environments.
Material Properties of Inconel 718 for SLM 3D Printing
Inconel 718 is a nickel-chromium alloy enriched with molybdenum, niobium, and titanium elements. This composition provides the alloy with high tensile strength, outstanding thermal stability, and remarkable resistance to oxidation and corrosion, even in aggressive environments. These characteristics make Inconel 718 a preferred choice for parts exposed to high temperatures, extreme pressure, and corrosive conditions, such as gas turbines, exhaust systems, and pressure vessels.
The mechanical properties of Inconel 718, including its hardness and yield strength, are enhanced when produced using SLM. The layer-by-layer fusion and precise laser control ensure that the alloy's dense, uniform structure is maintained, resulting in a component that can withstand the rigors of high-stress environments. SLM also reduces casting defects or inconsistencies with traditional manufacturing processes. It allows SLM to create complex, robust parts optimized for performance, making Inconel 718 a superior material choice for applications requiring a combination of durability, strength, and corrosion resistance.
SLM 3D Printing Process for Inconel 718: Methodology and Technology
Selective Laser Melting (SLM) is a metal additive manufacturing process that involves melting metal powder particles using a high-powered laser, layer by layer, to create a solid, fully dense component. The SLM process begins with a digital 3D model of the part sliced into hundreds or thousands of thin layers. Each layer of Inconel 718 powder is spread across the build platform, and the laser selectively melts the powder according to the digital model, fusing the particles to form each cross-section.
This process repeats for each layer until the entire part is built. The precision of SLM technology enables the production of parts with complex internal structures, undercuts, and lattice geometries that would be challenging or impossible to achieve through traditional manufacturing techniques. Moreover, SLM minimizes material waste, as only the necessary powder is melted to form each layer, making it a cost-effective option for manufacturing high-performance parts.
The layer-by-layer approach of SLM is particularly advantageous for Inconel 718. The controlled environment and precise laser energy input enable the alloy's microstructure to be fine-tuned, resulting in a high-strength part that exhibits optimal mechanical properties. By directly building complex Inconel 718 parts to the desired shape and tolerances, SLM reduces the need for extensive machining and finishing, thus accelerating the production timeline and enhancing efficiency.
Post-Processing Techniques for SLM 3D-Printed Inconel 718 Parts.
Once an Inconel 718 part is manufactured using SLM, post-processing steps are critical to enhancing its mechanical and thermal properties. These steps ensure the part achieves the required specifications for its intended application. Key post-processing techniques include:
Hot Isostatic Pressing (HIP)
Hot Isostatic Pressing (HIP) is often used to reduce internal porosity and improve the density of SLM-printed Inconel 718 parts. By subjecting the part to high pressure and temperature in a controlled environment, HIP helps to eliminate micro-voids, increasing the overall strength, fatigue resistance, and longevity of the part. This process is especially valuable for aerospace and energy components that require high durability under cyclic loads, making Inconel 718 parts more reliable for demanding applications.
Heat Treatment
Heat treatment of Inconel 718 involves aging and annealing processes that further improve the material's mechanical characteristics. Heat treatment optimizes hardness, thermal stability, and stress resistance, which are essential in high-temperature applications. The aging process strengthens the alloy by promoting the precipitation of strengthening phases, thereby enhancing the material's fatigue resistance and thermal performance for use in extreme environments.
Thermal Barrier Coating (TBC)
Thermal Barrier Coating (TBC) is applied to components exposed to extreme temperatures, such as jet engines or power generation turbines. This coating insulates the Inconel 718 part from excessive heat, extending the component's operational lifespan. TBCs are typically composed of ceramic materials that provide thermal protection, ensuring that the Inconel 718 base maintains its mechanical integrity under high temperatures.
Surface Finishing Techniques
Surface finishing techniques such as polishing, CNC machining, and coating improve the part's wear resistance, surface quality, and dimensional accuracy. These techniques enhance the surface finish, ensuring a smooth, precise surface that meets tight tolerance requirements. Surface finishing is especially important for Inconel 718 components used in high-precision assemblies where surface imperfections, such as in the aerospace and energy sectors, could affect performance.
Testing and Quality Assurance
Post-processing includes extensive testing and quality assurance measures to ensure that the final product meets industry standards. Testing methods such as tensile strength testing, fatigue testing, and dimensional inspection confirm that the part adheres to strict quality and safety requirements, ensuring reliability in critical applications.
Testing and Inspection of Inconel 718 SLM Parts
Testing and inspection are essential for SLM-printed Inconel 718 parts, as they ensure each component meets stringent requirements for reliability and performance. At NewayAero, a combination of advanced inspection methods is employed to verify the integrity and precision of each part:
Coordinate Measuring Machine (CMM) Testing
Coordinate Measuring Machine (CMM) Testing measures the part's dimensional accuracy. By scanning the part's geometry, CMM testing identifies any deviations from the original design, ensuring that the part meets precise specifications.
X-ray and CT Scanning
X-ray and CT Scanning provide non-destructive means of detecting internal flaws within the part, such as voids or cracks. These methods are crucial for verifying that the part's internal structure is free of defects that could compromise its strength or performance.
Scanning Electron Microscope (SEM) Analysis
SEM Analysis offers detailed insight into the microstructure of Inconel 718, enabling engineers to detect microscopic imperfections. SEM analysis is useful for examining grain structure, porosity, and surface integrity, which are critical for ensuring the material's reliability in demanding applications.
Tensile and Fatigue Testing
Tensile and Fatigue Testing measure the part's resistance to mechanical stresses. Subjecting Inconel 718 components to varying loads, these tests help determine their ability to withstand repeated use and harsh operational conditions without failure.
Corrosion and Thermal Testing
Corrosion and Thermal Testing are conducted to ensure that Inconel 718 parts can endure corrosive environments and extreme temperatures. These tests validate the material's resistance to oxidation, making it suitable for applications where corrosion and heat exposure are significant concerns.
Industry Applications of SLM-Printed Inconel 718 Components
SLM-printed Inconel 718 components are highly valued across multiple industries due to their strength, durability, and corrosion resistance. Here are some critical applications:
Aerospace
Inconel 718's high-temperature tolerance and oxidation resistance make it ideal for aerospace applications. Turbine blades, exhaust systems, and other structural components benefit from Inconel 718's ability to perform under intense mechanical and thermal stress, especially in jet engines and other high-performance aerospace systems. This alloy provides the durability required in critical components like superalloy exhaust system parts.
Power Generation
The power generation industry relies on Inconel 718 for parts used in high-efficiency gas turbines and other power plant components that experience high heat and pressure. SLM-printed parts allow for complex cooling channels and lightweight designs, which enhance energy efficiency. Inconel 718's strength at high temperatures is invaluable in heat exchanger modules and turbine components within power systems.
Oil and Gas
The oil and gas industry uses Inconel 718 in downhole drilling equipment, pressure containment systems, and other components exposed to high pressures, corrosive environments, and temperature fluctuations. SLM enables rapid production of durable, corrosion-resistant parts tailored to the unique demands of this industry. Inconel 718's robustness is crucial for components like high-temperature alloy pump components.
Automotive
Inconel 718 is used in high-performance exhaust systems and turbocharger components due to its heat resistance and durability. SLM-printed Inconel 718 parts provide lightweight, heat-tolerant solutions for automotive applications, particularly motorsports and high-performance vehicles. This alloy's resilience enhances the efficiency and longevity of exhaust and turbocharger systems.
Marine and Defense
Inconel 718's resistance to seawater and corrosion makes it suitable for marine and defense applications, including naval ship components and high-strength structural parts. These parts benefit from SLM's ability to produce robust, corrosion-resistant components with complex geometries, essential for applications like superalloy naval ship modules and high-stress defense components.
