Longest Axle Repair Capabilities with Laser Cladding Technology
In industries where equipment endures extreme conditions, axle integrity is crucial for safe and efficient operation. Whether in aerospace, automotive, power generation, or marine applications, the failure of a critical axle component can lead to costly downtime, maintenance, or, in worst cases, catastrophic failure. Laser cladding technology has emerged as a powerful, sustainable, and effective solution for repairing long axles, offering precise restoration and enhancing the axle’s surface properties. Laser cladding involves depositing a material onto a substrate using a high-energy laser, enabling precise control over the process and resulting in a uniform, high-performance cladding layer.
Unlike traditional repair methods, laser cladding minimizes the heat-affected zone, preserving the material’s core properties and significantly extending the service life of long axles in high-demand applications. Laser cladding’s ability to restore axles to their original functionality—and often beyond—has made it increasingly valuable across industries that rely on long axle components. From aerospace to oil and gas, manufacturers have come to rely on laser cladding not only to repair but also to enhance the performance and durability of their equipment.
Overview of Laser Cladding Technology for Long Axles
Laser cladding technology uses a focused laser to melt a cladding material, usually a high-performance alloy powder, onto the surface of an axle or similar component. This precise deposition process ensures that the coating adheres uniformly, adding a layer that resists wear, corrosion, and other forms of degradation. Laser cladding is an attractive alternative to traditional repair techniques like welding and thermal spray because it provides
high-quality finishes,
a minimal heat-affected zone, and
customizable coatings tailored to specific requirements.
Traditional repair methods, such as welding, have limitations regarding long axles. Welding can induce large heat-affected zones, distorting the substrate or causing internal stresses that compromising the part’s integrity. In contrast, laser cladding offers controlled, localized heat input, allowing for minimal impact on the surrounding material, preserving the axle’s microstructure, and enhancing its performance.
Suitable Materials for Long Axle Repair with Laser Cladding
Laser cladding is compatible with a wide range of materials, allowing manufacturers to tailor the repair to meet specific industry requirements. Here are some of the most suitable materials for long axle repair.
Inconel Alloys
Inconel alloys are high-performance materials known for their strength, oxidation resistance, and stability at high temperatures. With their nickel-chromium matrix, Inconel alloys are highly resistant to corrosion and fatigue, making them ideal for applications that experience extreme temperatures, such as gas turbines and power generation equipment. Laser cladding with Inconel 625 and Inconel 718 provides long-lasting protection, reducing the need for frequent repairs and maintenance in demanding environments.
Hastelloy Alloys
Hastelloy alloys are widely recognized for their exceptional corrosion resistance and thermal stability. Comprising a nickel-molybdenum-chromium matrix, Hastelloy alloys excel in chemical processing and oil and gas applications, where components are regularly exposed to aggressive chemicals. Laser cladding with Hastelloy C-276 and Hastelloy X is highly effective in environments with fluctuating temperatures and corrosive media, preserving axle integrity and performance.
Titanium Alloys
Titanium alloys, particularly Ti-6Al-4V, are lightweight yet high-strength materials with excellent corrosion resistance. They are often used in applications where weight reduction is crucial, such as in aerospace and marine environments. With laser cladding, titanium alloys can reinforce axle surfaces to withstand wear and corrosion, maintaining durability and reliability in harsh conditions. The reduced weight also enhances energy efficiency in systems where the axle weight impacts overall performance.
Laser Cladding Manufacturing Process
Laser cladding requires carefully controlled steps to achieve optimal performance and reliability, mainly when applied to long axles.
Material Preparation
The first step in laser cladding involves selecting the appropriate material for the repair. The cladding material must be prepared as a fine powder, whether Inconel, Hastelloy, titanium alloy, or another suitable material. This powder is carefully chosen based on the axle's operating conditions and performance requirements. Factors like thermal resistance, corrosion resistance, and wear characteristics ensure the material provides the desired properties for the application.
Laser Cladding Execution

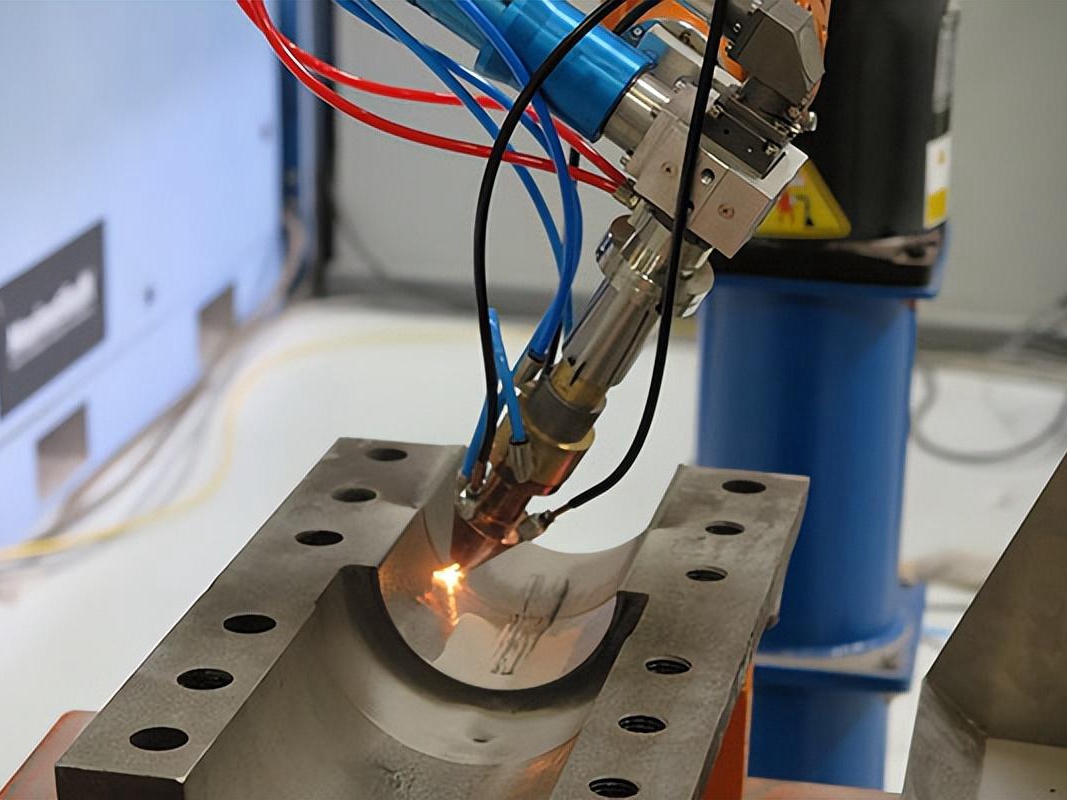

During the cladding process, a high-energy laser melts the cladding material and deposits it onto the surface of the axle. This localized heat input ensures minimal distortion and a limited heat-affected zone, which is critical in preserving the original properties of the axle. The laser cladding process is automated and monitored in real-time to control deposition speed, powder flow rate, and laser power, ensuring a consistent and uniform layer across the axle’s surface. The laser system moves precisely along the component for long axles to provide a seamless coating that enhances the axle’s durability and performance.
Real-Time Monitoring
Monitoring the cladding process is essential for maintaining quality. Advanced sensors and cameras track the laser’s movement, powder deposition, and temperature, allowing operators to make adjustments as necessary. This monitoring ensures that the layer thickness is uniform and meets the necessary specifications. Real-time monitoring also helps prevent defects like cracks or incomplete bonding, which can compromise the longevity of the repair.
Post-Processing Techniques for Laser-Cladded Long Axles
Once the laser cladding process is complete, additional post-processing steps are often required to optimize the axle’s performance. These steps include hot isostatic pressing (HIP), heat treatment, CNC machining, and material testing.
Hot Isostatic Pressing (HIP)
HIP is a post-processing technique that involves applying high pressure and temperature to the cladded axle. This step reduces internal porosity and improves mechanical properties, ensuring the cladding material adheres seamlessly to the substrate. By enhancing density and eliminating trapped gases, HIP maximizes the strength and durability of the axle, extending its lifespan in harsh operating conditions.
Heat Treatment
Heat treatment is used to relieve residual stresses and refine the microstructure of the cladding material. This step improves the mechanical properties and resistance of the axle, making it more resilient to fatigue and wear. Heat treatment is essential for long axles that experience significant load and torque during operation, as it helps distribute stress evenly throughout the component.
CNC Machining
After heat treatment, CNC machining is often necessary to achieve the precise dimensions required for the axle to fit seamlessly within its assembly. CNC machining ensures tight tolerances and a smooth surface finish, which is critical for maintaining the axle’s functionality and compatibility with other components. It removes excess cladding material, creating a refined, high-quality finish that meets industry standards.
Material Testing and Analysis
Material testing is conducted to confirm that the repaired axle meets performance requirements. This involves analyzing the cladded layer’s microstructure, hardness, and corrosion resistance to ensure the quality of the repair. Material testing is an essential quality assurance step that verifies the axle’s suitability for demanding applications.
Testing and Quality Assurance
Various testing and quality assurance measures ensure that laser-cladded long axles meet industry standards.
Coordinate Measuring Machine (CMM) Testing
CMM testing checks the dimensional accuracy of the axle after cladding and machining. It ensures that the repaired axle meets the specified tolerances and aligns with the required geometrical parameters, which is crucial for assemblies where precision is critical. This ensures that the repaired axle meets the specified tolerances and aligns with the required geometrical parameters, crucial for assemblies where precision is critical.
X-ray and Ultrasonic Testing
Non-destructive testing methods like X-ray and ultrasonic testing detect subsurface defects, voids, or inconsistencies in the cladded layer. These methods provide a clear image of the internal structure, confirming that the axle has no hidden weaknesses that could lead to premature failure.
Scanning Electron Microscope (SEM) Analysis
SEM analysis examines the microstructure of the cladded layer, ensuring that the deposited material has bonded correctly with the substrate. This detailed analysis is valuable for detecting microscopic imperfections that could affect the component’s performance.
Fatigue and Corrosion Testing
Fatigue testing evaluates the axle’s resilience under repeated stress, while corrosion testing ensures the material can withstand harsh environmental conditions. These tests are crucial for aerospace, oil and gas, and marine applications, where axles are subject to continuous wear and corrosive media.
Industries and Applications for Laser-Cladded Long Axles
Laser cladding technology is utilized across various industries to repair and enhance long axles for demanding applications.
Aerospace and Aviation
In aerospace and aviation, axles are exposed to high stress, extreme temperatures, and corrosive environments. Laser cladding provides the strength and durability to withstand these conditions, making it a popular choice for repairing landing gear components and structural axles. This technology ensures axles maintain integrity even under the extreme demands of aerospace applications.
Power Generation
Power generation relies on heavy-duty axles that endure high loads and thermal stresses. Laser cladding enhances the durability of axles in turbines, generators, and other critical power generation equipment, minimizing downtime and maintenance, thus ensuring operational efficiency and reducing long-term costs.
Oil and Gas
The oil and gas industry often deals with corrosive chemicals and high-pressure environments, which can degrade axle components. Laser cladding with materials like Hastelloy provides the corrosion resistance necessary for long-lasting performance in pipelines, drilling equipment, and pumps, making it an ideal solution for equipment exposed to aggressive environments.
Marine
Marine environments are highly corrosive, especially for propulsion systems and deck machinery components. Laser cladding with titanium alloys or other corrosion-resistant materials can significantly extend the lifespan of marine axles, improving reliability in saltwater conditions and ensuring longevity for critical components.
Automotive
Heavy-duty trucks and off-road vehicles require robust axles to handle high loads and abrasive conditions. Automotive applications benefit from laser cladding as a cost-effective solution to repair and enhance automotive axles, reducing the need for frequent replacements and improving overall vehicle performance, particularly in high-stress and demanding environments.
