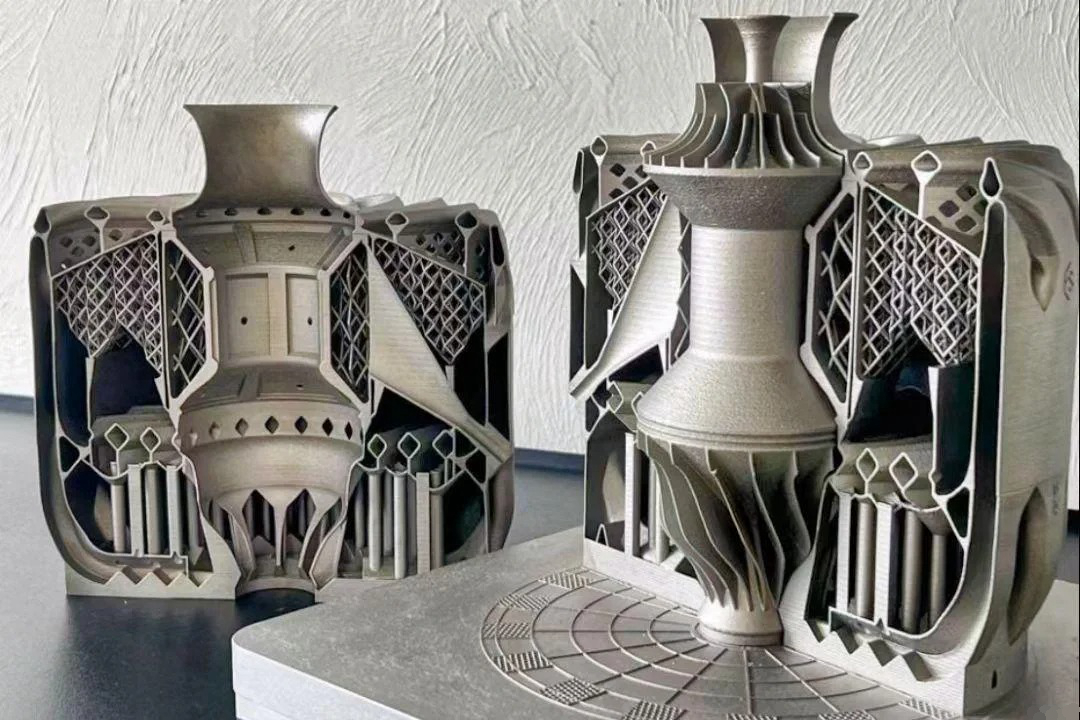

Localized Repair with LENS Laser Melting Deposition Technology
Components often endure extreme conditions in high-temperature alloy parts, leading to wear, erosion, and damage. In such cases, traditional repair methods may not suffice because of the damage's complexity or the materials involved. It is where LENS (Laser Engineered Net Shaping) Laser Melting Deposition Technology comes into play. LENS is an advanced additive manufacturing process that enables the localized repair of high-performance components, particularly those made from superalloys like Inconel, Hastelloy, and Titanium.
The LENS process uses a focused laser beam to melt metal powder, which is then deposited onto a damaged part to restore it to its original shape. The process is exact, making it ideal for repairing components that require exact geometry restoration, such as turbine blades, heat exchangers, and reactor vessel parts. As an alternative to traditional repair methods like welding or casting, LENS offers significant benefits, including reduced lead time, less material waste, and the ability to repair parts with complex geometries that are otherwise difficult to restore.
Manufacturing Process of LENS Laser Melting Deposition
The LENS process begins with the preparation of the damaged component. The area to be repaired is cleaned, and if necessary, preheating is applied to help minimize thermal stresses. Once the part is ready, the process proceeds layer by layer, with metal powder being deposited directly onto the damaged area using a focused laser beam. The laser heats the metal powder to a molten state, causing it to fuse with the underlying part. The metal solidifies as each layer is deposited, bonding with the part and building up the repair material.
One of the standout features of LENS is its ability to deposit material only in the damaged area, reducing the material required for the repair and minimizing the thermal impact on the surrounding areas. The layer-by-layer process allows precise control of the material’s properties, ensuring that the repaired area meets the same high standards as the original part. This localized repair method is beneficial for parts with complex shapes or intricate internal features that would be challenging to repair using traditional methods.
LENS also offers a unique advantage over conventional repair techniques, as it can restore parts without requiring extensive disassembly or re-machining. It can significantly reduce downtime in industries where equipment availability is crucial, such as aerospace and power generation. The repair process is fast and cost-effective, making it a popular choice for expensive or difficult-to-replace components.
Suitable Printing Materials for Localized Repair
LENS (Laser Engineered Net Shaping) Laser Melting Deposition Technology is compatible with many materials. However, several specific alloys are well-suited for localized repair for high-temperature alloy parts. These materials are chosen for their ability to withstand extreme environments, high pressures, and temperatures and their excellent mechanical properties. Here are some of the most common materials used for localized repair in industries such as aerospace, power generation, and chemical processing:
Inconel Alloy
Inconel alloys, such as Inconel 600, Inconel 625, Inconel 718, and Inconel 738, are renowned for resisting oxidation and corrosion in high-temperature environments. These nickel-chromium alloys offer excellent thermal resistance, making them ideal for repairing turbine blades, heat exchangers, and exhaust system parts in aerospace and power generation industries. Their ability to withstand extreme temperatures without losing strength makes Inconel preferred for parts exposed to thermal cycling and high-pressure conditions.
Monel Alloy
Monel alloys, such as Monel 400 and Monel K500, are primarily used for their corrosion resistance in marine and chemical processing applications. They are highly resistant to saltwater corrosion, making them ideal for repairing marine engine components, heat exchangers, and valve parts. Monel’s high strength and excellent resistance to seawater and acidic environments make it a crucial material for the oil and gas industry, where components are often subjected to harsh conditions.
Hastelloy Alloy
Hastelloy alloys, such as Hastelloy C-276 and Hastelloy C-22, are known for their excellent resistance to high-temperature corrosion, particularly in aggressive chemicals and high-pressure environments. These alloys are often used in the chemical processing industry to repair reactor vessel components, distillation equipment, and heat exchangers. Hastelloy’s superior resistance to stress corrosion cracking and pitting makes it a preferred material for chemical, nuclear, and oil applications.
Titanium Alloy
Titanium alloys, particularly Ti-6Al-4V, Ti-6Al-4V ELI, and Ti-3Al-2.5Sn, are highly valued for their strength-to-weight ratio, corrosion resistance, and biocompatibility. These alloys are commonly used in aerospace, automotive, and medical industries. Titanium’s lightweight properties and ability to withstand high temperatures make it an ideal material for repairing aircraft engine components, jet engine parts, and high-performance pump systems. The low density of titanium also helps reduce the overall weight of repaired components, which is a crucial factor in aerospace applications.
Post-Processing for Enhanced Durability and Performance
After the LENS process, post-processing is often required to enhance the mechanical properties and overall performance of the repaired parts. The following post-processing techniques are commonly employed to ensure that the repaired components meet industry standards for strength, fatigue resistance, and longevity:
Hot Isostatic Pressing (HIP)
Hot Isostatic Pressing (HIP) eliminates residual porosity after the LENS deposition. This technique involves placing the repaired part in a high-pressure, high-temperature environment, which forces the pores to close and improves the material’s density. HIP also enhances the mechanical properties of the part, such as tensile strength and ductility, making it suitable for high-stress applications.
Heat Treatment
Heat treatment is often applied to adjust the microstructure of the repaired material, improving properties such as hardness, strength, and toughness. Heat treatments, such as solution annealing, aging, and quenching, are tailored to the specific alloy used and the desired material characteristics. This process helps ensure the repaired component performs optimally under high-temperature conditions, improving its longevity and reliability.
Superalloy Welding
Superalloy welding may further enhance the repaired component's integrity for certain types of repairs. Welding can reinforce the repaired area or join different sections of a part that may have been damaged. This technique is beneficial when repairing more significant components or complex geometries, maintaining the component's strength and stability.
Thermal Barrier Coating (TBC)
Thermal barrier coatings (TBC) are often applied to high-temperature components to protect them from the damaging effects of thermal cycling and oxidation. TBCs help improve the lifespan of repaired parts by providing a layer of insulation that reduces the temperature gradient across the component’s surface, enhancing its resistance to thermal degradation.
Superalloy CNC Machining and EDM
Superalloy CNC and electrical discharge machining (EDM) are often used to finish the repaired part, ensuring it meets the required geometric tolerances and surface finish standards. These techniques allow for the precise shaping of complex components, ensuring the repair does not compromise the part's functionality and performance.
Testing and Quality Assurance in Localized Repair
Comprehensive testing ensures that repaired components meet the stringent quality standards required for high-temperature applications. Various methods are employed to assess the integrity, mechanical properties, and performance of the repaired parts:
Non-Destructive Testing (NDT)
X-ray testing, ultrasound, and CT scanning are commonly used to detect internal defects in the repaired areas, such as voids or cracks. These methods help identify any issues that may affect the performance or safety of the component without damaging the part.
Material Testing
Testing for chemical composition is carried out using advanced tools such as the Glow Discharge Mass Spectrometer (GDMS) and Inductively Coupled Plasma Optical Emission Spectrometer (ICP-OES). These tests ensure that the material used for repair matches the original part's elemental composition, ensuring the repaired part maintains its expected performance.
Mechanical Testing
Mechanical testing, including tensile and fatigue testing, is conducted to assess the strength and durability of the repaired part under stress. These tests are essential for components subjected to dynamic forces or extreme temperatures.
Microstructural Analysis
Scanning Electron Microscopy (SEM) and Metallographic Microscopy are used to examine the microstructure of the repaired material. These techniques help identify imperfections, such as grain boundaries, that may impact the performance of the repaired part.
Thermal Performance Testing
Thermal performance tests, such as those conducted using Simultaneous Thermal Analyzers (STA) or thermal physical properties test platforms, are crucial for assessing how the repaired part will perform under high-temperature conditions.
Industries and Applications of LENS Laser Melting Deposition for Localized Repair
The ability to restore high-temperature alloy parts with precision makes LENS Laser Melting Deposition (LMD) Technology a game-changer across various industries, where downtime is costly, and parts are often subjected to extreme conditions. Below are some of the industries and applications where LENS repair technology plays a vital role:
Aerospace and Aviation
In aerospace, the need for reliable, high-performance components is critical. LENS technology is used to repair turbine blades, exhaust system parts, and engine components, ensuring that these parts can withstand extreme temperatures and stresses. The technology reduces the need for costly part replacements and extends the operational life of critical components. For example, superalloy exhaust system parts can be restored to their original functionality with high precision.
Power Generation
LENS is increasingly used in power plants to repair heat exchangers, combustion chambers, and other critical components exposed to high temperatures and pressures. The repair process is quick and effective, reducing plant downtime and increasing the longevity of expensive parts. Power generation plants can benefit from LENS technology by ensuring critical components like turbine discs and fuel system modules remain operational for extended periods, minimizing replacement costs.
Oil and Gas
In the oil and gas industry, LENS repair technology is used to restore valve components, pump systems, and downhole tools, all exposed to harsh conditions. The technology’s ability to repair complex geometries ensures that these parts can function reliably, even in challenging environments. For example, pump components that operate under extreme pressures and temperatures can be effectively restored using LENS.
Chemical Processing
Hastelloy alloys are commonly used in the chemical processing industry, where they are exposed to aggressive chemicals and high temperatures. LENS allows for the repair of reactor vessel components, heat exchangers, and piping systems, improving efficiency and reducing the need for costly replacements. The chemical processing industry relies on LENS technology to restore components like heat exchangers and reactor vessel parts, which are critical to maintaining the smooth operation of chemical plants.
Marine
Marine engine components, heat exchangers, and other parts subjected to saltwater corrosion are prime candidates for localized repair with LENS technology. Monel and Inconel alloys, with their excellent corrosion resistance, are commonly used in these applications, ensuring that components remain functional in harsh maritime conditions. Marine vessels benefit from LENS repair technology, particularly for components like superalloy heat exchanger parts, which are crucial for maintaining operational efficiency in salty, corrosive environments.
