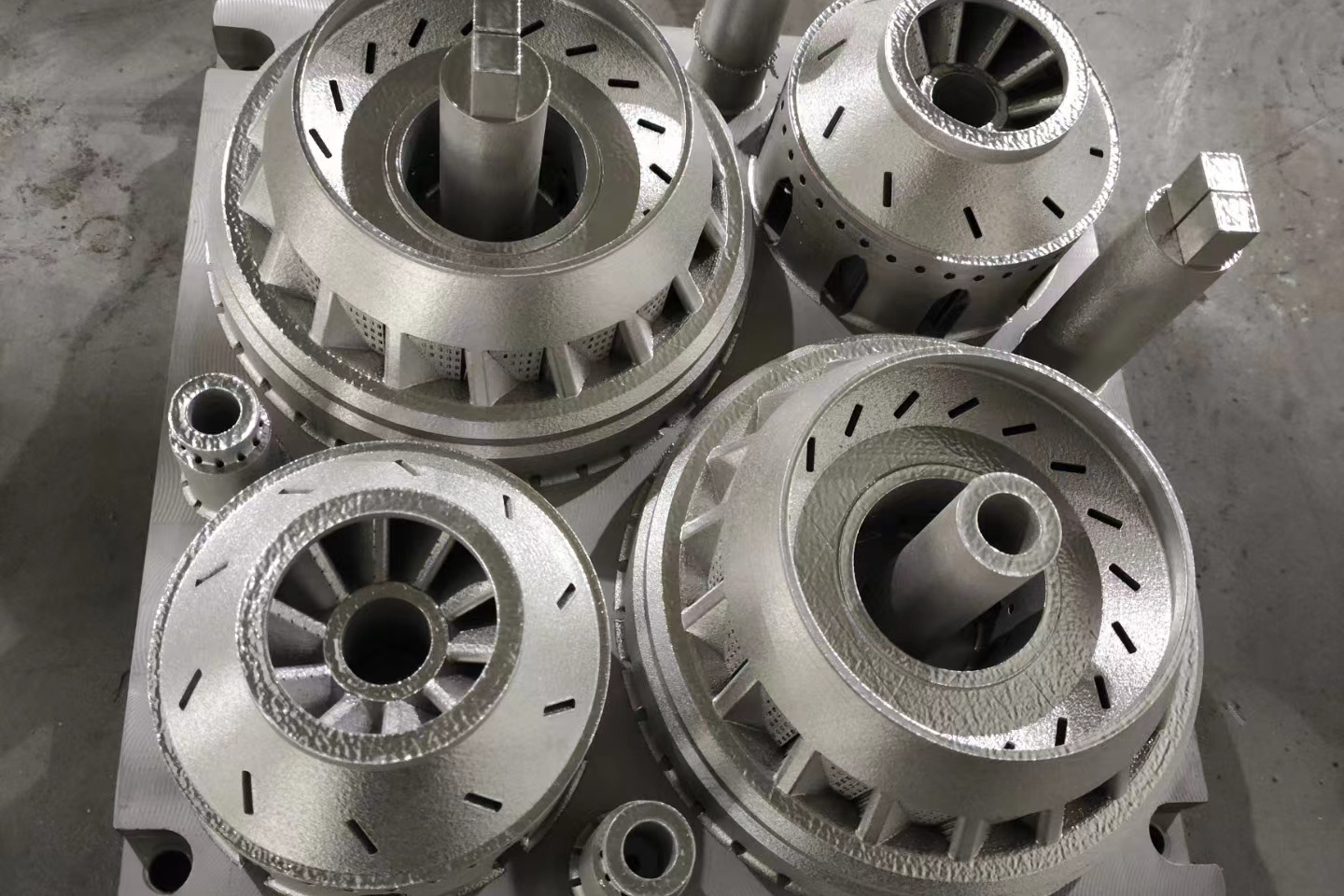

LENS Laser Melting Deposition (LMD) Metal 3D Printing Service
LENS Laser Melting Deposition (LMD) Metal 3D Printing Service
In recent years, 3D printing has revolutionized various industries, bringing new possibilities for product design, manufacturing, and innovation. One of the most advanced forms of 3D printing technology is the LENS (Laser Engineered Net Shaping) Laser Melting Deposition (LMD) process. This additive manufacturing technique is well-suited for producing high-performance metal parts made from superalloys and high-temperature materials like Inconel, Hastelloy, and Titanium alloys. The LMD process offers advantages over traditional manufacturing methods, mainly when producing parts with complex geometries, superior material properties, and faster production times.
This blog will explore the suitability of materials, manufacturing processes, post-processing methods, testing procedures, industries, and LMD applications in producing high-temperature alloy parts. From the initial vacuum investment casting to post-process treatments like Hot Isostatic Pressing (HIP), LMD opens up new avenues for producing durable, high-performance components for aerospace, energy, and defense industries.
What is LENS Laser Melting Deposition (LMD)?
LENS Laser Melting Deposition (LMD) is a form of additive manufacturing that uses a high-powered laser to melt metal powder, which is then deposited layer by layer to form solid parts. The process works by directing a laser beam onto a metal powder feedstock. As the laser melts the powder, it fuses with the underlying material or previously deposited layers, creating a solid structure. This additive process allows precise control of the part’s geometry, material composition, and surface properties, making it an ideal choice for manufacturing complex parts in demanding industries.
LMD is often compared to traditional casting or forging methods, as it allows for creating parts with intricate geometries that may be difficult or impossible to achieve using conventional techniques. One of the significant advantages of LMD is its ability to produce metal parts with high precision and minimal material waste. Unlike traditional subtractive manufacturing methods, which cut away material from a solid block, LMD builds parts layer by layer, only using the exact amount of material required for each part.
The LMD process is particularly advantageous for producing high-performance components exposed to extreme environments, such as those found in aerospace, power generation, and defense industries. Its ability to create complex, lightweight, and durable parts makes it a highly sought-after technology for manufacturing high-temperature alloys such as those used in aerospace and power generation.
Titanium Alloys
Ti-6Al-6V-2Sn, Ti-6Al-7Nb, Ti-15V-3Cr-3Sn-3Al, Ti-6.5Al-1Mo-1V-2Zr (TA15), and Ti-13V-11Cr-3Al (TC11) are popular titanium-based alloys used in metal 3D printing applications. These alloys are known for their excellent strength-to-weight ratio, high-temperature stability, and corrosion resistance. They are commonly used in aerospace, automotive, and biomedical industries where lightweight, high-strength materials are crucial.
Titanium alloys perform exceptionally well in LMD processes, offering high precision in component manufacturing. Their excellent fatigue resistance and ability to retain mechanical properties at elevated temperatures make them ideal for components that require high strength and lightness, such as engine parts and medical implants.
Manufacturing with LMD Metal 3D Printing
The manufacturing process with LMD begins with preparing the part’s digital model, typically created using CAD (Computer-Aided Design) software. Once the design is finalized, it is converted into a file format compatible with the 3D printer. The metal powder, often a blend of high-temperature alloys like Inconel, Hastelloy, or Titanium, is loaded into the printer.
During printing, a high-powered laser is directed onto the powder material, melting it and fusing it layer by layer to build the part. The laser’s heat ensures the metal particles melt and bond, forming a strong and cohesive structure. This process is repeated for each layer until the final part is complete.
One of the key benefits of the LMD process is its ability to combine multiple materials in a single part, a feature known as material blending or multi-material printing. It enables the production of parts with customized material properties, such as a strong core with a corrosion-resistant surface. The LMD process also offers the ability to integrate sensors or cooling channels into the printed parts, enhancing their functionality and performance.
Post-Processing for LMD Metal 3D Printing
Once the part is printed, it undergoes a series of post-processing steps to improve its material properties, surface finish, and dimensional accuracy. These steps ensure that the part meets the desired specifications and performs optimally in its intended application. Post-processing can include heat treatment, machining, and material testing, among others, to refine the printed part.
Testing and Quality Control
Ensuring the quality of LMD-printed metal parts is essential, particularly in industries where safety and performance are critical. Various testing methods are employed to verify the integrity, composition, and performance of LMD-printed parts. These include:
Metallographic Microscopy: To examine the microstructure of the material.
Tensile Testing: To measure the strength and flexibility of the material.
X-ray Testing and CT Scanning: To identify internal defects or voids in the part.
Scanning Electron Microscopy (SEM): This is used for high-resolution surface imaging and to assess the material’s quality.
Chemical Composition Analysis: Using tools like Glow Discharge Mass Spectrometry (GDMS) or ICP-OES to verify alloy composition.
Industries and Applications
LMD (Laser Metal Deposition) Metal 3D printing is used across various industries where high-performance, complex metal parts are required. Some of the primary industries and their applications include:
Aerospace and Aviation
LMD is used to create jet engine components, exhaust systems, turbine blades, and other high-performance aerospace parts. These components are critical for ensuring optimal performance and efficiency in the aerospace sector. Aerospace and aviation applications often use superalloys to withstand extreme temperatures and pressure.
Power Generation
Heat exchangers, turbine components, and reactor vessel parts made from Inconel and Hastelloy are commonly produced via LMD. These high-performance materials are essential for the demanding conditions in the power generation sector, ensuring efficiency and longevity in power plants.
Oil and Gas
Corrosion-resistant pump components, valve bodies, and chemical processing equipment are produced via LMD to endure the harsh oil and gas extraction and transportation conditions. Oil and gas applications benefit from LMD's ability to create complex geometries while maintaining material properties like strength and resistance to wear.
Military and Defense
LMD is used to manufacture lightweight, solid components for missile systems, armor systems, and naval ships. These components must meet stringent durability and performance standards. Military and defense applications often rely on titanium alloys, Inconel, and other high-strength alloys.
Medical and Automotive
LMD is employed to create custom parts such as titanium implants and lightweight automotive components. This technology allows for highly precise, tailored parts in medical devices and the automotive industry, reducing material waste and enabling design flexibility.
FAQs
What are the key advantages of using LENS Laser Melting Deposition (LMD) for metal 3D printing?
Which materials are most commonly used for LMD Metal 3D Printing?
How does LMD compare to traditional manufacturing methods like casting or forging?
What are the post-processing steps involved in LMD metal 3D printing?
