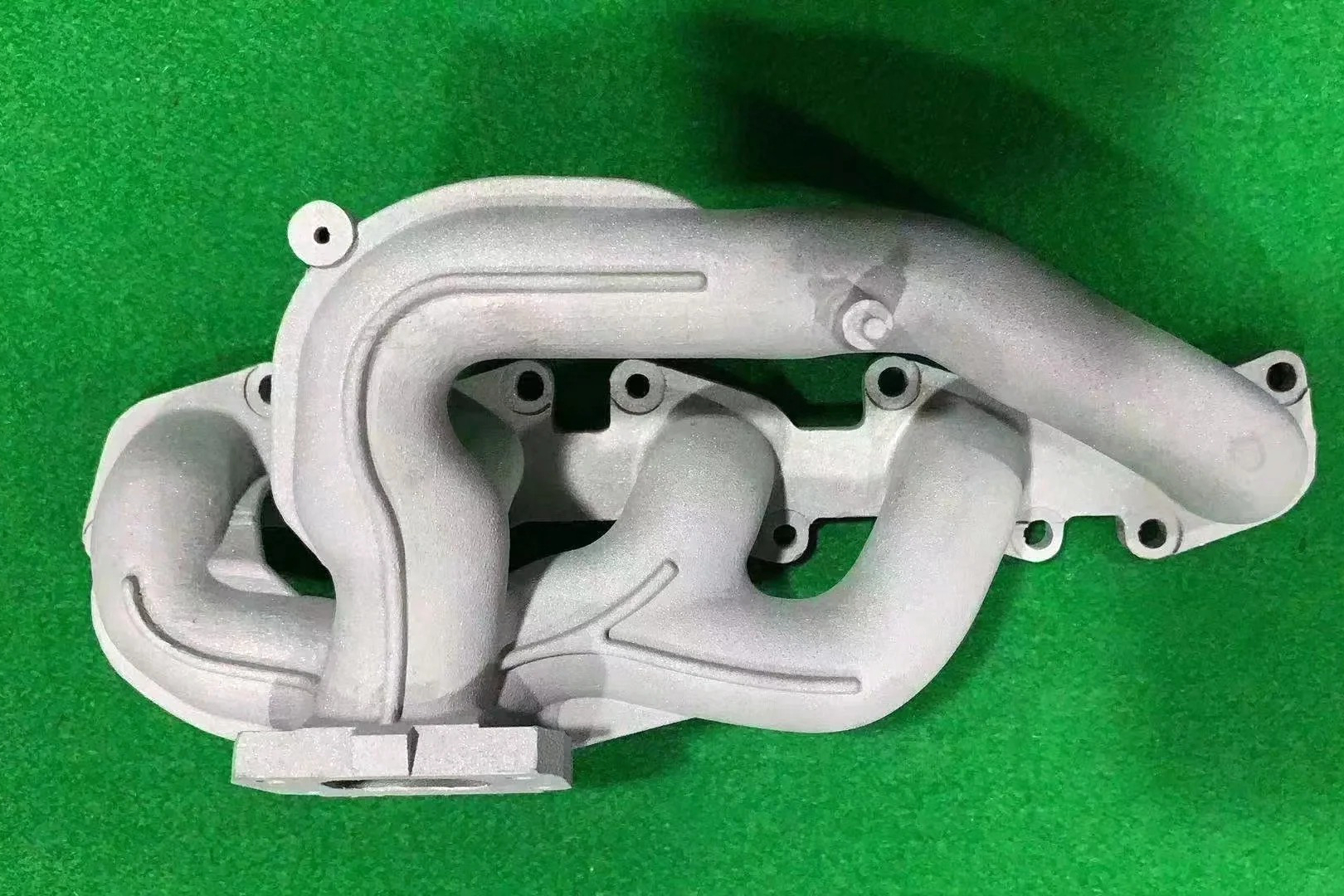

Laser Cladding for Enhanced Surface Coatings and Repairs
Laser cladding is an advanced surface treatment and repair technique that is gaining widespread use in various industries due to its ability to enhance the properties of superalloy components. This technique involves the application of a laser beam to melt and deposit a metal powder or wire onto a substrate, creating a metallurgical bond that improves surface properties such as wear resistance, corrosion resistance, and thermal protection.
Laser cladding is particularly beneficial in industries that require high-performance components capable of withstanding extreme conditions, such as aerospace and aviation, energy, and marine sectors. The enhanced surface properties provided by laser cladding significantly improve the lifespan and reliability of critical parts exposed to wear, heat, and corrosive environments.
Laser Cladding Manufacturing Process
The laser cladding process begins by selecting a suitable laser source, typically a high-powered laser, which is directed onto the surface of the workpiece. The laser energy heats the substrate material, creating a molten pool on the surface. Simultaneously, a fine metal powder or wire is fed into the laser beam, and the molten pool solidifies upon cooling, forming a dense and metallurgically bonded coating. The result is a surface with enhanced properties compared to the base material, offering benefits such as increased wear and corrosion resistance.
Several factors influence the quality and performance of laser-cladding parts, including the laser power, scanning speed, powder feed rate, and the distance between the laser and the workpiece. The laser's high precision enables the creation of thin coatings with minimal heat-affected zones, ensuring that the underlying material remains largely unaffected by the process. This level of precision allows laser cladding to be applied to various high-performance alloys, such as Inconel and Hastelloy, which are commonly used in critical industries like aerospace and power generation.
Laser cladding offers distinct advantages over traditional surface treatment methods, such as welding or thermal spraying. Unlike these methods, which may result in unwanted heat input or the need for extensive post-processing, laser cladding provides precise control over the coating's thickness, composition, and microstructure. Additionally, laser cladding can be applied to a wide range of materials, making it highly versatile for repairing or enhancing components used in critical applications, including turbine blades and engine components, where extreme temperature resistance is essential.
Suitable Materials for Laser Cladding
Laser cladding is highly effective when using high-performance alloys, especially those that can withstand extreme environments such as high temperatures, corrosion, and wear. Some of the most commonly used materials in laser cladding for superalloy components include:
Inconel Alloys
Inconel alloys, particularly those from the Inconel 600, Inconel 625, and Inconel 718 families, are among the most commonly used materials in laser cladding due to their excellent high-temperature properties, corrosion resistance, and strength. Inconel alloys are widely used in the aerospace, power generation, and marine industries. For example, Inconel 625 and Inconel 718 are often chosen for turbine blades and other critical components exposed to extreme temperatures and mechanical stresses. These alloys also offer outstanding resistance to oxidation, thermal fatigue, and creep, making them ideal for laser cladding in environments with fluctuating temperatures or corrosive atmospheres.
Monel Alloys
Monel alloys, such as Monel 400 and Monel K500, are nickel-copper-based alloys known for their excellent corrosion resistance, especially in seawater and chemical environments. Laser cladding with Monel alloys is ideal for marine, oil and gas, and chemical processing applications. The corrosion resistance of Monel alloys makes them perfect for applications like valve bodies, pump components, and downhole tools, where components are exposed to harsh environments, including high pressures and corrosive chemicals. Laser cladding with Monel alloys enhances the longevity and durability of these components by providing a robust and long-lasting surface layer.
Hastelloy Alloys
Hastelloy alloys, including Hastelloy C-276 and Hastelloy X, are known for their exceptional resistance to corrosion and high-temperature performance. These alloys are commonly used in the petrochemical, chemical, and nuclear industries. Laser cladding with Hastelloy alloys improves the wear resistance and strength of components exposed to aggressive chemicals, extreme temperatures, and mechanical stress. Hastelloy C-276, for example, is highly resistant to a wide range of acids, making it suitable for reactors, piping, and heat exchangers in chemical processing applications.
Titanium Alloys
Titanium alloys such as Ti-6Al-4V and Ti-6Al-2Sn-4Zr-6Mo are widely used in industries that require lightweight yet durable materials. Titanium alloys offer high strength-to-weight ratios, excellent corrosion resistance, and outstanding thermal stability, making them suitable for aerospace, automotive, and medical applications. Laser cladding with titanium alloys enhances the wear resistance, fatigue resistance, and overall surface durability of components such as aerospace engine parts, medical implants, and automotive engine components. The ability to create precise, thin coatings with minimal heat input is particularly beneficial for titanium alloys, which are sensitive to high temperatures.
Laser Cladding Post-Processing
Once the laser cladding process is complete, several post-processing steps are required to optimize the performance and quality of the cladding surface. These processes ensure that the components meet the stringent requirements of high-performance industries.
Heat Treatment
Heat treatment is commonly employed after laser cladding to relieve residual stresses and improve the mechanical properties of the cladding layer. The heat treatment typically involves heating the cladded part to a specified temperature, followed by controlled cooling to achieve the desired microstructure. For instance, solution and stress-relief annealing often reduce internal stresses that may have developed during cladding. This step is crucial for ensuring the cladded surface maintains its integrity and does not develop cracks or other failures over time.
Surface Finishing
After laser cladding, the part's surface may require additional finishing processes to improve its smoothness and ensure it meets the specifications. Techniques such as grinding, polishing, or shot peening improve the surface finish of cladded parts. These processes help to remove any excess material, smooth out rough edges, and increase the resistance of the surface to wear and fatigue. In specific applications, precise surface finishes are critical to the function and performance of the component, making post-processing an essential step in the overall manufacturing process.
Hot Isostatic Pressing (HIP)
Hot Isostatic Pressing (HIP) is often used to eliminate any porosity present in the cladding layer. This process involves subjecting the cladded part to high pressure and temperature in an inert gas environment, which helps to densify the material and improve its mechanical properties. HIP treatment is essential for critical components that require high reliability, as it eliminates voids or defects that could compromise the performance of the part under load or stress.
Testing and Quality Control for Laser-Cladded Parts
The quality of laser-cladding parts is verified through several testing and inspection techniques to ensure that they meet the required standards for strength, durability, and surface properties.
Non-Destructive Testing (NDT)
Non-destructive testing methods such as ultrasonic testing, X-ray inspection, and eddy current testing are widely used to detect defects like cracks, porosity, or delamination in the cladded surface. These methods allow manufacturers to assess the integrity of the cladded part without damaging it, ensuring that it meets quality standards before being used in critical applications.
Mechanical Testing
Mechanical testing techniques, including tensile, hardness, and fatigue, are used to evaluate the cladding surface's strength, hardness, and fatigue resistance. These tests help to confirm that the cladded material can withstand the stresses and environmental conditions it will be exposed to in its intended application. In particular, hardness testing directly measures the material's resistance to wear, while fatigue testing simulates the performance of components under cyclic loading.
Microstructural Analysis
Scanning electron microscopy (SEM) and optical microscopy are used to analyze the microstructure of the laser-cladded surface. These techniques provide
detailed images of the coating's morphology,
enabling the identification of any defects such as cracks,
porosity, or
poor bonding between the coating and the substrate.
Microstructural analysis is essential for ensuring that the cladded surface meets the required standards for material performance.
Chemical Composition Analysis
Chemical composition analysis using techniques such as Glow Discharge Mass Spectrometry (GDMS) or Inductively Coupled Plasma Optical Emission Spectroscopy (ICP-OES) is essential for verifying the elemental composition of the cladded material. This ensures that the correct alloying elements are present in the coating and that the cladding process has not introduced any unintended contaminants.
Industries and Applications of Laser Cladding for Superalloy Components
Laser cladding is used in various industries to enhance the performance and extend the service life of components exposed to extreme conditions. Some of the key industries and applications include:
Aerospace
In the aerospace industry, laser cladding is used to repair and enhance turbine blades, gas turbines, and other critical engine components. These parts are subject to extreme temperatures, mechanical stresses, and oxidation, making laser cladding an ideal solution for improving their durability and performance. Repairing damaged components and applying wear-resistant coatings in situ also helps reduce costs and downtime in aircraft maintenance. Jet engine components can be efficiently restored using laser cladding, ensuring the longevity and performance of vital parts.
Power Generation
Laser cladding plays a vital role in the power generation sector, where components such as turbine blades, combustion chambers, and heat exchangers are exposed to high temperatures and mechanical stresses. Laser cladding helps extend the life of these components, improving the overall efficiency and reliability of power plants. Superalloy furnace assemblies benefit from the enhanced wear and corrosion resistance laser cladding provides, ensuring prolonged operational life.
Oil and Gas
In the oil and gas industry, laser cladding is used to repair and enhance the performance of downhole tools, pumps, valves, and other critical components. These parts are often exposed to extreme pressure, temperature, and corrosive environments, making laser cladding a valuable technique for improving their lifespan and resistance to wear and corrosion. Superalloy pump system assemblies can be treated with laser cladding to improve their service life in harsh operating conditions.
Chemical Processing
In chemical processing, components such as reactors, piping, and heat exchangers are subject to harsh environments that can cause rapid wear and corrosion. Laser cladding helps protect these components by providing a tough, corrosion-resistant surface, increasing their service life and reducing maintenance costs. For instance, laser cladding is ideal for reactor vessel components, ensuring these critical parts withstand aggressive chemicals and high temperatures.
Marine
Laser cladding is commonly used in the marine industry to protect components exposed to seawater and other corrosive environments. Components such as propellers, pump shafts, and valves benefit from laser cladding, improving their resistance to corrosion and wear, reducing downtime and maintenance costs. Superalloy naval ship modules are one of the critical applications for laser cladding in the maritime sector.
Automotive and Industrial
Laser cladding is also used in the automotive and industrial sectors to improve the durability of engine parts, transmission components, and other high-wear components. The wear-resistant properties of cladded surfaces help enhance the longevity and performance of these parts, particularly in demanding applications. Transmission component assemblies benefit significantly from laser cladding by extending their operational lifespan under high-stress conditions.
