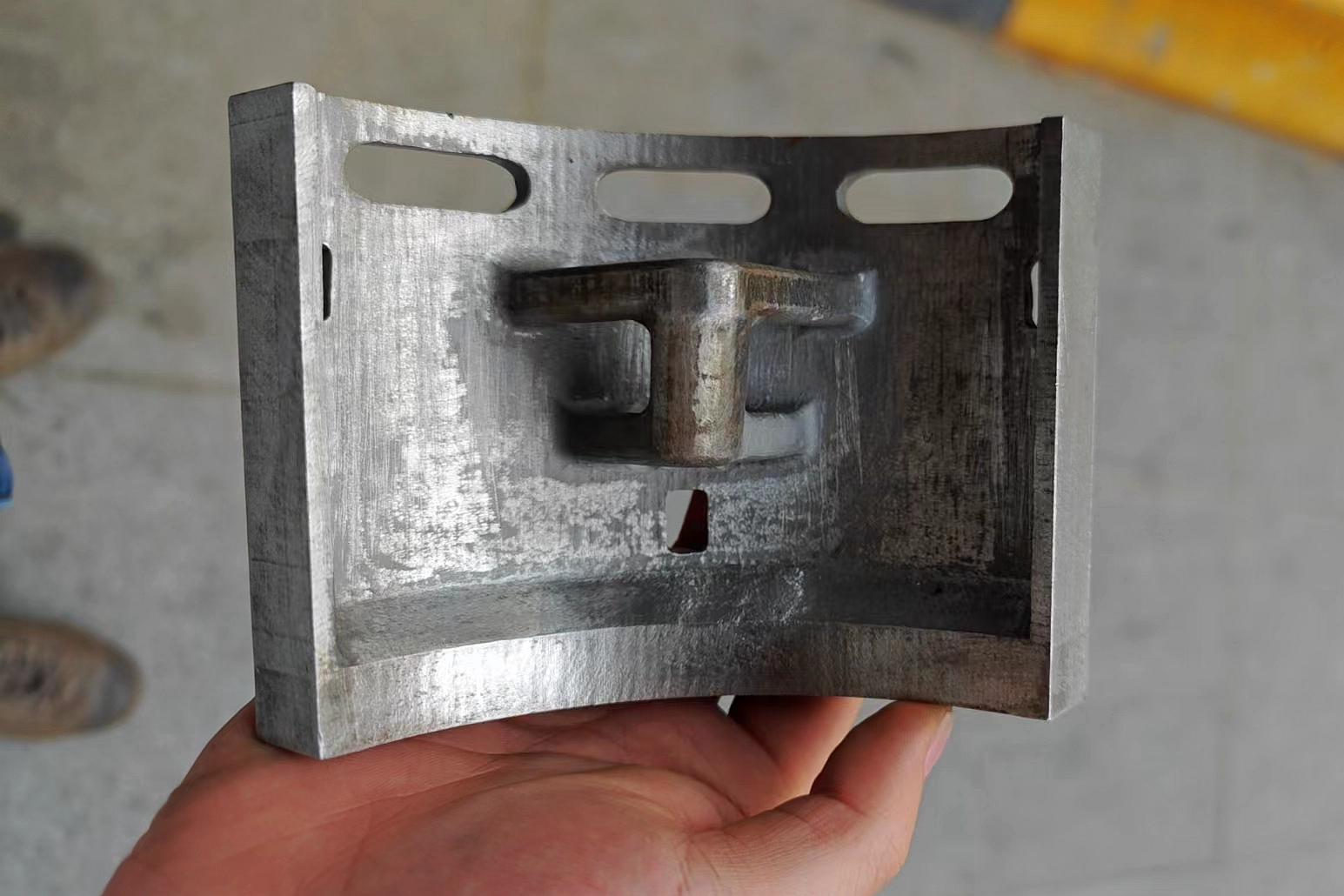

Laser Cladding Applications for Stainless Steel Grades 304 and 316L
Laser cladding is a highly advanced surface modification technology that is becoming increasingly popular for enhancing the properties of metals used in critical applications. This technology is particularly effective in improving materials' wear, corrosion, and heat resistance, making it a perfect solution for industries that demand high-performance materials. Laser cladding can significantly improve their properties when applied to stainless steel grades such as 304 and 316L, ensuring longer service life and better performance in challenging environments.
Stainless steel grades 304 and 316L are widely used in industries that require corrosion resistance, strength, and durability. These materials are commonly found in applications ranging from aerospace to food processing. However, in some cases, their surface properties need to be enhanced to ensure they can perform under extreme conditions. Laser cladding offers an efficient and precise method for modifying the surface characteristics of these stainless steel grades, improving their performance in various applications. This blog explores the process of laser cladding for stainless steel 304 and 316L, its benefits, and how it can be applied in multiple industries.
Understanding Laser Cladding for Stainless Steel
Laser cladding is a surface modification process where a high-powered laser beam is used to melt a cladding material, typically in the form of a powder or wire feedstock, and apply it onto a substrate material. This cladding material is usually a more specialized alloy that enhances the surface properties of the base material. During the process, the laser melts both the cladding and substrate, resulting in a metallurgical bond that significantly improves the material's surface characteristics.
In the case of stainless steel grades 304 and 316L, laser cladding creates a protective layer that enhances corrosion resistance, wear resistance, and thermal stability. These qualities are essential in aerospace, oil and gas, marine, and food processing industries, where stainless steel components are exposed to harsh environments, high wear, and extreme temperatures. By applying laser cladding, manufacturers can extend the lifespan of stainless steel parts, reduce maintenance costs, and enhance their overall performance.
Materials for Laser Cladding: Focus on Stainless Steel Grades 304 and 316L
Grade 304 Stainless Steel
Grade 304 Stainless Steel is one of the most commonly used alloys in various applications due to its good balance of strength, corrosion resistance, and ease of fabrication. It contains chromium (18%) and nickel (8%) in its composition, making it resistant to corrosion in many environments, including food and beverage industries. However, it may not be suitable for applications exposed to extreme conditions like high-temperature environments or aggressive chemicals. By using laser cladding with specialized alloys, manufacturers can improve its resistance to wear and corrosion, making it more suitable for industries such as automotive, construction, and food processing.
Grade 316L Stainless Steel
Grade 316L Stainless Steel is a low-carbon version of the standard 316 stainless steel. This grade is renowned for its exceptional corrosion resistance, especially in chloride-rich environments, making it ideal for marine, chemical, and medical applications. The additional molybdenum (2–3%) in its composition enhances its resistance to corrosion and pitting. However, 316L stainless steel can face challenges in extreme environments, such as high-velocity abrasion or high temperatures. Laser cladding with alloys that offer enhanced wear or heat resistance can improve the longevity and performance of these components, ensuring they remain functional in demanding applications like seawater pumps, chemical reactors, and heat exchangers.
Manufacturing Process of Laser Cladding for Stainless Steel
The process of laser cladding for stainless steel begins with the preparation of the base material. Before applying the cladding material, the substrate is carefully cleaned to remove any contaminants that might affect the bonding process. It includes removing oil, grease, rust, or other residues from the surface, as these can interfere with the bond quality between the substrate and the cladding. Like the surface preparation in vacuum investment casting, this step is critical, ensuring that the cladding adheres optimally to the substrate.
Once the substrate is prepared, the laser cladding process begins. A high-powered laser beam is directed at the stainless steel substrate, while a feedstock material, usually powder, is introduced to the laser beam. The heat generated by the laser melts both the cladding material and the surface of the stainless steel substrate. As the materials melt, they fuse to form a strong metallurgical bond. The laser is precisely controlled to ensure the molten pool is kept at the correct temperature, preventing overheating and ensuring a uniform coating. This control is similar to processes used in superalloy precision forging, where maintaining the right temperature and consistency is critical to achieving high-quality results.
The process parameters, such as the laser’s power, speed, and focus, play a crucial role in determining the quality of the cladding. The laser's intensity determines how deep the cladding material can penetrate the substrate, while the laser speed and the material's feed rate control the coating's thickness and consistency of the laser's speed. The material's feed rate controls the coating's thickness and consistency. Adjusting these parameters allows manufacturers to optimize the cladding layer to meet the application's specific requirements. This precision is essential for parts made from high-performance materials, like those used in superalloy single-crystal casting, where exact control of material properties is crucial.
One of the key benefits of laser cladding is its ability to create coatings with high precision and minimal heat distortion. It allows for applying cladding materials on complex geometries and delicate components where traditional coating methods might not be feasible. Moreover, the laser cladding process is highly efficient, as it uses very little material, making it an environmentally friendly option compared to other surface modification techniques like superalloy rough forging.
Post-processing for Stainless Steel Components After Laser Cladding
After the laser cladding process is complete, several post-processing steps are required to optimize the properties of the cladded stainless steel. These processes ensure the cladding layer achieves its desired mechanical properties and performance characteristics.
Hot Isostatic Pressing (HIP)
After laser cladding, parts may have some porosity or internal defects due to the high-energy input from the laser. Hot Isostatic Pressing (HIP) is a post-processing technique that uses high pressure and temperature to consolidate the material, eliminating any remaining porosity and improving the overall density and strength of the cladded component. This process ensures a more uniform and defect-free surface, which enhances the mechanical properties of the component, particularly in applications requiring high performance under stress.
Heat Treatment
Heat treatment is a critical step in achieving the laser-clad material's desired hardness, toughness, and strength. Depending on the alloy used for cladding, heat treatment processes like annealing, solution heat treatment, or aging can help modify the cladded material's microstructure. It improves the final component's wear, hardness, and fatigue resistance, making it suitable for high-stress applications such as aerospace, automotive, and industrial sectors.
Surface Finishing
After applying the cladding, the component's surface may need to be smoothed or polished to meet the required specifications. Surface finishing techniques such as grinding, polishing, or shot peening are commonly used to improve the finish, enhance corrosion resistance, and optimize the mechanical properties of the cladding surface. These processes also help reduce friction, enhancing the component's performance in contact-heavy applications.
Superalloy Welding
In some cases, laser-clad stainless steel components may need to be welded to other components or parts. Superalloy welding techniques ensure the welded joints are strong, durable, and fatigue-resistant. It is essential for parts that experience dynamic loading or extreme temperature fluctuations, ensuring the component's structural integrity in demanding environments.
Testing and Quality Control for Laser Cladding on Stainless Steel
Rigorous testing and quality control are essential to ensure the laser-clad stainless steel components meet the required performance standards. Several testing methods evaluate the cladding material's mechanical properties, surface quality, and overall performance.
X-ray and Ultrasonic Testing
X-ray and ultrasonic testing are non-destructive methods to detect any internal defects, cracks, or porosity in the cladding material. These techniques ensure that the cladding layer has a uniform structure and is free from any internal flaws that could affect the component's performance.
Tensile and Hardness Testing
Tensile testing measures the strength of the laser-clad material by pulling the part until it breaks. Hardness testing, however, measures the material’s resistance to indentation. These tests are essential for evaluating the cladding layer’s mechanical properties, ensuring it is suitable for the intended application. Tensile testing and hardness testing are part of the essential process of assessing material durability.
Corrosion Resistance Testing
Since stainless steel is often used in corrosive environments, corrosion resistance testing is crucial for evaluating how well the cladded material will perform in various environments, such as marine, chemical, or high-temperature applications. Standard tests include salt spray and immersion testing, which simulate the corrosive conditions the component will face during service.
Metallographic Examination
Metallographic microscopy involves analyzing the microstructure of the cladding material under a microscope. It helps to assess the uniformity of the cladding, check for any defects, and verify that the cladding has adequately bonded with the substrate. It also allows manufacturers to assess the grain structure and phase distribution, directly affecting the material’s properties.
Industries and Applications for Laser-Cladded Stainless Steel
Laser cladding of stainless steel grades 304 and 316L is used in various industries where performance and durability are critical. Some of the key applications include:
Aerospace
Laser cladding enhances stainless steel components such as turbine blades, engine parts, and airframe structures in aerospace. It provides better wear resistance and fatigue strength, crucial for components exposed to high-speed rotations and extreme temperatures in aerospace applications.
Oil and Gas
In the oil and gas industry, stainless steel is commonly used in pumps, valves, and pipes exposed to harsh chemicals and high pressures. Laser cladding improves these components' corrosion and wear resistance, ensuring they perform optimally in demanding oil and gas environments.
Marine
Stainless steel components used in marine applications, such as propellers, pumps, and valves, benefit from laser cladding. This treatment enhances their resistance to seawater corrosion and significantly improves their service life, making them more reliable in harsh saltwater conditions.
Food and Pharmaceutical
Laser cladding enhances stainless steel parts used in food processing equipment, pharmaceutical machinery, and sterilization devices in the food and pharmaceutical industries, where hygiene and cleanliness are essential. This process ensures that the parts are corrosion-resistant and easy to clean, which is critical for maintaining sanitary conditions.
Chemical Processing
In chemical processing, stainless steel is often used in reactors, heat exchangers, and distillation columns. Laser cladding improves these components' corrosion resistance and thermal properties, ensuring they can withstand aggressive chemicals and high temperatures in challenging industrial environments.
Automotive
In the automotive industry, laser-clad stainless steel is used for components like exhaust, catalytic converters, and braking systems. The enhanced wear resistance, corrosion resistance, and strength provided by laser cladding ensure these automotive parts maintain high performance and longevity under demanding conditions.
FAQs
What are the benefits of laser cladding for stainless steel grades 304 and 316L?
How does laser cladding improve the corrosion resistance of stainless steel components?
What industries benefit most from laser-clad stainless steel parts?
What are the typical post-processing steps required after laser cladding stainless steel?
How is the quality of laser-clad stainless steel tested to ensure optimal performance?
