Innovative Guide Vane Casting Process to Avoid Crystal Defects

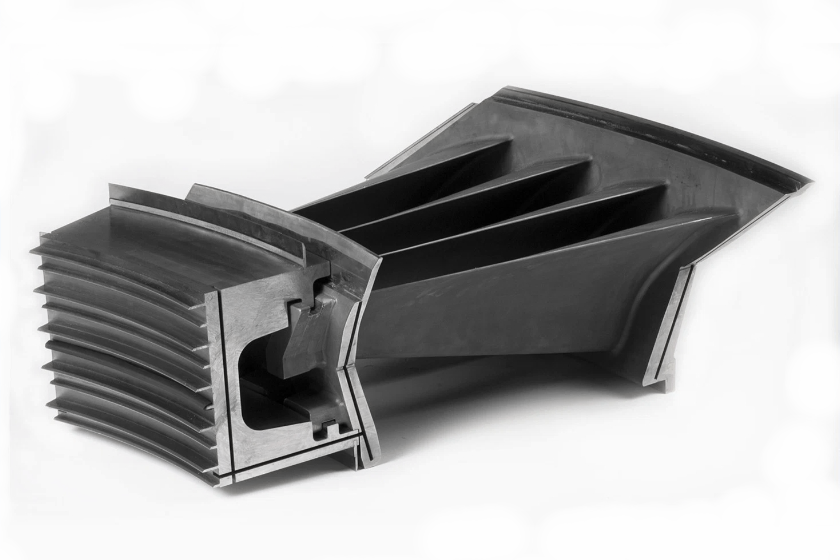

Guide vanes are essential components in turbines and jet engines, optimizing airflow and enhancing the system's overall efficiency. These vanes are exposed to extreme temperatures, high mechanical stresses, and corrosive environments. Their material properties and structural integrity are critical to their performance and longevity.
The casting process to create guide vanes must ensure a defect-free structure, particularly for single-crystal alloys. Crystal defects, such as grain boundaries or misalignments, can compromise the vane's ability to withstand thermal fatigue and mechanical stress. Innovative casting processes aim to minimize or eliminate these defects, improving guide vanes' performance, durability, and efficiency in demanding applications.
Manufacturers can achieve the precision required for high-performance guide vanes by leveraging advanced techniques such as vacuum investment casting. These processes ensure that the components meet the stringent standards for use in aerospace, power generation, and defense industries.
The Casting Process for Guide Vanes
The casting of guide vanes involves complex techniques designed to ensure the formation of a defect-free single crystal structure. This process demands precise control over all parameters, from mold design to solidification.
Precision mold design is a critical first step in guide vane casting. Molds must accommodate the intricate geometries of guide vanes while ensuring uniform cooling and solidification. Advanced computer modeling and simulation techniques are used to design molds that optimize the directional solidification process and reduce the risk of defects. These simulations also aid in minimizing residual stresses and ensuring the durability of the final product.
Directional solidification is a cornerstone of single-crystal casting. This process involves creating a temperature gradient that ensures the molten alloy solidifies in a specific direction, promoting the growth of a single crystal. Precise control of cooling rates and temperature gradients is essential to prevent secondary grain formation and other defects. The introduction of advanced cooling systems during this stage ensures a uniform crystal structure, enhancing the mechanical properties of the guide vanes.
The use of seed crystals further enhances the single-crystal casting process. A seed crystal is introduced into the molten alloy to guide the growth of the crystal structure. This technique helps ensure uniformity across the vane, but maintaining the alignment of the seed crystal and preventing secondary crystallization remain significant challenges. Proper alignment is achieved using technologies like superalloy precision forging, which ensures the integrity of the single crystal structure during production.
Vacuum investment casting is often employed to prevent oxidation and contamination during the casting process. This method involves creating a vacuum or inert atmosphere that protects the molten alloy, ensuring the final product has superior mechanical properties and resistance to environmental degradation. The vacuum investment casting process is particularly critical for high-performance components like guide vanes, which operate under extreme thermal and mechanical conditions.
Suitable Single Crystal Casting Superalloys
The performance of guide vanes depends heavily on the superalloys used in their construction. These materials are specifically engineered to withstand high temperatures and mechanical stress while maintaining their structural integrity.
Inconel Alloys
Inconel alloys are widely used in guide vane casting. Alloys like Inconel 738 and Inconel 713 offer excellent high-temperature strength and oxidation resistance, making them ideal for turbine applications. However, their complex compositions and the need for precise control during casting pose challenges in achieving defect-free single crystal structures.
CMSX Series
The CMSX series of superalloys, including CMSX-4 and CMSX-10, are particularly well-suited for guide vane applications. These alloys resist thermal fatigue and creep deformation, even under extreme conditions. Their composition and processing innovations have helped reduce segregation and improve the quality of single crystal castings.
Rene Alloys
Rene alloys, such as Rene 88 and Rene 104, are another popular choice for guide vanes. These alloys provide exceptional resistance to thermal and mechanical stresses, making them ideal for high-performance applications. However, their casting requires meticulous attention to parameters like cooling rates and thermal gradients to avoid defects like thermal cracking.
Single Crystal Alloys
Purpose-built single crystal alloys, such as PWA 1484 and CMSX-2, are also commonly used for guide vanes. These alloys are optimized for specific applications, offering superior thermal stability and oxidation resistance. Their use requires advanced casting techniques to ensure consistent quality and performance.
Post-Processing to Minimize Crystal Defects
Post-processing is a critical phase in guide vane manufacturing, where the component's mechanical properties and structural integrity are further refined. Each post-processing step plays a role in minimizing crystal defects and enhancing the vane’s overall performance.
Hot Isostatic Pressing (HIP)
Hot Isostatic Pressing (HIP) is a vital post-processing technique to eliminate porosity and improve material density. The process involves subjecting the cast guide vane to high pressure and temperature, which helps close internal voids and strengthens the material. However, achieving consistent results without introducing new defects requires precise control over HIP parameters.
Heat Treatment
Heat treatment is another essential post-processing step. This process enhances the mechanical properties of the vane, such as its tensile strength, ductility, and creep resistance. Heat treatment must be carefully tailored to the specific alloy to avoid unintended grain recrystallization or other structural inconsistencies.
Surface Finishing and Coating
Surface finishing and coating processes, such as applying Thermal Barrier Coatings (TBC), protect guide vanes from oxidation and high-temperature damage. These coatings must be applied uniformly to ensure durability without compromising the underlying material’s properties. Advanced techniques like plasma spraying are often used to achieve consistent coating quality.
CNC Machining and Deep Hole Drilling
CNC machining and deep hole drilling are used to achieve the precise geometries and internal cooling channels required for guide vanes. These processes demand extreme precision to prevent dimensional inaccuracies or structural damage. The creation of cooling channels is particularly challenging due to the intricate designs and tight tolerances required.
Rigorous Testing to Ensure Quality
Rigorous testing and inspection are conducted throughout the manufacturing process to ensure that guide vanes meet their applications' stringent performance and reliability standards. These tests are designed to identify and rectify defects, ensuring the final product performs as intended.
Metallographic Microscopy and SEM
Metallographic microscopy and Scanning Electron Microscopy (SEM) are commonly used to examine the microstructure of guide vanes. These techniques allow manufacturers to detect defects like grain misalignment or dislocations at the microscopic level, ensuring that the crystal structure is consistent and defect-free.
X-ray and CT Scanning
X-ray testing and industrial CT scanning are essential for inspecting the internal integrity of guide vanes. These non-destructive methods can identify internal voids, cracks, and inclusions that may not be visible on the surface. Industrial CT scanning is particularly valuable for verifying the accuracy of internal cooling channels and other complex features.
Fatigue and Tensile Testing
Fatigue and tensile testing are performed to evaluate the mechanical properties of guide vanes under simulated operational conditions. These tests assess the vane’s ability to withstand the stresses and thermal cycles it will encounter in service. Replicating real-world conditions during testing is challenging but necessary for ensuring the reliability of the final product.
Electron Backscatter Diffraction (EBSD)
Electron Backscatter Diffraction (EBSD) testing provides detailed information about the orientation and alignment of the crystal structure. This technique is crucial for verifying that the guide vane meets design specifications, particularly for single-crystal applications where crystal orientation directly impacts performance.
Industry Applications of Guide Vane Casting
Guide vanes are used across several industries where their ability to optimize airflow and withstand harsh conditions is critical. Each industry presents unique challenges that influence the design and manufacturing of these components.
Aerospace and Aviation
In aerospace and aviation, guide vanes are used in jet engines to control airflow and improve efficiency. These applications' high thermal and mechanical stresses demand defect-free single-crystal structures, making innovative casting processes essential. Aerospace and aviation applications rely heavily on guide vanes to maintain engine efficiency and durability under extreme conditions.
Power Generation
The power generation industry relies on guide vanes for gas and steam turbines, which play a key role in maximizing energy output and minimizing emissions. These applications require vanes that endure prolonged exposure to high temperatures and corrosive environments. Power generation plants depend on high-quality guide vanes to ensure the reliability and efficiency of turbine operations.
Oil and Gas
The oil and gas sector uses guide vanes in compressors and pumps for drilling and extraction operations. These environments subject vanes to extreme pressures and temperatures, making defect-free casting and durable materials necessary. Oil and gas operations benefit from robust guide vanes that enhance the performance and longevity of critical equipment under harsh operating conditions.
Military and Defense
Guide vanes are used in advanced propulsion systems and missile technologies in military and defense applications. These components must meet stringent performance standards, withstanding the extreme conditions associated with defense systems. Military and defense sectors depend on precision casting techniques to produce guide vanes that ensure consistent performance and durability in mission-critical systems.
FAQs
What are the main challenges in achieving a defect-free single crystal structure for guide vanes?
How do advanced casting techniques like directional solidification improve guide vane performance?
What properties make CMSX and Rene alloys ideal for single crystal guide vane casting?
Why is Hot Isostatic Pressing (HIP) essential in the post-processing of guide vanes?
What testing methods are used to detect internal defects in single-crystal guide vanes?
