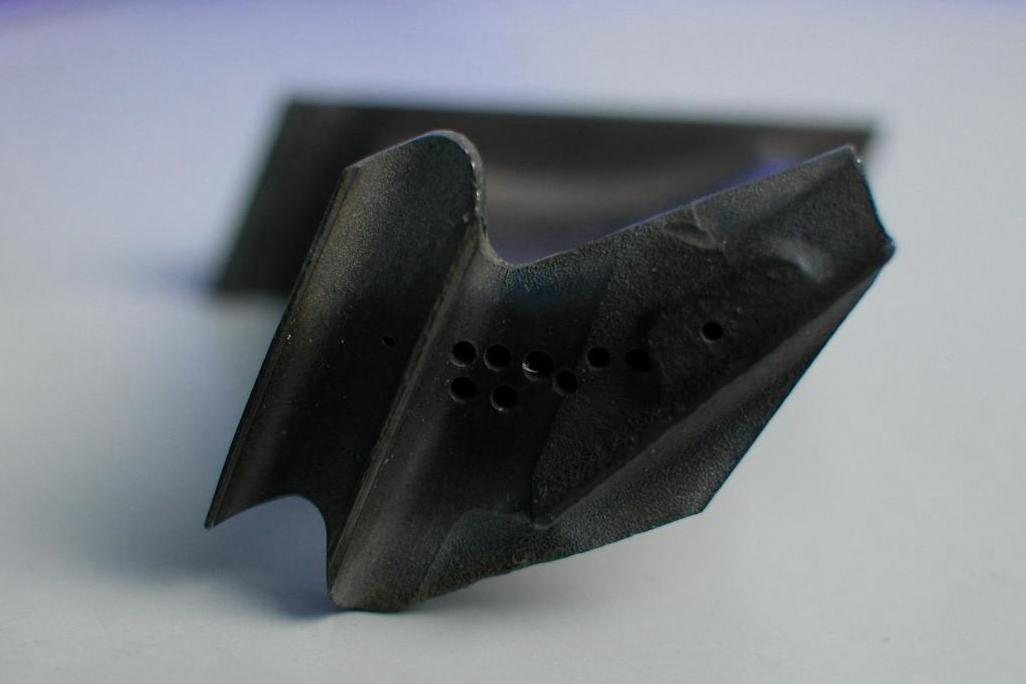

Inclusion Morphology Analysis in Turbine Blade Manufacturing
In the high-performance world of turbine blades, where reliability and strength are critical, the precision of manufacturing processes is of utmost importance. One of the most crucial aspects of turbine blade manufacturing is the control of inclusion morphology. Inclusions—tiny particles or impurities within the material—can significantly affect the mechanical properties of turbine blades, such as strength, fatigue resistance, and thermal durability. This blog explores the role of inclusion morphology analysis in manufacturing single crystal turbine blades, focusing on the casting process, suitable superalloys, post-processing techniques, testing, and their application in various industries such as aerospace and aviation, and power generation.
Casting Process for Single Crystal Turbine Blades
The casting process is integral to producing high-quality single-crystal turbine blades. Among the various techniques available, single crystal casting is favored for producing turbine blades with superior mechanical properties, particularly for aerospace and power generation applications. The process involves the directional solidification of molten metal, creating a single crystal structure in the blade, which enhances its resistance to creep and fatigue.
The vacuum investment casting method is commonly used to cast these high-performance turbine blades. This process involves creating a wax pattern of the blade, coating it with a ceramic shell, and then melting away the wax to form a hollow mold. Molten metal is poured into the mold in a vacuum environment, reducing the likelihood of gas porosity and ensuring the final part's precision and high quality. This method is essential for producing complex geometries and intricate features required in modern turbine blades.
However, achieving a single crystal structure requires precise control over the casting process. The solidification of the alloy must be carefully managed to encourage the formation of a single crystal rather than multiple grains. The use of superalloy single-crystal casting techniques, like the gradient heating process and melt-rate control, helps to direct the formation of a single crystal by controlling the cooling rate and temperature gradients during solidification.
While the casting process is essential for producing high-quality turbine blades, one challenge is minimizing the formation of inclusions. These inclusions are foreign particles, such as oxides or sulfides, that form during the casting process. They can arise from alloy contamination or incomplete melting of the metal. They can have detrimental effects on the mechanical properties of the turbine blade, such as reducing fatigue strength, causing premature failure, or even creating a potential site for cracks to initiate.
Suitable Single Crystal Casting Superalloys
To mitigate the impact of inclusions and optimize the performance of turbine blades, manufacturers select appropriate superalloys designed for high-temperature applications. The most commonly used superalloys for single-crystal turbine blades are the CMSX series, Rene alloys, Inconel alloys, and other custom-developed single-crystal alloys.
CMSX Series
These alloys are engineered to provide exceptional creep and thermal fatigue resistance, making them ideal for turbine blades that experience extreme conditions in jet engines and power plants. CMSX alloys, such as CMSX-10 and CMSX-486, are characterized by their ability to retain mechanical strength even at temperatures exceeding 1000°C.
Rene Alloys
Rene alloys, including Rene 104, Rene 108, and Rene 41, offer superior high-temperature strength and oxidation resistance. These alloys are commonly used in gas turbine applications, where high temperature and corrosive environments demand materials that can perform consistently under stress.
Inconel Alloys
Inconel alloys, like Inconel 718, Inconel 738, and Inconel X-750, are widely used for their high tensile strength, oxidation resistance, and ability to withstand high temperatures. These alloys are often the go-to choice for jet engine and gas turbine components that require exceptional performance under stress.
Single Crystal Alloys
These alloys, such as PWA 1480 and CMSX-2, are explicitly developed for single crystal casting. They are designed to exhibit improved mechanical properties over their polycrystalline counterparts, especially in terms of fatigue and creep resistance, which are critical for turbine blades in gas turbines.
By selecting the right superalloy, manufacturers can ensure that their turbine blades perform at the highest level, even in extreme operating conditions. However, the choice of alloy alone is insufficient—attention to detail in the casting process and careful inclusion control are necessary to optimize performance.
Post-Processing in Single Crystal Turbine Blade Manufacturing
After casting, turbine blades undergo several post-processing steps to improve their material properties and ensure their performance under real-world operating conditions. These processes are vital in eliminating internal defects, improving microstructure, and enhancing mechanical properties like tensile strength and resistance to fatigue and creep.
Hot Isostatic Pressing (HIP): This process involves subjecting the turbine blades to high temperatures and pressures in a controlled environment. HIP is used to eliminate internal voids and reduce porosity in the material, which can arise during the casting process. By applying heat and pressure, HIP enhances the integrity of the turbine blade, ensuring that it is free from defects that could weaken the material.
Heat Treatment: Heat treatment is critical in adjusting the alloy's microstructure to enhance its mechanical properties. Manufacturers can optimize the material's tensile strength, creep resistance, and fatigue life by heating the turbine blades to a specific temperature and then cooling them at a controlled rate. The heat treatment process helps to refine the crystal structure, making it more suitable for the high-stress environments in which turbine blades are.
Superalloy Welding: Superalloy welding techniques are used to assemble turbine blade components and repair any damage that may have occurred during manufacturing. The welding of superalloys, particularly those used in turbine blades, requires specialized techniques to prevent the introduction of unwanted inclusions and to maintain the structural integrity of the parts.
Thermal Barrier Coating (TBC): A thermal barrier coating is applied to protect the turbine blades from the extreme heat they are exposed to. TBCs are typically made from ceramic materials and insulate the blades from high temperatures, reducing thermal stress and extending the blade's lifespan. This coating helps maintain the turbine blade's performance by keeping the underlying superalloy at a more stable, lower temperature.
Testing Methods for Inclusion Detection
Advanced testing methods are employed to detect and characterize inclusions to ensure that the turbine blades meet the rigorous standards required for aerospace and power generation applications. These testing techniques allow manufacturers to evaluate the quality of the material, identify potential defects, and ensure that the turbine blades are free from harmful inclusions.
Metallographic Microscopy Testing: This method involves examining the material at a microscopic level to identify and analyze the size, type, and distribution of inclusions. It provides detailed information about the microstructure of the turbine blade and helps assess its overall quality. Metallographic microscopy plays a critical role in evaluating the structural integrity of turbine blades.
Scanning Electron Microscope (SEM) Testing: SEM provides high-resolution imaging of the turbine blade’s surface and can be used to identify even the smallest inclusions. The SEM allows manufacturers to analyze the morphology of inclusions in great detail, providing valuable insights into their composition and distribution. SEM is essential for identifying surface defects and performing detailed fracture analysis.
Glow Discharge Mass Spectrometer (GDMS) Testing: GDMS is used to analyze the composition of inclusions at a molecular level. By detecting trace elements, this method can identify the source of contamination and help optimize the casting process. GDMS is particularly useful for pinpointing the elemental composition of inclusions.
X-ray and CT Scanning: These non-destructive testing techniques detect internal inclusions and voids within the turbine blades. X-ray and computed tomography (CT) scanning provides detailed, three-dimensional images that help identify potential defects that are not visible to the naked eye. X-ray inspection is vital for internal defect detection in turbine blade manufacturing.
Industry and Application of Single Crystal Turbine Blades
Single crystal turbine blades are used in some of the most demanding industries, where reliability and high performance are non-negotiable. These industries include aerospace, power generation, military, and marine sectors, where turbine blades are critical components in jet engines, gas turbines, and other high-temperature applications.
Aerospace and Aviation
In this sector, turbine blades are critical components in jet engines that are subjected to extreme temperatures and stresses. Single crystal blades are essential for ensuring modern aircraft engines' efficiency, reliability, and performance. For example, superalloy jet engine components are integral to maintaining the reliability of turbine engines in aviation.
Power Generation
Gas turbines used in power plants rely on blades that can withstand high temperatures and mechanical stress. Single crystal blades are used in these turbines to improve efficiency and operational longevity. These components play a critical role in the overall performance of power plants, especially in sectors like power generation, where operational reliability is critical.
Military and Defense
In military applications, turbine blades are used in fighter jets, helicopters, and missile systems, where high performance and reliability are critical. The single-crystal structure provides enhanced strength and resistance to thermal fatigue. These applications benefit from advanced military and defense technologies that ensure superior durability and performance in combat conditions.
Marine and Energy
In naval propulsion systems and energy production, turbine blades made from single crystal alloys provide the necessary performance to operate efficiently under extreme conditions. These critical components are used in both the marine and energy sectors, where high resistance to corrosion and high thermal stability are required for effective operation.
