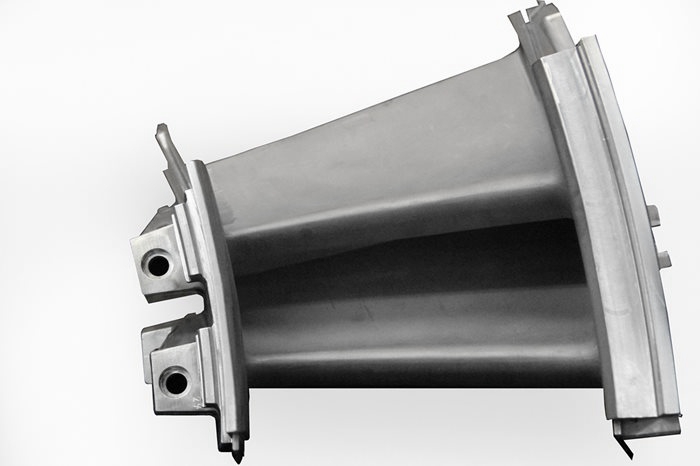

Inclusion Detection Devices for Single Crystal Casting Quality
In high-performance industries like aerospace and aviation, power generation, and military and defense, the integrity of turbine blades is crucial. These blades are primarily manufactured through single crystal casting, ensuring the parts exhibit exceptional strength, resistance to fatigue, and high-temperature stability. However, achieving perfect casting is a complex task, and inclusions—unwanted particles or voids that become trapped during the casting process—can significantly affect the final product's performance.
For this reason, effective inclusion detection devices are essential for ensuring the highest quality of single crystal castings. This blog delves into the single crystal casting process, the suitable alloys, post-processing methods, inclusion detection devices, and the standards that ensure the castings meet industry requirements.
Single Crystal Casting Process Overview
Single crystal casting is a specialized investment casting process that creates turbine blades and other critical components from a single, continuous crystal structure. This structure improves the material's mechanical properties, eliminating grain boundaries—areas where cracks can initiate under stress. The casting process begins with preparing a ceramic mold to withstand the high temperatures. A molten superalloy is carefully poured into the mold, which is then cooled in a specific manner to encourage the formation of a single crystal. Superalloy casting techniques are used to achieve this uniform crystal structure.
A critical factor in the success of this process is directional solidification. This method involves controlling the cooling rate to encourage the formation of a single crystal from the bottom up, with the crystal growing in the direction of the temperature gradient. By carefully managing this process, manufacturers ensure the turbine blade exhibits the desired mechanical properties, such as resistance to high temperatures and creep, making it ideal for extreme conditions within turbines.
Though highly effective, this process is also prone to defects, such as inclusions—foreign particles that may be metallic or non-metallic, such as oxides or sulfur. These inclusions can cause material failure, making detecting and eliminating these defects crucial to the integrity of the final product. Advanced material testing and superalloy CNC machining are used to identify and remove such defects, ensuring high-quality turbine blades.
Suitable Superalloys for Single Crystal Casting
The quality of single crystal turbine blades largely depends on selecting the right superalloys. These materials must have excellent high-temperature strength, corrosion resistance, and fatigue resistance. Several superalloys are commonly used in single-crystal casting:
CMSX Series
The CMSX Series, including alloys like CMSX-4, CMSX-10, and CMSX-486, is designed explicitly for single-crystal applications. These alloys offer excellent high-temperature properties and are primarily known for their superior creep resistance, essential for components exposed to elevated temperatures for long periods. CMSX alloys are commonly used in jet engines and industrial turbine turbine blades.
Rene Alloys
René alloys, such as Rene 41, Rene 80, and Rene N5, are widely used in single crystal casting due to their exceptional mechanical properties. These alloys provide high strength at elevated temperatures and excellent resistance to fatigue and oxidation, making them suitable for aerospace applications where turbine blades are subjected to extreme thermal cycles.
Inconel Alloys
Inconel alloys, such as Inconel 738, Inconel 939, and Inconel X-750, are famous for turbine blades. Inconel alloys offer good oxidation resistance and high-temperature strength, making them a natural fit for gas turbines in power generation and aerospace industries. These alloys are particularly valued for their ability to perform well in environments with high pressure and temperature.
Single Crystal Alloys
Single-crystal alloys, such as PWA 1484, CMSX-2, and SC180, are examples of high-performance single-crystal alloys. These materials are designed specifically for turbine blades, offering exceptional thermal fatigue and creep resistance. Their properties are tailored to withstand the extreme conditions inside jet engines and other gas turbines.
Each superalloy is selected based on its specific performance characteristics, and the casting process must be carefully controlled to ensure the material achieves the optimal microstructure for maximum performance.
Post-Processing Methods to Enhance Casting Quality
Once the single crystal turbine blades are cast, they undergo several post-processing steps to enhance their mechanical properties and ensure their suitability for high-performance applications. These processes are designed to eliminate defects, improve the material's microstructure, and refine the final geometry.
Hot Isostatic Pressing (HIP):
HIP is an essential post-processing technique used to remove internal porosity and improve the density of the cast component. This process applies high pressure and temperature to the part, effectively closing any gas pores or voids formed during casting. The result is a denser, more robust material with improved mechanical properties. HIP technology ensures a solid, defect-free structure that enhances turbine blade performance.
Heat Treatment:
Heat treatment involves subjecting the turbine blades to controlled temperature cycles to optimize their microstructure. This step enhances their strength and resistance to high-temperature degradation. Heat treatment is essential for improving the creep resistance of the superalloy, a vital property for parts exposed to extreme operational conditions. Precision heat treatment ensures uniform mechanical properties that withstand high-temperature stress.
Superalloy Welding:
Superalloy welding is sometimes necessary to repair minor defects or join components. Welding is carefully carried out to ensure the material's integrity is not compromised. The aim is to make repairs without affecting the overall structural properties of the part. Superalloy welding techniques are tailored to ensure durability and strength even after repairs.
Thermal Barrier Coating (TBC):
TBCs are ceramic coatings applied to turbine blades to protect them from the high temperatures experienced during operation. These coatings help insulate the superalloy substrate, reducing the heat load on the material and extending its lifespan. The coating is carefully applied to adhere to the blade without introducing new defects. TBC benefits help enhance oxidation resistance and protect turbine blades in extreme conditions.
CNC Machining and EDM:
After casting, turbine blades often undergo CNC and Electrical Discharge Machining (EDM) to achieve the final precise geometry. CNC machining allows for the precise shaping of complex geometries, while EDM is used for intricate features such as cooling holes or small internal channels. These post-processing steps ensure that the turbine blades meet strict dimensional tolerances. EDM and CNC technologies are essential for achieving high-performance turbine blades' precision and surface quality.
Testing Methods for Ensuring Casting Integrity
In addition to inclusion detection devices, several other testing methods are used to ensure the overall integrity and performance of the turbine blades.
Metallographic Microscopy involves examining the microstructure of the material under a microscope. Metallographic analysis allows for detecting inclusions and assessing the grain structure, phase distribution, and other vital properties that influence the material's strength and resistance to failure.
Tensile Testing measures the material’s mechanical properties, such as its strength and elongation under stress. This test can also reveal any weaknesses or defects in the material caused by inclusions or other manufacturing defects.
Simultaneous Thermal Analyzer (STA) is used to monitor the thermal behavior of the material. By observing changes in heat flow, this test can help identify issues like phase transitions, which may indicate the presence of inclusions or other internal defects.
Dynamic and Static Fatigue Testing simulates the cyclic stresses turbine blades experience during their service life. This test helps identify weaknesses caused by inclusions or other structural issues that could lead to premature failure.
Industries and Applications for Single Crystal Castings
Single crystal castings are widely used across industries that require components to withstand extreme temperatures and mechanical stresses.
Aerospace and Aviation
The most demanding applications for single crystal turbine blades are found in jet engines, where these blades are exposed to extreme temperatures and high rotational speeds. The integrity of these parts is critical to the safe operation of aircraft engines. Single crystal castings ensure superior strength, thermal fatigue resistance, and durability, making them indispensable for modern aerospace propulsion systems.
Power Generation
Power plant gas turbines also rely on single crystal castings for their blades, which must perform efficiently under high temperatures and stresses. These components help maximize energy output and reduce downtime, which is crucial in power generation applications.
Military and Defense
In military applications, turbine blades for jet engines, missile systems, and other critical equipment rely on single crystal casting to ensure performance and durability. These components must withstand the extreme conditions associated with defense systems, where precision and reliability are paramount.
Marine and Energy
Single crystal castings are also used in marine propulsion systems and energy generation components, where high performance under heat and pressure is essential. These castings offer exceptional durability and resistance to corrosion in harsh marine environments, ensuring reliable performance over long operational cycles.
