Improving Mechanical Properties of Superalloy Castings: How HIP Strengthens Durability
Superalloy castings are integral to the performance and longevity of components used in the most demanding industries, including aerospace, power generation, and oil and gas. These industries rely on the exceptional properties of superalloys—materials designed to endure extreme temperatures, mechanical stress, and corrosion. However, the inherent properties of these materials are not always sufficient on their own.
This is where advanced post-processing techniques like Hot Isostatic Pressing (HIP) come into play. HIP is a critical method for improving the mechanical properties of superalloy castings, enhancing their durability and performance. This blog explores how HIP strengthens superalloy castings and helps meet the rigorous demands of high-performance applications.
What is Hot Isostatic Pressing (HIP)?
Hot Isostatic Pressing (HIP) is a post-processing technique that applies high temperature and high pressure to materials, typically in an inert gas atmosphere, to enhance their mechanical properties. The process involves placing a material, often in the form of a casting, inside a sealed vessel filled with an inert gas like argon. The vessel is then heated to a high temperature, and the gas pressure is increased simultaneously. This combination of high pressure and elevated temperature densifies the material, eliminates internal defects such as porosity, and improves the microstructure's overall uniformity. This technique is essential for ensuring the durability and integrity of high-temperature alloys used in demanding applications, particularly in the aerospace and energy sectors.
HIP is particularly valuable for materials like superalloys, which are often used in applications requiring high resistance to thermal fatigue, corrosion, and mechanical wear. The process is crucial in eliminating porosity in alloy castings for reliability, ensuring that components meet strict performance standards. It is often applied in industries like aerospace, where materials need to perform under extreme temperatures and stresses.
The HIP process is typically performed after casting or forming and can be used in tandem with other heat treatment methods to enhance material properties further. By utilizing this process, manufacturers can significantly improve the mechanical properties of superalloy parts, ensuring that components like turbine blades, combustion chambers, and impellers have optimal strength and performance over an extended service life.
The Role of HIP in Superalloy Casting
The superalloys used in critical applications like gas turbines, reactor vessels, and jet engines must exhibit exceptional mechanical properties, including strength, fatigue resistance, and impact toughness. While engineered to perform in extreme conditions, these materials can sometimes exhibit internal defects such as porosity, shrinkage, or micro-voids, which can negatively affect their performance. One effective way to address these challenges is through Hot Isostatic Pressing (HIP).
HIP addresses this issue by improving the material's internal structure. The process eliminates any remaining air pockets or voids created during the casting process. These voids can significantly weaken a material, making it more susceptible to fatigue, stress fractures, and failure under high-load conditions. By applying high pressure during the HIP process, these internal voids are compressed and eliminated, resulting in a denser and more uniform material. This makes HIP especially critical for ensuring the integrity of superalloy parts used in demanding applications like aerospace engine components.
In addition to improving the density of the material, HIP also enhances other mechanical properties. For example, the process can refine the grain structure of the alloy, which can lead to improved tensile strength and resistance to fatigue. HIP-treated superalloys exhibit more excellent durability, which is especially important in high-stress environments such as turbine blade manufacturing or power generation turbines, where parts are exposed to extreme thermal cycling, mechanical loads, and corrosive conditions.
The Relationship Between HIP and Durability in Superalloys
Durability is one of the most critical factors for components exposed to high-temperature environments. For superalloy castings, this means the ability to withstand repeated thermal cycling, high pressures, and mechanical stresses without failure. Hot Isostatic Pressing (HIP) plays a crucial role in improving the durability of these materials by addressing several key factors:
Thermal Fatigue Resistance
One of the most significant challenges superalloy components face in high-temperature environments is thermal fatigue. Repeated heating and cooling cycles can lead to the formation of microcracks, which, over time, can propagate and cause failure. HIP helps mitigate this by improving the material’s overall density and reducing the likelihood of crack formation. The absence of porosity and the microstructure refinement means that HIP-treated superalloy castings are less prone to the onset of thermal fatigue. HIP's role in eliminating porosity ensures the structural integrity of parts exposed to extreme thermal conditions, such as turbine blades in aerospace applications.
Creep Resistance
Creep, the gradual deformation of materials under constant stress at high temperatures, is a significant concern for superalloy components in aerospace and power generation industries. HIP improves the creep resistance of superalloys by eliminating voids that could become sites for creep deformation. As a result, HIP-treated parts can maintain their structural integrity for more extended periods under high-stress conditions. This makes HIP indispensable in applications requiring high creep resistance, such as components used in power generation turbines and gas turbines in aerospace.
Oxidation Resistance
Superalloys are often used in environments where oxidation is a significant risk, such as gas turbines or exhaust systems. HIP can help improve the material’s resistance to oxidation by ensuring a more uniform microstructure. This reduces the likelihood of localized oxidation that can lead to material degradation, extending the life of superalloy components. The process enhances oxidation resistance by producing parts that can withstand the extreme conditions of aerospace engines and energy systems, thus improving their reliability and longevity.
Comparison of HIP with Other Post-Processing Techniques
While Hot Isostatic Pressing (HIP) is an excellent method for improving the mechanical properties of superalloy castings, it is not the only post-processing technique available. Other methods, such as conventional heat treatment, precision forging, and CNC machining, can also play important roles in improving material properties. However, HIP offers distinct advantages when it comes to densification and uniformity.
Conventional Heat Treatment
While heat treatment processes like annealing or quenching can alter the microstructure of superalloys, they do not address porosity as effectively as HIP. Heat treatment can refine the grain structure and enhance some mechanical properties, but it does not eliminate internal voids to the extent that HIP does. For instance, heat treatment can improve the strength of materials but often falls short when it comes to improving material integrity by addressing porosity, a key advantage of HIP.
Precision Forging
Forging processes can significantly improve the mechanical properties of superalloy castings, especially regarding strength and fatigue resistance. However, forging typically requires the application of high-pressure forces on solid material. In contrast, HIP works on castings that are already formed, making it particularly useful for refining materials that might have been cast with internal defects. Precision forging is ideal for improving the external properties of superalloy parts, but HIP ensures that internal integrity, including porosity elimination, is addressed without altering the external geometry.
CNC Machining
CNC machining allows for precise shaping and sizing of superalloy parts but does not address the material’s internal structure. As a result, machining is often used with other methods, such as HIP, to ensure the external geometry and internal properties meet performance specifications. For example, superalloy CNC machining ensures tight tolerances are met. In contrast, HIP ensures the material's internal defects are resolved, making the parts more reliable under high-stress conditions, especially in industries like aerospace and energy.
Industry Standards and Best Practices for HIP in Superalloy Castings
Several industry standards govern the use of HIP in superalloy castings to ensure the highest levels of quality and consistency. For example, standards set by organizations such as ASTM International and the International Organization for Standardization (ISO) define the procedures and testing methods required to ensure the quality of HIP-treated materials.
In the aerospace industry, where safety and reliability are paramount, standards such as ASTM B637 for precipitation-hardening nickel-based superalloys and AMS 2771 for heat treatment of aerospace parts are commonly followed. These standards outline the steps for HIP, including the specific temperature, pressure, and cycle times required for different superalloys.
To achieve the best results from HIP, best practices must be followed. This includes ensuring that the material is correctly preheated, the HIP cycle is optimized for the specific alloy being treated, and the post-HIP inspection process includes comprehensive checks for density, porosity, and mechanical properties. Consistent monitoring and control of the HIP process help ensure that the final parts meet the exacting standards required for high-performance applications.
Challenges and Considerations in HIP for Superalloy Castings
While Hot Isostatic Pressing (HIP) is highly effective, some specific challenges and considerations must be addressed when applying this technique to superalloy castings. The process is energy-intensive and requires expensive equipment, such as HIP furnaces, carefully calibrated and maintained. The cost of HIP can be a significant factor in the overall manufacturing cost of high-performance superalloy components.
Additionally, the effectiveness of HIP can be influenced by several factors, including the specific alloy being treated, the size and shape of the component, and the exact parameters of the HIP cycle (temperature, pressure, and time). For example, more significant parts or parts with complex geometries may require longer HIP cycles or more precise control to achieve optimal results.
Finally, while HIP can eliminate porosity and improve the material’s density, it is not a cure-all for all casting defects. The HIP process may not fully address specific inclusions or material defects, necessitating additional inspection and quality control measures.
Applications of HIP-Treated Superalloy Components
The enhanced durability and mechanical properties of Hot Isostatic Pressing (HIP)-treated superalloys make them ideal for a wide range of demanding applications. HIP improves the material’s density, eliminates internal porosity, and enhances its strength and resistance to fatigue and creep, making these components highly reliable in extreme environments. Some of the key industries and applications benefiting from HIP-treated superalloys include:

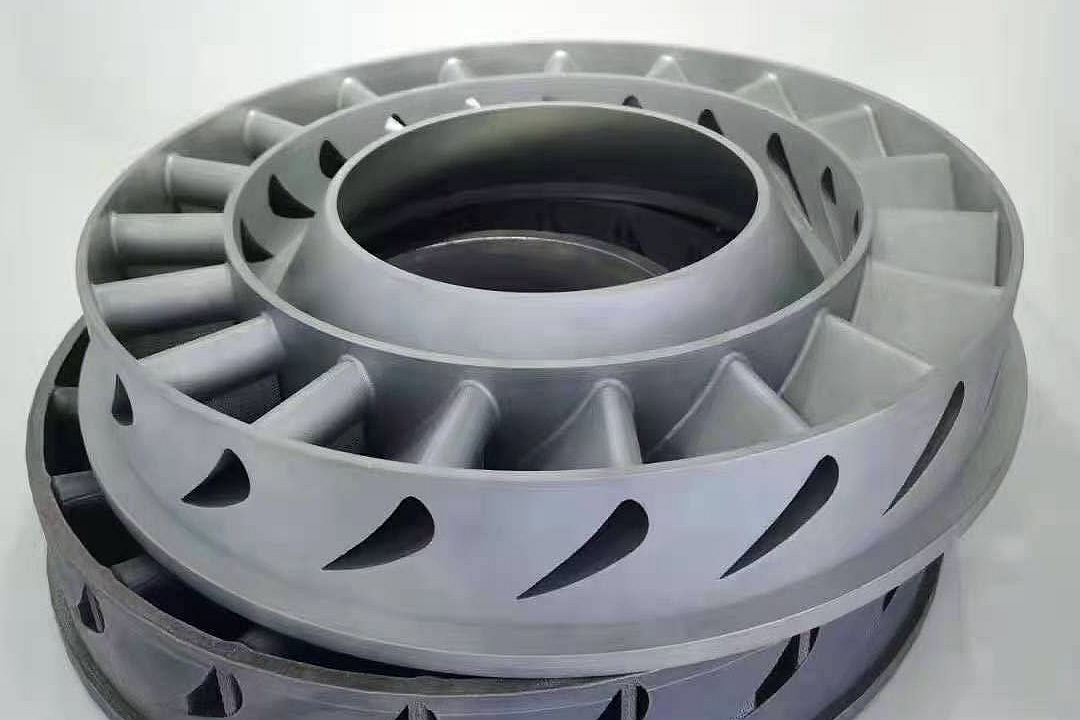

Aerospace

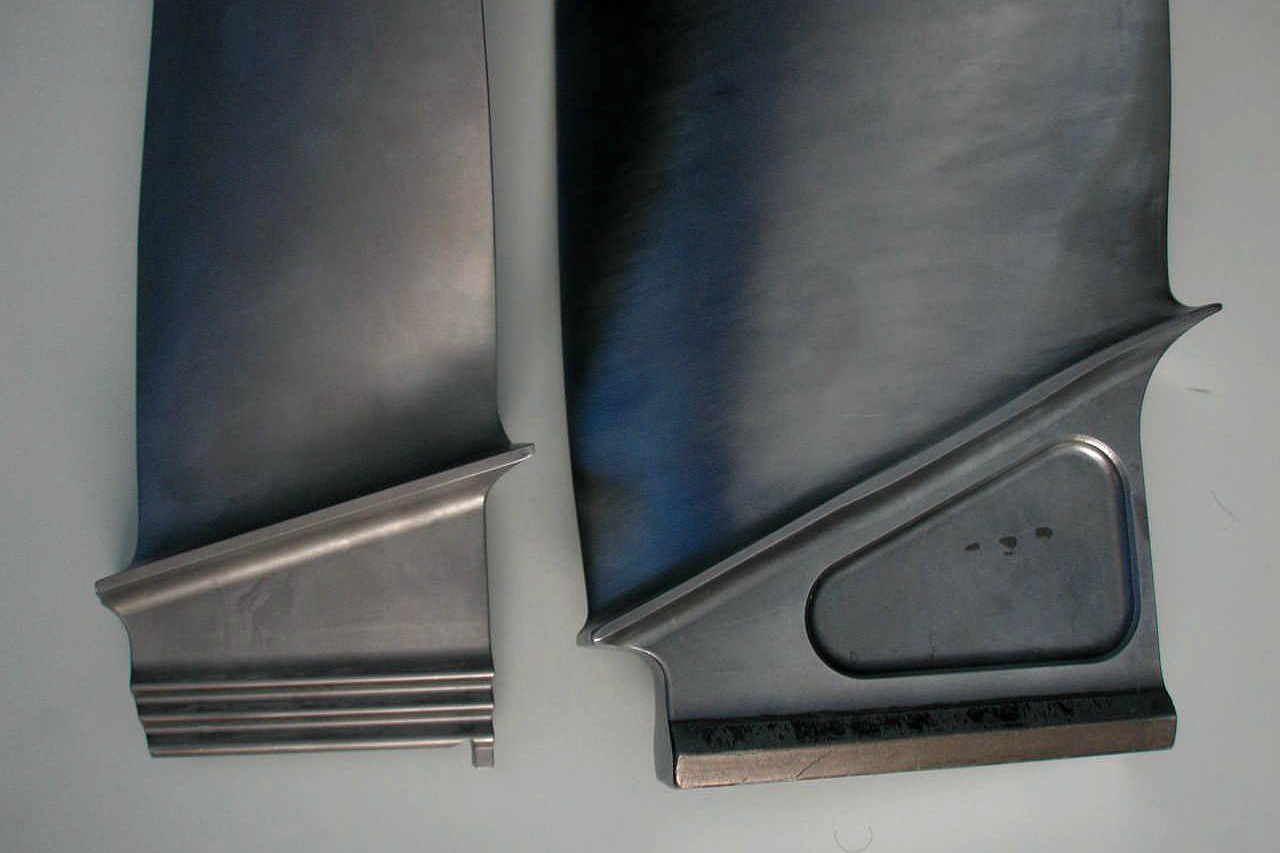

In aerospace and aviation, HIP is used for critical engine components such as turbine blades, exhaust systems, and combustion chambers, where parts are subjected to extreme thermal cycling and high mechanical loads. HIP treatment ensures that these components, which operate at high temperatures and pressures, are free from internal defects and have superior strength and fatigue resistance. For example, superalloy turbine blades benefit from HIP by improving their performance and reliability in jet engines, extending their service life under high-stress conditions.
Power Generation
In the power generation industry, HIP-treated superalloy components are critical for turbines and reactor vessel components, which must withstand high temperatures and pressures over long service lives. By improving fatigue resistance and material integrity, HIP ensures that turbine blades and other critical components like superalloy heat exchanger parts perform efficiently and safely in demanding power plant environments, reducing the risk of failure and enhancing overall system performance.
Oil & Gas
In the oil and gas industry, HIP-treated superalloys are used for drilling components, pumps, and valves exposed to harsh environments, including corrosive chemicals and extreme temperatures. HIP improves the material’s resistance to wear, corrosion, and fatigue, making it ideal for high-performance oil exploration and extraction applications. Superalloy parts like high-temperature pump components benefit from HIP's densification and enhanced mechanical properties, ensuring they can withstand the demanding conditions of deep-water drilling and other extreme environments.
Military and Defense
In military and defense applications, HIP is crucial in improving the performance of components such as missile segments, naval ship modules, and armor systems. Superalloys treated with HIP offer enhanced strength, fatigue resistance, and structural integrity, which are critical for ensuring the reliability of components under extreme conditions. For example, superalloy missile segments benefit from HIP treatment by enhancing their resistance to high-impact forces, ensuring operational reliability in military systems.
Broader Implications
The ability to manufacture superalloy components with superior mechanical properties using HIP allows for longer-lasting, more reliable parts that can handle the stresses of demanding applications. As the demand for high-performance alloys continues to grow, the role of HIP in strengthening superalloy castings will become even more critical across aerospace, power generation, oil and gas, and military sectors. By improving the mechanical properties and reliability of critical components, HIP ensures that these industries can continue to push the boundaries of performance while reducing maintenance and operational costs.
FAQs
What is the difference between Hot Isostatic Pressing (HIP) and traditional heat treatment?
How does HIP improve the creep resistance of superalloy parts?
Can HIP be applied to all types of superalloys?
What are the key factors to optimize HIP for different superalloy alloys?
What are the common defects that HIP cannot address in superalloy castings?
