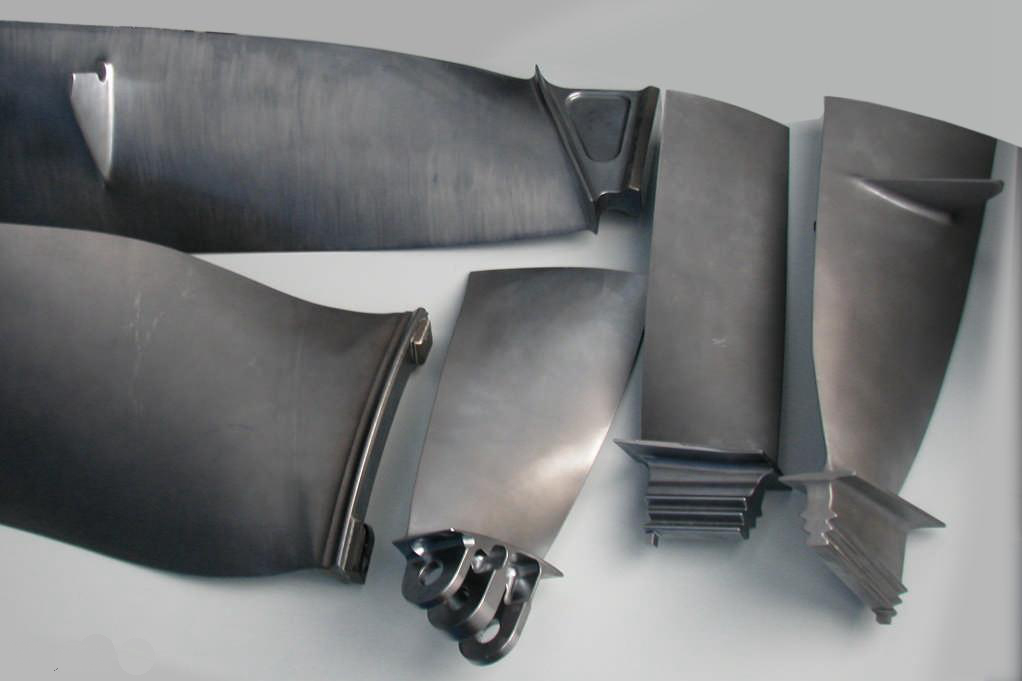

Importance of Vacuum Heat Treatment Furnace In Superalloy Casting Parts Manufacturing
In high-performance engineering, manufacturing superalloy parts is a critical aspect of numerous industries, such as aerospace and aviation, power generation, and defense. Superalloys are known for their excellent strength, corrosion resistance, and ability to perform under extreme conditions, particularly at high temperatures. However, to achieve the required performance and integrity, these materials must undergo several specialized treatments, with vacuum heat treatment being one of the most crucial processes. Vacuum Heat Treatment Furnaces (VHTF) play a vital role in enhancing the mechanical properties of superalloy components. This blog explores the significance of this technology in superalloy casting parts manufacturing, including the process, materials involved, post-processing steps like Hot Isostatic Pressing (HIP), testing, and its applications in various industries.
Understanding the Vacuum Heat Treatment Process
Vacuum heat treatment is a highly controlled process that involves heating materials in a vacuum or inert gas atmosphere, typically at high temperatures. Unlike conventional heat treatment methods that expose materials to air or other reactive atmospheres, vacuum heat treatment minimizes the risks of oxidation, decarburization, and contamination during heating. The process is essential for superalloys, often used in environments where their resistance to oxidation and high-temperature strength is paramount. Vacuum induction melting is critical in ensuring high purity and enhancing the material's performance.
In a vacuum heat treatment furnace, parts are placed in a sealed chamber where the air is evacuated to create a vacuum. This eliminates oxygen and other reactive gases that could negatively impact the material's surface during heating. Depending on the material and desired properties, the furnace then heats the parts to a precise temperature, typically ranging from 800°C to 1300°C. The temperature is carefully controlled to ensure uniform heat distribution, essential for achieving consistent material properties. This precise control is vital in processes like vacuum investment casting, where temperature fluctuations can lead to defects in high-performance alloys.
The vacuum environment also prevents unwanted chemical reactions, which can degrade the alloy's mechanical properties. For example, in nickel-based superalloys, vacuum heat treatment helps preserve the balance of alloying elements, preventing the formation of unwanted phases or compounds that can compromise strength and performance. This is especially important when manufacturing components for aerospace and other high-temperature applications, where material integrity is essential for component longevity and safety.
Typical Superalloys Used in Casting and Heat Treatment
Superalloys, or high-temperature alloys, are designed to withstand extreme stress, high temperatures, and corrosive environments. They are commonly used in applications where conventional materials would fail. The main types of superalloys include nickel-based, cobalt-based, titanium-based, and other high-performance alloys. These materials are often processed using advanced techniques such as vacuum investment casting and vacuum heat treatment, which enhance their performance in extreme conditions.
Nickel-Based Superalloys
Nickel-based superalloys, such as Inconel, Rene Alloys, and CMSX Series, are widely used in aerospace and power generation industries due to their exceptional heat resistance and mechanical properties at high temperatures. These alloys retain their strength and oxidation resistance even at temperatures exceeding 1000°C, making them ideal for turbine blades, exhaust systems, and combustion chambers. The vacuum heat treatment process is critical in preserving these alloys' microstructures, which are essential for their high-temperature performance.
Cobalt-Based Superalloys
Cobalt-based alloys like Stellite are known for their excellent wear and corrosion resistance. These alloys are used in harsh environments, such as valves, pump components, and aerospace. Vacuum heat treatment ensures that the final product maintains its integrity with a smooth, oxidation-free surface that contributes to the part's durability in demanding applications.
Titanium Alloys
Titanium alloys, such as Ti-6Al-4V, are valued for their high strength-to-weight ratio, making them ideal for aerospace, automotive, and medical applications. Vacuum heat treatment of titanium alloys helps prevent surface contamination and oxidation, ensuring that the material maintains its superior mechanical properties, such as strength and fatigue resistance, during high-temperature service.
Other High-Temperature Alloys
Other alloys such as Nimonic, Hastelloy, and Monel are used in various industrial applications where resistance to extreme temperatures and corrosion is essential. The vacuum heat treatment process ensures that the alloys achieve the desired properties for their respective applications, whether in chemical processing, nuclear reactors, or military systems.
Post-Processing After Vacuum Heat Treatment
The vacuum heat treatment process is just one step in the overall manufacturing journey of superalloy parts. After heat treatment, additional post-processing steps are often required to refine the parts further and ensure they meet the stringent requirements of their applications. One critical step is Hot Isostatic Pressing (HIP), which eliminates internal porosity and enhances the material's mechanical properties. HIP is significant for high-performance components such as turbine blades and reactor vessel parts. These post-processes help guarantee that the final product is durable and reliable for the demanding environments they will face.
Hot Isostatic Pressing (HIP)
Hot Isostatic Pressing (HIP) is a post-processing technique that involves applying high pressure and temperature to superalloy parts in an inert atmosphere. HIP is used to eliminate internal porosity and to improve material density, making it particularly important for critical parts like turbine blades and reactor vessel components. It helps achieve a homogeneous microstructure and improves the material's mechanical properties, such as tensile strength and fatigue resistance. Moreover, HIP-treated parts have extended lifespan and improved reliability, which is crucial for aerospace, energy, and chemical industries.
Surface Finishing
Once the part has undergone vacuum heat treatment and possibly HIP, surface finishing processes are applied to enhance its surface integrity. These processes include grinding, polishing, and coating, all of which contribute to the final appearance and functionality of the component. In some cases, thermal barrier coatings (TBC) are applied to protect parts from high-temperature corrosion and oxidation, particularly in gas turbine components. These coatings improve durability and efficiency, making them critical for high-temperature applications in the aerospace and energy sectors.
Additional Heat Treatments
Further heat treatments such as solutionizing and aging may be performed depending on the alloy and its intended use. Solutionizing involves heating the alloy to a specific temperature to dissolve unwanted phases, while aging helps to achieve optimal mechanical properties, such as strength and hardness. These additional heat treatments ensure that the superalloy parts have the required microstructure to withstand the operational demands of their application. The benefits of heat treatment are particularly evident in improving the lifespan and performance of high-temperature alloy parts, which are crucial for industries like aerospace and energy.
Testing and Quality Control Post-Vacuum Heat Treatment
Superalloy parts must be tested to meet the required mechanical properties and performance standards. Testing is an essential step in manufacturing, providing critical data on the material’s strength, durability, and reliability. For accurate material testing, various techniques are used to evaluate the mechanical properties of superalloy parts.
Material Testing
Several testing methods are employed to evaluate the mechanical properties of superalloy parts. These include:
Tensile Testing: This test measures the strength and elongation of a material under tension. It helps determine the material's ability to withstand forces that may cause it to stretch or break. For precise tensile strength measurement, testing machines such as universal testing machines are employed to simulate real-world stresses.
Fatigue Testing: This test simulates the cyclic loading that superalloy parts experience in real-world applications, such as in turbines and engines. It helps assess the material's durability under repeated stress. Creep and fatigue testing is critical for parts exposed to thermal cycling.
Creep Testing: Creep testing is critical for parts exposed to high temperatures for extended periods. It measures the material's deformation under a constant load over time, helping to determine its long-term performance in high-temperature environments. To ensure that creep resistance is optimized, testing at high temperatures is conducted to simulate real operational conditions.
Non-Destructive Testing (NDT)
Non-destructive testing is employed to detect internal or surface defects that may compromise the part's integrity. Standard NDT techniques include:
X-ray and CT Scanning: These methods detect internal defects such as porosity, cracks, and inclusions that may affect the part's strength and performance. X-ray inspection is a non-invasive method that ensures the quality of cast parts by visualizing internal structures.
Ultrasonic and Eddy Current Testing: These techniques are used to assess the surface and subsurface integrity of the material, ensuring that there are no flaws that could cause failure under operating conditions. For further ultrasonic detection, manufacturers rely on advanced sensors to detect flaws.
Microstructural Analysis
Microstructural analysis is performed using metallographic and scanning electron microscopy (SEM) techniques. These methods help evaluate the material’s grain structure, phase formation, and any potential defects or impurities that could impact its performance. For example, SEM analysis provides high-resolution images of the material's surface, enabling the identification of surface defects that may not be visible through other methods.
Elemental Analysis
Elemental analysis tools such as Glow Discharge Mass Spectrometry (GDMS) and Inductively Coupled Plasma Optical Emission Spectroscopy (ICP-OES) are used to confirm the chemical composition of the superalloy. These tests ensure that the alloy has the correct balance of elements to meet the required specifications. The GDMS analysis is instrumental in detecting trace elements that may impact material performance under extreme conditions.
Industries and Applications Benefiting from Vacuum Heat Treatment
Superalloy casting parts treated with vacuum heat treatment are used across various industries where performance, reliability, and longevity are essential. These industries include aerospace, power generation, oil and gas, automotive, defense, and more.
Aerospace
The aerospace industry relies heavily on superalloys for components like turbine blades, combustion chambers, and exhaust systems. These components are subjected to extreme temperatures and stresses, requiring alloys with exceptional heat, fatigue, and oxidation resistance. Vacuum heat treatment ensures that these parts meet the stringent requirements for performance and safety. Parts like superalloy turbine blades benefit greatly from this process to maintain integrity under high stress in jet engines.
Power Generation
In power generation, superalloys are used in gas turbines, heat exchangers, and other high-temperature components. These parts must perform reliably in environments that can exceed 1000°C. Vacuum heat treatment helps maintain the mechanical properties of these alloys, allowing them to withstand the harsh conditions of power plants. Superalloy components like heat exchanger parts benefit from this process to optimize performance over long operational periods.
Oil and Gas
Superalloy components used in the oil and gas industry include valves, pumps, and drill bits, which are exposed to high pressures and corrosive environments. Vacuum heat treatment helps ensure these components maintain their structural integrity and resist corrosion, even under the most challenging conditions. Parts like superalloy pumps are treated to enhance their durability and performance in oil and gas exploration.
Automotive
In the automotive industry, superalloys are used in turbochargers, exhaust systems, and high-performance engine components. These parts are exposed to extreme temperatures and require materials that maintain their strength and durability. Vacuum heat treatment enhances the alloys' resistance to heat and wear, ensuring the performance of these components in demanding applications. Components like turbochargers are treated for superior thermal stability and wear resistance.
Military and Defense
Superalloys, including missile components, armor systems, and weapons, are critical in military and defense applications. These parts must withstand high stresses, temperature extremes, and potentially corrosive environments. Vacuum heat treatment ensures that these critical components maintain their performance in high-stress situations. For instance, components like superalloy armor system parts are treated to offer high strength and reliability under extreme conditions.
Nuclear
In nuclear power plants, superalloys are used in reactor vessel components, control rods, and fuel system modules. These parts must perform under high temperatures, radiation, and pressure. Vacuum heat treatment helps ensure that these components maintain their strength and resistance to corrosion over long periods of operation. Components such as control rod modules are treated to maintain their integrity in the harsh conditions of nuclear reactors.
