Importance of Ensuring High-Purity Material In Superalloy Parts Production

In the world of superalloy parts manufacturing, the quality of the raw materials plays a critical role in determining the final product's performance, durability, and reliability. High-purity materials are essential for ensuring that superalloy components can withstand the extreme environments they are often designed for, including high temperatures, corrosion, and mechanical stress. In this blog, we will explore the significance of high-purity material in the production of superalloy parts, mainly focusing on the various manufacturing processes, the benefits of different types of superalloys, the comparison of post-processing methods, testing procedures, and the industries that rely on these high-performance materials.

Superalloy Parts Manufacturing Processes Requiring High-Purity Materials

To achieve the desired mechanical and thermal properties, superalloy parts undergo various manufacturing processes, each demanding high-purity materials. Here’s an overview of the processes where purity is crucial:

Vacuum Investment Casting (VIC): A high-purity metal is melted and poured into a mold under vacuum conditions. The vacuum prevents oxidation and contamination, ensuring the superalloy retains its chemical integrity. This is particularly important for producing turbine blades and other high-performance components where purity directly impacts mechanical properties like creep resistance and fatigue strength.

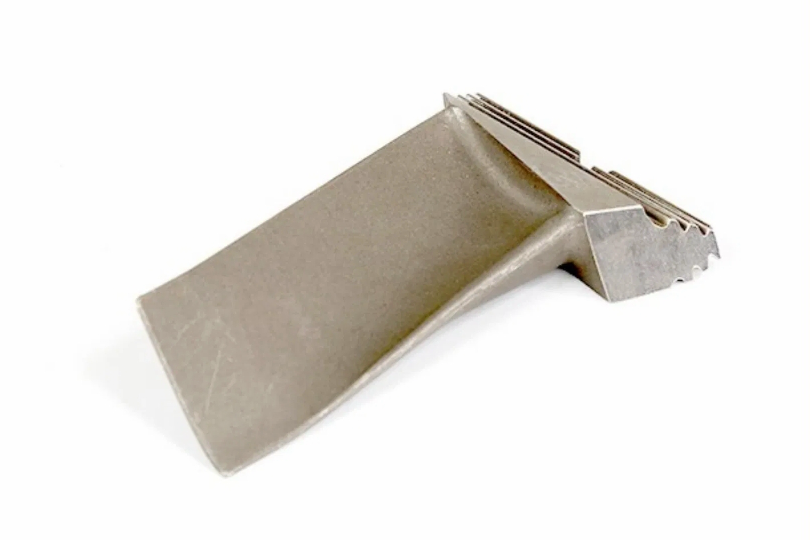

Single Crystal Casting: Single crystal superalloys are used in applications where exceptional strength and resistance to thermal fatigue are required, such as in turbine blades and other hot-section components of gas turbines. Achieving a perfect single-crystal structure requires ultra-high purity materials to prevent any dislocations or defects that could compromise the component’s performance at extreme temperatures.

Equiaxed Crystal Casting: While single crystal casting is used for the highest-performance parts, equiaxed crystal casting is often used for components that still require high strength but can tolerate some grain boundaries. Using high-purity materials ensures that the crystals are uniformly sized and free of impurities, contributing to uniform mechanical properties.

Directional Casting: This process involves the controlled solidification of molten metal to form a specific grain structure. High-purity materials are essential in directional casting to maintain the desired microstructure and avoid defects that could arise from impurities, ensuring better mechanical properties like strength and resistance to thermal cycling.

Powder Metallurgy: In powder metallurgy, high-purity metal powders are compressed and sintered to form dense, high-performance parts. The purity of the metal powder is crucial as any impurities in the material can negatively affect the sintering process, resulting in weak spots or inconsistent material properties in the final component.

Forging (Precision, Isothermal, Rough, Free): Superalloy components are often forged to achieve strength and shape. High-purity materials in the forging process ensure that the final component maintains its high tensile strength and resistance to fatigue, which is essential for parts such as turbine discs and engine components.

CNC Machining: After the initial forming process, CNC machining is often used to achieve the precise tolerances and finishes required for critical applications. High-purity materials are crucial here as impurities can interfere with the cutting and finishing processes, leading to dimensional inaccuracies or surface defects.

3D Printing (Additive Manufacturing): In additive manufacturing, high-purity superalloys produce complex geometries that are difficult or impossible to achieve through traditional methods. The purity of the material ensures that the printed parts exhibit uniform properties, particularly in strength and resistance to high temperatures.

Benefits of High-Purity Material for Different Superalloys

The benefits of using high-purity materials extend to various types of superalloys, each with its specific applications. Below are some of the key advantages of high-purity materials for different superalloys:

Inconel Alloys

Inconel alloys, particularly those like Inconel 718 and Inconel 625, are widely used in high-temperature applications, such as turbine blades and exhaust systems. High-purity Inconel ensures superior oxidation and corrosion resistance, improved thermal stability, and higher fatigue resistance. Eliminating impurities enhances the alloy’s ability to perform under extreme thermal cycling, which is critical in aerospace and power generation industries.

CMSX Series (Single Crystal Superalloys)

For single-crystal alloys like CMSX-10 and CMSX-486, high purity is essential for maintaining the integrity of the crystal structure. Any impurity can cause a deviation in the crystal lattice, leading to defects that degrade high-temperature creep and fatigue resistance. High-purity CMSX alloys are commonly used in turbine blades for jet engines, where long-term performance at high temperatures is critical.

Hastelloy Alloys

Hastelloy alloys, such as Hastelloy C-276 and Hastelloy X, are known for their excellent corrosion resistance, especially in chemical processing environments. High-purity Hastelloy ensures that these alloys perform consistently in highly aggressive environments, including in reactors, heat exchangers, and chemical processing plants, where resistance to corrosion and pitting is crucial.

Monel Alloys

Monel alloys, such as Monel 400 and Monel K500, are highly corrosion-resistant in marine environments. High-purity Monel alloys improve mechanical properties such as strength and toughness while enhancing their ability to resist seawater corrosion, making them ideal for marine applications, including pumps, valves, and propeller shafts.

Titanium Alloys

High-purity titanium alloys like Ti-6Al-4V are used extensively in aerospace, medical, and automotive applications due to their exceptional strength-to-weight ratio and corrosion resistance. Purity is essential to achieve the desired mechanical properties, such as tensile strength and elongation, critical in high-performance components such as aircraft structural parts and medical implants.

Stellite Alloys

Stellite alloys are known for their wear resistance and are commonly used in high-stress applications such as cutting tools, valves, and bearings. High-purity Stellite ensures these alloys maintain their hardness and corrosion resistance, even in extreme wear conditions.

Rene Alloys

Rene alloys, such as Rene 104 and Rene N6, are high-performance alloys used in aerospace and gas turbine applications. High-purity Rene alloys improve their ability to withstand extreme temperatures and stresses, essential in components like turbine blades and exhaust systems.

Comparison of Post-Processes for High-Purity Superalloy Parts

Once the superalloy parts are manufactured, several post-processing steps are necessary to enhance their performance further and ensure they meet the required specifications. The purity of the materials used in the manufacturing process affects the effectiveness of these post-processing techniques:

Hot Isostatic Pressing (HIP)

Hot Isostatic Pressing (HIP): This process uses high pressure and temperature to improve the density of the superalloy, reducing any micro-porosity that may have developed during casting or powder metallurgy. High-purity materials are essential in HIP to ensure no contaminants are trapped within the material, which could degrade its strength and fatigue resistance. HIP ensures the material’s integrity and longevity in critical applications like aerospace turbine blades and other high-stress components.

Heat Treatment

Heat treatment is a crucial post-processing step that enhances the mechanical properties of superalloy parts, such as hardness, tensile strength, and resistance to thermal fatigue. High-purity materials are required to ensure that the heat treatment process is effective and that no impurities interfere with the formation of desirable microstructures. Heat treatment enhances material performance, especially in superalloys used in extreme environments.

Welding

In some applications, superalloy parts need to be welded to other components. Superalloy welding: High-purity materials are critical for achieving solid and defect-free welds. Impurities in the material can compromise the quality of the weld and lead to weaknesses that could result in premature failure. Proper welding ensures the durability of the joints in complex assemblies, such as gas turbines and aircraft engines.

Thermal Barrier Coating (TBC)

Thermal barrier coatings (TBC) are often applied to superalloy parts to protect them from high temperatures and oxidation. The effectiveness of TBCs is significantly enhanced when high-purity materials are used in the base superalloy, as they provide a clean, stable substrate for the coating to adhere to. TBC applications improve the service life of components exposed to extreme heat, such as turbine blades in jet engines.

CNC Machining

CNC machining: High-purity materials allow for more precise machining, ensuring that parts meet stringent dimensional tolerances. The absence of impurities ensures that the cutting tools experience less wear, leading to higher-quality finishes and better surface integrity. Precision machining is crucial for applications like aerospace and defense, where exacting tolerances are a must.

3D Printing

3D printing: Post-processing of 3D printed superalloy parts involves heat treatment, machining, and coating. High-purity materials ensure the printed parts exhibit the desired mechanical properties and structural integrity. 3D printing combined with post-processing optimizes material properties for complex geometries and high-performance applications in aerospace and energy.

Testing for High-Purity Superalloy Parts

A range of testing methods are used to ensure that superalloy parts meet the required standards. These tests verify the purity and performance characteristics of the material:

Coordinate Measuring Machine (CMM) Checking: CMM ensures that parts made from high-purity materials meet the required dimensions and tolerances. Accurate measurements are critical in industries like aerospace and automotive, where even slight deviations can affect performance. This precision measurement ensures that parts meet the stringent dimensional requirements for safety and functionality.

Glow Discharge Mass Spectrometer (GDMS): GDMS is used to detect trace elements and impurities in superalloy materials. This is a crucial test for ensuring that the alloy’s composition meets the specified purity requirements. GDMS analysis helps ensure that superalloy casting is accurate and compliant with industry standards, ensuring the alloy’s performance in demanding environments.

X-ray Inspection: X-ray inspection checks for internal defects such as voids or inclusions in superalloy parts. Parts made from high-purity materials are less likely to have internal defects, improving their strength and reliability. Non-destructive testing like X-ray helps maintain the structural integrity of superalloy parts by detecting hidden flaws.

Tensile Testing: Tensile tests measure the material’s ability to withstand stretching and pulling forces. The purity of the superalloy directly influences its tensile strength, with higher purity generally leading to more robust materials. This makes tensile testing essential in verifying that superalloy components meet the mechanical requirements for high-stress applications.

Scanning Electron Microscopy (SEM): SEM examines the microstructure of superalloy materials. This helps confirm that the alloy is free of impurities and that the grain structure is uniform, ensuring optimal performance. SEM analysis provides high-resolution imaging, critical in assessing the material’s structural integrity.

In the oil and gas industry, superalloy parts are used in drilling equipment, pumps, and valves, where high-purity alloys provide the corrosion resistance and strength needed to withstand extreme pressures and harsh environments. For example, high-temperature alloy pump components are made from high-purity superalloys to ensure long-term durability and reliability in demanding oil and gas operations.

Marine

Marine applications, including naval propulsion systems and exhaust systems, rely on high-purity superalloys for their resistance to corrosion and ability to perform in saltwater environments. Components such as superalloy naval ship modules are produced from high-purity materials to provide the necessary strength and corrosion resistance for marine environments.

Automotive

High-performance engine components, such as turbine blades and exhaust systems, require high-purity superalloys to endure high temperatures and corrosive conditions. These components play a vital role in improving the performance and durability of automotive systems, where reliability is key for both everyday use and high-performance vehicles.

Chemical Processing

Superalloys like Hastelloy are used in chemical reactors, heat exchangers, and distillation columns. High purity ensures these alloys resist corrosion and oxidation in aggressive chemical environments. Superalloy parts manufactured for chemical processing applications are essential for maintaining operational efficiency and safety in chemical plants.

Medical Devices

Titanium alloys, known for their high purity, are widely used in medical implants due to their strength, biocompatibility, and corrosion resistance. These high-purity alloys ensure that medical devices such as joint replacements and surgical tools maintain integrity and perform reliably in the human body.

Military and Defense

In military applications, superalloys are used in jet engines, missile systems, and armor components. High-purity superalloys are essential for ensuring these high-stakes applications' performance, wear resistance, and thermal stability. Superalloy armor system parts are an example of how purity contributes to the durability and effectiveness of military materials.

FAQs

1. What are the key benefits of using high-purity materials in superalloy parts manufacturing?

2. How does the purity of the material impact the performance of superalloy parts in high-temperature environments?

3. Which testing methods are used to ensure the purity of superalloy materials?

4. What post-processing techniques are commonly used to enhance the properties of high-purity superalloy parts?

5. How does high-purity material improve the durability and reliability of superalloy parts in aerospace and power generation applications?
