How to Prevent Stray Grain Defects in Single Crystal Casting

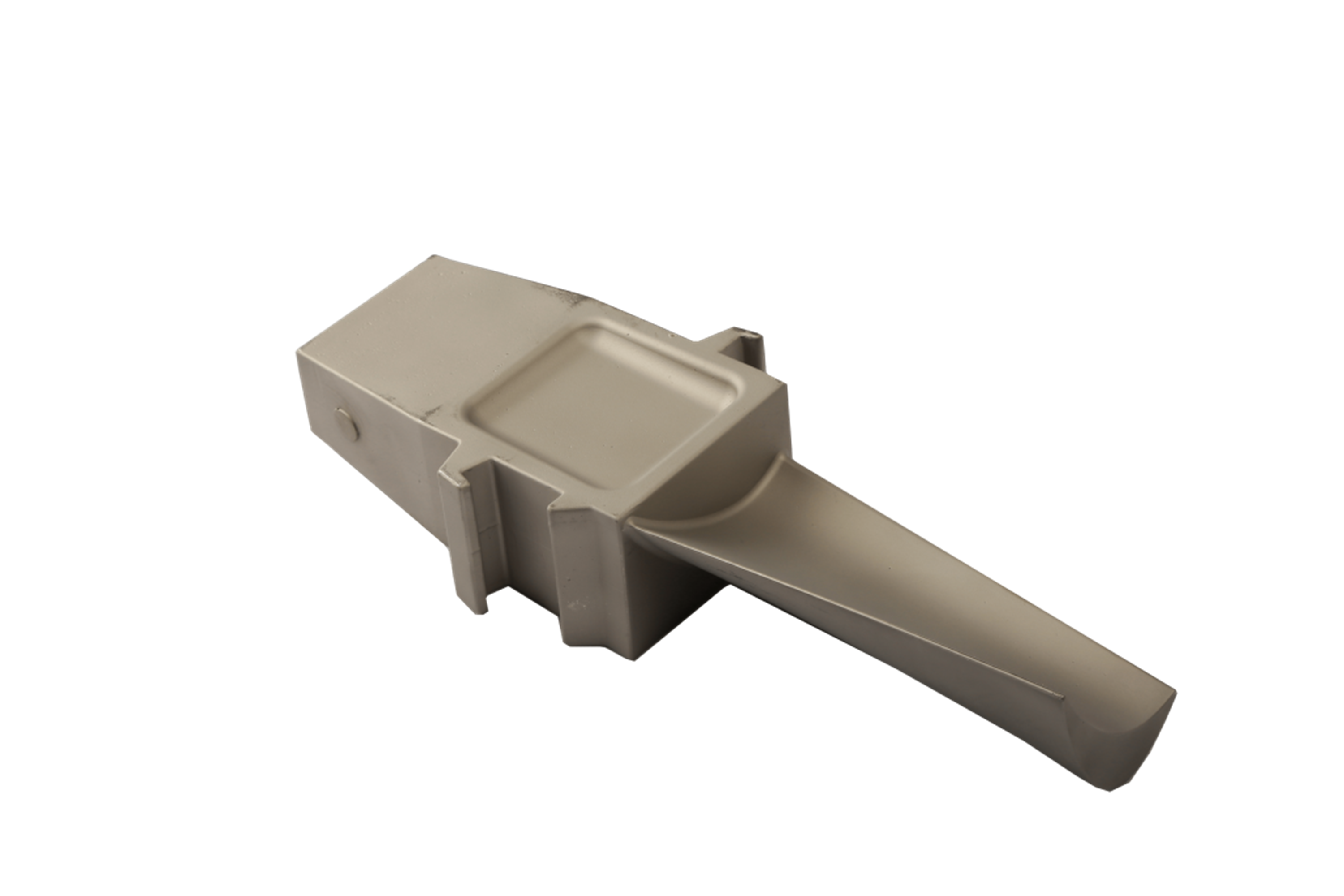

Single crystal casting is a sophisticated process critical to producing components that withstand extreme conditions in aerospace, power generation, and defense applications. However, stray grain defects pose a significant challenge to achieving the flawless crystal structure required for these components. Stray grains disrupt the uniformity of the single crystal lattice, leading to weaknesses that compromise the material's mechanical and thermal properties.
These defects often arise during the casting process due to fluctuations in thermal gradients, inconsistent solidification, or impurities in the casting environment. Preventing stray grain defects is essential to ensure the reliability and performance of components like turbine blades and nozzles. Manufacturers can mitigate these issues by employing advanced techniques and precise controls and producing components that meet the highest quality standards. These advancements are particularly crucial for industries like aerospace, where component integrity is vital for safety and efficiency.
Understanding Stray Grain Formation in Single Crystal Castings
Stray grain defects are characterized by unwanted crystallographic orientations within a single crystal structure. These grains can form due to misaligned crystal growth, poor seed crystal quality, or environmental inconsistencies during casting. Unlike the primary crystal, stray grains introduce grain boundaries acting as stress concentrators, reducing the component's fatigue and thermal creep resistance. Processes like single-crystal casting are designed to minimize such defects and ensure uniformity in the crystal structure.
Several factors influence the formation of stray grains. Thermal gradients during the solidification process must be carefully controlled to ensure consistent crystal growth. Deviations in cooling rates can create regions where secondary grains nucleate and grow. Technologies like directional solidification enable precise control of thermal gradients, reducing the risk of stray grain formation. Additionally, improper seeding or contamination in the casting environment can introduce impurities that trigger stray grain formation.
The impact of stray grains on component performance is significant. Grain boundaries created by stray grains reduce the material's mechanical strength and thermal stability. In applications such as jet engines or gas turbines, these defects can lead to premature failure, endangering equipment and safety. Controlled casting environments, such as those provided by vacuum investment casting, help maintain clean and consistent conditions, minimizing the likelihood of stray grain formation.
By addressing the factors contributing to stray grains, manufacturers can improve the performance and reliability of critical components, ensuring they meet the stringent requirements of high-performance industries.
Techniques for Preventing Stray Grain Defects
Preventing stray grain defects requires a multifaceted approach that combines advanced casting techniques, precise environmental control, and optimized materials.
Optimized directional solidification is critical to ensuring defect-free single-crystal growth. Maintaining a consistent thermal gradient during the casting process prevents secondary grain nucleation. Modern casting furnaces with advanced temperature control systems allow for precise management of solidification rates. Improved cooling technologies further enhance the uniformity of crystal growth, reducing the likelihood of stray grain formation. Processes like directional solidification casting are essential for maintaining consistent thermal gradients and preventing defects.
Refined seeding practices play a pivotal role in preventing stray grains. Seed crystals must be carefully prepared to ensure they are free from defects or impurities. The alignment and placement of the seed crystal within the mold are equally important. Techniques such as controlled seeding and rotational alignment help maintain consistent crystal growth throughout the casting process. These practices are integral to single crystal casting, where precision is critical for achieving defect-free components.
Innovations in mold design and materials have significantly reduced stray grain defects. High-quality ceramic molds with excellent thermal conductivity ensure uniform heat transfer during solidification. Mold geometry is also optimized to promote directional solidification and minimize regions prone to stray grain nucleation. Coatings on mold surfaces reduce the interaction between the molten alloy and the mold, further lowering the risk of contamination. Advanced molds are often used in vacuum investment casting to ensure a clean and controlled environment.
The casting environment is another critical factor. Vacuum or inert gas environments prevent oxidation and contamination, creating a cleaner casting process. Real-time monitoring systems maintain consistent atmospheric conditions, ensuring the reliability of the process. These controls are essential for minimizing impurities leading to stray grain formation. Unique alloy casting enhances process reliability, especially for high-performance materials.
Suitable Superalloys for Stray Grain Prevention
The choice of superalloy is integral to the success of stray grain prevention strategies. Certain materials exhibit properties that make them more amenable to single-crystal casting with minimal defects.
Inconel Alloys
Inconel alloys, including Inconel 713, Inconel 718, and Inconel 738, are widely used in applications requiring high thermal and mechanical performance. These alloys have demonstrated excellent results in stray grain-resistant casting processes. Advanced directional solidification techniques and refined cooling methods enhance the quality of Inconel castings, reducing the risk of stray grain defects.
CMSX Series
The CMSX series, featuring alloys such as CMSX-4, CMSX-10, and CMSX-486, is specifically designed for single crystal casting. These materials are known for their exceptional creep resistance and thermal stability. However, their complex compositions require meticulous control of casting parameters to avoid stray grains. Advances in furnace technology and mold design have made it possible to cast CMSX alloys with high reliability.
Rene Alloys
Rene alloys, such as Rene 104 and Rene 88, are also prominent in high-performance applications. These superalloys are engineered to withstand extreme conditions, making them ideal for components like turbine blades and nozzles. Enhanced casting processes tailored to Rene alloys have significantly reduced the incidence of stray grain defects, ensuring their suitability for critical environments.
Specialized single-crystal alloys
Specialized single crystal alloys, including PWA 1480 and CMSX-2, are used in the most demanding applications. These materials require rigorous defect control throughout casting to maintain their flawless microstructures. Their thermal and mechanical stress resistance makes them indispensable in aerospace and power generation industries.
Post-Processing Strategies to Address Stray Grain Issues
While preventing stray grains during casting is the primary goal, post-processing techniques can address residual issues and enhance component quality.
Hot Isostatic Pressing (HIP) is an effective method for mitigating microstructural inconsistencies. HIP compresses the material by applying high pressure and temperature, eliminating porosity and improving its density. While HIP cannot entirely remove stray grains, it helps refine the overall microstructure, enhancing the component's mechanical properties. Leveraging advanced HIP techniques can improve material consistency and performance.
Heat treatment is another essential post-processing step. Customized heat cycles are designed to optimize the material's properties and address any residual stress caused by stray grains. Precision heat treatment with advanced furnaces ensures uniform treatment, reducing the impact of defects on the final component.
Surface refinement and coatings are vital in addressing stray grain-related surface issues. Techniques such as polishing and cleaning remove superficial imperfections, while thermal barrier coatings (TBC) protect against thermal fatigue. Modern TBC application methods ensure consistent coverage, enhancing the component's durability and performance.
Testing and Analysis for Stray Grain Detection
Rigorous testing and analysis are critical to identifying and addressing stray grain defects in single crystal castings. Advanced testing methods provide detailed insights into the material's microstructure, allowing manufacturers to refine their processes and ensure quality.
Non-destructive testing (NDT) methods, including X-ray inspection, CT scanning, and ultrasonic techniques, are widely used for detecting internal defects. These technologies offer high-resolution imaging, enabling the identification of stray grains without damaging the component. Real-time analysis during production further enhances defect detection capabilities.
Electron Backscatter Diffraction (EBSD) is a powerful tool for analyzing grain orientation and crystal alignment. By examining the microstructure in detail, EBSD helps identify regions affected by stray grains and provides valuable data for process optimization. This technique is essential for maintaining the structural integrity of single-crystal components.
Mechanical testing evaluates the impact of stray grains on component performance. Tensile and fatigue tests simulate operational conditions, revealing how defects affect the material's strength and durability. These tests are crucial for ensuring that components meet the stringent requirements of high-performance applications.
Industry Applications of Stray Grain-Free Single Crystal Castings
Stray grain-free single-crystal castings are essential in industries with critical reliability, durability, and performance. These components operate in extreme environments, requiring flawless structures for optimal performance.
Aerospace and Aviation
In aerospace and aviation, turbine blades with no stray grains are used in jet engines. These components must endure high temperatures, mechanical stress, and oxidation while maintaining structural integrity. Stray grain prevention ensures the reliability and efficiency of these vital parts, making them indispensable in aerospace and aviation applications.
Power Generation
Single crystal castings are integral to gas and steam turbines in power generation. Components with precise crystal structures improve energy efficiency, reduce maintenance costs, and extend service life. Stray grain-free materials are critical to achieving these benefits, enabling turbines to perform reliably under extreme operating conditions.
Oil and Gas
The oil and gas industry relies on defect-free castings for high-pressure, high-temperature systems. Preventing stray grains ensures the reliability and safety of components in these demanding applications, minimizing the risk of failure. Oil and gas operations depend on these advanced materials to ensure the longevity and durability of critical systems.
Military and Defense
In military and defense applications, single crystal castings are used in propulsion systems and advanced weaponry. Preventing stray grains is essential to maintaining performance and safety in mission-critical environments. The military and defense sector relies on these flawless materials to ensure consistent performance under extreme stress and temperatures.
