How MJF Enhances Batch Manufacturing of Plastic Parts

Introduction to MJF Technology

MJF is a powder bed fusion technology that uses multiple inkjet arrays to selectively apply fusing agents to a powder bed, which is then heated to fuse the material. Unlike traditional 3D printing methods like Fused Deposition Modeling (FDM) or Selective Laser Sintering (SLS), MJF uses a sophisticated system of high-speed inkjet arrays to speed up the printing process, producing large batches of parts efficiently.

One of the critical advantages of MJF lies in its ability to deliver parts with intricate geometries and high detail. The technology enables printing functional prototypes and final end-use parts in a single process. MJF’s layer-by-layer construction allows it to produce parts with uniform density and strength, making it ideal for high precision and durability applications.

Manufacturing Process of MJF for Plastic Parts

The MJF process starts with spreading a thin layer of powder across a build platform. Multiple inkjet arrays then apply a fusing agent to the powder in areas where the material is intended to bond. A heat source fuses the powdered material, solidifying the printed layer. This process is repeated for each layer until the entire part is complete.

MJF differs from traditional powder-bed technologies like SLS in that it uses two agents: a fusing agent and a detailing agent. The fusing agent is applied to areas that need to be fused. In contrast, the detailing agent helps define the boundaries of each layer, resulting in better resolution and more accurate features. This capability allows MJF to achieve better surface quality and feature definition, making it suitable for manufacturing functional parts with high complexity.

The speed of MJF comes from its use of multiple inkjet arrays that work simultaneously to apply fusing agents across the build surface instead of relying on a single laser as in SLS. This allows for a faster build time, particularly for larger volumes of parts. Additionally, MJF can print multiple parts in parallel, making it highly efficient for batch manufacturing.

Suitable Printing Materials for MJF

MJF (Multi Jet Fusion) is a versatile 3D printing technology that supports various thermoplastic materials, which is ideal for producing solid and functional parts. Here are the most common materials used in MJF printing:

PA12 (Polyamide 12)

PA12, or Polyamide 12, is one of the most widely used materials for MJF. Known for its excellent strength, durability, and resistance to wear, PA12 is ideal for applications requiring good mechanical properties and chemical resistance. It is commonly used in automotive, aerospace, and consumer goods manufacturing, where parts must endure mechanical stress and environmental factors.

PA11

PA11 is a versatile nylon material with improved flexibility and impact resistance compared to PA12. This material is often used for parts that require enhanced durability, such as automotive components, sporting goods, and consumer products. Its ability to bend without cracking makes it suitable for applications like gaskets and brackets.

PA6

PA6, another nylon variant, offers superior strength and rigidity compared to PA12 and PA11. It benefits applications that demand more robust, load-bearing parts, such as automotive and heavy industrial environments. PA6's ability to withstand high-stress conditions makes it a preferred material for more demanding structural components.

TPU (Thermoplastic Polyurethane)

TPU is a flexible material with excellent impact resistance and abrasion resistance. Known for its rubber-like properties, TPU is ideal for producing soft-touch, bendable parts such as seals, gaskets, and wear-resistant components. It is commonly used in the automotive, footwear, and consumer goods industries, where flexibility and durability are key.

Fiberglass-Reinforced Materials

MJF also supports fiberglass-reinforced materials, which combine the strength of thermoplastics with the added stiffness and dimensional stability provided by fiberglass. These materials benefit high-performance applications, such as aerospace and automotive industries, where parts must withstand high stress and maintain dimensional stability over time.

MJF's compatibility with a wide range of thermoplastic materials, including specialized high-performance options, makes it a highly versatile technology for applications across various industries. Whether you need flexible parts, highly durable components, or reinforced structures, MJF provides the flexibility to produce complex parts with precise properties.

Post-Processing of MJF Parts

Once the parts are printed, they undergo several post-processing steps to improve their mechanical properties, surface quality, and appearance. The post-processing process for MJF parts typically includes the following:

Cleaning and Powder Recovery

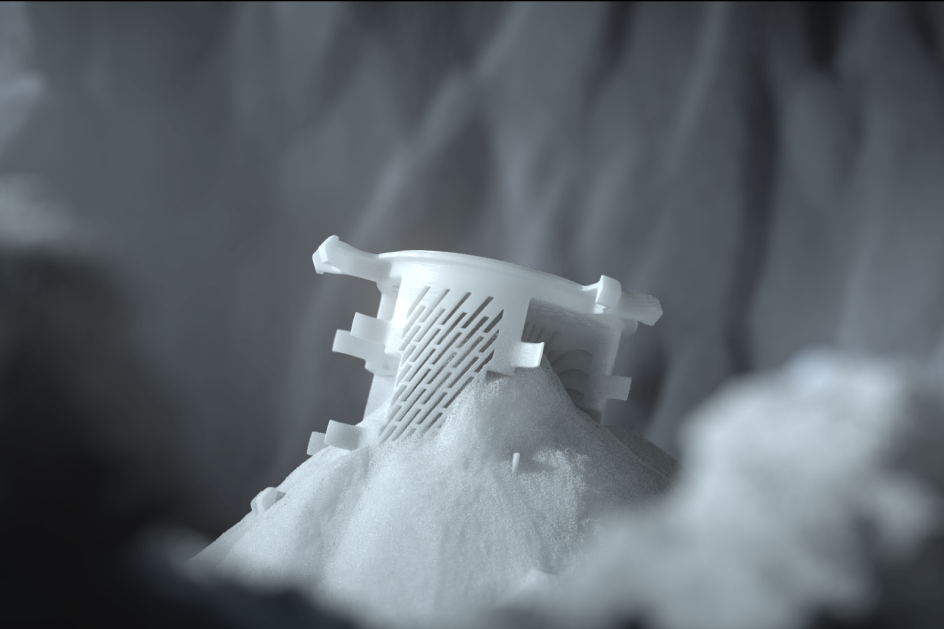

After the printing process, the parts are surrounded by unused powder. The first step is to remove this excess powder carefully to avoid contamination and ensure the parts meet quality standards. MJF systems have built-in powder recovery systems that efficiently separate unused powder for reuse in future builds, making the process more sustainable and cost-effective. Powder metallurgy services like these ensure effective material reuse.

Thermal Sintering

Some MJF-printed parts undergo thermal sintering, a process in which parts are heated to a specific temperature to enhance their strength and thermal resistance. This post-processing step is particularly useful for parts in high-temperature environments or requiring superior mechanical properties. Heat treatment improves these characteristics, making them suitable for demanding applications.

Sanding and Polishing

For cosmetic parts or those requiring smooth surfaces, MJF parts may undergo sanding and polishing. These techniques can improve the surface finish, remove support structures, and enhance the part’s aesthetic qualities. Surface finishing ensures that the part performs well and has a high-quality appearance.

Surface Coating and Painting

Parts may be coated or painted to improve their appearance or provide additional functional properties, such as corrosion resistance or UV protection. Coatings can also increase part strength or reduce friction in certain applications. Thermal barrier coatings can provide thermal protection in high-temperature environments.

Testing and Quality Control in MJF Manufacturing

Quality control is critical to MJF manufacturing, especially for batch production where parts must meet strict consistency and performance standards. Several testing methods are used to ensure that the parts meet the required specifications:

Dimensional Accuracy

One of the most critical aspects of MJF is the precision of the parts. MJF can produce highly accurate parts with tight tolerances, but dimensional verification is still necessary to ensure that parts meet specifications. Coordinate Measuring Machines (CMM) Checking or optical scanners are often used to measure the dimensions of the parts and compare them against CAD designs. This step ensures that parts meet the tight tolerances required for critical applications.

Mechanical Properties Testing

Mechanical properties such as tensile strength, elongation, impact resistance, and hardness are tested to ensure the parts can perform their intended functions. This is especially important for parts with significant mechanical stress, such as automotive or aerospace components. Tensile testing is essential to determine the part’s resistance to deformation under load.

Visual Inspection

Visual inspection is another crucial aspect of quality control. This ensures that the parts are free from defects like warping, cracks, or other issues that may arise during the printing or post-processing. Additionally, surface finish inspections are often conducted using profilometers to ensure the parts meet the required appearance and texture standards.

CT Scanning

CT scanning is sometimes used to inspect for internal voids, material density, and structural integrity for complex parts with internal geometries or structures. This non-destructive testing method benefits industries like aerospace and medicine, where part integrity is critical. X-ray or CT Scanning provides detailed insights into the internal structures of MJF parts, helping to detect hidden flaws that could affect performance.

Industries Benefiting from MJF for Batch Manufacturing

MJF (Multi Jet Fusion) technology is a perfect fit for industries that require high-performance plastic parts with complex geometries. The following industries benefit significantly from MJF technology:

Aerospace

MJF is used to manufacture lightweight, durable plastic parts for aerospace applications. From prototype components to end-use parts like air ducts, brackets, and housings, MJF’s precision and speed make it ideal for the aerospace and aviation sector, which requires strict compliance with quality standards. MJF’s ability to create high-strength, complex parts is critical for producing aircraft and aerospace systems components.

Automotive

MJF enables the production of functional parts, including interior components, prototypes, and even end-use parts like air intake manifolds or functional brackets. Its ability to produce high-strength plastic components with fine details makes it an ideal solution for the automotive industry. MJF technology allows manufacturers to produce robust parts rapidly while maintaining high precision for vehicle components.

Medical

In the medical industry, MJF is used to create custom medical devices, surgical tools, and orthotics. The high precision and material versatility make MJF an attractive option for creating prototypes and low-volume production parts. Medical device manufacturers benefit from MJF for rapidly developing custom, patient-specific tools and devices, reducing the time to market for new medical technologies.

Consumer Electronics

MJF is increasingly used to produce parts for consumer electronics, such as enclosures, housings, and connectors. Creating complex geometries with delicate details is essential in producing these parts. Electronics manufacturers use MJF to quickly iterate on product designs, improving product development cycles and reducing time-to-market for consumer electronics.

Industrial Manufacturing

The ability to produce custom tooling, jigs, and fixtures using MJF technology helps manufacturers reduce lead times and improve production efficiency. Its scalability makes it suitable for both prototyping and full-scale production. Industrial manufacturing companies leverage MJF to create durable and precise tools that enhance production processes while offering a high level of customization.

Applications of MJF in Batch Manufacturing

MJF excels in applications with critical precision, speed, and material performance. Some of the most common applications of MJF technology include:

Functional Parts

MJF can produce functional parts that are strong, durable, and ready for use in final applications. These parts can feature integrated features like snap fits, clips, and internal channels, offering a level of complexity and versatility that traditional manufacturing methods cannot match. MJF is widely used in the aerospace and aviation industry to produce complex, high-performance aircraft and components for aerospace systems.

Prototyping

MJF is widely used in rapid prototyping for product development. Producing high-quality prototypes quickly allows companies to iterate designs, test new ideas, and bring products to market faster. The automotive industry utilizes MJF technology to fast prototype vehicle parts and components, helping manufacturers accelerate product development and streamline testing phases.

Low-Volume Production

MJF is ideal for low to medium-volume production runs, making it an excellent option for industries that require custom parts or small batches. MJF can print multiple parts simultaneously, enhancing production efficiency. The medical industry uses MJF to produce small batches of custom medical devices and surgical tools, offering flexibility and reducing the time and cost associated with traditional manufacturing.

Tooling and Functional Testing

MJF’s ability to print functional tooling and end-use parts means that companies can use the technology for various functional tests, including fit, mechanical, and thermal testing. Industrial manufacturing companies leverage MJF to create functional tools and test parts that allow for improved production processes and design validation under real-world conditions.
