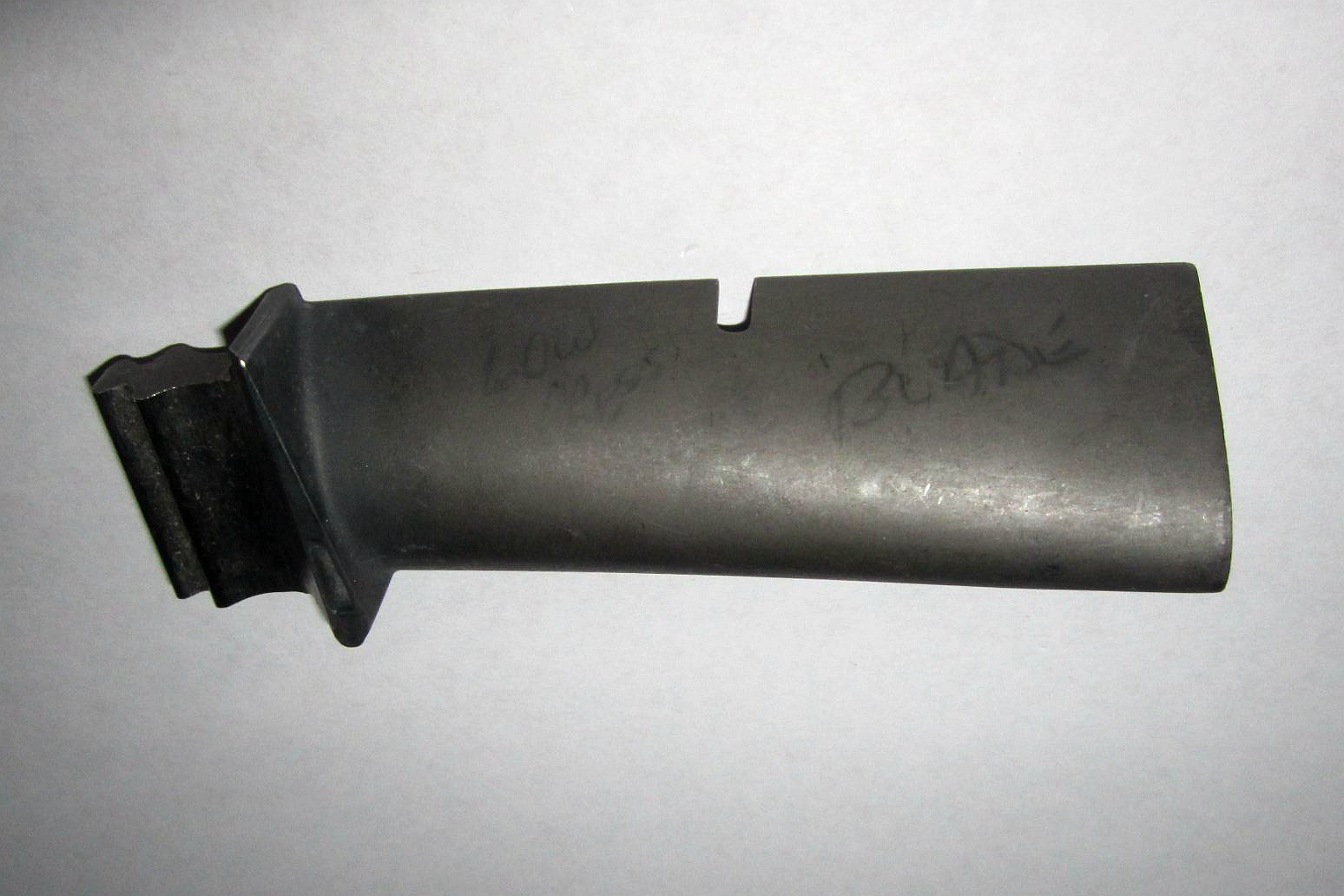

How Do Single Crystal Casting Turbine Blades Benefit from Ultrafine Crystal Technology?
Turbine blades are fundamental components used in engines, power plants, and other high-temperature industrial applications, where their performance directly influences critical systems' efficiency, reliability, and lifespan. These blades are subjected to extreme mechanical stresses, intense heat, and corrosive environments, demanding materials that can endure such harsh conditions. The performance of these components hinges not only on the material composition but also on how the material is processed to maximize its mechanical properties.
Single crystal casting is an advanced processing technique crucial in manufacturing high-performance turbine blades. Through careful control of the crystal structure, single crystal casting eliminates the grain boundaries that typically limit a material’s mechanical properties. This results in turbine blades that are significantly more robust, more resistant to thermal fatigue, and better suited for long-term, high-stress applications.
The ultrafine crystal technology in this casting process further enhances these benefits, allowing for even more precise control over the material’s structure and performance. This advancement allows manufacturers to optimize the mechanical properties of turbine blades, ensuring that they perform reliably under extreme conditions in industries such as aerospace, power generation, and defense.
The Single Crystal Casting Process
Single crystal casting involves the creation of turbine blades from a single uninterrupted crystal structure, drastically improving the material's performance. This is achieved through a process known as directional solidification, where the molten material solidifies in a controlled manner, forming a single crystal as it cools. By preventing the formation of grain boundaries, this process ensures that the blade has uniform material properties in every direction.
The first step in the single crystal casting process is to prepare a mold made from ceramic or other heat-resistant materials. To prevent oxidation, the molten superalloy is poured into the mold under controlled conditions, typically in a vacuum or inert atmosphere. As the molten metal cools, it begins to solidify, and the orientation of the crystal growth is carefully managed. A controlled temperature gradient within the mold ensures that the material cools from the bottom up, allowing the crystal to grow in a uniform direction, typically aligned with the axis of the turbine blade.
The process also involves using a technique called seeding, where a small single crystal is introduced into the molten material. This seed is a foundation for the entire casting, ensuring the crystal grows consistently and uniformly. Advanced superalloy CNC machining is often used to achieve the desired geometric properties after the casting has been completed for precision in the casting process.
Ultrafine Crystal Technology
One of the most significant advancements in single-crystal casting technology is the use of ultrafine crystal structures. As the name suggests, Ultrafine crystals are much smaller than traditional crystals, leading to enhanced mechanical properties. The smaller grain size reduces the likelihood of crystal dislocations and defects, improving the turbine blades' fatigue resistance and creep strength. This makes them more capable of withstanding the high thermal and mechanical stresses in turbine engines, especially in applications where components are exposed to prolonged periods of high heat.
The ultrafine crystal structure in turbine blades enables the metal to withstand thermal cycling and thermal fatigue better. This is because smaller crystals can more effectively distribute stresses and absorb energy, preventing cracks or failures that could occur in larger-grained materials. Superalloy precision forging can refine the material’s mechanical properties to ensure the highest strength and reliability under extreme operating conditions.
Suitable Single Crystal Casting Superalloys
The success of single crystal casting depends on the process and the choice of materials. The superalloys used in single crystal casting are designed to endure high temperatures and mechanical stress while maintaining their integrity over time. Among the most commonly used superalloys for turbine blades are Inconel alloys, CMSX series, and Rene alloys.
Inconel Alloys
Inconel alloys, particularly Inconel 718, Inconel 738, and Inconel 713, are some of the most commonly used materials in the aerospace and power generation industries. These alloys offer exceptional high-temperature strength and oxidation resistance, making them ideal for turbine blades exposed to extreme heat and stress. Inconel’s resistance to thermal expansion and ability to maintain strength at high temperatures make it a suitable choice for single crystal casting in turbine applications.
CMSX Series
The CMSX series, such as CMSX-10 and CMSX-486, are optimized for single crystal casting. These alloys have been designed to perform well in high-temperature environments, making them highly desirable for aerospace and power generation turbines. The CMSX series is known for its high creep resistance, excellent fatigue strength, and superior oxidation resistance, all critical properties for turbine blades that experience continuous high-stress operations.
Rene Alloys
Rene alloys, such as Rene 104 and Rene 88, are another important class of materials used in single crystal casting. Rene alloys are engineered for high-temperature environments where mechanical stress and thermal cycling are prevalent. These alloys have excellent resistance to creep deformation and oxidation, which makes them ideal for applications where parts are subjected to extreme conditions for extended periods.
Single Crystal Alloys
Specially designed single crystal alloys, such as PWA 1480 and CMSX-2, are also used in turbine blade production. These alloys offer superior thermal fatigue and oxidation resistance, making them well-suited for high-performance aerospace, marine, and power generation applications. The selection of a suitable alloy depends on the specific operational conditions the turbine blade will face, including temperature, stress, and environmental factors.
Post-Processing for Enhanced Performance
While the single crystal casting process offers numerous advantages, Post Process Service plays an equally critical role in optimizing the final properties of turbine blades. Several post-processing techniques are commonly employed to enhance the material's performance, including Hot Isostatic Pressing (HIP), heat treatment, and superalloy welding.
Hot Isostatic Pressing (HIP)
One of the most essential post-processing steps is Hot Isostatic Pressing (HIP), which involves subjecting the cast turbine blade to high pressure and temperature in a controlled environment. This process helps eliminate residual porosity within the material, increasing its density and overall mechanical strength. By closing any small voids that may have formed during the casting process, HIP ensures that the final part is free of defects and can withstand the high thermal and mechanical stresses typically experienced by turbine blades. Hot Isostatic Pressing (HIP) improves turbine components' structural integrity and performance.
Heat Treatment
Heat treatment is another crucial step in post-processing, which further enhances the properties of the superalloy. This process involves heating the blade to specific temperatures and cooling it at controlled rates to modify its microstructure, improving properties like hardness, strength, and ductility. Heat treatment is essential for turbine blades to achieve tensile strength, creep resistance, and fatigue strength. Superalloy heat treatment ensures the material reaches its optimal mechanical properties for extreme applications.
Superalloy Welding and Thermal Barrier Coating (TBC)
In some cases, turbine blades may require welding for repair or modification. Superalloy welding techniques join materials or repair cracks that may have developed during use. Additionally, turbine blades are often coated with a thermal barrier coating (TBC) to protect them from the high temperatures within the turbine engine. TBCs act as a protective layer that reduces heat transfer, improving the blade's resistance to thermal degradation and extending its service life. Superalloy welding and TBC services help optimize the performance and longevity of critical turbine components.
CNC Machining and Deep Hole Drilling
Once the casting and post-processing are complete, turbine blades undergo CNC machining to achieve the precise geometries required for optimal performance. Deep hole drilling often creates intricate internal cooling channels that allow air to circulate through the blade, keeping it cool under high-temperature conditions. This precision machining ensures that the final blade meets the specifications required for its intended application. Superalloy CNC machining and deep hole drilling are critical in ensuring turbine blades meet the stringent requirements for performance and reliability.
Rigorous Testing for Quality Assurance
To ensure that each turbine blade meets the necessary performance standards, rigorous testing is conducted at various stages of production. Iy includes both non-destructive testing and mechanical testing.
Metallographic Microscopy and SEM Testing
Metallographic microscopy examines the material's microstructure, ensuring the single crystal is formed correctly and defects-free. Scanning Electron Microscopy (SEM) is also employed to inspect the material at a higher magnification, identifying any microscopic defects or cracks that may affect the blade’s performance.
Tensile and Fatigue Testing
Tensile testing determines the blade's ability to withstand stress, while fatigue testing simulates the high-cycle stresses that turbine blades experience during operation. These tests are critical for ensuring the blades can endure the prolonged stresses and thermal cycles they encounter in service.
X-ray and 3D Scanning
X-ray testing and 3D Scanning are used to inspect the internal integrity of the turbine blade. These non-destructive techniques help detect internal voids, cracks, or defects that could compromise the blade's performance or safety.
EBSD Testing
Electron Backscatter Diffraction (EBSD) testing is employed to study the material's crystal structure in detail. This technique helps identify any misalignment in the crystal structure, ensuring that the single crystal orientation is consistent throughout the blade. Misalignment can lead to weakened spots that may fail under high stress.
Industry Applications of Single Crystal Casting Turbine Blades
Single crystal casting turbine blades are crucial in various industries requiring high-performance, high-temperature components.
Aerospace and Aviation
Aerospace and aviation, these blades are used in jet engines, which must operate efficiently at extreme temperatures and high mechanical loads. The superior performance characteristics of single crystal casting make them ideal for turbine components like rotors, nozzle rings, and combustion chambers. Aerospace and aviation industries depend on these blades to ensure the efficiency and longevity of jet engines under the most demanding conditions.
Power Generation
In power generation, gas and steam turbines use turbine blades made from single crystal alloys, which help maximize energy efficiency and minimize downtime. These blades' increased lifespan and reliability are essential in power plants, where turbines operate continuously under high stress. Power generation facilities rely on these advanced materials to maintain high-efficiency operations and reduce maintenance costs.
Oil and Gas
Turbine blades are also widely used in the oil and gas industry, where they are exposed to harsh operating conditions. In these environments, oil and gas applications require parts that can withstand high temperatures, pressures, and corrosive elements, making single crystal turbine blades the perfect solution for critical equipment like pumps and compressors.
Military and Defense
The military and defense sectors require turbine blades that can withstand extreme environments and high stresses, including in missile systems and defense turbines. Military and defense applications rely on the superior strength, heat resistance, and durability of single-crystal alloys to ensure the operational reliability of critical defense systems.
