How Chemical Verification Boosts High-Temperature Alloy Performance
Superalloys are critical for some of the most demanding industries, including aerospace, power generation, and oil and gas. These alloys are designed to withstand extreme temperatures, high mechanical stresses, and harsh environments. However, precise control over their chemical composition is essential to achieve the desired performance. It is where chemical verification comes into play. Manufacturers can boost superalloy components' performance, reliability, and durability by ensuring that the correct alloying elements are present in the proper proportions.
In this blog, we'll explore the critical materials used in superalloy parts manufacturing, the benefits of different casting and fabrication methods, the importance of post-processing, and how chemical verification plays a vital role in ensuring that superalloy parts perform at their best.
Materials Introduction
Superalloys are high-performance materials that typically combine nickel, cobalt, iron, and other alloying elements such as chromium, molybdenum, and tungsten. These alloys are engineered for superior resistance to heat, oxidation, and mechanical stresses, making them ideal for use in extreme conditions such as aerospace, power generation, and chemical processing. The unique properties of each superalloy family ensure they meet the stringent requirements for high-temperature, high-stress applications.
Some of the most common superalloy types used in high-temperature applications include:
Inconel Alloys
Inconel alloys are high-temperature nickel-chromium alloys known for their excellent oxidation resistance and strength at elevated temperatures. These alloys are widely used in gas turbines, heat exchangers, and combustion systems. Their ability to maintain strength and resist oxidation even at temperatures exceeding 1,000°C makes them crucial in high-performance applications.
Common grades:
Inconel 625: Known for outstanding fatigue and thermal-fatigue strength, oxidation resistance, and weldability.
Inconel 718: A versatile high-strength alloy commonly used in turbine engines and other aerospace applications.
Inconel 939: Offers superior resistance to oxidation and high-temperature strength, ideal for combustion chambers and other critical aerospace components.
CMSX Alloys
CMSX alloys are single-crystal superalloys primarily used for turbine blades in aerospace applications. These alloys are designed to provide exceptional creep resistance, strength, and thermal stability, making them indispensable in high-performance gas turbines. The single-crystal structure ensures the alloy's superior resistance to thermal fatigue and high-temperature deformation.
Common grades:
CMSX-2: Known for its high-temperature strength and creep resistance.
CMSX-4: Offers excellent stress rupture resistance and oxidation resistance at elevated temperatures.
CMSX-10: A next-generation alloy used in turbine engines for its superior creep strength and thermal stability.
Hastelloy Alloys
Hastelloy alloys are known for their excellent corrosion resistance, making them ideal for chemical processing, power generation, and aerospace applications. Their ability to resist oxidation, pitting, and stress corrosion cracking at high temperatures makes them suitable for harsh environments, such as reactors and high-temperature chemical environments.
Common grades:
Hastelloy C-276 is a leading alloy for chemical processing due to its resistance to various aggressive chemicals.
Hastelloy X: Known for high-temperature strength and oxidation resistance, it is widely used in aerospace and industrial applications.
Hastelloy C-22: Offers excellent resistance to both oxidizing and reducing environments.
Titanium Alloys
Titanium alloys are known for their exceptional strength-to-weight ratios, making them ideal for aerospace, automotive, and marine applications. These alloys exhibit high corrosion resistance and excellent strength at elevated temperatures, which is critical for components in high-performance applications.
Common grades:
Ti-6Al-4V (TC4): The most widely used titanium alloy, offering an outstanding balance of strength, corrosion resistance, and weldability.
Ti-6Al-4V ELI (Grade 23): Extra low interstitial version, offering enhanced performance in cryogenic and high-stress aerospace applications.
Ti-15V-3Cr-3Sn-3Al: Known for its high strength and high-temperature resistance, it is commonly used in aerospace applications.
Monel Alloys
Monel alloys are primarily used in marine environments due to their excellent corrosion resistance, particularly in seawater. These alloys, primarily composed of nickel and copper, are resistant to corrosion in various environments, making them ideal for marine applications, chemical plants, and other corrosive environments.
Common grades:
Monel 400: Offers excellent resistance to seawater, acids, and alkalis, making it suitable for marine environments.
Monel K-500: Provides higher strength and hardness than Monel 400, ideal for more demanding applications.
Monel 404: Known for its corrosion resistance in seawater and good mechanical properties at higher temperatures.
Each of these materials has unique properties that make them suitable for specific applications, but they must all meet strict compositional standards to ensure optimal performance. Neway's expertise in vacuum investment casting ensures that these superalloys are processed to meet the exacting standards required for high-performance applications.
Benefits to Superalloy Parts
Superalloy parts are used in various critical applications, from jet engine turbine blades to power generation system components. The benefits of superalloys lie in their exceptional mechanical properties, including:

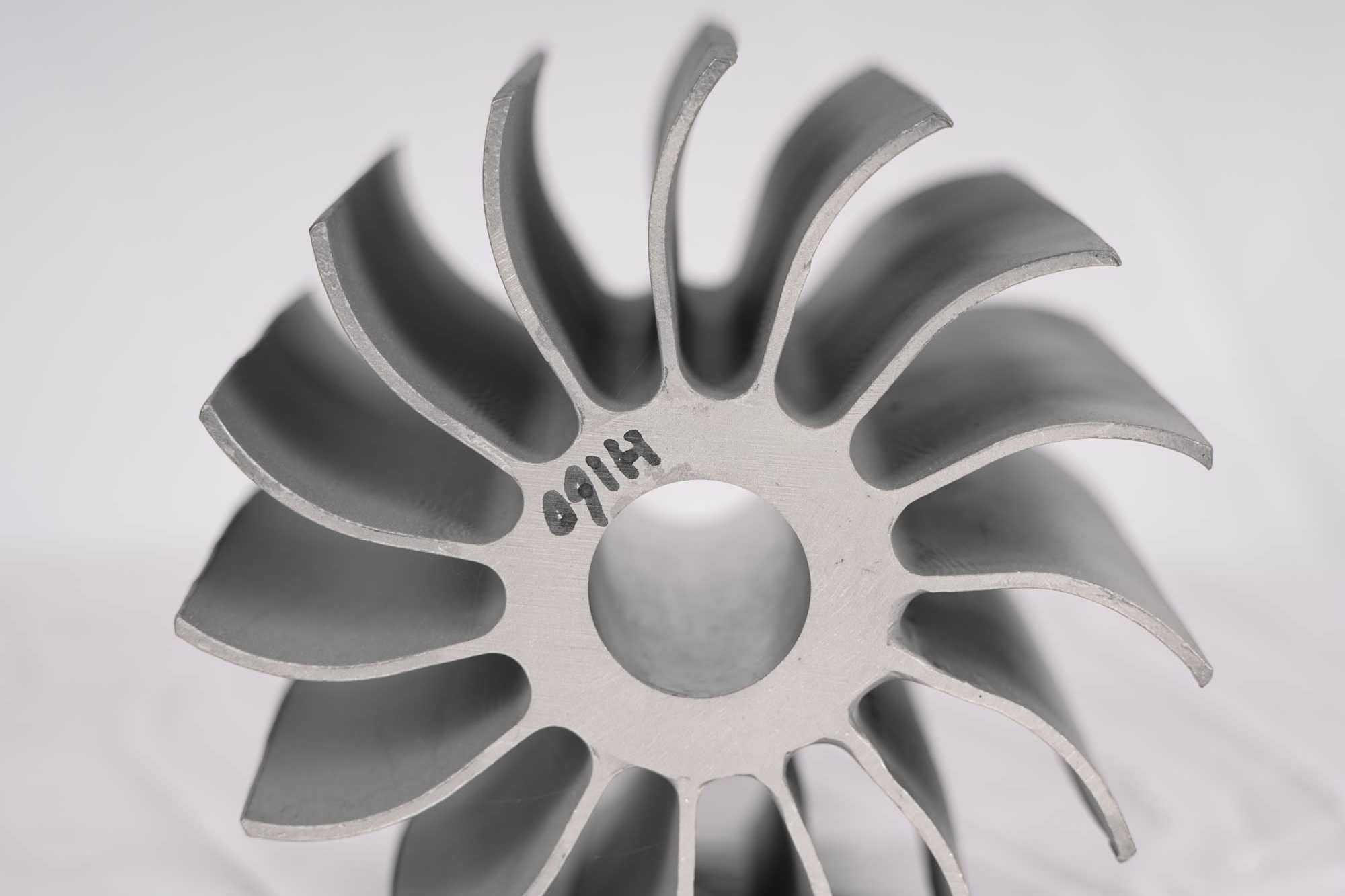

Vacuum Investment Casting
Single Crystal Castings: Single crystal casting is used to manufacture components like turbine blades, where maximum strength and resistance to high temperatures are essential. The process ensures that the part has a uniform microstructure, improving creep resistance and durability.
Equiaxed Crystal Castings: This casting method produces parts with a uniform grain structure, improving strength and fatigue resistance.
Superalloy Directional Castings: Directional solidification helps align the superalloy grains to enhance mechanical properties such as tensile strength and resistance to thermal fatigue.
Special Alloy Castings: Some applications require custom alloys with specific properties, such as corrosion or improved wear resistance. These parts are made through unique alloy casting processes that achieve the desired material characteristics.
Powder Metallurgy Parts
Powder metallurgy allows for the production of complex parts with superior material properties. This method is particularly beneficial for turbine discs, where high strength and resistance to wear are required.
Superalloy Precision Forgings
Precision forging allows for high-strength superalloy parts with tight tolerances, making it ideal for engine blades and casings.
CNC Machined Superalloy Parts
CNC machining allows for the precise shaping of superalloy components, ensuring they meet exact specifications and can accommodate complex geometries.
3D Printed Superalloy Parts
Additive manufacturing (3D printing) enables the production of superalloy parts with complex shapes, reducing material waste and production time.
Post-Process
Once superalloy components are cast, forged, or machined, they often undergo several post-processing steps to enhance their properties. These processes include:
Heat Treatment
Heat treatment processes such as solution treatment, aging, and annealing alter the microstructure of superalloys, improving their hardness, strength, and resistance to wear. Heat treatment enhances alloy durability and life, ensuring optimal performance in demanding environments.
Hot Isostatic Pressing (HIP)
Hot Isostatic Pressing (HIP) is used to eliminate any porosity in the material and improve the overall density of the part, leading to better performance in high-stress environments. This process plays a crucial role in boosting strength and eliminating porosity, improving the reliability and lifespan of superalloy castings. HIP enhances creep and fatigue resistance, ensuring the longevity of components.
Superalloy Welding
Welding is often required to join superalloy parts. Advanced welding techniques ensure that the welded joints maintain the strength and durability of the base material, preserving the high-performance properties of superalloys. Proper welding is critical for maintaining structural integrity in high-stress applications such as turbines and engines. Stress relief during welding also prevents potential distortions in the final part.
Surface Coatings
Thermal barrier coatings (TBC) are applied to superalloy components to protect them from oxidation and high temperatures, extending their lifespan. These coatings are crucial for applications like turbine blades where high heat resistance is essential. TBC improves the performance of cast alloys, ensuring they perform optimally under extreme conditions.
Final Machining and Polishing
After the part is cast or forged, it is often subjected to final machining to achieve the desired dimensional accuracy and smooth surface finish. CNC machining ensures precise tolerances and smooth surfaces, which are critical for the component’s fit and function in advanced aerospace and energy applications. This final step ensures that the superalloy parts meet the specifications required for optimal performance.
Testing and Inspection
Chemical verification plays a crucial role in ensuring the integrity and performance of superalloy parts. The chemical composition of the material must be verified to meet the required specifications. Some of the critical testing methods include:
Chemical Analysis
Techniques such as Glow Discharge Mass Spectrometry (GDMS) and X-ray Fluorescence (XRF) are used to verify the chemical composition of superalloy parts.

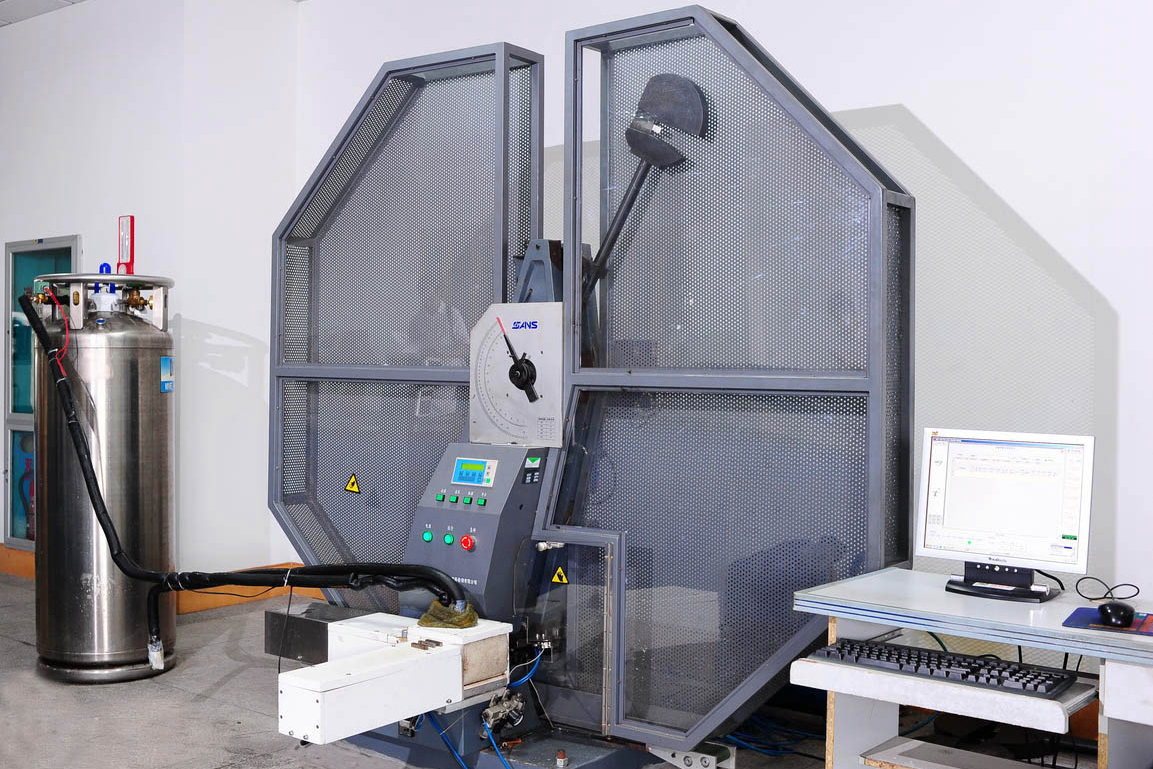

Mechanical Testing
Tensile testing, fatigue testing, and creep testing are used to evaluate the strength and durability of superalloy components. The importance of Tensile Testing Machine Checking in Superalloy Manufacturing provides further insights into these testing methods.
Non-Destructive Testing (NDT)
Techniques like X-ray inspection, ultrasonic testing, and 3D scanning are employed to detect internal defects such as cracks, voids, or inclusions.
Metallographic Examination
Metallographic Microscopy Checking allows for a detailed microstructure examination, helping to identify grain structure, phase distribution, and potential defects.
3D Scanning and CMM
Coordinate Measuring Machines (CMM) and 3D scanning to ensure that superalloy parts meet dimensional requirements with precision.
Industry Applications
Superalloy parts are used across a wide range of industries, including:
Aerospace
In the aerospace industry, turbine blades, jet engine components, and other critical parts benefit from superalloys' high strength and temperature resistance. Superalloys such as Inconel and CMSX alloys are used in jet engines to provide the necessary performance and reliability in extreme conditions.
Power Generation
Gas and steam turbines rely on superalloy components in power generation to operate efficiently at high temperatures. Superalloys such as Inconel X-750 improve turbine performance by enhancing oxidation resistance and ensuring longer component lifetimes.
Oil and Gas
Superalloy parts are essential in drilling and subsea equipment, where resistance to extreme pressure, temperature, and corrosion is crucial. Superalloys are commonly used in downhole tools and subsea valves to ensure reliability in harsh environments. Applications include parts like high-temperature alloy pump components and subsea drilling tools.
Marine
In the marine industry, applications such as heat exchangers and propulsion systems require superalloys for their corrosion resistance and ability to withstand high temperatures. Superalloy components like those used in marine turbine engines are vital in maintaining performance in demanding sea environments.
Automotive
Superalloys are increasingly used in high-performance engines and turbochargers to withstand extreme temperatures and stresses. Superalloy components improve the durability and efficiency of automotive parts, including turbochargers and exhaust systems.
FAQs:
What is chemical verification, and why is it essential in superalloy manufacturing?
How does single crystal casting improve the performance of superalloy turbine blades?
What role does powder metallurgy play in enhancing superalloy properties?
How can CNC machining achieve tight tolerances in superalloy parts?
Why is post-processing, such as heat treatment and HIP, essential for superalloy components?
