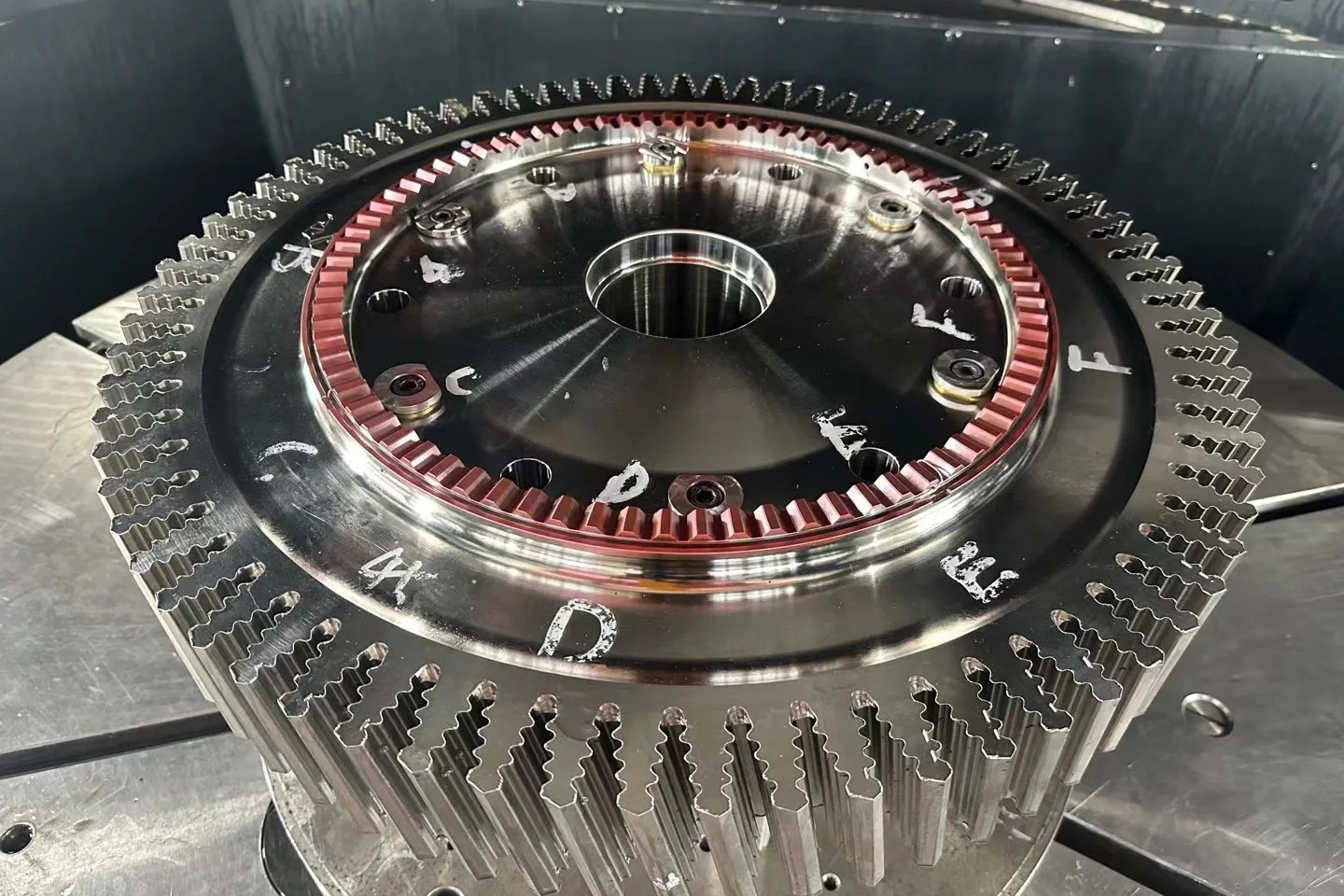

Hot Isostatic Pressing Service to Enhance Superalloy Components
Hot Isostatic Pressing (HIP) is a widely used process for enhancing the performance and reliability of high-temperature alloy components, particularly superalloys. It involves applying high temperature and high pressure simultaneously to eliminate internal porosity, increase density, and improve the material's mechanical properties. This method is especially beneficial for superalloy components critical to industries where extreme mechanical performance and reliability are paramount, such as aerospace, power generation, and oil and gas.
HIP not only improves the component's structural integrity but also refines the material’s microstructure. For companies like NewayAero, providing HIP services means delivering parts that meet stringent industry standards for performance, durability, and reliability.
Manufacturing Process: How Hot Isostatic Pressing Works
The HIP process involves the application of both high pressure and high temperature in a controlled environment, which allows for the diffusion of atoms within the material. This is typically done in a HIP chamber, a specially designed pressure vessel capable of withstanding extreme conditions. The process is a batch method, where components are placed inside the chamber, and the temperature and pressure increase simultaneously.
The process begins by placing the superalloy components inside the HIP chamber. The chamber is sealed, and the pressure is increased to several thousand psi, typically around 15,000 to 30,000 psi. As the pressure increases, the temperature is simultaneously raised to between 900°C and 1200°C, depending on the material being processed. These conditions cause the metal’s internal structure to improve by reducing porosity, achieving a more uniform grain structure, and increasing the overall material density.
The pressurization and heating stages are maintained for a set period, during which the material undergoes microstructural transformations that enhance its mechanical properties. The chamber is then slowly cooled and depressurized, solidifying the material into a more uniform and defect-free structure. The HIP process is particularly effective for complex-shaped components, where internal porosity or microcracks could compromise the part’s performance.
The primary benefits of HIP include:
Removal of internal voids and pores
Enhanced uniformity of the material’s grain structure
Increased material density, which improves mechanical strength
Better fatigue resistance and creep resistance at high temperatures
Suitable Superalloys for Hot Isostatic Pressing (HIP)
Not all materials benefit equally from the HIP process, but many superalloys used in high-performance industries achieve significant enhancements through HIP treatment. Among these, several alloys commonly processed through HIP include:
Inconel Alloys
Inconel alloys, such as Inconel 718, Inconel 625, and Inconel 713, are widely used in gas turbine engines, heat exchangers, and chemical processing equipment. HIP enhances their fatigue resistance and creep strength, making them more reliable under extreme conditions.
CMSX Series

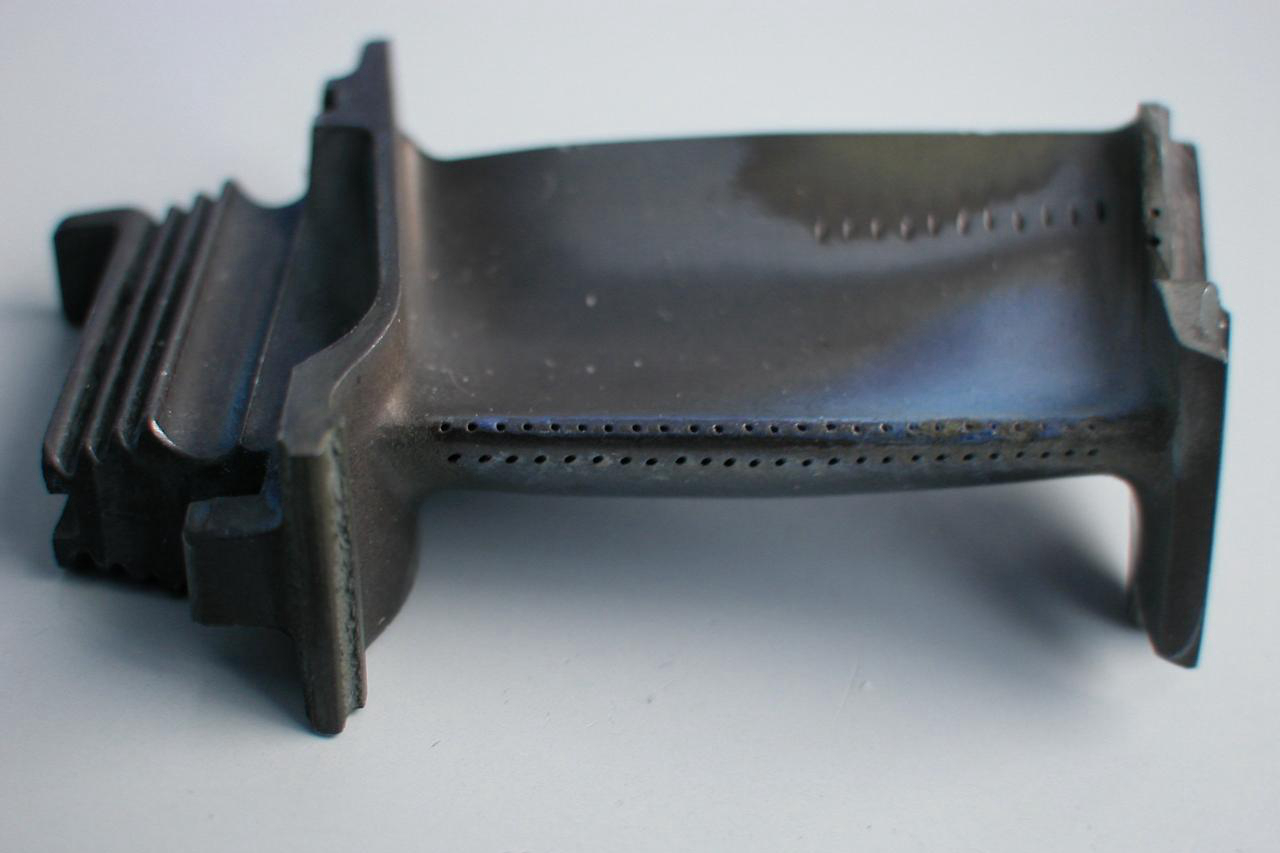

These single-crystal superalloys, such as CMSX-10 and CMSX-2, are used extensively in turbine blades and other aero-engine components. HIP improves their structural integrity, ensuring they maintain their mechanical properties at high temperatures and under heavy loads.
Rene Alloys
René alloys, such as Rene 104, Rene 41, and Rene 95, are used in components that require superior high-temperature strength and thermal stability. HIP treatment helps eliminate porosity, improving the alloy's overall resistance to thermal fatigue and creep.
Titanium Alloys
Titanium alloys, such as Ti-6Al-4V, Ti-3Al-2.5Sn, and others, benefit from HIP to improve their toughness, strength, and fatigue resistance. These alloys are commonly used in aerospace and medical applications, where reliability is critical.
Hastelloy Alloys
Hastelloy alloys, such as Hastelloy C-276 and Hastelloy X, are often used in chemical processing and aerospace industries. HIP helps optimize their mechanical properties, particularly in fatigue and creep strength.
Stellite Alloys
Known for their wear resistance, Stellite alloys, such as Stellite 6 and Stellite 12, are used in components subject to high wear and thermal cycling. HIP increases their hardness and resistance to wear, extending the service life of the parts.
Post-Processing After HIP
After Hot Isostatic Pressing (HIP) treatment, superalloy components undergo several post-processing steps to ensure they meet the desired mechanical properties and performance specifications. These post-processing stages refine the component's final properties and prepare it for its intended application.
Heat Treatment
Heat treatment after HIP is essential for achieving the final strength and hardness of the material. Heat treatment processes such as solution treatment, aging, and annealing are often used to fine-tune the alloy’s microstructure, improving its tensile strength, yield strength, and fatigue resistance.
Superalloy Welding
In some applications, after HIP treatment, components may require welding. Superalloy welding techniques, such as gas tungsten arc welding (GTAW) or laser welding, join parts without compromising their mechanical properties. Proper welding techniques ensure the structural integrity of the components while maintaining the benefits achieved through HIP.
Thermal Barrier Coating (TBC)
To further improve the high-temperature performance of superalloy components, thermal barrier coatings (TBCs) are applied. TBCs protect parts from oxidation, thermal fatigue, and wear, significantly enhancing their performance in extreme environments. This coating is essential for ensuring the long-term durability of turbine blades and engine components.
CNC Machining
After the HIP process, precision CNC machining is often required to meet the exact specifications of the component. Superalloy CNC machining allows for tight tolerances and intricate geometries, ensuring that parts fit seamlessly into their applications, whether in gas turbines or aerospace engines.
Surface Finishing
Components are often subjected to surface finishing techniques, including polishing, grinding, and coating. These processes improve the aesthetic and functional properties of the component, reducing friction, enhancing corrosion resistance, and providing smoother surfaces for better fluid dynamics.
Testing and Quality Assurance
Testing plays a vital role in ensuring that HIP-treated superalloy components meet industry standards for performance and reliability. Several testing methods are used throughout manufacturing to ensure the material's integrity and suitability for high-performance applications.
Tensile Testing
Tensile testing is one of the most fundamental tests for assessing the strength and flexibility of superalloy components. It helps determine a material's behavior under tension, providing critical data on yield strength, ultimate tensile strength, and elongation. This test is vital for components used in applications like turbines, where high mechanical loads are common.
X-ray and Ultrasonic Inspection
X-ray and ultrasonic inspection detect internal defects such as porosity, cracks, or voids that may have been overlooked during the HIP process. These techniques provide high-resolution images that help engineers identify and correct material defects. Ultrasonic testing is particularly effective for subsurface defect detection.
Metallographic Microscopy
Metallographic microscopy examines the microstructure of the material, providing insights into grain structure, phase distribution, and the presence of defects. This analysis confirms that the HIP process has successfully improved the material properties. Advanced techniques like EBSD analysis further enhance understanding grain boundaries and microstructural alignment.
Hardness Testing
After HIP treatment, components are tested for hardness to assess their ability to withstand wear and mechanical stress. Hardness is essential in ensuring the part’s longevity, especially in high-stress applications like turbines and engine components. Consistent hardness ensures durability under extreme operating conditions.
Advanced Testing Techniques
Methods like Scanning Electron Microscopy (SEM), Glow Discharge Mass Spectrometry (GDMS), and Coordinate Measuring Machines (CMM) are employed for high-precision measurement and material analysis. These tools provide data on material composition, surface integrity, and dimensional accuracy, ensuring that every component meets strict quality standards.
By integrating these rigorous testing methods, manufacturers ensure the reliability, safety, and performance of HIP-treated superalloy components in demanding applications such as aerospace, power generation, and industrial machinery.
Industry Applications of Hot Isostatic Pressing for Superalloy Components
The Hot Isostatic Pressing (HIP) process is used extensively across various industries where the performance of components is critical. HIP treatment improves material properties by eliminating internal porosity and enhancing strength, fatigue resistance, and flexibility. Some of the primary sectors benefiting from HIP-treated superalloy components include:
Aerospace and Aviation

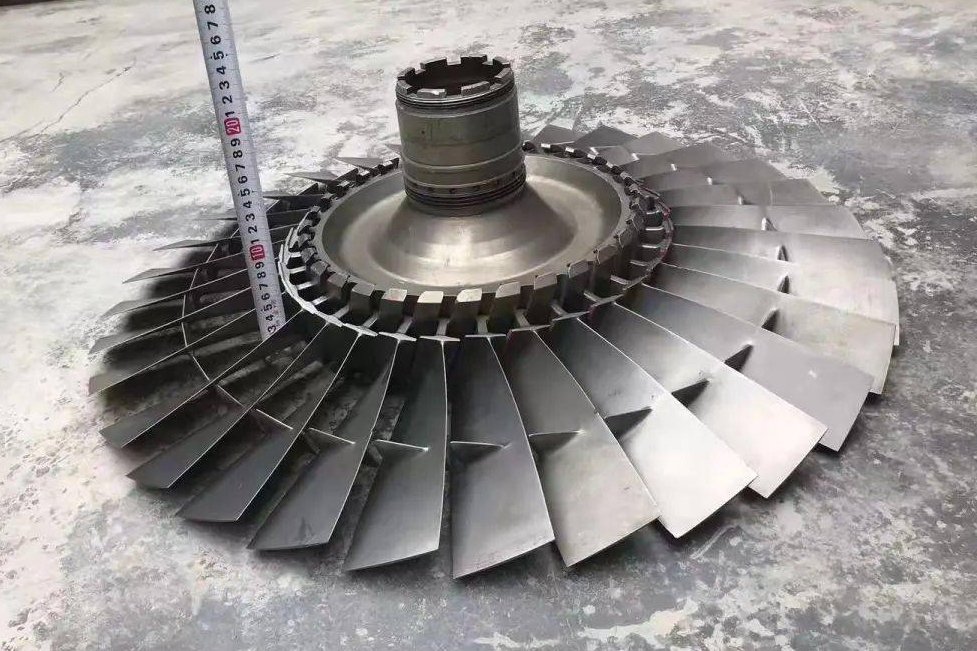

In the Aerospace and Aviation industries, components such as turbine blades, engine casings, and combustion chambers benefit significantly from HIP. These parts must endure extreme mechanical stresses and high temperatures, where even minor defects can lead to catastrophic failures. HIP enhances the mechanical properties of these critical parts, ensuring their reliability and extending their service life under extreme operational conditions.
Power Generation
The power generation industry relies heavily on HIP to produce gas turbine components, including blades, rotors, and heat exchangers. In power plants, where turbines must operate at extreme temperatures and pressures for prolonged periods, HIP treatment ensures that components maintain their structural integrity, resist thermal fatigue, and deliver consistent efficiency, significantly enhancing the overall reliability and durability of the equipment.
Oil and Gas
In the Oil and Gas sector, HIP enhances the strength, fatigue, and corrosion resistance of components such as valves, pump parts, and reactor vessels. These components are often subjected to high pressures and corrosive environments, where enhanced material properties are crucial. HIP treatment ensures that superalloy components in challenging environments maintain their mechanical properties, resulting in greater operational safety and prolonged equipment life.
Marine
The marine industry uses HIP-treated superalloys in propulsion systems, heat exchangers, and other applications involving high stress and corrosive environment exposure. Marine components like superalloy naval ship modules benefit from the HIP process, which helps improve resistance to wear and corrosion, ensuring reliable performance even in the challenging conditions of saltwater exposure.
Automotive
In the Automotive sector, HIP is employed to enhance the durability and strength of high-performance engine components such as turbochargers, pistons, and exhaust valves. These HIP-treated components offer superior fatigue resistance, which is crucial for automotive applications where parts are constantly subjected to mechanical stress and high temperatures. The enhanced properties contribute to improved efficiency, reliability, and longevity of automotive engines.
Military and Defense
The Military and Defense industry uses HIP to treat components used in high-performance applications, including aircraft parts, missile systems, and armor. The HIP treatment enhances the mechanical properties, providing exceptional strength and durability to withstand extreme operating conditions. This makes it suitable for components like superalloy armor system parts that must meet the highest performance and reliability standards under severe mechanical stress.
Nuclear
In the Nuclear power sector, HIP treats reactor vessel components and high-temperature piping. These components require superior resistance to high temperatures, radiation, and other challenging conditions inherent in nuclear reactors. HIP improves the performance of these superalloy components, enhancing their reliability and resistance to thermal and radiation-induced stresses and ultimately ensuring the safe operation of nuclear power plants over extended periods.
HIP-treated superalloy parts provide unmatched quality and performance, allowing these industries to operate safely and efficiently in extreme environments.
