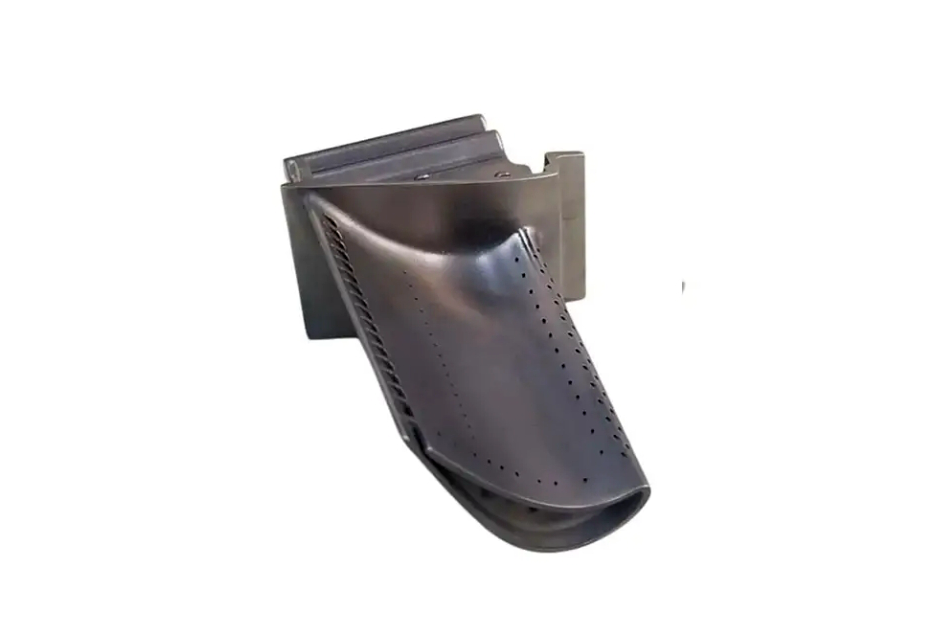

HIP: Boosting Lifespan and Reliability of Turbine Blades in Aerospace and Energy
Turbine blades play a pivotal role in the performance and efficiency of gas turbines, jet engines, and power generation units. These components are subjected to extreme conditions during operation, including high temperatures, mechanical stresses, and corrosive environments. Given the critical nature of turbine blades in industries such as aerospace and aviation and power generation, these parts must exhibit exceptional durability, fatigue resistance, and long service lives.
Hot Isostatic Pressing (HIP) has become one of the most essential post-processing techniques used to enhance the performance of turbine blades, helping to improve their lifespan and reliability in these demanding environments. HIP applies high pressure and temperature to eliminate defects such as porosity and improve material density, making it an essential part of the manufacturing process for high-performance turbine blades.
Manufacturing Process of Turbine Blades
Turbine blades are highly engineered components, typically manufactured from advanced superalloys, chosen for their ability to maintain strength and stability at extreme temperatures. The manufacturing process for these blades is intricate and requires precision at every step to ensure the final product can withstand the harsh conditions it will face during operation.
The process begins with the casting of the superalloy material. Various casting techniques are employed depending on the turbine blade's specific design and operational requirements. For example, Vacuum Investment Casting is commonly used for high-precision blades, as it allows for detailed, intricate shapes with excellent surface finishes. This process involves pouring molten metal into a mold that has been created from a pattern made of a high-strength material. Once the mold solidifies, the pattern is melted away, leaving a void filled with the molten superalloy. This technique is essential in producing complex parts for aerospace and gas turbines, where reliability is paramount.
For turbine blades that require enhanced mechanical properties, especially those exposed to extreme temperature gradients, Single Crystal Casting is used. This process produces blades with a single, uninterrupted crystal structure that minimizes grain boundaries, reducing the risk of creep and improving resistance to high-temperature fatigue. This is particularly important for turbine blades used in the hottest sections of gas turbines, where performance and longevity are critical. Advanced single-crystal technology allows for superior performance under extreme stress conditions, making it a key method for aerospace and power generation applications.
Another casting method employed is Directional Solidification, which is designed to align the grains of the material in a single direction, further enhancing the blade's resistance to thermal stress and fatigue. The controlled cooling process in directional solidification ensures that the superalloy's crystal grains are oriented to withstand the stresses in high-temperature environments better. This process is often used for components like turbine blades in gas turbines, where high thermal efficiency is critical.
In addition to casting, precision machining is often used to achieve the turbine blade's desired geometry and surface finish. CNC machining is employed to refine the blade shape, ensuring tight tolerances and high-dimensional accuracy. This step is crucial, as any imperfection can compromise the blade's structural integrity and aerodynamics, leading to performance issues or even catastrophic failure. CNC machining is particularly beneficial in aerospace applications, where precision is required for components like turbine blades that operate in extreme conditions.
Additive manufacturing, or 3D printing, has also found a place in turbine blade production, especially for prototyping or complex geometries that are difficult to achieve through traditional methods. Using superalloy powders, 3D printing can produce parts with intricate internal structures, such as cooling channels, crucial for managing the high heat load in turbine engines. This innovative approach, widely used in aerospace applications, enables the production of lightweight, high-performance components with customized features.
Typical Superalloys Used for Turbine Blades
Turbine blades are made from high-performance materials known as superalloys, designed to withstand extreme temperatures, mechanical stresses, and corrosive environments. The most common superalloys used in turbine blade production are nickel-based alloys, but cobalt and iron-based superalloys are also used, depending on the specific requirements of the engine or turbine.
Inconel Alloys
One of the most widely used superalloys in turbine blade manufacturing is Inconel 718, a nickel-chromium alloy with excellent high-temperature strength and oxidation resistance. Inconel 718 can withstand temperatures up to 1300°F (704°C) without losing its strength, making it ideal for turbine blades in the middle to lower temperature sections of gas turbines. Inconel 625 is often used for blades exposed to the turbine's hottest parts. This nickel-chromium alloy is known for its excellent resistance to thermal fatigue, oxidation, and corrosion. It can endure extreme temperatures and aggressive environments, which makes it suitable for the hottest sections of aerospace and power generation turbines.
CMSX Series
CMSX-10, a nickel-based single-crystal superalloy, is often employed in turbine blades in high-performance aerospace engines, where the ability to withstand extreme temperatures and stresses is critical. The single-crystal structure reduces grain boundary-related creep and enhances the material's fatigue resistance, making it particularly valuable in the most demanding applications.
Rene Alloys
Rene Alloys, such as Rene 104 and Rene 108, are also frequently used for turbine blades due to their ability to perform under high-stress and high-temperature environments. These alloys provide exceptional creep resistance and thermal stability, both critical for turbine blades in commercial jet engines and power turbines.
Nimonic Alloys
Monel alloys, such as Nimonic 263, offer a unique combination of strength, thermal resistance, and oxidation resistance, making them suitable for specific engine or turbine configurations. Nimonic 263, for example, is known for its high-temperature strength and creep resistance, which makes it ideal for use in turbine blades exposed to extreme operational conditions.
Stellite Alloys
Stellite alloys, such as Stellite 6 and Stellite 12, are often used in applications requiring superior wear resistance, corrosion resistance, and thermal stability. While less common for turbine blades than nickel-based alloys, they are selected for specific turbine configurations that demand high wear resistance and extended service life.
Post-Processes for Enhancing Turbine Blade Performance
Once turbine blades are cast, machined, and heat-treated, post-processing techniques are often employed to enhance their performance and reliability further. These processes ensure that the blades can withstand the harsh operating conditions they will face in service. Among the most crucial post-processing techniques for turbine blades is Hot Isostatic Pressing (HIP).
Hot Isostatic Pressing (HIP) is a critical process for eliminating internal porosity and improving the overall density of the superalloy material. During the casting process, small pockets of gas can become trapped in the material, leading to porosity, which weakens the component. HIP uses high pressure and temperature to close these pores and consolidate the material, significantly improving its strength, fatigue resistance, and overall structural integrity. HIP is especially important for single-crystal and directional solidified turbine blades, as it enhances the material's properties without disrupting the carefully controlled grain structure.
Other common post-processing methods for turbine blades include heat treatment, which involves heating the blades to a specific temperature and then cooling them rapidly to enhance hardness and strength. Thermal barrier coatings (TBCs) are also applied to turbine blades to protect them from oxidation and thermal fatigue. These coatings provide an additional layer of protection, allowing the blades to operate at higher temperatures without degrading.
Machining is another key post-process, especially for ensuring that the turbine blades have the required surface finish, dimensional accuracy, and structural integrity. CNC machining allows for precise adjustments to the blade geometry and removes any material that may have been compromised during the casting or HIP process.
Testing of Turbine Blades for Quality and Reliability
Given the high stakes in industries such as aerospace and energy, turbine blades must undergo rigorous testing to ensure they meet the stringent quality standards required for operation. Testing verifies the material's mechanical properties, structural integrity, and suitability for service in high-stress environments.
Tensile Testing
Tensile testing measures the material's ability to withstand pulling forces. This test provides crucial data on the blade's ultimate tensile strength and elongation properties. The results help to assess the material's capability to endure mechanical stresses without failure. Tensile testing machines are frequently used to evaluate the tensile strength of superalloy turbine blades during manufacturing to ensure they meet the required specifications for durability and performance.
Fatigue Testing
Fatigue testing is essential to assess how the turbine blade performs under repeated loading cycles, simulating the operational stresses the blade will face during engine operation. Fatigue and mass optimization processes improve the reliability of turbine blades by ensuring they can withstand multiple loading cycles without developing cracks or failures.
Creep Testing
Creep testing determines how the turbine blade will behave under long-term exposure to high temperatures and mechanical stress. This test is significant for high-temperature alloys used in gas and power generation turbines. By assessing the material's resistance to deformation under constant stress, creep and fatigue testing ensures that the turbine blades can perform reliably over extended periods in extreme operating conditions.
X-ray Inspection and 3D Scanning
X-ray inspection and 3D scanning are employed to detect internal defects, including porosity, cracks, or inclusions that could compromise the blade's structural integrity. X-ray inspection helps identify potential structural issues inside the blade that might go unnoticed, preventing catastrophic failures. 3D scanning ensures the blade’s geometric accuracy meets the strict dimensional requirements for proper fit and function in turbine applications.
Metallographic Microscopy
Metallographic microscopy allows for the examination of the microstructure of the turbine blade, revealing any potential issues in the alloy's grain structure or phase distribution. This is especially critical for single-crystal or directional solidified turbine blades, where grain structure plays a pivotal role in the blade's performance. Metallographic microscopy enables detailed analysis of the blade’s microstructure, ensuring the alloy’s properties are optimized for high-temperature, high-stress environments.
Industry and Application: Aerospace and Energy
Turbine blades are integral components in both the aerospace and energy industries, where their reliability and performance are crucial for the safe and efficient operation of jet engines and power plants. In aerospace, turbine blades are highly stressed, particularly in military and commercial jet engines. The hot section of a turbine engine operates at extremely high temperatures, requiring materials that can resist thermal fatigue, creep, and oxidation. HIP-treated turbine blades in aerospace applications benefit from improved material density, enhanced fatigue resistance, and increased lifespan, improving engine performance, reducing downtime, and lowering maintenance costs.
In the energy sector, turbine blades are used in gas turbines for power generation. These turbines operate at high temperatures and under significant mechanical stress. Turbine blades in this sector must maintain their strength and performance over many years of operation. HIP treatment enhances the material's performance, ensuring that these blades can handle the extreme conditions typically found in power generation turbines, improving both the efficiency and reliability of the turbines.
Turbine blades in both sectors must meet stringent industry standards and certifications, including AMS, ASTM, and ISO standards, ensuring they can perform under the most demanding conditions. HIP-treated blades offer superior reliability, safety, and efficiency across aerospace and energy applications, making them a crucial part of modern turbine technology.
FAQs
What is Hot Isostatic Pressing (HIP) and how does it benefit turbine blades?
Why is single-crystal casting preferred for turbine blades in high-temperature sections of engines?
What superalloys are typically used in turbine blade manufacturing, and why are they chosen?
How does HIP compare to other post-processing methods in enhancing turbine blade performance?
What testing methods are used to ensure the reliability and durability of turbine blades in aerospace and energy applications?
