High-Temperature Alloy Heat Exchanger Parts Fabrication Plant
Induction of Heat Exchanger Parts
Heat exchangers are devices that transfer heat between two or more fluids without allowing them to mix. These critical components are widely used in various industries, including aerospace, power generation, and petrochemicals, to transfer heat between media like water, steam, or gas. In industrial applications, heat exchangers must function reliably under high-temperature and high-pressure conditions. Therefore, the materials used to fabricate these components must possess exceptional strength, corrosion resistance, and thermal conductivity.
Superalloys, also known as high-temperature alloys, are widely used for heat exchanger parts due to their unique ability to perform under extreme thermal conditions. Superalloys are characterized by their exceptional resistance to oxidation, corrosion, and thermal fatigue. These alloys can maintain their mechanical properties and resist deformation even at temperatures exceeding 1,000°C (1,832°F), which is why they are ideal for heat exchanger applications. At Neway Precision Works, we specialize in processing these alloys through advanced vacuum investment casting methods, ensuring precision and durability for critical heat exchanger components.
Superalloys Used in Heat Exchanger Parts
Stellite Alloys
Stellite alloys are cobalt-based superalloys widely used for parts exposed to high heat and wear. Due to their high resistance to oxidation, corrosion, and wear, they are frequently used in demanding applications such as heat exchangers in power generation plants, aerospace engines, and petrochemical reactors. The standard grades of Stellite alloys used in heat exchanger parts include Stellite 6, Stellite 12, and Stellite 25.
Stellite 6: A high-strength alloy known for its exceptional resistance to corrosion, oxidation, and wear, making it perfect for high-temperature applications. Stellite 6 is often used in components such as heat exchanger tubes, turbine blades, and valves, where it can withstand harsh conditions without degrading.
Stellite 12: Offers similar properties but superior resistance to wear and oxidation, particularly in environments involving high-temperature steam. This alloy is used in heat exchanger components exposed to high pressure and temperatures.
Stellite 25: A cobalt-based alloy used in more extreme environments. It has improved mechanical properties and is often chosen for heat exchangers operating in harsh chemical environments, offering better performance than Stellite 6 and Stellite 12 in some cases.
Nimonic Alloys
Nimonic alloys are nickel-based superalloys renowned for their excellent mechanical properties and high-temperature resistance. They are commonly used in gas turbines, aerospace engines, and heat exchangers, where superior strength, creep resistance, and oxidation resistance are necessary. Some of the most popular Nimonic alloy grades used in heat exchanger manufacturing include Nimonic 75, Nimonic 80A, and Nimonic 90.
Nimonic 75: A well-established alloy in the high-temperature materials industry. It is often used for components in heat exchangers that experience high thermal stress, such as those in power plants and aerospace systems. Its high creep strength and oxidation resistance make it ideal for these demanding applications.
Nimonic 80A: A highly durable alloy used for heat exchangers in power generation and aerospace. Known for its resistance to oxidation and thermal degradation, it maintains its strength at elevated temperatures, making it a preferred choice for critical applications.
Nimonic 90: Offers exceptional high-temperature strength and oxidation resistance. It is often used in heat exchangers exposed to extremely high pressures and temperatures, such as aerospace engines and industrial turbine systems.
Titanium Alloys
Titanium alloys are highly prized for their lightweight and high strength combination and superior corrosion resistance, particularly in aggressive environments like seawater and chemical processing. Titanium alloys are often used in heat exchangers that combine high performance and corrosion resistance. Common grades include Ti-6Al-4V, Ti-6Al-4V ELI, and Ti-10V-2Fe-3Al.
Ti-6Al-4V: The most widely used titanium alloy, known for its strength, corrosion resistance, and ability to withstand high temperatures. It is often used in marine heat exchangers, where its resistance to seawater corrosion is crucial.
Ti-6Al-4V ELI: Similar to Ti-6Al-4V but with even lower impurity levels, making it more suitable for aerospace applications. Its superior strength and resistance to fatigue and stress are critical for applications where reliability is paramount.
Ti-10V-2Fe-3Al: Used in high-strength, high-performance applications like chemical processing and aerospace. This alloy is highly corrosion-resistant and is especially effective in applications requiring a balance between weight reduction and strength, such as in heat exchangers in these industries.
Typical Superalloy Part Manufacturing Process
Manufacturing superalloy parts for heat exchangers require advanced techniques to ensure that parts meet high standards for performance and durability. Let’s explore some critical manufacturing processes used to produce high-quality superalloy components.
Vacuum Investment Casting
Vacuum investment casting is an advanced technique for producing superalloy parts with exceptional dimensional accuracy and a smooth surface finish. This process is particularly beneficial for creating complex and intricate geometries, such as those in heat exchangers. The process involves creating a wax pattern of the component, coating it with a ceramic shell, and then melting the wax to form a mold.
In heat exchanger manufacturing, vacuum investment casting is used for Superalloy Single Crystal Casting, Superalloy Equiaxed Crystal Casting, and Superalloy Directional Casting, each offering different benefits for high-performance applications:
Superalloy Single Crystal Casting is used for producing turbine blades and other parts where the absence of grain boundaries is critical for enhancing creep resistance, strength, and fatigue resistance. This method results in parts with exceptional mechanical properties, which are particularly important for heat exchanger components in high-temperature environments. Superalloy Equiaxed Crystal Casting produces parts with more uniform grain structures, providing good mechanical properties in high-temperature and high-stress conditions. It produces components that need high strength, such as heat exchanger parts exposed to high pressures and temperatures. Superalloy Directional Casting is used to create parts where the grain structure is aligned in a specific direction to optimize the material’s performance under thermal stress. This process benefits applications where the heat exchanger parts will be subjected to extreme thermal gradients.
Powder Metallurgy
Powder metallurgy is another advanced manufacturing technique used for superalloy components. In this process, metal powders are compacted into shapes and sintered (heated) to form solid parts. Powder metallurgy is particularly useful for creating parts with complex shapes and precise tolerances. For heat exchanger parts, powder metallurgy is ideal for producing components like turbine discs and plates that require superior mechanical properties and heat resistance.
The benefits of powder metallurgy in heat exchanger manufacturing include precisely controlling the material composition, resulting in parts with excellent thermal and mechanical properties. Additionally, this process allows for the production of parts with minimal waste, enhancing the cost-effectiveness of manufacturing.
Precision Forging
Precision forging is a key technique to shape superalloy parts into their final geometries while ensuring the material maintains its mechanical properties. This process includes various types of forging techniques, such as rough forging, free forging, and isothermal forging, each serving a specific purpose:
Rough Forging is used to create the initial shape of the part before more precise forming processes are applied. It reduces material waste and prepares the part for further shaping. Free Forging involves deforming the material between two dies, allowing it to form into the desired shape. It helps produce parts with simple geometries. Isothermal Forging is used for complex geometries and ensures the part maintains a consistent temperature throughout the forging process, reducing the risk of material defects. It is particularly beneficial for heat exchanger parts that require precise dimensions and mechanical properties.
Heat Exchanger Parts Manufacturing
The best manufacturing process for superalloy heat exchanger parts depends on the application's requirements. Vacuum investment casting is often the preferred choice due to its ability to create parts with highly complex geometries and tight tolerances. This process is ideal for producing components such as heat exchanger tubes and plates, where precision is crucial. Furthermore, the high mechanical properties of parts produced through single crystal and equiaxed crystal casting ensure that heat exchangers can perform reliably under extreme thermal and mechanical stress.
Powder metallurgy is another suitable option for producing parts requiring high precision and thermal cycling resistance. In contrast, precision forging is best suited for creating more significant heat exchanger components that must maintain their strength and integrity under high pressure.
Prototyping for Heat Exchanger Parts
Prototyping is essential when developing heat exchanger parts to ensure that the final product meets performance expectations. Prototyping methods like 3D printing and small-batch casting are commonly used to test design concepts before moving to full-scale production.

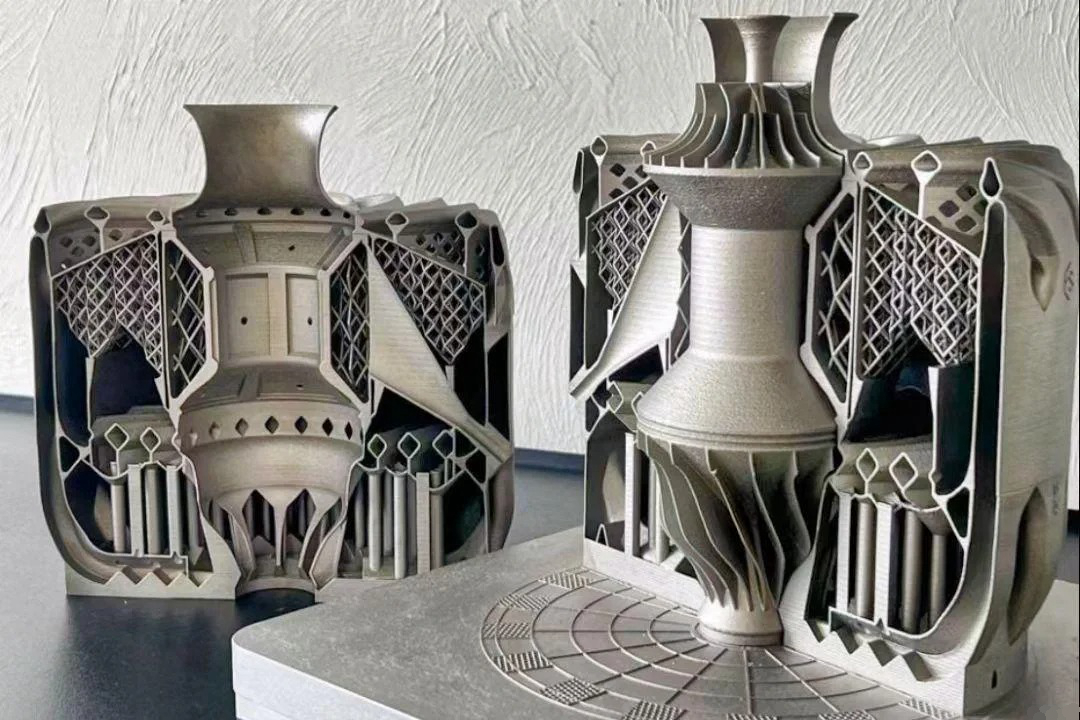

3D printing allows for rapid prototyping of complex heat exchanger geometries, enabling manufacturers to assess the fit and performance of a design before total production. Manufacturers can produce highly detailed parts with minimal lead time by leveraging advanced technologies like Selective Laser Melting (SLM).
Small-batch casting produces low-volume components with high precision, allowing for iterative testing and refinement of heat exchanger designs before large-scale manufacturing begins. This approach helps minimize waste and ensures the production of high-quality, performance-ready components that meet stringent specifications.
Heat Exchanger Parts Post-Process
Once superalloy parts are fabricated, they undergo several post-processing steps to enhance their properties and meet stringent performance standards. These steps typically include heat treatment to relieve stress, surface finishing to improve corrosion resistance, and CNC machining to achieve precise dimensions and surface quality. Post-processing is crucial to ensure heat exchanger components are durable, efficient, and capable of withstanding the high temperatures and pressures they are subjected to.
Heat Treatment
Heat treatment relieves residual stresses in superalloy parts and improves their mechanical properties. It can also refine the microstructure to enhance strength, toughness, and fatigue resistance. Processes such as heat treatment help optimize the component’s performance under thermal cycling, which is critical for heat exchanger parts exposed to frequent temperature fluctuations.
Surface Finishing
Surface finishing techniques such as polishing, coating, or nitriding improve superalloy parts' corrosion resistance and wear resistance. Heat exchangers operate in environments where oxidation and chemical corrosion resistance is essential. Techniques like thermal barrier coatings (TBC) can also be applied to further protect parts from high-temperature degradation and extend the lifespan of heat exchanger components.
CNC Machining
Precision CNC machining ensures that the dimensions of heat exchanger parts are tightly controlled to meet exacting standards. CNC machining can also achieve smooth surface finishes that reduce friction and improve the overall efficiency of heat transfer in the heat exchanger system.
These post-processing techniques ensure that heat exchanger components maintain the strength, precision, and durability required for high-performance applications in extreme operating conditions.
Heat Exchanger Parts Quality Inspection
High-precision quality control is essential in the manufacturing of heat exchanger parts. Various inspection methods, such as X-ray, ultrasonic testing, and metallographic analysis, identify internal defects, measure material properties, and ensure the components meet the required specifications. Additionally, techniques like coordinate measuring machines (CMM) and tensile testing help verify dimensional accuracy and mechanical performance, ensuring each part can perform reliably in its intended environment.
These inspection techniques play a crucial role in maintaining the durability and efficiency of heat exchangers, as even minor defects or inconsistencies can lead to failure under high-pressure or high-temperature conditions. By employing these methods, manufacturers can ensure the integrity of heat exchanger parts and prevent costly system failures.
Industry Applications of Heat Exchanger Parts
Superalloy heat exchanger parts are critical in industries with common high-temperature and high-pressure systems. They are widely used in:
Aerospace: Heat exchangers with superalloy parts play a crucial role in engine cooling and thermal management. These components ensure the efficient operation of aircraft engines, handling significant temperature fluctuations during flight.
Power generation: Superalloy heat exchangers are key components in steam turbines and boilers. Their high thermal and corrosion resistance make them ideal for harsh environments, ensuring the efficiency and longevity of power plants.
Petrochemical processing: Superalloy heat exchangers maintain high-performance standards in chemical reactors and other thermal processes where resistance to corrosion and thermal cycling is essential.
Marine: In marine applications, superalloy heat exchangers help maintain consistent performance even under extreme environmental conditions, supporting cooling systems in ships and offshore platforms.
These industries rely on superalloy heat exchangers to ensure reliability, efficiency, and durability in high-temperature and high-pressure systems.
FAQs about Heat Exchanger Parts Manufacturing
What types of superalloys are commonly used in heat exchanger parts?
How does vacuum investment casting enhance the performance of heat exchanger parts?
What is the role of precision forging in manufacturing heat exchanger parts?
How can prototyping and small batch production benefit heat exchanger part development?
What quality control methods are employed to ensure the reliability of heat exchanger parts?
