Hastelloy X in SLM 3D Printing: Properties and Applications
Hastelloy X: Optimizing High-Performance Components with SLM Technology
Hastelloy X, a nickel-based superalloy, is widely known for its remarkable resistance to oxidation and exceptional high-temperature strength. This unique combination of properties makes Hastelloy X ideal for environments that experience high thermal and mechanical stress, such as aerospace, chemical processing, and power generation.
Selective Laser Melting (SLM) technology has further enhanced the utility of Hastelloy X by allowing for the efficient production of complex, high-performance parts directly from digital designs. With SLM, manufacturers can create components layer by layer, precisely melting Hastelloy X powder into intricate geometries that are difficult to achieve through traditional manufacturing methods. This approach minimizes material waste and provides design flexibility and speed, enabling the rapid production of Hastelloy X components with tight tolerances and optimal performance characteristics.
The combination of SLM and Hastelloy X offers significant advantages for industries that require materials capable of withstanding high heat, corrosion, and mechanical stress. By leveraging SLM technology, manufacturers can optimize Hastelloy X for advanced applications that demand reliability and longevity in challenging environments.
Material Properties of Hastelloy X for SLM 3D Printing
Hastelloy X is composed primarily of nickel, with significant amounts of chromium, iron, and molybdenum. This composition provides Hastelloy X with excellent oxidation and corrosion resistance and high tensile strength, even in temperatures exceeding 1200°C. Its resistance to cracking under thermal cycling and stress is crucial for parts exposed to rapid temperature changes, such as gas turbines and combustion chambers.
SLM technology enhances the properties of Hastelloy X by providing consistent, high-density structures with minimal internal defects. The layer-by-layer melting process used in SLM enables precise control over the microstructure, resulting in parts that retain the alloy's inherent strength and corrosion resistance. Compared to conventional manufacturing methods, SLM-printed Hastelloy X parts can offer improved fatigue resistance and mechanical stability, especially when subjected to extreme environments.
Hastelloy X stands out among superalloys for its adaptability to high-stress applications, and SLM technology makes it even more versatile. Its unique combination of properties, including thermal stability, resistance to oxidation, and high mechanical strength, makes Hastelloy X a superior choice for SLM, where the control over microstructure enhances the alloy's ability to perform in high-temperature and corrosive conditions.
SLM 3D Printing Process for Hastelloy X: Methodology and Technology

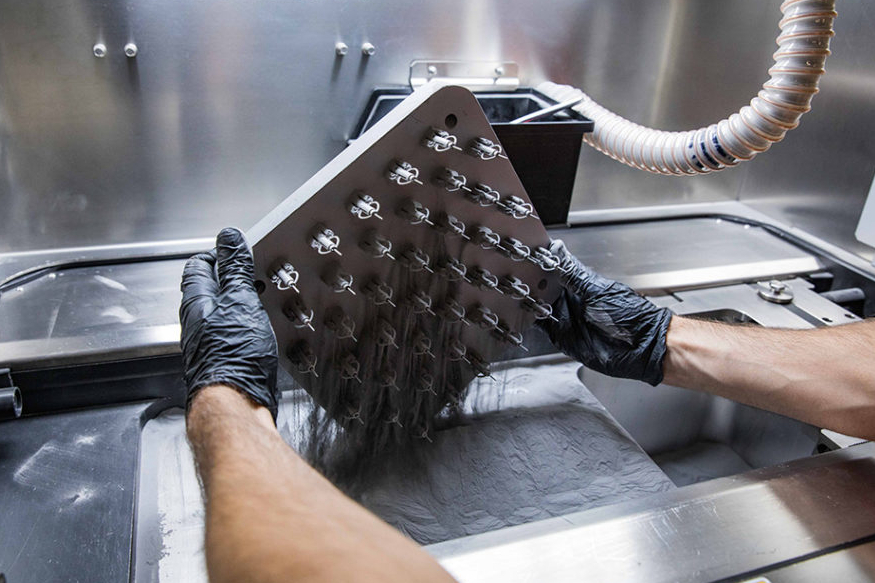

Selective Laser Melting (SLM) is an advanced metal additive manufacturing technique in which metal powder is precisely melted layer by layer using a high-energy laser. The process begins with a digital 3D model of the part sliced into thin cross-sectional layers. The SLM machine then spreads a fine layer of Hastelloy X powder across the build platform, and the laser selectively melts areas according to the digital model. This process repeats layer by layer, bonding to the one beneath it until the entire part is formed.
For Hastelloy X, the SLM process offers significant benefits, including reduced material waste, design flexibility, and the ability to produce complex geometries. Traditional manufacturing methods, such as casting and machining, require substantial material removal, tooling, and assembly, especially for intricate shapes. SLM, by contrast, allows manufacturers to produce complex Hastelloy X parts with minimal waste and in a fraction of the time.
SLM technology also enables rapid prototyping and iterative design changes, which are particularly valuable for applications in aerospace and other high-performance industries. Additionally, the SLM process enhances Hastelloy X's performance by minimizing defects commonly associated with traditional manufacturing. The tightly controlled environment and precise energy application ensure that each layer of Hastelloy X is fused consistently, resulting in a dense, uniform part. This structure provides excellent resistance to fatigue and improves mechanical properties, which is essential for high-stress applications.
Post-Processing Techniques for SLM 3D-Printed Hastelloy X Parts
Once Hastelloy X parts are printed using SLM, post-processing steps are crucial to optimize their mechanical properties and prepare them for end-use applications. Standard post-processing techniques include:
Hot Isostatic Pressing (HIP)
Hot Isostatic Pressing (HIP) reduces internal porosity and improves the density of SLM-printed Hastelloy X parts. During HIP, parts are subjected to high pressure and temperature, eliminating voids and enhancing the material's strength, flexibility, and fatigue resistance. HIP is significant for parts in high-temperature, high-stress environments, where minor internal defects could compromise performance and reliability.
Heat Treatment
Heat treatment processes such as annealing are applied further to enhance the mechanical properties of Hastelloy X. Heat treatment optimizes hardness, thermal stability, and stress resistance by adjusting the material's microstructure. For example, solution annealing followed by rapid cooling helps relieve internal stresses. It enhances the alloy's performance in applications where thermal cycling is frequent, making it suitable for high-temperature environments.
Surface Finishing
Additional finishing processes such as polishing, CNC machining, and coating may be applied to achieve the required surface quality. These techniques improve the part's wear resistance, surface finish, and dimensional accuracy. Surface finishing is essential for Hastelloy X components used in assemblies that require tight tolerances and smooth surfaces, such as in turbine or exhaust system components, where precision is crucial for optimal performance.
Testing and Quality Assurance
After post-processing, rigorous testing and quality assurance are performed to verify that the Hastelloy X parts meet industry standards. By thoroughly testing each component, manufacturers ensure that SLM-printed Hastelloy X parts can perform reliably in their intended applications, with testing methods confirming structural integrity, strength, and adherence to design specifications.
Testing and Inspection of Hastelloy X SLM Parts
Comprehensive testing and inspection are essential to guarantee the reliability and performance of SLM-printed Hastelloy X parts. At NewayAero, a variety of advanced testing methods are employed to confirm the integrity of each part:
Coordinate Measuring Machine (CMM) Testing
Coordinate Measuring Machine (CMM) Testing provides precise measurements to confirm that the part's dimensions match design specifications. This process ensures that each component adheres to strict tolerances and meets the geometric requirements of the application.
X-ray and CT Scanning
X-ray and CT Scanning are used to inspect the internal structure of Hastelloy X parts for any hidden defects, such as porosity or micro-cracks. These non-destructive testing methods provide detailed images of the part's interior, enabling engineers to identify and address potential issues that could compromise performance.
Scanning Electron Microscope (SEM) Analysis
SEM Analysis offers a closer look at the part's microstructure. SEM can reveal microstructural features, porosity, and other characteristics that may impact the mechanical properties and overall performance of Hastelloy X parts.
Tensile and Fatigue Testing
Tensile and Fatigue Testing measure the part's mechanical strength and durability under stress. By subjecting Hastelloy X components to cyclic loading, fatigue testing assesses their ability to withstand repetitive mechanical stress, which is critical for parts exposed to dynamic loads.
Corrosion and Thermal Testing
Corrosion and Thermal Testing validate Hastelloy X's oxidation and thermal degradation resistance. These tests are essential for applications that expose parts to corrosive environments or high temperatures, such as gas turbines or chemical reactors.
Industry Applications of SLM-Printed Hastelloy X Components
The superior properties of Hastelloy X, combined with the precision of SLM, make this alloy suitable for a wide range of high-performance applications across various industries:
Aerospace
In the aerospace industry, Hastelloy X is commonly used for turbine blades, combustor components, and exhaust systems exposed to extreme temperatures and stress. The material's oxidation resistance and high mechanical strength make it ideal for parts that must perform reliably in high-temperature environments. Components such as superalloy exhaust system parts benefit from Hastelloy X's resilience, ensuring reliable operation in demanding aerospace applications.
Power Generation
Hastelloy X is utilized in high-efficiency gas turbines and other critical components that endure high heat and mechanical stress in power plants. SLM-printed Hastelloy X parts allow for optimized designs, including complex cooling channels that improve thermal management and efficiency. This material's strength at high temperatures enhances the durability of superalloy heat exchanger parts and turbine components used in power generation.
Oil and Gas
The oil and gas industry employs Hastelloy X in drilling and pressure containment equipment that withstands corrosive environments and high pressures. SLM technology enables the rapid production of Hastelloy X components with enhanced corrosion resistance and structural integrity, which are essential for high-temperature alloy pump components and other critical parts in this sector.
Automotive
High-performance exhaust systems and turbocharger components in the automotive industry benefit from Hastelloy X's heat resistance and durability. SLM enables the production of lightweight, high-strength designs that improve vehicle performance and efficiency, particularly in high-performance and motorsport applications with critical temperature resistance.
Chemical Processing
Hastelloy X's resistance to oxidation and corrosion makes it suitable for components used in reactors and chemical processing systems. Chemical processing applications demand materials that withstand harsh environments, and SLM-printed Hastelloy X parts offer the durability and reliability required in systems exposed to reactive chemicals and extreme temperatures.
FAQs
What are the main advantages of using Hastelloy X in SLM 3D printing?
How does SLM technology enhance the properties of Hastelloy X components?
What post-processing steps are necessary for SLM-printed Hastelloy X parts?
Which industries benefit most from SLM-printed Hastelloy X components?
How does NewayAero ensure quality and reliability in SLM-printed Hastelloy X parts?
