Grain Boundaries in Superalloy Single Crystals: EBSD in Improving Mechanical Properties
Superalloy single crystals are engineered materials used in extreme conditions, where high temperatures, mechanical stresses, and corrosive environments are the norm. These alloys are widely used in the aerospace and aviation, power generation, and defense industries, where their exceptional mechanical properties—such as high-temperature strength, creep resistance, and fatigue resistance—are crucial for the reliability and performance of critical components.
A significant aspect of superalloy single crystals is the grain structure. In most metals, the material consists of multiple crystallites or grains, each with its orientation. In a single crystal, however, the material is one continuous grain, which is highly desirable for parts exposed to extreme conditions. The boundaries between these grains, known as grain boundaries, play a pivotal role in determining the overall performance of the alloy. These single-crystal alloys are integral to applications like superalloy jet engine and transmission components.
Grain boundaries in superalloy single crystals are essential because they can affect mechanical properties such as creep resistance, fatigue strength, and thermal stability. If not carefully controlled, grain boundaries can become sites for initiating cracks and other failures under high-stress conditions. As such, understanding and optimizing grain boundaries in superalloy single crystals is critical in producing high-performance components for industries like oil and gas and nuclear.
In manufacturing superalloy reactor vessel components and superalloy heat exchanger parts, precise control over the grain boundaries ensures that the materials can withstand extreme conditions, maintaining structural integrity and performance.
What is the Process of Grain Boundary Analysis Using EBSD?
Electron Backscatter Diffraction (EBSD) is a powerful technique used to analyze the crystallographic properties of materials at the microscopic level. In superalloy single crystals, EBSD is particularly useful for investigating grain boundaries. The process directs a high-energy electron beam onto a material’s surface, typically within a Scanning Electron Microscope (SEM). The electron beam interacts with the crystalline lattice, producing diffraction patterns unique to each crystal orientation. Analyzing these patterns makes it possible to map the grain boundaries and gain insights into the material’s crystallographic structure.
For superalloy single crystals, EBSD provides highly detailed information on the orientation of grains, misorientations, and other microstructural features, such as phase boundaries and dislocations. The technique generates a crystallographic orientation map that shows how the grains are oriented relative to one another. This map is vital in understanding the material’s overall behavior, as the interaction of grain boundaries significantly affects the performance of the final part.
The resolution of EBSD allows manufacturers to assess the grain boundaries with great precision, providing detailed insights into how these boundaries influence the overall mechanical properties of the material. Whether it's identifying misorientations, detecting defects, or assessing the effect of processing conditions on grain boundary structure, EBSD is a crucial tool in optimizing the properties of superalloy single crystal casting.
The Function of EBSD in Improving Mechanical Properties
The primary function of EBSD in the context of superalloy single crystals is to enhance the material's mechanical properties by optimizing the grain boundary structure. Grain boundaries can have both positive and negative effects on material properties. On the one hand, they can impede the movement of dislocations and improve the strength of the material. On the other hand, poorly aligned or defective grain boundaries can lead to weaknesses, such as increased susceptibility to cracking, fatigue, or creep.
Using EBSD, manufacturers can better control grain alignment and optimize the material properties of superalloy single crystal casting to meet the high demands of industries like aerospace and power generation.
Improved Fatigue Resistance
Fatigue failure in superalloy components is critical, especially in high-stress applications like turbine blades or power plant components. Fatigue failure occurs when a material is subjected to repeated loading and unloading cycles, leading to the initiation of cracks that propagate over time. In superalloy single crystals, the grain boundaries' orientation and quality can significantly affect the material’s fatigue resistance.
Using EBSD to analyze and optimize grain boundaries can help reduce the likelihood of fatigue failures. EBSD helps increase the material's ability to withstand cyclic stresses without developing cracks by ensuring that grain boundaries are well-aligned and free from defects. The technique allows manufacturers to detect microstructural inhomogeneities early in the casting process, making it possible to fine-tune the casting or forging process to produce parts with improved fatigue resistance.
Enhanced Creep Resistance
Creep is the gradual deformation of a material under constant stress, often occurring at high temperatures over long periods. Components in critical applications such as turbine engines must resist creep to maintain their shape and performance under extreme heat and pressure. Grain boundaries play an important role in controlling the movement of dislocations that contribute to creep deformation. Misaligned or defective grain boundaries can accelerate the creep process, leading to premature failure.
EBSD allows for a detailed analysis of grain boundary characteristics that influence creep resistance. EBSD can help produce superalloy single crystals that exhibit superior resistance to creep deformation by optimizing grain boundary structure and minimizing misorientations. This is particularly important in high-temperature applications such as gas turbines or reactor components, where material performance must remain stable over long periods of operation.
Thermal Stability
In addition to mechanical properties, superalloy single crystals must maintain strength and stability at elevated temperatures. Grain boundaries can influence the material's thermal properties, including its ability to resist thermal shock and maintain structural integrity under temperature fluctuations. EBSD helps in optimizing grain boundary structures that contribute to better thermal stability. By controlling the orientation of grains and ensuring that the boundaries are aligned properly, manufacturers can enhance the material's ability to withstand rapid temperature changes without cracking or failing.
In high-performance applications such as turbine blades or jet engines, this thermal stability is critical to ensuring long-term durability and reliability.
Which Superalloy Parts Require Grain Boundary Analysis via EBSD?
Grain boundary analysis through EBSD (Electron Backscatter Diffraction) is essential for ensuring superalloy components' mechanical properties and performance, particularly those that will endure extreme stresses and temperatures. These components are typically used in aerospace, power generation, and military defense, where high reliability and performance are paramount.
Superalloy Castings

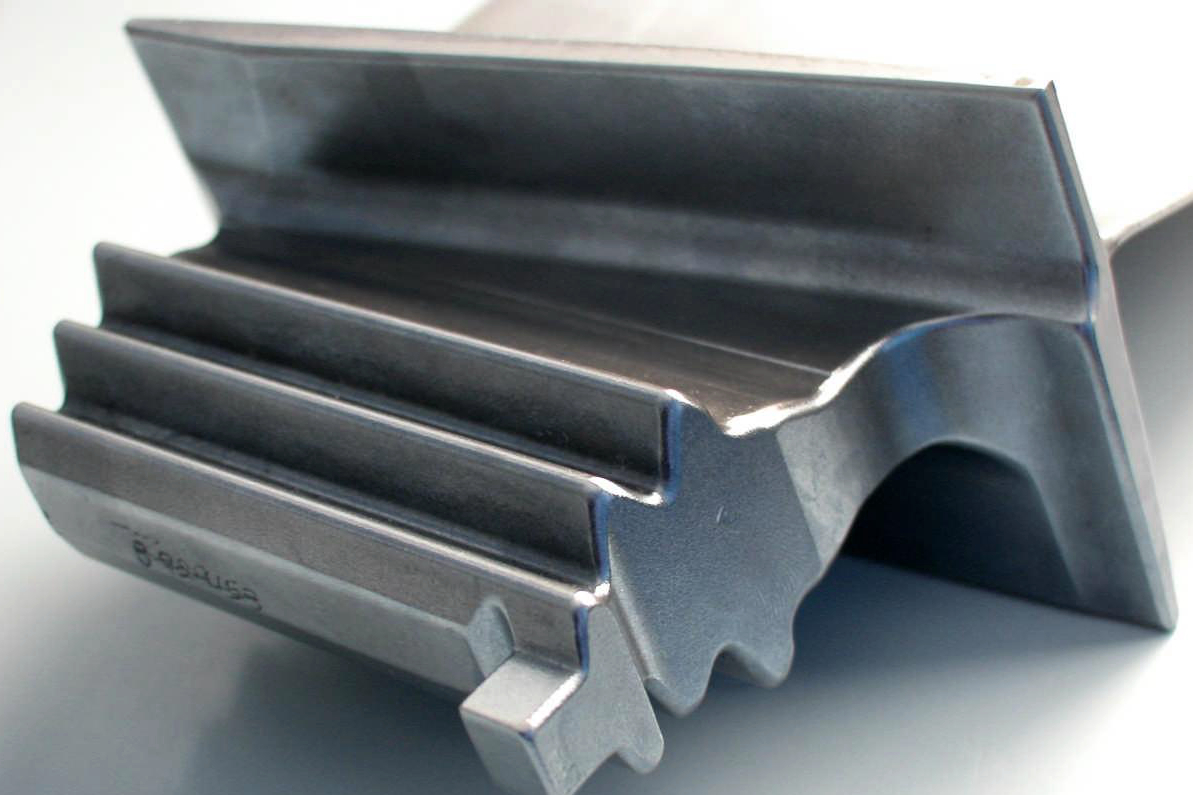

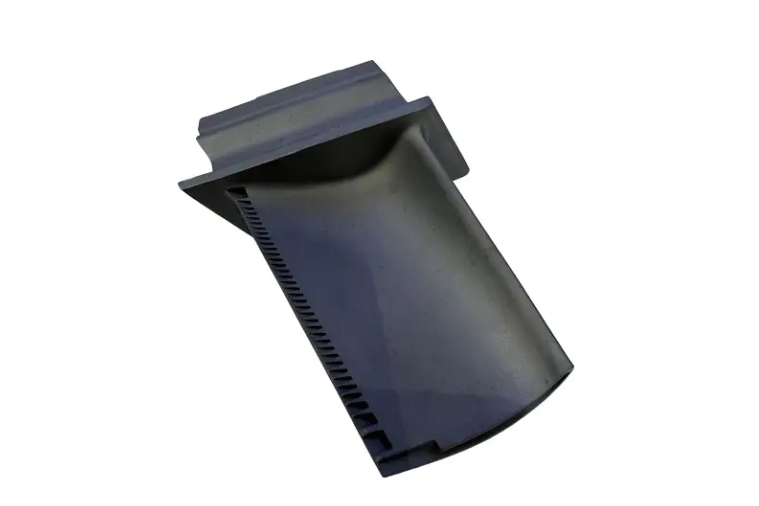

Superalloy castings, including turbine blades, combustion chambers, and nozzle guide vanes, are vital components in gas turbines and jet engines, which are subjected to high temperatures and mechanical stresses. The grain boundary structure of these superalloy castings plays a significant role in their ability to resist fatigue, creep, and thermal degradation. EBSD is used to map the crystallographic orientation and detect any misalignments or defects in the grain boundaries, which could otherwise compromise the performance of critical parts in harsh operational environments like aerospace and power generation.
Forged Superalloy Parts
Forged superalloy components such as turbine discs and impellers are subjected to high mechanical loads and must demonstrate excellent strength and durability. The grain boundary structure in forged superalloy parts is crucial for ensuring resistance to cracking, fatigue, and other mechanical stresses. EBSD is used to analyze and optimize the grain boundaries in superalloy precision forging to achieve the required mechanical properties for demanding applications, particularly in sectors like aerospace and energy.
CNC Machined Superalloy Parts
After casting or forging, many superalloy components undergo CNC machining to achieve precise geometries and dimensions. However, machining can sometimes alter the material’s microstructure and grain boundaries. EBSD is used to examine CNC machined superalloy parts to ensure that machining does not inadvertently weaken the grain boundaries, ensuring that the final part retains its structural integrity and performance. This is particularly critical for parts that must withstand extreme thermal and mechanical stresses, such as those used in jet engines or power generation turbines.
3D Printed Superalloy Parts
Additive manufacturing, or 3D printing, is increasingly essential for producing complex superalloy components with high precision. However, ensuring that 3D-printed superalloy parts exhibit the same mechanical properties as traditionally manufactured components requires a detailed analysis of the grain boundary structure. EBSD helps assess whether the grain boundaries in 3D printed parts are aligned and uniform, ensuring the final part's strength, durability, and suitability for high-performance applications, particularly in industries like aerospace, where 3D printing is used for turbine blades and other critical components.
Comparison with Other Processes
While other methods, such as optical microscopy, X-ray diffraction, and traditional mechanical testing, provide valuable information on the properties of superalloys, EBSD stands out for its ability to provide detailed, quantifiable data on the crystallographic orientation of grains and grain boundaries.
Optical microscopy can provide visual images of grain structure but lacks the precision and detail required for analyzing misorientations and grain boundary characteristics. Similarly, X-ray diffraction provides information on phase changes and overall crystallinity but cannot deliver the same level of detail regarding grain boundaries as EBSD.
In contrast, EBSD offers high spatial resolution, the ability to map 3D crystallographic orientations, and a quantitative approach to analyzing misorientations and grain boundary behavior. This makes EBSD an indispensable tool in producing high-performance superalloy components, especially in aerospace and power generation industries, where material integrity is critical for long-term performance.
Industry and Application
Superalloy single crystals with optimized grain boundaries are used across various industries, including aerospace, power generation, military defense, and more. The ability to control and improve grain boundaries through EBSD ensures that superalloy parts meet the demanding performance requirements of these industries.
Aerospace and Aviation
In aerospace and aviation, the performance of superalloy components like turbine blades, nozzle guide vanes, and combustion chambers is critical to engine efficiency and safety. EBSD is used to ensure that these components have the optimal grain boundary structure for resistance to fatigue, creep, and thermal shock, all of which are critical in the harsh environments of jet engines. For instance, ensuring the grain boundary structure of superalloy turbine blades enhances their strength and durability, enabling them to perform reliably under extreme operational conditions.
Power Generation
Superalloy parts such as turbine discs and heat exchangers are used in power plants to withstand high temperatures and mechanical stresses over extended periods. EBSD helps optimize the grain boundary structure of these components to ensure long-term performance and resistance to creep and fatigue under continuous high-stress conditions. This is essential for superalloy heat exchanger parts operating under extreme thermal cycles while maintaining efficient heat transfer and structural integrity.
Oil and Gas
In the oil and gas industry, superalloy parts such as heat exchangers, corrosion-resistant piping, and drilling equipment must perform reliably in extreme environments. EBSD ensures these parts have the required mechanical properties, including enhanced fatigue and creep resistance, which are crucial for maintaining performance in challenging operating conditions. For example, superalloy corrosion-resistant piping benefits from optimized grain boundaries, allowing it to withstand the harsh chemicals and high pressures encountered in deep-sea drilling or offshore oil extraction.
Military and Defense
Military and defense applications, including missile components, naval propulsion systems, and armor, require superalloy parts with optimized mechanical properties to withstand extreme temperatures, stresses, and environmental conditions. EBSD plays a critical role in ensuring the grain boundary structure of these components is designed for superior performance and durability. Components like superalloy armor system parts benefit from grain boundary optimization to ensure enhanced strength and resistance to impact and thermal shock in combat or battlefield conditions.
Nuclear Industry
The nuclear industry relies on superalloy components such as reactor vessel parts, control rods, and heat exchangers, which must maintain their strength and integrity under high radiation and temperature conditions. Grain boundary optimization through EBSD ensures that these parts can withstand the harsh environments within nuclear reactors. For instance, superalloy reactor vessel components are engineered with optimal grain boundary structures to ensure longevity and safe operation under extreme radiation and heat conditions.
By employing EBSD to optimize grain boundaries, industries can ensure that their superalloy components meet the high-performance standards required for safety, durability, and reliability in extreme environments. This process is essential for meeting the demanding requirements across aerospace, power generation, oil and gas, military defense, and nuclear sectors.
