Enhanced Accuracy: How 5-Axis CNC Centers Achieve Tight Tolerances in Superalloy Components
The Critical Role of 5-Axis CNC Machining in Superalloy Component Production
Precision is critical in manufacturing superalloy components, mainly when these parts are used in high-stress industries like aerospace and aviation, power generation, oil and gas, and defense. Superalloys are designed to withstand extreme conditions—such as high temperatures, corrosion, and mechanical stress—making them essential for critical applications. However, these components must be manufactured to the exact specifications required to perform optimally. This is where 5-axis CNC machining plays a pivotal role.
With its ability to handle complex geometries and tight tolerances, 5-axis CNC machining ensures that superalloy components are produced with the utmost precision. These capabilities are precious for the production of components used in superalloy turbine blades and superalloy heat exchanger parts, where precision is critical to both functionality and safety. By utilizing advanced superalloy casting techniques alongside 5-axis CNC machining, manufacturers can achieve the exact material properties and dimensions required for high-performance applications, such as nickel-based alloy missile segment production.
Industries demand faster production cycles without sacrificing quality, so integrating 5-axis CNC machining into superalloy parts manufacturing is becoming increasingly vital. It enables the efficient production of components that must perform under extreme conditions, such as high-temperature alloy engine components and superalloy transmission components. This advanced machining technology enhances the precision of superalloy parts and reduces lead times, making it an essential tool for meeting the evolving demands of high-performance industries.
What is 5-Axis CNC Technology?

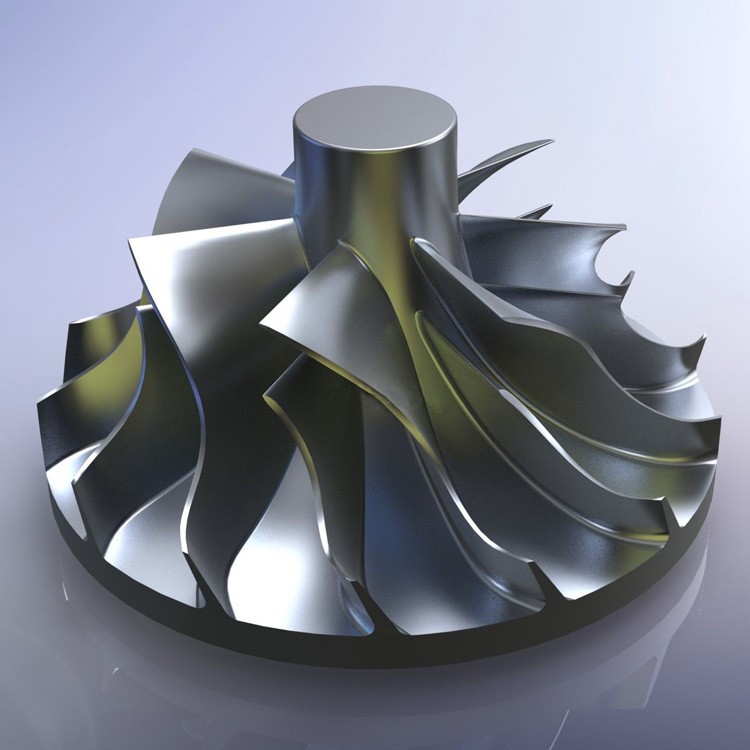

5-axis CNC machining is a cutting-edge manufacturing process that uses computer numerical control (CNC) to simultaneously manipulate a tool along five different axes. Unlike traditional 3-axis machining, which can only move a tool along the X, Y, and Z linear axes, 5-axis machining adds two additional rotational axes—A and B. These additional axes allow the tool to approach the part from virtually any direction, creating more complex shapes and geometries with greater precision, which is ideal for superalloy casting applications like turbine blades, impellers, and other intricate components.
The primary advantage of 5-axis CNC machining is its ability to reduce setup time and improve accuracy. With 3-axis machining, multiple setups are often required to machine different faces of a part. Each setup introduces the potential for errors, such as misalignment, which can compromise the precision of the final component. In contrast, a 5-axis CNC machine can perform all the necessary cuts in a single setup, minimizing human error and improving the overall precision of the part. This leads to higher material integrity and faster production, which is essential for high-performance superalloy parts used in aerospace and power generation industries.
The Function of 5-Axis CNC Machining in Superalloy Component Manufacturing
5-axis CNC machining plays a pivotal role in manufacturing superalloy components, particularly in industries where precision and performance are critical, such as aerospace and power generation. The most important function of this technology is ensuring tight tolerances, which are crucial for parts subjected to extreme conditions. Achieving tight tolerances ensures that components will fit and function correctly within a larger assembly, meeting the stringent requirements of applications like turbine blades and combustion chambers. In high-stress environments, even minor dimensions deviations can compromise the component's performance and safety.
The precision offered by 5-axis CNC technology allows manufacturers to produce highly complex superalloy castings with intricate geometries, such as curved surfaces, cooling passages, and thin walls, which are essential for components like turbine blades and combustor components. This capability is critical in industries such as aviation and energy, where parts must withstand extreme temperatures and mechanical stresses without failure.
Furthermore, 5-axis CNC machining can achieve superior surface finishes while reducing cycle times, enhancing the manufacturing process's quality and efficiency. This results in faster production without sacrificing the performance of the parts, which is particularly valuable for industries that operate in fast-paced and high-demand environments.
In addition to these performance advantages, 5-axis machining helps reduce material waste. Machining parts from multiple angles allows a single block of material to be used more efficiently, minimizing waste and improving material utilization. This is especially important when working with expensive superalloys, where maximizing material yield helps to control costs while maintaining high-quality standards in production.
Which Superalloy Parts Benefit from 5-Axis CNC Technology?
Superalloy castings, forging parts, CNC machined components, and even 3D printed superalloy parts all require precision to ensure they meet industry standards for performance and durability. Each of these part types can benefit significantly from the capabilities of 5-axis CNC machining, which allows for complex geometries and high-precision finishes essential for critical aerospace applications, power generation, and more.
Superalloy Castings
Superalloy castings, such as turbine blades, turbine discs, and combustion chambers, are subjected to extreme temperatures and mechanical stress in high-performance environments. Achieving tight dimensional tolerances in these components is essential for their reliable operation. 5-axis CNC machining is used to refine these castings, eliminating imperfections and ensuring that final dimensions meet strict specifications. For example, a turbine blade cast from an alloy like Inconel or CMSX-10 may have intricate internal cooling channels that require precise machining to function effectively in gas turbines.
Forged Superalloy Parts
Forged superalloy components, such as compressor blades, impellers, and engine shafts, are produced by applying high pressure to shape the material. While forging provides strength and durability, the resulting part may not meet the precise dimensions needed for a perfect assembly fit. 5-axis CNC machining is used post-forging to refine these parts, achieving the tight tolerances necessary for high-stress applications such as aerospace engines, power turbines, and gas compressors.
CNC Machined Superalloy Parts
CNC machined superalloy parts, like gas turbine rotors, aerospace engine components, and heat exchangers, are manufactured to achieve the highest dimensional accuracy and surface finish. 5-axis CNC machining provides the versatility needed to create complex geometries and delicate features that would be difficult or impossible to achieve using traditional methods. This technology is crucial for parts used in extreme environments, where performance and reliability are critical to safety and efficiency.
3D Printed Superalloy Parts
With the increasing use of 3D printing in superalloy part manufacturing, especially in the aerospace and automotive industries, post-processing is needed to meet surface finish and dimensional accuracy requirements. 5-axis CNC machining is used to refine 3D printed superalloy parts, especially those with intricate geometries such as lattice structures or complex internal channels. By machining these parts to precise tolerances, manufacturers ensure that the final product performs to the highest standards in demanding applications like aircraft engines and turbine systems.
Industry and Application
5-axis CNC machining is used extensively across multiple industries where superalloy components ensure safety, efficiency, and performance.
Aerospace and Aviation
In the aerospace and aviation industry, tight tolerances are critical for turbine blades, engine components, and combustor chambers. These parts are exposed to extreme heat, pressure, and mechanical stress, so they must be manufactured precisely. 5-axis CNC machining ensures that components meet the stringent standards for performance and safety. Creating complex geometries also allows for innovative designs that can improve fuel efficiency and reduce weight, crucial in jet engines and aerospace-grade fuel systems.
Power Generation
Superalloy components, such as gas turbines and heat exchangers, are used extensively in power generation applications. These components must withstand high temperatures and pressures over extended periods of operation. 5-axis CNC machining allows manufacturers to achieve the precision necessary to ensure optimal performance and efficiency in these high-stakes applications, ensuring critical power generation components like turbine blades and vanes meet the required specifications.
Oil and Gas
In the oil and gas industry, components like valves, pumps, and heat exchangers are subjected to extreme environments. These parts require precise manufacturing to ensure they perform reliably over long periods. 5-axis CNC machining is used to refine these parts, ensuring tight tolerances that prevent leaks and other failures that could lead to costly downtime or safety risks, especially in critical oil and gas pump components.
Automotive and Defense
The automotive and military and defense industries require components like transmission parts, missile segments, and armor systems that must meet high standards for safety and durability. 5-axis CNC machining ensures that these parts are manufactured precisely, ensuring they perform optimally in the field. For example, superalloy armor system parts are produced with tight tolerances to protect the most demanding conditions.
Marine
In the marine industry, superalloy components like propellers and hull parts are exposed to harsh marine environments. These components must be made with high precision to ensure longevity and performance. 5-axis CNC machining ensures that the parts are manufactured to the necessary tolerances, providing durability and resistance to corrosion, which is essential for naval ship modules and other marine applications.
By utilizing advanced technologies like 5-axis CNC machining, manufacturers across these industries can enhance production efficiency, maintain high precision, and ensure that superalloy components perform reliably in demanding applications.
