Eliminating Porosity in Superalloy Castings with HIP: Enhancing Density and Integrity
Superalloys are essential for applications where components are subjected to extreme mechanical and thermal stresses. Commonly used in aerospace, power generation, and automotive industries, these alloys are prized for their ability to maintain strength and performance at elevated temperatures. However, even the best superalloys can suffer from porosity during the casting process, compromising their mechanical properties and overall integrity.
Porosity in superalloy castings can manifest as voids, air pockets, or gas entrapment, and it can severely affect the material’s strength, durability, and resistance to fatigue. To combat these issues, Hot Isostatic Pressing (HIP) has become a crucial method for eliminating porosity and improving the overall quality of superalloy castings. This process removes internal voids and enhances the material's density, fatigue resistance, and long-term performance.
Understanding Porosity in Superalloy Castings
Porosity in metal castings refers to the presence of small voids, air pockets, or gas bubbles that form within the material during the cooling and solidification phases of the casting process. These voids can be classified into several types, including gas porosity, shrinkage porosity, and micro-porosity, each can result from different factors during the casting process.
Gas porosity occurs when gases, often trapped during the solidification of the molten metal, fail to escape before the metal hardens. These trapped gases form bubbles that weaken the structure of the casting, making it prone to failure in high-performance applications. In superalloy vacuum investment casting, careful control of gas evacuation and solidification rates is essential to minimize this porosity.
Shrinkage porosity results from the molten metal contracting as it cools, creating voids within the casting. This typically occurs in thick sections of the casting or in areas where solidification is uneven. By implementing controlled solidification methods like those used in superalloy precision forging, manufacturers can reduce the occurrence of shrinkage porosity and improve the integrity of the final component.
Micro-porosity refers to the tiny, almost invisible voids throughout the material. These voids are often smaller than can be seen by the naked eye but can significantly impact the material's properties, especially in high-performance applications. In advanced casting processes like single crystal casting, where uniformity and integrity are crucial, micro-porosity is minimized to ensure the component can withstand extreme conditions without degradation over time.

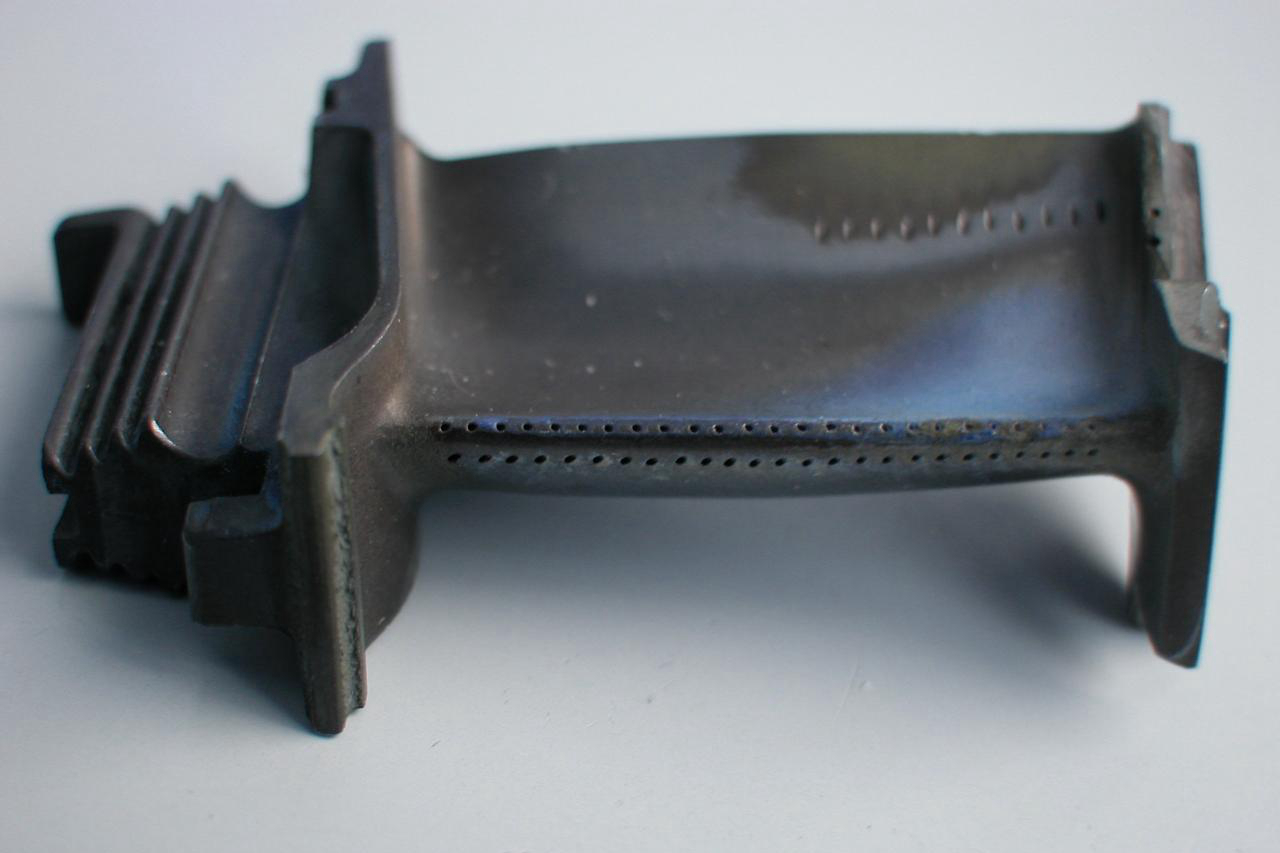

The porosity in superalloy castings can dramatically reduce the material’s mechanical strength, especially its fatigue resistance. In high-stress applications such as turbine blades or engine components, even small voids can lead to failure over time, as they act as stress concentrators that initiate cracks under cyclic loading conditions. This is particularly concerning in industries like aerospace, where the reliability of each component is critical to the safety and performance of the system.
Additionally, porosity can reduce the material’s ability to withstand high temperatures and prevent it from meeting the strict dimensional and performance standards required for critical components. Therefore, implementing methods like Hot Isostatic Pressing (HIP) after casting helps to densify the material, eliminate porosity, and enhance the overall mechanical properties, ensuring the durability and performance required for extreme operating conditions.
How Hot Isostatic Pressing (HIP) Works
Hot Isostatic Pressing (HIP) is a post-processing method used to improve the quality of metal castings, including superalloy castings, by eliminating porosity and densifying the material. The HIP process involves placing the casting inside a high-pressure chamber exposed to high temperature and isostatic (uniform) pressure in an inert gas environment, typically argon or nitrogen. The process occurs under controlled conditions, with the temperature usually ranging between 900°C to 1200°C, and the pressure can reach up to 2000 bar (29,000 psi).
In a HIP furnace, the casting is heated to a temperature where the material becomes malleable and capable of responding to the applied pressure. The high pressure is applied uniformly from all directions, which forces any trapped gas or voids within the material to collapse, eliminating porosity. This is particularly important in processes like superalloy vacuum investment casting, where porosity can compromise the performance of critical components.
The pressure also encourages diffusion at the atomic level, promoting a more uniform microstructure and eliminating internal defects. This process results in a fully dense material with improved mechanical properties, such as enhanced tensile strength, creep resistance, and overall durability. For high-performance applications like turbine blades, HIP is crucial for ensuring the material’s reliability under extreme stress and high temperatures.
Unlike other methods, such as traditional heat treatment or welding, HIP is particularly effective because it applies uniform pressure to the material from all directions, ensuring that even the most difficult-to-reach internal defects are eliminated. The controlled temperature environment also ensures that the material does not undergo undesirable phase changes or distortion during the process, which can be a concern with other post-processing methods, such as superalloy precision forging or CNC machining.
Advantages of HIP in Eliminating Porosity
One of the most significant advantages of HIP is its ability to remove porosity from superalloy castings, thereby improving material density and overall structural integrity. Here are some of the key ways HIP addresses porosity and enhances the properties of superalloy castings:
Eliminating Internal Voids
The high pressure applied during HIP forces the gas or trapped air out of the material, eliminating the internal voids or bubbles that can weaken the material. As a result, HIP-treated castings are significantly denser, with virtually no internal porosity. This improves mechanical strength and reliability, especially in components that must withstand high temperatures and mechanical stresses.
Improved Fatigue Resistance
Porosity is a major factor that contributes to the fatigue failure of materials. The presence of voids in a casting creates stress concentrators that can cause cracks to propagate under repeated loading cycles. By removing porosity, HIP improves the material’s ability to resist fatigue and enhances its overall durability. This is particularly important in aerospace and power generation industries, where components such as turbine blades and engine parts are subjected to high cyclic loads over long periods.
Enhanced Creep Resistance
Creep is the gradual deformation of materials when subjected to constant stress at high temperatures. Superalloys used in high-performance applications are often exposed to extreme temperatures, making them susceptible to creep deformation. By eliminating porosity and improving the material's microstructure, HIP enhances the casting’s resistance to creep, helping components maintain their integrity and shape over time, even under continuous thermal and mechanical stress. This is essential for parts used in industries like power generation.
Increased Structural Integrity
In addition to eliminating porosity, HIP promotes a more homogeneous microstructure within the superalloy. Applying high pressure encourages the diffusion of atoms within the material, resulting in a finer and more consistent grain structure. This improves the overall structural integrity of the material, making it more resistant to cracking, corrosion, and other forms of degradation. The result is a component that performs more reliably over its lifespan, particularly in high-stress applications such as aerospace and energy.
Effect on Superalloy Density and Integrity
Superalloys are often used in applications where density and integrity are critical. Castings with internal porosity or voids are more susceptible to failure under high-stress conditions, as the voids reduce the material’s overall density and strength. By removing these voids, HIP enhances the density of the superalloy, ensuring that the casting can withstand the extreme forces and temperatures encountered in industries such as aerospace and power generation.
HIP-treated castings exhibit near-perfect material density, meaning there are no internal pockets of air or gas to compromise the material’s structural integrity. This results in improved strength and durability components, which are essential for mission-critical applications. The increased density also ensures the material can better withstand the high thermal stresses encountered in applications such as turbine engines and power plant equipment.
Moreover, HIP improves the overall material consistency, which ensures that the casting will behave predictably during its operational life. In industries where failure is not an option, such as aerospace, this predictability is invaluable, as it provides confidence that the components will perform as expected under extreme conditions.
Post-HIP Process and Testing
Once a superalloy casting has undergone HIP treatment, it often requires additional post-processing steps, such as heat treatment, machining, or surface finishing, to achieve the final desired properties. Depending on the specific application, these processes can further improve the material’s strength, hardness, or surface quality. Carbon sulfur analysis is essential during post-processing to ensure the material's composition is within optimal limits for strength and durability.
Heat Treatment:
After HIP treatment, superalloy castings are often subjected to heat treatment to optimize their microstructure for specific properties, such as hardness or high-temperature strength. Heat treatment processes like aging or annealing can further enhance the material’s mechanical properties and prepare it for its intended use. X-ray inspection plays a crucial role here, allowing manufacturers to verify that the internal structure is optimized after heat treatment, ensuring that no hidden defects compromise the material's performance.
Machining and Surface Finishing:
While HIP improves the dimensional accuracy of the casting, some post-HIP machining or surface finishing may still be required to achieve the precise tolerances needed for high-performance applications. This can include grinding, polishing, or coating to enhance the surface finish or provide additional wear resistance. To ensure dimensional accuracy and surface integrity, tools like 3D scanning are invaluable, enabling manufacturers to achieve the desired tolerances for complex components.
Non-Destructive Testing (NDT):

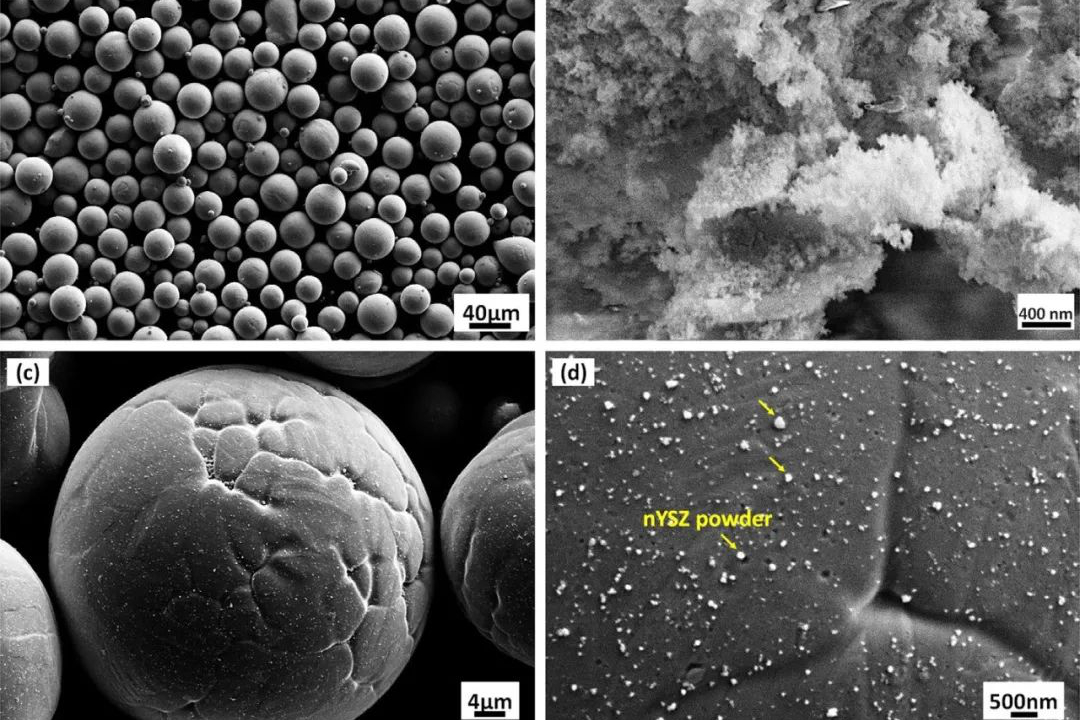

After HIP treatment, inspecting the casting for any remaining defects is crucial. Non-destructive testing methods like X-ray, ultrasonic testing, and 3D scanning are commonly used to verify that the porosity has been effectively eliminated and that the casting meets the required specifications for density and integrity. These tests ensure that the casting is free from internal defects and is ready for use in high-performance applications. SEM analysis and ultrasonic inspection are often employed to provide high-resolution imaging and detect any microscopic defects that may not be visible to other testing methods.
Applications in Industry
The benefits of Hot Isostatic Pressing (HIP) for eliminating porosity and enhancing the density and integrity of superalloy castings make it an essential process in several high-performance industries. HIP significantly improves the mechanical properties of superalloy components, ensuring superior reliability and durability under extreme conditions. Below are key applications where HIP plays a crucial role:
Aerospace

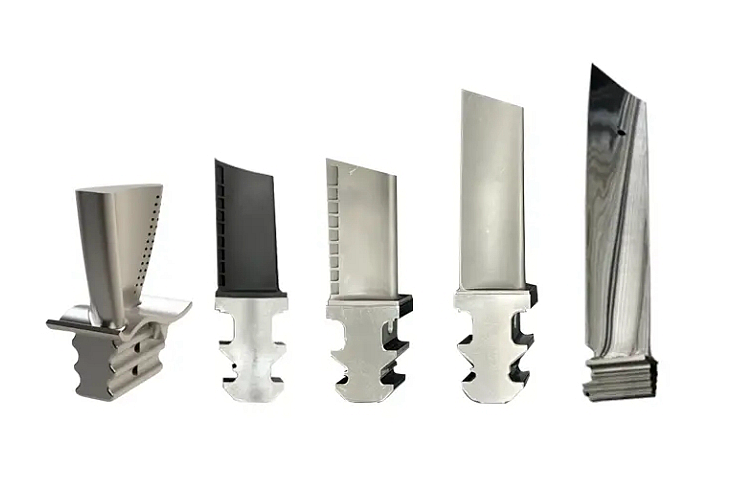

In aerospace and aviation, superalloy castings are used in components such as turbine blades, engine parts, and structural components that must perform reliably under extreme temperatures and mechanical stresses. HIP treatment is critical for removing porosity and ensuring that these components can withstand the rigorous demands of flight. Components like superalloy turbine blades benefit from HIP by achieving improved material density and fatigue resistance, making them capable of enduring the harsh operating conditions in jet engines.
Power Generation

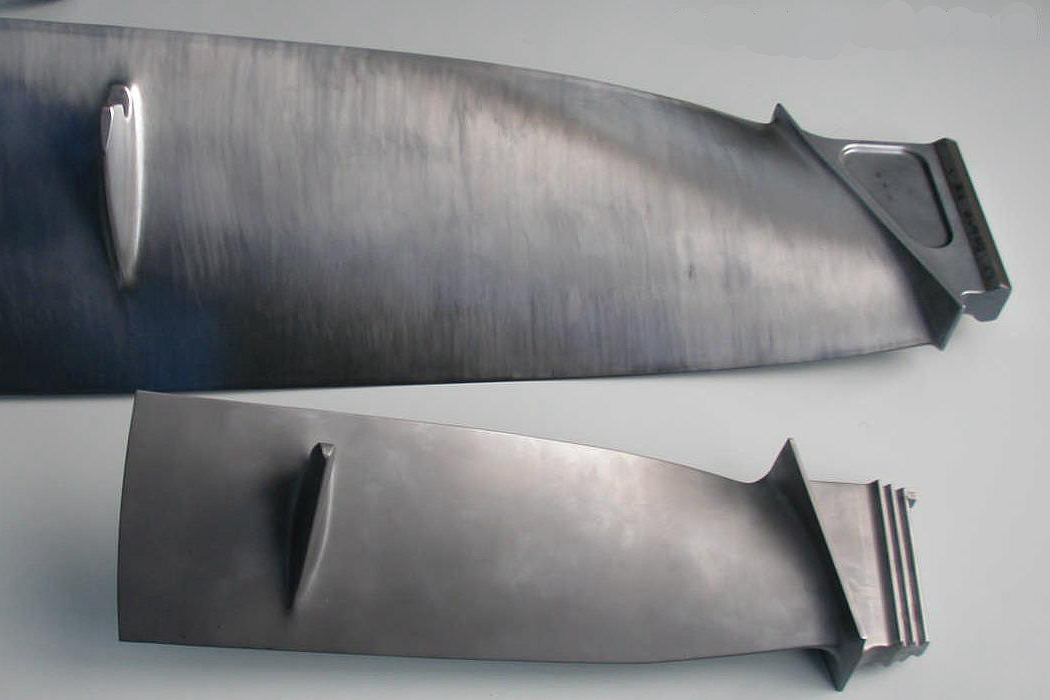

In power generation, superalloy castings are used for turbine blades, rotors, and heat exchangers operating in high-temperature, high-pressure environments. HIP improves the performance and longevity of these components by eliminating porosity and enhancing their ability to resist fatigue and creep. Superalloys treated with HIP, such as those used in superalloy heat exchanger parts, ensure long-term durability in power plant turbines and reactors, significantly extending service life and reducing maintenance costs.
Automotive
Automotive manufacturers use HIP to improve the performance of engine parts, such as pistons and turbine components, which are subjected to high stress and thermal loading. HIP-treated castings exhibit superior fatigue resistance and are better suited for the harsh conditions in automotive engines. Components like turbine rotors and exhaust systems benefit from HIP by gaining enhanced strength and resistance to thermal fatigue, ensuring peak performance and longevity in high-performance vehicles.
Oil & Gas
In the oil and gas industry, superalloy castings used in components such as pump housings, valves, and heat exchangers often face extreme pressure and corrosive environments. HIP helps ensure that these components are porosity-free, making them more durable and resistant to failure. Superalloys like Hastelloy and Inconel are commonly used in critical components. HIP enhances their resistance to corrosion and wear, making them ideal for challenging applications such as deep-water drilling and oil extraction.
