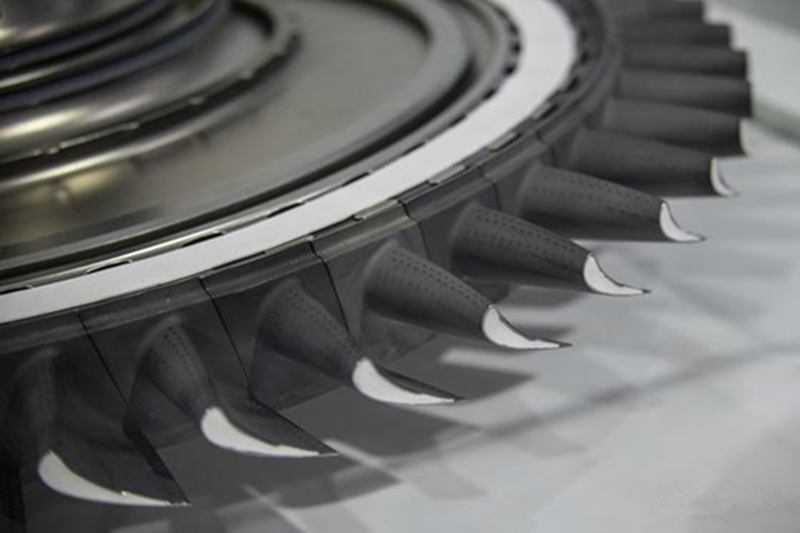

Dimensional Control in Investment Casting: Achieving High Tolerance for Superalloy Components

Dimensional control in investment casting is critical for producing high-precision and reliable superalloy components. Superalloy components must meet stringent tolerance requirements in aerospace, power generation, and defense industries to perform under extreme conditions. Achieving high dimensional accuracy ensures these components' functionality, safety, and longevity, integral to systems operating in environments with high heat, pressure, and stress.

This blog explores the critical aspects of dimensional control in investment casting, focusing on manufacturing processes, typical superalloys, post-processing comparisons, testing methods, and the industries and applications that benefit from precise superalloy castings. By understanding these critical factors, manufacturers can optimize their processes, reduce defects, and deliver parts that meet the highest industry standards for performance and reliability.

Manufacturing Process

Investment casting, often called the "lost wax" process, is one of the most effective methods for producing high-precision superalloy components. The process begins with creating a wax pattern, a replica of the component to be cast. This pattern is coated with a ceramic shell, which is hardened through a series of steps, including heating. Once the shell has solidified, the wax is melted out, leaving a hollow cavity that matches the shape of the desired component. Precision wax pattern creation ensures that the initial step provides the foundation for accurate and high-performance components.

The precision of the pattern creation is crucial for achieving high dimensional accuracy in the final casting. Automated wax presses ensure pattern uniformity, mainly when producing large quantities of identical components. These presses apply consistent pressure to create finely detailed patterns that mirror the exact specifications of the original design. The automated systems enhance repeatability, ensuring that each pattern meets the required dimensions consistently. Automated wax press solutions improve efficiency and accuracy, making them an integral part of investment casting.

The next critical step is the pouring of the superalloy into the mold. This process must be executed precisely to ensure uniform material distribution and avoid casting defects such as porosity, shrinkage, or warping. The molten superalloy is poured into the mold under carefully controlled conditions, such as temperature and pressure, to ensure it fills every intricate detail. This step directly impacts the dimensional accuracy of the final part. Precision pouring is crucial in achieving the desired quality and consistency in each casting.

Factors such as material properties, mold integrity, and metal flow dynamics play a significant role in dimensional control during the manufacturing process. Using high-quality molds and precise temperature control helps ensure the molten superalloy solidifies correctly, maintaining its dimensional integrity throughout the casting process. The control of mold integrity ensures that the final casting retains the necessary properties for high-performance applications.

For more complex geometries, including thin-walled structures or components with intricate internal passages, controlling the flow of molten metal and ensuring uniform cooling can be challenging. Advanced simulation software is often used to predict and optimize the metal flow during the pouring process, helping to prevent defects that could lead to dimensional deviations. Advanced casting techniques support the production of intricate components with high precision and reliability.

Typical Superalloys Used

Superalloys are high-performance materials that maintain strength and stability under extreme temperature and pressure conditions. They are widely used in industries where components are exposed to harsh operating environments, such as gas turbines, jet engines, and high-performance reactors. Superalloys include nickel-based, cobalt-based, and iron-based alloys, each with specific properties suitable for different applications.

Nickel-Based Superalloys

Nickel-based superalloys, such as Inconel, are particularly popular for their excellent high-temperature strength and resistance to oxidation and corrosion. Common grades like Inconel 718, Inconel 625, and Inconel X-750 are frequently used in aerospace and power generation applications. These alloys are known for their excellent creep resistance and ability to maintain mechanical properties at high temperatures.

Rene Alloys and CMSX Series

Rene alloys, such as Rene 104, Rene 108, and CMSX series, are single-crystal alloys often used for critical components like turbine blades in jet engines. These alloys are designed to withstand extreme temperatures while offering superior fatigue resistance and creep strength. Single-crystal casting techniques, like those used for CMSX-10 and CMSX-4, help achieve high performance and long-term durability in these components.

Nimonic Alloys

Nimonic alloys, like Nimonic 75, Nimonic 263, and Nimonic 901, are also commonly used in high-temperature applications. These alloys provide excellent thermal fatigue, creep, and oxidation resistance, making them suitable for aerospace, power generation, and defense applications.

Achieving high dimensional accuracy in these superalloys is especially important due to their complex microstructure and performance requirements. The combination of their high melting points, strength at elevated temperatures, and corrosion resistance necessitates precise manufacturing and dimensional control to ensure they meet the stringent tolerances demanded by the industry.

Post-Processes Comparison

Once the superalloy component is cast, it typically undergoes several post-processing steps to refine its dimensional accuracy, improve its mechanical properties, and achieve the required surface finish. These post-processes include shell removal, cleaning, heat treatment, and precision machining. Post-processing techniques like heat treatment and surface finishing are critical for ensuring the final part meets stringent aerospace and industrial standards.

Shell removal involves breaking away the ceramic shell used to create the mold. This is typically done using high-pressure water jets or mechanical methods. After shell removal, the casting is cleaned to remove any remaining mold materials and to prepare it for heat treatment. Post-process cleaning ensures that the cast component is impure-free before further treatment steps are performed.

Heat treatment is a critical step in the post-processing of superalloy components. It helps to reduce residual stresses, relieve strain, and enhance the material's strength and stability. Heat treatments like solution heat treatment, aging, and annealing ensure the superalloy component achieves the desired mechanical properties while maintaining its dimensional integrity. Maximizing strength through heat treatment ensures that the material will perform optimally under high-temperature conditions, such as those encountered in aerospace and energy applications.

Precision machining is sometimes necessary to make final adjustments and ensure the component meets the exact tolerances. Superalloy components are often machined using high-precision CNC equipment, allowing tight control over the final dimensions. This is particularly important for parts with intricate geometries or requiring excellent fit and function tolerances. Techniques like Electrical Discharge Machining (EDM) can be used to achieve the necessary precision and surface finish for challenging designs.

Investment casting offers better precision and tighter tolerances than sand casting or die casting methods. Sand casting, for example, is less suitable for producing components with refined details or high dimensional accuracy, while die casting is better suited for more straightforward, non-high-temperature alloys. With its fine mold detail and precision pouring, investment casting remains the preferred method for producing complex, high-tolerance superalloy components. The post-processing capabilities, such as precision machining and thermal barrier coatings, further enhance the final component’s performance in demanding applications.

Testing for Dimensional Control

Dimensional superalloy component accuracy is verified through various testing methods, including destructive and non-destructive techniques. One of the most common methods for checking dimensional accuracy is using a Coordinate Measuring Machine (CMM). CMMs can measure a component's physical geometry by using a probe to contact the component's surface and compare the measurements to the CAD model. This ensures that the component is within the specified tolerances.

Non-destructive testing (NDT) techniques such as X-ray inspection, CT scanning, and ultrasonic testing are widely used to inspect cast components' internal and external quality. X-ray and CT scans help detect internal defects such as voids, cracks, and inclusions, which could affect the component's structural integrity. Ultrasonic testing, on the other hand, is used to identify internal flaws and measure wall thickness in castings.

3D scanning and laser scanning are also used for dimensional verification, especially for more complex geometries. These techniques allow manufacturers to capture detailed surface profiles of cast components and compare them to the design specifications, ensuring the casting is tolerable. These scanning technologies are highly effective at detecting subtle dimensional variations that could impact the component's fit and function.

Testing for dimensional control is integrated into quality control processes, ensuring that every component meets the strict requirements of the aerospace, defense, and power generation industries. This helps guarantee the reliability and performance of the parts throughout their lifespan.

Prototyping with Superalloy Components

Prototyping is a critical step in developing high-performance superalloy components, and VIC plays a vital role in creating accurate prototypes. The ability to produce near-net shape components with uniform melting simplifies prototyping, reducing the number of iterations needed to achieve the desired part specifications.

Prototype Development and Rapid Prototyping: The precision of the VIC process allows for the creation of prototypes that closely match the final production parts. Since the uniform melting ensures a consistent material structure, these prototypes can undergo testing and refinement more efficiently. Additionally, VIC's ability to produce complex geometries makes it ideal for rapid prototyping of parts with intricate designs.

Benefits for Complex Geometries: Superalloys often require precise, complex geometries, especially in applications such as turbine blades or aerospace components. The uniform melting in VIC ensures that these parts can be cast with fine details and intricate shapes without compromising their material properties.

Iterative Testing and Refinement: Prototypes produced using VIC can undergo several rounds of testing and refinement to ensure that the final part meets all performance requirements. The uniformity of the melt means that fewer adjustments will be needed throughout the prototyping process, speeding up development cycles and reducing costs.

Industry and Application

Superalloy components with high dimensional accuracy are used across several critical industries where performance, safety, and reliability are paramount. The ability to maintain precise tolerances in superalloy castings ensures that these components function optimally under extreme conditions. From aerospace to defense, the need for dimensional control in superalloy casting is integral to the efficient and safe operation of key equipment.

Aerospace and Aviation

Superalloy components such as turbine blades, combustion chambers, and nozzle guide vanes are subjected to extreme temperatures and mechanical stresses in the aerospace and aviation industry. High tolerance is necessary to ensure these components fit perfectly and perform reliably, contributing to jet engines' and turbine systems' efficiency and safety. Superalloy jet engine components require precise dimensional control to maintain structural integrity and heat resistance during high-stress flight operations.

Power Generation

Superalloy castings are used in power generation in turbines, heat exchangers, and combustion components. Dimensional control is crucial to prevent misalignment, reduce wear, and enhance the efficiency of power plants. High-precision components like superalloy heat exchanger parts are vital in maintaining thermal efficiency while withstanding the intense pressures and temperatures within power generation systems.

Defense and Military Applications

In defense and military sectors, missile components, armor systems, and high-performance weaponry rely on high-tolerance superalloy castings for optimal performance. Dimensional accuracy is crucial for ensuring these components meet stringent requirements for durability, strength, and precision under extreme conditions. For instance, superalloy armor system parts are engineered with tight tolerances to resist impact and environmental stresses while maintaining their integrity during combat operations.

Automotive

The automotive industry also benefits from dimensional control in superalloy casting. Turbochargers, exhaust, and fuel system components made from superalloys must meet stringent tolerances to ensure long-term durability and reliability in vehicles, especially high-performance or military-grade vehicles. High-precision casting ensures that superalloy exhaust system parts perform efficiently under high temperatures and harsh conditions, contributing to the vehicle's reliability and longevity.

Nuclear

In the nuclear industry, superalloy castings are used in reactor components, containment systems, and fuel-handling equipment. High-dimensional accuracy is essential to prevent leakage and ensure safe operation under extreme conditions. Components like nickel-based alloy control rod modules require precise dimensional control to guarantee their effectiveness in critical nuclear applications, ensuring safety and minimizing the risk of malfunctions.

The demand for superalloy castings with tight dimensional control continues to grow as industries push the boundaries of performance and technology. Whether in aerospace, power generation, defense, or nuclear applications, precise dimensional control ensures that these high-performance components meet the rigorous standards for safety, efficiency, and operational success.

FAQs

1. How does dimensional control impact the performance of superalloy components in aerospace applications?

2. What are the primary challenges in achieving high dimensional accuracy in superalloy castings?

3. How do post-processing techniques like heat treatment and precision machining affect dimensional control?

4. What testing methods are most commonly used to verify the dimensional accuracy of superalloy castings?

5. How does investment casting compare to other casting methods in terms of achieving dimensional precision for superalloy components?
