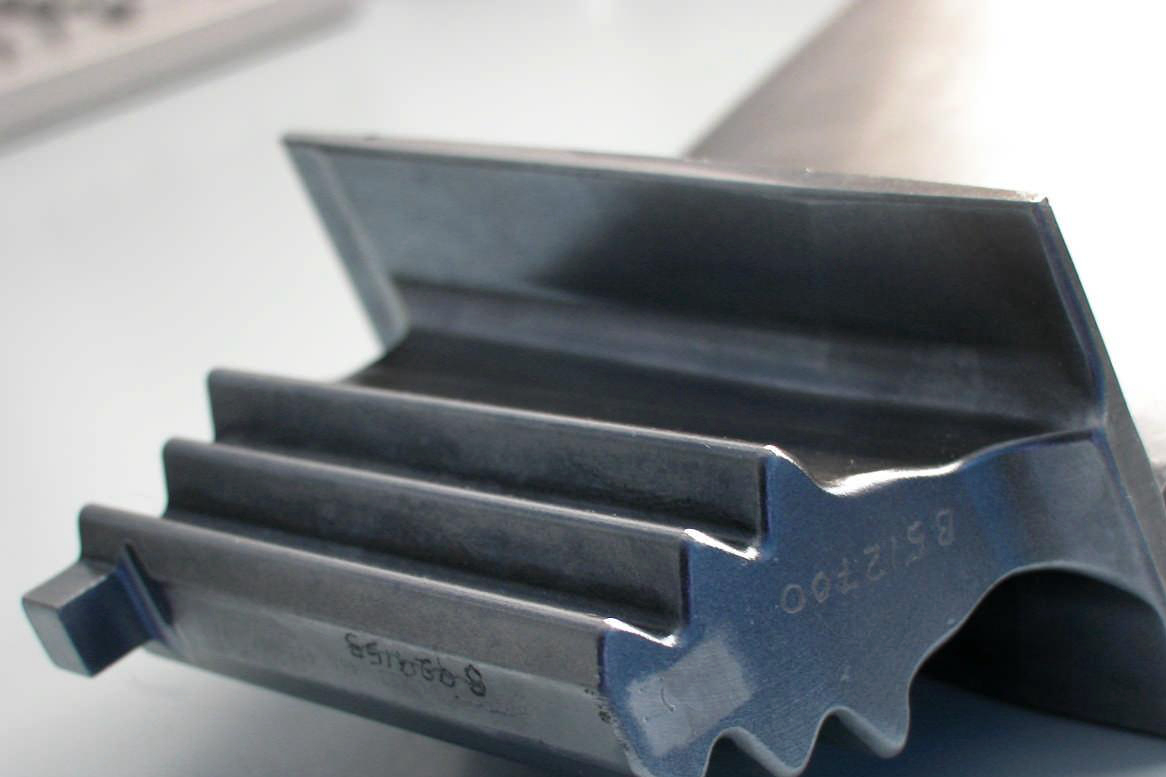

Detailed Visual Inspection Techniques for Superalloy Turbine Blades Using Stereo Microscopes
Visual inspection is critical in ensuring the reliability and safety of superalloy turbine blades. These components are essential in high-performance applications such as aerospace and aviation, power generation, and defense. Inspecting these parts to detect defects like cracks, porosity, and dimensional inaccuracies is crucial. Among various inspection methods, stereo microscope inspection stands out for its precision and capability to detect even the most minor defects on the surface of turbine blades.
This inspection method is essential in superalloy directional casting, where the material’s microstructure must be meticulously analyzed to ensure no hidden flaws. Stereo microscopes provide high-resolution, three-dimensional imaging of the blade's surface, making it easier to identify defects that could compromise the performance and longevity of these critical parts. This is especially important in oil and gas and energy, where turbine blades operate under extreme stress and high temperatures.
Compared to other inspection techniques, stereo microscope inspection offers higher accuracy and ease of use for surface-level inspections. Unlike X-ray or ultrasonic testing, which require more complex setups and can miss surface-level defects, stereo microscopes provide a direct view of the material’s condition, allowing for faster and more efficient quality control. This method is invaluable for superalloy turbine blades used in critical systems to prevent failures that could lead to catastrophic damage.
Ultimately, stereo microscope inspection is indispensable in ensuring the integrity and performance of superalloy turbine blades, helping industries like marine and nuclear maintain the highest safety and reliability standards.
What is Stereo Microscope Inspection?
Stereo microscope inspection, also known as stereoscopic microscopy, is an optical inspection method that provides a three-dimensional view of a specimen. It utilizes two optical paths to create depth perception, allowing inspectors to examine surface details with high clarity closely. With magnifications typically ranging from 10x to 100x, stereo microscopes are ideal for inspecting small parts or areas that require fine detail, such as turbine blades made from superalloys.
The stereo microscope's ability to provide a 3D image is particularly suited to identifying surface defects such as cracks, inclusions, or distortions. It is often used in quality control processes where precision and accuracy are critical, making it an essential tool in manufacturing turbine blades and other high-temperature alloy components. This method helps ensure that parts are free from defects that could compromise performance, especially in high-stress environments like turbine engines.
The inspection process is non-destructive and can detect even the most minor imperfections. It is a valuable technique for verifying the integrity of directional castings and other complex superalloy components.
The Function of Stereo Microscope Inspection in Turbine Blade Manufacturing
The blade's integrity is paramount in producing turbine blades, particularly those used in high-performance applications such as jet engines or gas turbines. These blades are exposed to extreme temperatures and mechanical stresses, making the need for flawless components even more significant. Stereo microscope inspection serves multiple functions in ensuring the quality of turbine blades:
Surface Defect Detection
Stereo microscopes can identify surface defects that might compromise the blade's integrity. This includes cracks, chips, porosity (small voids), and other irregularities that could lead to part failure under operating conditions. In superalloy casting, detecting these defects early can significantly reduce the risk of failure in critical applications like aerospace.
Dimensional Accuracy
For turbine blades to perform optimally, they must meet particular dimensional requirements. Stereo microscopes provide detailed imaging to verify the precise dimensions of complex geometries, ensuring that each blade conforms to engineering tolerances. This is essential in maintaining the required tolerances for precision-engineered components used in industries like aerospace, where performance is directly linked to the accuracy of part dimensions.
Microstructural Analysis
The microstructure of superalloy turbine blades—such as grain boundary alignment—can significantly impact their performance under stress and heat. Stereo microscopes allow for detailed examination of these microstructural features, providing valuable insights into the quality of the material and the forging or casting process. Analyzing these features helps ensure the blades have the necessary mechanical properties to withstand extreme conditions.
Quality Control and Process Monitoring
Stereo microscope inspection is often integrated into the quality control process during various stages of turbine blade manufacturing. During casting, forging, CNC machining, or 3D printing, the stereo microscope can provide real-time feedback to help manufacturers monitor and adjust the process to maintain high-quality standards. This level of scrutiny ensures that turbine blades meet the strict performance and safety standards required for aerospace and power generation industries.
Superalloy Parts Needing Stereo Microscope Inspection
Stereo microscope inspection ensures the quality and integrity of superalloy turbine blades and related components. These parts undergo rigorous manufacturing processes, including casting, forging, CNC machining, and 3D printing. The ability to detect minor yet critical defects or dimensional errors at various stages of production is crucial for achieving the performance standards required in high-stress applications. Below are key superalloy parts that benefit from stereo microscope inspection:
Superalloy Castings
Superalloy turbine blades often begin as superalloy castings, which may be produced using methods like vacuum investment casting, single crystal casting, or equiaxed crystal casting. After the casting process, stereo microscopes are used to inspect the surface of the turbine blades for defects such as porosity, inclusions, or surface cracks. These small but significant imperfections can compromise the part’s structural integrity and performance. Stereo microscopes provide the high magnification necessary to detect flaws that might otherwise be missed, ensuring that the casting meets the stringent quality requirements before moving to further processing or use.
Forging Parts
Superalloy turbine blades and related components are often subjected to forging to improve their mechanical properties by aligning the grain structure. Despite the benefits of forging, inspecting the parts for defects, such as surface cracks or distortions that could affect the part’s strength and performance, is still essential. Stereo microscopes are ideal for examining the forged components for uniformity in grain structure and identifying any microstructural defects that could compromise the part's integrity under extreme conditions. By detecting these issues early, manufacturers can ensure that the parts meet the performance requirements for aerospace, gas turbines, and other high-temperature applications.
CNC Machined Superalloy Parts
After forging, superalloy parts, including turbine blades and other components, often undergo CNC machining to achieve the final geometry and surface finish. During this post-processing stage, detailed inspection is required to check for machining marks, tool-induced defects, or dimensional errors. Stereo microscopes allow for the precise examination of the machined surfaces, ensuring that the parts conform to the design specifications and that no flaws have been introduced during the machining process. This inspection is essential for ensuring the components meet the required tolerances for high-performance industries like aerospace and energy.
3D Printed Superalloy Parts
Additive manufacturing, or 3D printing, has become increasingly popular for producing complex turbine blade geometries that are difficult or impossible to achieve with traditional methods. However, the layer-by-layer nature of 3D printing can lead to defects such as layer misalignment, bonding issues, or surface roughness. Stereo microscopes are invaluable for inspecting 3D printed superalloy parts to ensure that each layer has bonded correctly and that the part meets the required dimensional accuracy and surface quality standards. This inspection ensures that 3D-printed components perform reliably in high-stress environments like turbines or aerospace engines.
By incorporating stereo microscope inspection at each production stage, from casting to forging, CNC machining, and 3D printing, manufacturers can ensure that superalloy parts are defect-free, dimensionally accurate, and meet the stringent performance standards required in critical industries.
Comparison with Other Inspection Processes
While stereo microscope inspection is highly effective for detecting surface defects and ensuring dimensional accuracy, it is not the only inspection method available. Other techniques, such as Coordinate Measuring Machines (CMM), X-ray inspection, and ultrasonic testing, also play crucial roles in superalloy turbine blade manufacturing. However, stereo microscopes offer certain advantages over these methods.
Coordinate Measuring Machine (CMM)
Coordinate Measuring Machine (CMM) is a powerful tool used to measure the precise geometry of a part. While CMMs can provide detailed measurements of larger-scale geometries, they are less effective at detecting micro-level surface defects than stereo microscopes. Stereo microscopes excel at detecting small surface flaws that could be missed by a CMM, making them indispensable for ensuring part quality at the microscopic level.
X-ray Inspection
X-ray inspection is excellent for detecting internal defects, such as porosity or cracks beneath the surface. However, it does not provide detailed surface imaging. On the other hand, stereo microscopes can detect surface defects with high clarity and allow for better inspection of microstructural features, providing valuable insights that X-ray inspection cannot offer, especially in minor surface imperfections.
Laser Scanning
Laser scanning is used to measure large-scale geometries and create 3D models of parts. While it provides a comprehensive view of the part’s dimensions, it does not have the same level of magnification needed to detect minor surface defects. Stereo microscopes, by providing high magnification and 3D imaging, are better suited for detecting minor surface imperfections, making them the preferred choice for detailed surface inspection.
Ultrasonic Testing
Like X-ray inspection, ultrasonic testing is primarily used to detect internal defects. Stereo microscopes are more effective for surface-level inspections, allowing for a detailed examination of minor defects and surface finish issues that may not be detectable through ultrasonic methods, ensuring a comprehensive quality control process.
Industry and Application
Superalloy turbine blades are used in various industries that demand high-performance materials capable of withstanding extreme conditions. The role of stereo microscope inspection is vital in the following industries:
Aerospace
Turbine blades are integral components of jet engines and other aerospace systems. The demand for precision and reliability in aerospace applications makes stereo microscope inspection crucial for detecting defects that could affect engine performance. Ensuring that turbine blades meet strict dimensional and microstructural standards is essential for the safe operation of aircraft. Inspection of turbine blades for defects such as microcracks, porosity, or improper grain structure is essential to ensuring the high reliability of aircraft engines in flight.
Power Generation
Gas turbines used in power generation are subjected to high temperatures and stresses. The integrity of turbine blades is critical to maintaining power generation efficiency and safety. Stereo microscope inspection helps ensure that the blades used in power generation turbines are free from surface flaws and dimensional inaccuracies that could impact performance or longevity. Components like superalloy heat exchanger parts also require precise inspection to ensure they meet the high efficiency and safety needed in power plants.
Oil and Gas
Turbine components in the oil and gas industry, such as those found in offshore drilling rigs, are exposed to harsh environmental conditions. Stereo microscopes provide a reliable method for inspecting turbine blades and related parts for defects that could compromise safety and performance in challenging environments. Inspecting critical components like high-temperature alloy pump components ensures they maintain performance in high-pressure and corrosive environments, which is vital for operational success in oil and gas extraction.
Defense
Military and defense applications require turbine blades that can withstand extreme operational conditions. Stereo microscope inspection ensures that turbine blades used in military jets and missile systems meet the high standards for mission success and operational safety. Turbine components, such as those found in superalloy missile segments, undergo rigorous inspection to ensure reliability and durability in combat situations where failure is not an option.
Nuclear
Turbine blades and reactor components used in nuclear power plants must meet strict safety standards. The role of stereo microscopes in ensuring the quality of these components is critical, given the high-risk environment in which these parts operate. Inspection of parts like superalloy reactor vessel components ensures that they are free from microscopic defects that could compromise reactor safety. Ensuring precise dimensional accuracy and structural integrity is paramount in preventing failures in nuclear reactors, which could have catastrophic consequences.
Stereo microscope inspection is indispensable across these industries to ensure that superalloy turbine blades and related components meet the rigorous quality and safety standards required in high-stress, high-temperature environments. Through this method, manufacturers can guarantee the reliability and performance of critical components, safeguarding the operational success and safety of the industries they serve.
FAQs
How does stereo microscope inspection enhance the dimensional accuracy of turbine blades?
What are the common defects detected in superalloy turbine blades using stereo microscopes?
How does stereo microscope inspection compare to other NDT methods for turbine blade inspection?
Why is stereo microscope inspection crucial for 3D printed superalloy turbine blades?
What are the benefits of stereo microscope inspection in the aerospace industry for turbine blades?
