Controlling Sliver Formation in Single Crystal Castings
Understanding Sliver Formation in Single Crystal Castings

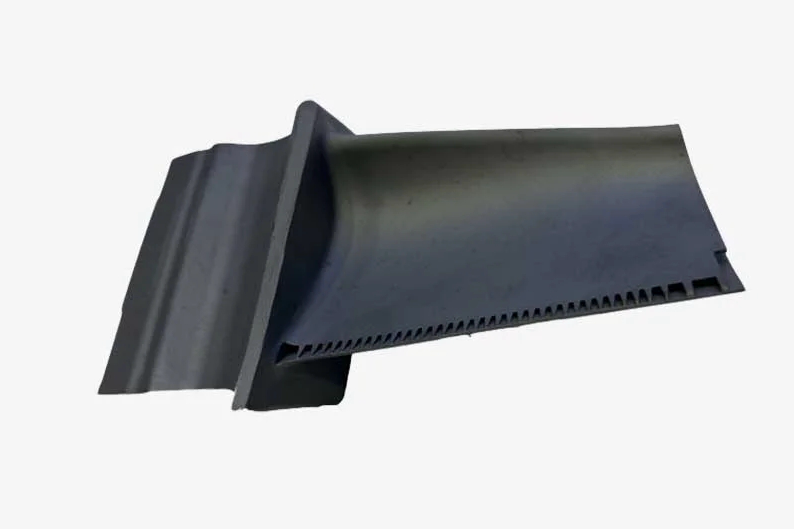

Sliver formation in single crystal castings is one of the most significant challenges while manufacturing high-performance turbine blades and other components used in critical applications, such as aerospace, power generation, and defense. These defects can undermine the mechanical properties of castings and affect their reliability in high-temperature environments. Therefore, understanding how slivers form and how to control their occurrence is crucial to the production of high-quality castings.
Slivers are typically caused by issues during the solidification process, often resulting from thermal gradients or impurities in the molten material. The formation of these defects can compromise the integrity of the superalloy structure, leading to reduced creep resistance, lower fatigue strength, and premature failure under stress. Implementing rigorous testing methods and advanced casting techniques is essential to minimizing sliver formation and ensuring the long-term performance of turbine blades and other critical parts.
Understanding Sliver Formation in Single Crystal Castings
Slivers are thin, elongated defects that appear in the surface or interior of a casting. They often manifest as fragile, high-porosity areas within the casting that can lead to mechanical weaknesses, severely affecting the performance of turbine blades or other critical components. These defects are typically formed during the solidification process, where localized variations in temperature gradients, mold materials, and cooling rates cause irregularities in the crystal structure.
Unlike other common casting defects such as freckles or low-angle boundaries, slivers are specifically characterized by their thin, elongated shape and how they disrupt the crystalline structure, which can severely compromise the material’s structural integrity. While some casting defects can be repaired through post-processing methods, slivers are notoriously difficult to address once they have formed, making their prevention a critical aspect of the casting process.
Slivers can also be distinguished by their impact on the mechanical properties of the component. The microstructure around a sliver is often more susceptible to fatigue, and this can result in a significantly reduced lifespan, especially in high-stress applications such as turbine engines. Consequently, controlling these defects during casting is essential to ensure the final product meets the necessary quality standards.
Casting Process and Factors Affecting Sliver Formation
Single crystal casting involves controlled solidifying molten superalloy materials in a carefully designed mold. This process ensures that the resulting part is a single, continuous crystal, which offers exceptional mechanical properties and resistance to high temperatures. However, achieving a flawless single crystal without defects such as slivers requires careful control of several factors, especially when using superalloy single crystal casting techniques.
One of the primary factors affecting sliver formation is the cooling rate during solidification. When the molten metal begins to cool, temperature gradients develop, and the solidification front progresses. If the cooling rate is not controlled precisely, it can cause regions of the material to solidify unevenly, leading to localized stresses and the formation of slivers. Several variables, including the mold material, mold design, and the initial temperature of the molten metal, can influence these uneven cooling rates. Techniques like directional solidification help control these cooling rates and minimize defects.
Mold design also plays a crucial role in the prevention of sliver defects. The mold must be designed to facilitate uniform cooling and avoid creating thermal gradients that might promote the formation of slivers. Additionally, using advanced mold materials that allow for better heat dissipation and more uniform cooling can help prevent the conditions that lead to sliver formation. In many cases, vacuum investment casting provides a more controlled environment for cooling, significantly reducing the risk of defects like slivers.
The seed crystal insertion process is another critical step in single crystal casting. An adequately inserted seed crystal helps guide the solidification front and ensures that the molten metal forms a single, continuous crystal structure. Any disturbance during this process—such as improper seed placement or contamination—can lead to imperfections, including slivers. Ensuring proper alignment and solidification at the start of the casting process is essential to achieving high-quality casting free from slivers. Utilizing the right superalloy casting techniques can ensure the process runs smoothly and without defects.
Suitable Superalloys for Minimizing Sliver Formation
The choice of superalloy plays a vital role in minimizing sliver formation during single crystal casting. Certain superalloys are more resistant to thermal stresses and crystal growth irregularities that lead to sliver defects. Some of the most commonly used superalloys in single-crystal casting include the CMSX series, Rene alloys, and Inconel alloys.
CMSX Series
The CMSX series, such as CMSX-10, CMSX-4, and CMSX-486, are widely used in high-performance turbine blades due to their exceptional mechanical properties at elevated temperatures. These alloys are designed to maintain high strength and creep resistance, and their ability to form single crystals with minimal defects makes them particularly effective in reducing the likelihood of sliver formation. The chemical composition and alloying elements in the CMSX series contribute to uniform solidification, reducing the chances of irregular grain growth that can lead to slivers.
Rene Alloys
Rene alloys, including Rene 104, Rene 88, and other variants, are often used in applications requiring high-temperature stability and resistance to oxidation. These alloys are designed to retain their mechanical properties even in extreme environments. Their composition helps minimize casting defects, including slivers, by improving the material's overall stability during solidification and cooling.
Inconel Alloys
Inconel alloys such as Inconel 718, Inconel 738, and Inconel X-750 are widely used in aerospace and power generation applications. These alloys offer excellent strength, oxidation, and fatigue resistance at high temperatures. Inconel alloys have been specifically formulated to minimize defects like slivers by ensuring a more uniform cooling rate and reducing the likelihood of irregular crystal formation during casting.
Single Crystal Alloys
Other single crystal alloys, such as PWA 1480, CMSX-2, and CMSX-486, are specifically designed to produce turbine blades and other components that require superior mechanical properties at extreme temperatures. These alloys are carefully engineered to resist the formation of casting defects, including slivers, and are ideal for applications where performance and reliability are paramount.
Post-Processing Methods to Address Sliver Defects
Even though controlling sliver formation during the casting process is critical, specific post-processing techniques can further help address and minimize any existing slivers' impact. Hot Isostatic Pressing (HIP), heat treatment, and surface treatments are commonly used to enhance the quality of castings and reduce the influence of defects such as slivers.
Hot Isostatic Pressing (HIP):
HIP is a post-processing technique that applies high temperature and pressure to a casting to eliminate porosity and reduce residual stresses. While HIP cannot remove slivers once they have formed, it can help to reduce the impact of slivers on the mechanical properties of the component by improving the overall density and strength of the material. Advanced HIP techniques ensure that the material is refined, improving its overall performance.
Heat Treatment:
Heat treatment is another essential post-processing step used to refine the microstructure of castings. By carefully controlling the temperature and cooling rate during heat treatment, manufacturers can reduce the size and impact of slivers in the casting. Heat treatment also helps to homogenize the material, further improving the casting’s mechanical properties. Precision heat treatment cycles can effectively mitigate the effects of slivers, enhancing the material’s overall performance and durability.
Surface Treatments:
Surface treatment methods, including electrochemical polishing, can be used to improve the surface quality of casting and reduce the visibility of slivers. These treatments help smooth out the surface and remove imperfections, making the casting more suitable for high-performance applications. Surface finishing techniques like polishing are key to addressing sliver-related issues and improving the component’s reliability and aesthetic quality.
Testing and Inspection Techniques for Sliver Detection
Once a casting has been produced, it is subjected to various testing and inspection techniques to identify defects, including slivers. Several advanced methods are used to detect slivers and assess the overall quality of the casting.
X-ray and CT Scanning
X-ray inspection and computed tomography (CT) scanning are non-destructive testing methods that detect internal slivers and other defects. These techniques create detailed images of the internal structure of the casting, allowing inspectors to identify and evaluate the size, location, and severity of any sliver defects. These methods ensure that components meet strict quality standards while preserving their integrity.
Metallographic Microscopy
Metallographic microscopy is another essential technique used to inspect the crystal structure of a casting. Inspectors can identify slivers and other defects that may compromise the casting’s mechanical properties by examining the grain boundaries and microstructure at high magnifications. This method detects subtle imperfections that could impact the material's performance.
Electron Backscatter Diffraction (EBSD)
EBSD is an advanced technique for assessing crystal orientation and alignment in single crystal castings. This method can detect slivers by identifying areas where the crystal structure is misaligned or disrupted, often indicative of sliver defects. EBSD provides valuable insights into defects' underlying causes, helping optimize the casting process.
Mechanical Testing
Mechanical testing methods, such as tensile testing, creep testing, and fatigue testing, are used to assess the overall strength and durability of the casting. These tests can help determine if slivers have compromised the casting’s performance, even if the defects are not immediately visible. By simulating operational conditions, mechanical testing ensures that the components can withstand the stresses they will encounter in service.
Industry Applications and the Importance of Sliver-Free Castings
The ability to control sliver formation is critical for industries that rely on high-performance castings for mission-critical components. Single crystal castings with sliver defects can fail prematurely under the extreme conditions they are often subjected to, resulting in costly repairs and downtime.
Aerospace and Aviation
In the aerospace and aviation industry, sliver-free turbine blades are essential for ensuring the reliability and longevity of jet engines. Slivers can compromise the structural integrity of critical components, leading to engine failure. Single crystal turbine blades must be defects-free to perform efficiently and safely in high-stress environments within jet engines.
Power Generation
Similarly, in power generation, turbine blades used in gas and steam turbines must be free from defects like slivers to maintain efficiency and safety. Sliver-free turbine blades are essential for reducing maintenance needs and improving energy efficiency in power plants. These components operate in high-temperature and high-pressure conditions, where even minor defects can result in catastrophic failures.
Military and Defense
Components such as turbine blades and other high-temperature parts in the defense and military sectors must withstand extreme environments without failure. Slivers in these parts can be catastrophic, leading to system malfunctions and performance issues. For advanced military and defense systems, the integrity of turbine blades and other components is critical for operational success and safety.
Oil and Gas, Marine, and Automotive
Additionally, industries such as oil and gas, marine, and automotive rely on high-quality castings to ensure the durability and performance of critical systems. For example, sliver-free castings are essential in oil and gas compressors and marine engine components. In automotive applications, parts like exhaust systems and transmission components must be defect-free to ensure long-term reliability. The control of slivers during the casting process is vital to maintaining performance across these sectors.
FAQs
What causes sliver defects in single crystal castings?
How do cooling rates and thermal gradients contribute to sliver formation?
What are the most effective superalloys for minimizing sliver defects in turbine blades?
How can Hot Isostatic Pressing (HIP) reduce the impact of slivers?
What testing methods are used to detect sliver defects in single crystal castings?
