Controlled Melting and Casting: Achieving Uniform Heating for Equiaxed Crystal Castings

In high-performance manufacturing industries, such as aerospace, energy, and defense, superalloy components are critical to ensuring the reliability and efficiency of complex machinery and systems. The casting process plays a central role in producing these high-temperature, high-strength materials. Equiaxed crystal casting is one of the most crucial methods for producing reliable superalloy components. This method, which emphasizes controlled melting and uniform heating, ensures that the final cast parts exhibit superior mechanical properties.

This blog explores how controlled melting and casting contribute to uniform heating in equiaxed crystal castings. We will also examine the manufacturing process, typical superalloys used in casting, post-processing techniques, testing methods, and prototyping practices, highlighting how this method serves industries where performance at extreme temperatures is essential. The precision achieved in equiaxed crystal casting is crucial for parts such as turbine blades and jet engine components, ensuring that they perform reliably in the most demanding environments.

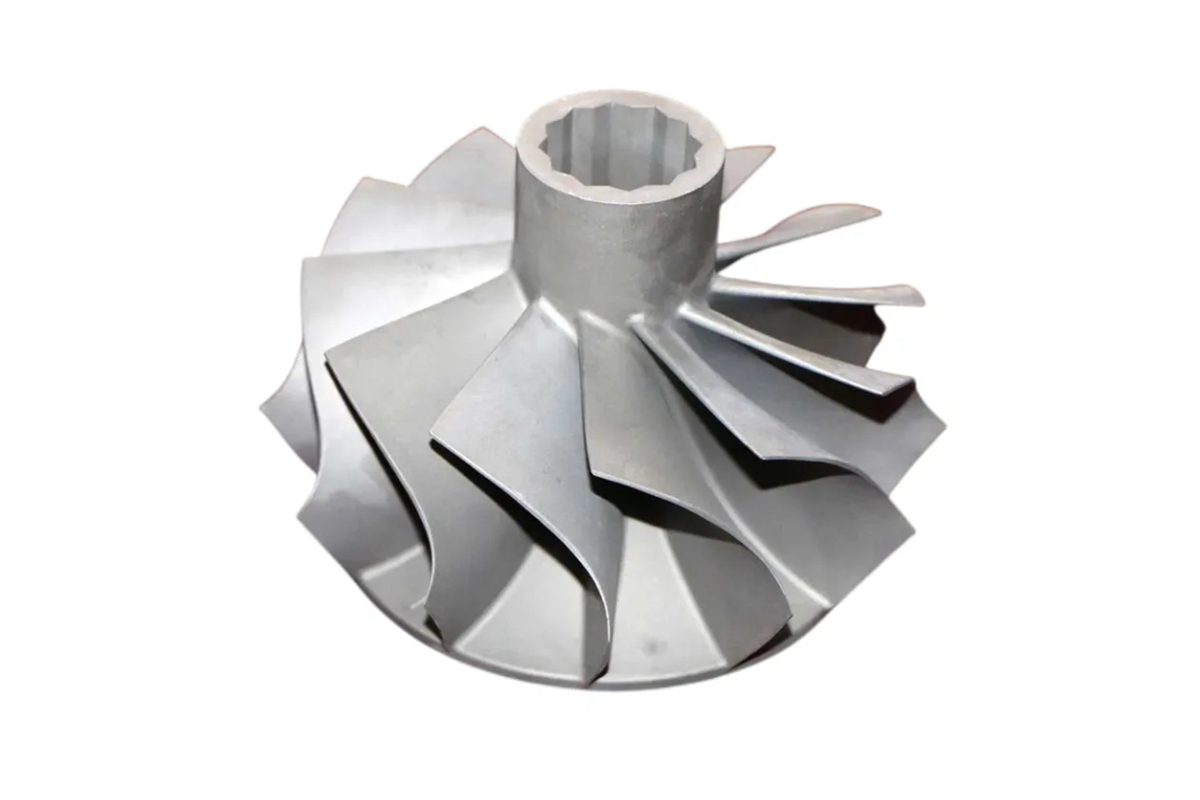

Manufacturing Process of Equiaxed Crystal Castings

Equiaxed crystal casting is a type of metal casting where the metal solidifies into a uniform grain structure, unlike directional or single crystal casting, where grains are oriented in a specific direction. Equiaxed crystal casting aims to achieve a uniform, fine-grain structure throughout the casting. This type of casting is essential for superalloys that will be subjected to high-stress, high-temperature environments. Equiaxed crystal casting is an essential technique for ensuring the optimal mechanical properties of the final part.

The key to achieving a uniform grain structure is controlling the melting and cooling rates throughout the process. Depending on the specific material, superalloys must be melted at very high temperatures, often above 1,300°C. Achieving a uniform temperature in the molten metal is essential to ensuring that the grains form consistently during solidification. This is where the importance of controlled melting comes into play, ensuring that the molten metal remains homogeneous.

A vacuum induction furnace or electromagnetic stirrer may ensure the molten metal is uniformly mixed during the casting process. These furnaces control the temperature and chemical composition of the melt to prevent the formation of unwanted impurities or segregation within the metal. This step is particularly critical for high-performance superalloys, which require precise control over their composition to achieve desired properties like strength, corrosion resistance, and thermal stability. Vacuum induction melting plays a key role in maintaining the purity and integrity of the melt.

Once the metal is melted to the desired temperature, it is poured into molds, typically pre-heated to prevent thermal shock. The molten metal begins to solidify from the mold walls inward. During this solidification phase, controlled cooling rates are crucial for ensuring the casting has a consistent grain structure. Faster cooling can result in a coarse grain structure, while slower cooling can lead to a finer grain, which is desirable for uniform strength and durability. Controlled cooling rates are vital for achieving a balanced microstructure.

The cooling process must be carefully controlled to ensure the superalloy solidifies without defects such as shrinkage, porosity, or uneven grain formation. Equiaxed crystal casting aims to balance the cooling rate and solidification front movement to ensure a uniform microstructure.

Typical Superalloys Used in Equiaxed Crystal Casting

Equiaxed crystal casting is commonly used for various high-performance superalloys, including nickel-based, cobalt, and iron-based alloys. These materials are chosen for their excellent high-temperature performance, oxidation resistance, and strength.

Inconel Alloys

Inconel alloys, such as Inconel 718 and Inconel 625, are widely used in aerospace and power generation applications. They are known for resisting oxidation and corrosion in extreme environments. These alloys are ideal for casting turbine blades, combustion chambers, and other critical components that withstand high temperatures and mechanical stresses.

CMSX Series

The CMSX series of superalloys, primarily CMSX-4 and CMSX-10, are designed for single-crystal casting but can also be used in equiaxed crystal casting. These alloys are known for their superior creep resistance and high-temperature strength, making them ideal for applications in turbine engines, gas turbines, and other high-stress environments.

Monel Alloys

These are nickel-copper alloys, such as Monel 400 and Monel K500, which are highly resistant to corrosion, particularly in marine environments. Monel alloys are ideal for casting components such as pumps, valves, and heat exchangers, where resistance to both heat and corrosion is crucial.

Hastelloy Alloys

Hastelloy alloys, including Hastelloy C-276 and Hastelloy B-2, are known for their exceptional corrosion resistance in aggressive chemical environments. These alloys are commonly used in the chemical processing, oil and gas, and nuclear industries.

Titanium Alloys

While more difficult to cast due to their high reactivity at elevated temperatures, titanium alloys such as Ti-6Al-4V and Ti-6Al-2Sn-4Zr-6Mo can be cast using controlled melting processes like equiaxed crystal casting. These alloys are lightweight and possess excellent strength-to-weight ratios, making them essential for aerospace, automotive, and medical applications.

Post-Processes Comparison: Equiaxed Crystal Casting vs. Other Methods

After casting, most superalloy parts undergo a series of post-processing steps to enhance their material properties and meet strict performance standards. These post-processing techniques include heat treatment, Hot Isostatic Pressing (HIP), machining, and surface finishing. The choice of post-process depends on the casting method used and the desired properties.

Heat Treatment

Heat treatment is a crucial step in processing superalloys, regardless of the casting method used. Heat treatment can improve mechanical properties such as tensile strength, fatigue resistance, and creep resistance for equiaxed crystal castings. Common heat treatment processes include solution treatment, aging, and annealing. These processes alter the microstructure of the casting, refining the grain structure and enhancing its mechanical properties. The benefits of heat treatment for alloy castings and how heat treatment enhances alloy durability and life are vital to achieving the desired performance in extreme conditions.

Hot Isostatic Pressing (HIP)

HIP is used to reduce porosity in the casting, which can be a common issue in investment casting. The process involves applying high pressure and temperature to the casting in a vacuum or inert gas environment. This densifies the material, removing internal voids and ensuring uniform material properties. HIP improves the mechanical properties and overall reliability of superalloy parts, eliminating porosity that could compromise performance.

CNC Machining

Superalloy castings, particularly those with intricate geometries, often undergo CNC machining to achieve tight tolerances and refine surface finishes. Machining is critical for parts used in high-precision applications, such as turbine blades or aerospace components. CNC machining allows for precise shaping and smooth finishes, while techniques like Electrical Discharge Machining (EDM) provide additional refinement for hard-to-machine alloys.

Welding and Repairs

Some superalloy castings may require welding to join multiple components or repair defects. Superalloy welding is a specialized process that requires high precision to avoid altering the casting’s microstructure. Castings with a more uniform grain structure, such as those produced by the equiaxed crystal process, tend to be easier to weld than parts with more complex or directional grain structures. Superalloy welding enhances strength and ensures long-term durability in high-temperature applications.

Equiaxed crystal casting offers a good balance between manufacturing complexity and material performance compared to other casting methods like single crystal casting or directional solidification casting. Single crystal casting provides superior performance but is more challenging and costly, while directional solidification casting offers better high-temperature performance along a specific axis but can result in weaker parts in other orientations. Equiaxed crystal casting, by contrast, offers a uniform grain structure, improving the part's overall mechanical performance.

Testing of Equiaxed Crystal Castings: Ensuring Material Integrity

Once cast, superalloy components must undergo various testing methods to meet the required performance standards. For superalloy parts, testing typically includes non-destructive testing (NDT), mechanical testing, and microstructural analysis.

Non-Destructive Testing (NDT):

Methods such as X-ray inspection, ultrasonic testing, and CT scanning detect internal defects such as porosity, cracks, or inclusions that may not be visible on the surface. The uniform grain structure of equiaxed crystal castings tends to result in fewer internal defects, making NDT results easier to interpret and more reliable.

Tensile and Fatigue Testing:

Tensile testing measures a material’s ability to resist tensile stress, while fatigue testing evaluates how well the material can withstand repeated loading cycles. Both tests are essential for assessing the performance of superalloy components in applications like turbine engines, where parts are subjected to constant thermal and mechanical stresses.

Corrosion Testing:

Superalloy parts used in harsh environments, such as in the oil and gas industry or chemical processing plants, must resist corrosion. Corrosion testing involves exposing the parts to aggressive environments to assess their resistance to chemical degradation over time.

Metallographic Analysis:

Metallographers can use tools like scanning electron microscopy (SEM) to examine the grain structure, surface finish, and overall casting quality. For equiaxed crystal castings, the goal is to observe a uniform grain structure that indicates proper solidification and minimal defects.

Testing ensures that the castings perform reliably in their intended applications, helping manufacturers identify potential issues before parts are deployed in critical systems.

Prototyping Process for Superalloy Castings

The prototyping process for superalloy castings is essential for ensuring that design specifications are met before full-scale production begins. CNC machining and 3D printing are widely used to produce prototypes of superalloy components, enabling manufacturers to refine designs and confirm performance criteria early.

CNC Machining

After the casting process, superalloy parts are often machined using CNC (Computer Numerical Control) technology to achieve the required geometric precision and surface finish. CNC machining allows for tight tolerances and complex geometries, crucial for aerospace, automotive, and power generation components. Post-process superalloy CNC machining ensures that the final parts meet the exact specifications, reducing the risk of defects and improving performance.

3D Printing

For rapid prototyping, superalloy 3D printing has become an invaluable tool. Additive manufacturing allows designers to quickly produce parts with intricate geometries, which can be tested for form, fit, and function before moving into full-scale production. 3D printing of superalloys also enables the production of parts in low quantities, reducing the lead time for prototypes and allowing for faster iterations in the design process.

Industry Applications of Equiaxed Crystal Castings

Equiaxed crystal casting is used across various industries that require materials capable of withstanding extreme environments. Some of the key applications include:

Aerospace and Aviation

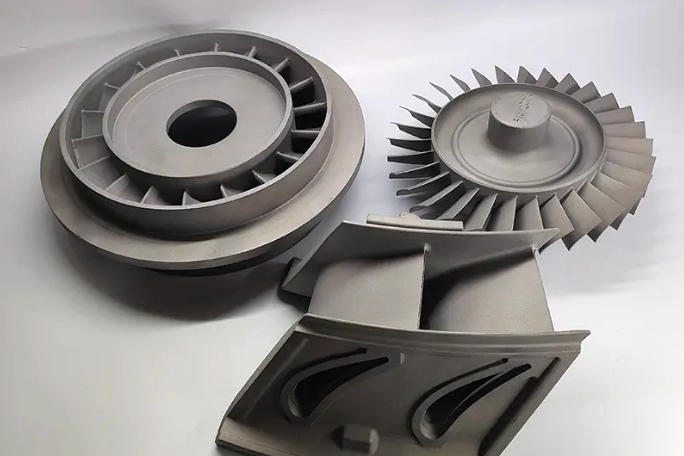

In aerospace and aviation, equiaxed crystal superalloy castings are critical for turbine blades, engine components, and combustion chambers. These parts must perform under high thermal and mechanical stress, making it essential to have a uniform grain structure for maximum strength and durability. Components like jet engine turbine blades rely on the precision and consistency achieved through equiaxed crystal casting.

Power Generation

In the power generation sector, equiaxed crystal castings are used for gas turbine components, heat exchangers, and reactor parts in power plants. These components must withstand extreme temperatures and pressures while maintaining structural integrity and performance. The uniformity of the equiaxed grain structure is critical to ensuring that these parts perform reliably over extended periods in challenging conditions.

Oil and Gas

The oil and gas industry requires superalloy castings for pumps, valves, and piping that endure high temperatures and corrosive environments. Equiaxed crystal castings are ideal for these components due to their strength and resistance to wear and corrosion, ensuring the reliability and safety of equipment used in extraction, refining, and transport.

Military and Defense

In military and defense applications, equiaxed crystal superalloy castings are used for missile casings, naval parts, and armor systems. These components require superior strength and durability to withstand extreme environments and physical stress. Equiaxed crystal casting ensures that parts used in military-grade equipment meet rigorous performance and reliability standards under challenging conditions.

Marine

The marine industry benefits from equiaxed crystal castings for engine parts, propellers, pumps, and other critical components. These parts must resist corrosion, wear, and mechanical stress in harsh marine environments. Superalloys with equiaxed crystal structures provide the strength and resistance required for these demanding applications, ensuring reliability and long service life in marine equipment.

Automotive and Mining

In the automotive and mining industries, equiaxed crystal castings are used for high-performance components exposed to high stress and wear conditions. Components like engine parts, brake systems, and mining equipment require durable materials that can withstand significant mechanical loads and wear. The uniform grain structure in equiaxed crystal castings ensures that these parts deliver consistent performance over time.

Equiaxed crystal casting technology is essential in these industries, providing superior strength, corrosion resistance, and reliability for critical components that operate under extreme conditions. The precision and uniformity of this casting method ensure the long-term performance and safety of parts used in high-stakes environments.
