Contamination Prevention in Titanium Casting: Ensuring Alloy Integrity and Superior Performance

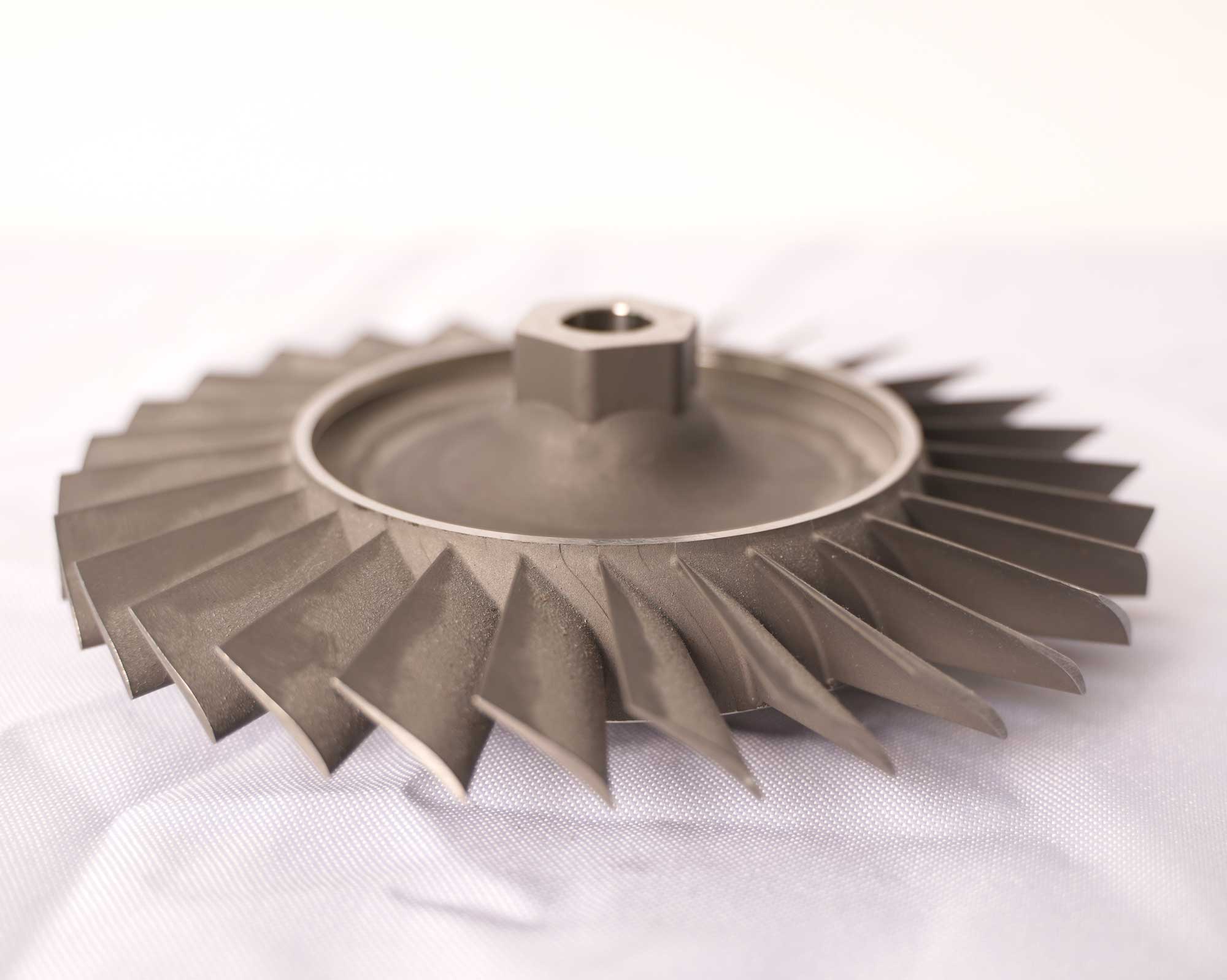

Titanium alloys are integral to various high-performance industries, including aerospace, automotive, energy, and medical applications. These alloys are prized for their excellent strength-to-weight ratio, corrosion resistance, and ability to withstand extreme temperatures. However, their performance and reliability are heavily influenced by the purity of the material used. Contamination during the casting process can compromise alloy integrity, leading to defects, reduced mechanical properties, and premature failure of critical components.
Therefore, understanding and mitigating contamination risks during titanium casting is essential to ensure the production of high-quality, high-performance parts. Vacuum investment casting is one technique employed to minimize contamination, ensuring precise control over the environment and the material’s purity. By employing advanced processes and quality control measures, manufacturers can reduce defects and improve the overall integrity of the casted titanium parts, making them suitable for demanding applications like jet engine components and medical implants.

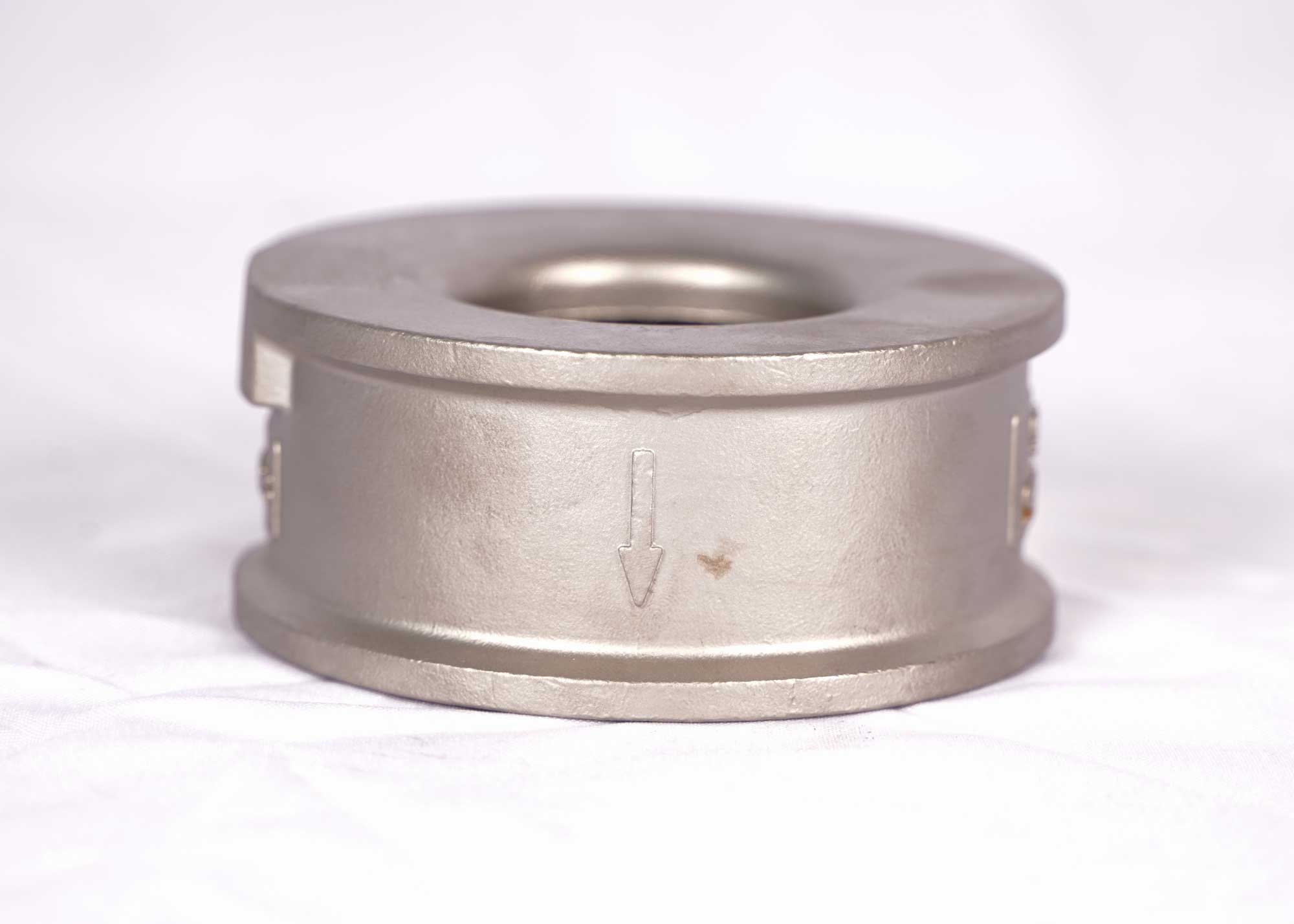

Manufacturing Process in Titanium Alloy Casting
Titanium casting involves a complex series of steps that require a high degree of precision and control. Each step must be carefully monitored to prevent contamination from environmental sources, alloying materials, or processing equipment. Here’s a breakdown of the critical stages in the titanium alloy casting process:
Mold Preparation and Coating:
Before the casting process begins, the mold is prepared and coated. The mold material is chosen to withstand the high temperatures associated with titanium casting, and special coatings are applied to prevent contamination from mold materials. Titanium molds or investment molds are often used, and the coatings are designed to create a barrier that minimizes interaction between the molten titanium and the mold. Maintaining a clean and controlled environment during mold preparation is critical to ensuring no foreign particles or contaminants enter the mold. Dimensional control in investment casting is essential at this stage to ensure precise results in the final casting.
Melting Titanium Alloys:
Titanium alloys are typically melted using vacuum induction melting (VIM) or electron beam melting (EBM), both highly controlled processes that help reduce the risk of contamination. These methods provide an inert atmosphere that prevents the molten metal from reacting with gases like oxygen or nitrogen, which can degrade the alloy. In VIM, the titanium is melted inside a vacuum chamber, ensuring no impurities from the air or surrounding environment can mix with the molten metal. Similarly, EBM uses an electron beam to melt the titanium, minimizing contamination by maintaining a vacuum environment. Vacuum induction melting is a crucial technology for ensuring the purity of titanium alloys in casting.
Pouring Molten Titanium:
Once the titanium is melted, it must be poured into the prepared mold. This step requires careful handling to prevent exposure to oxygen, moisture, or other contaminants. Introducing impurities during pouring can lead to defects such as porosity, cracking, or weak spots in the final casting. To prevent this, the pouring process is often carried out in an inert gas environment, such as argon, to keep contaminants at bay. Precision pouring is critical to achieving high-quality titanium castings without introducing defects.
Solidification:
As the molten titanium cools and solidifies, the risk of contamination can still be present, mainly if the mold or environment is not adequately controlled. Contaminants can be introduced if the casting comes into contact with unclean surfaces or if there is inadequate shielding from the surrounding atmosphere. The solidification process must be carefully monitored to ensure the cooling rate is uniform and no contaminants settle in the alloy. Controlling the solidification process is vital for ensuring high-quality, defect-free titanium components.
Typical Superalloys Used in Titanium Casting
Titanium alloys are classified into different grades and types based on their composition and intended use. The most commonly used titanium alloys in casting applications include:
Ti-6Al-4V (TC4): One of the most widely used titanium alloys, Ti-6Al-4V is employed in aerospace, automotive, and marine applications due to its excellent strength, corrosion resistance, and weldability. It benefits high-stress applications like turbine components, engine parts, and airframes.
Ti-6Al-2Sn-4Zr-6Mo: This high-temperature alloy is used in critical components such as turbine blades and heat exchangers. It has superior strength and creep resistance at elevated temperatures, making it ideal for applications where high heat and pressure are encountered.
Ti-5Al-5V-5Mo-3Cr: Known for its high strength and fatigue resistance, this alloy is commonly used in aerospace and military applications where performance under extreme stress is essential. It also has good resistance to oxidation and corrosion.
Contamination can affect each of these alloys differently. For instance, oxygen or nitrogen in the titanium alloy can form titanium oxides or nitrides, negatively impacting the alloy's mechanical properties and performance. Ensuring the purity of the raw materials and the manufacturing environment is crucial for maintaining the alloy’s intended characteristics.
Post-Processes: Contamination Prevention and Alloy Refinement
After the titanium alloy is cast, it undergoes several post-processing steps to refine its properties, remove defects, and eliminate any contaminants introduced during the casting process. These post-processes include:
Hot Isostatic Pressing (HIP):
HIP is a post-processing technique that subjects the cast titanium part to high temperature and pressure in a vacuum or inert gas environment. This process helps to eliminate internal porosity and reduce the risk of contamination by forcing out trapped gases and impurities. HIP is handy for high-performance titanium components, such as turbine blades, where any internal defects could lead to catastrophic failure. HIP for contamination removal improves the material’s density and enhances its mechanical properties, ensuring the component meets critical performance standards.
Heat Treatment:
Heat treatment is used to modify the microstructure of the titanium alloy and improve its mechanical properties, such as strength, toughness, and flexibility. The titanium part is heated to specific temperatures during heat treatment and then cooled under controlled conditions. The atmosphere where the heat treatment is carried out must be carefully controlled to prevent contamination. For example, oxygen or nitrogen contamination can cause embrittlement or other issues, so the process is often carried out in vacuum furnaces or inert gas environments. Proper heat treatment controls are critical to avoid contamination and ensure alloy durability.
CNC Machining:
CNC machining is used to refine the geometry of the titanium part after casting. During this process, the part is precisely shaped to meet design specifications. Contamination prevention is crucial during machining, as even small amounts of foreign material introduced during the cutting process can affect the performance of the part. This is why it is essential to maintain clean tools, machinery, and workspaces. Additionally, titanium alloys are known to be reactive with certain materials, such as cutting fluids, so contamination from these sources must be carefully controlled. Maintaining a clean machining environment helps prevent contamination that can affect part integrity.
Surface Cleaning and Finishing:
Surface cleaning is an essential part of the post-processing stage. Contaminants such as oil, grease, dust, or debris can remain on the surface of titanium parts after casting or machining, which can interfere with the alloy’s performance, especially in sensitive applications like aerospace or medical devices. Techniques such as ultrasonic cleaning, chemical cleaning, and abrasive blasting are used to remove surface contaminants before further processing or delivery. Surface cleaning eliminates contaminants, which is essential for maintaining alloy performance and meeting stringent quality standards.
Testing for Contamination and Alloy Integrity
To ensure the integrity of titanium castings, several testing methods are employed to detect contamination and verify that the alloy meets the required specifications. These tests include:
Glow Discharge Mass Spectrometry (GDMS):
GDMS is a powerful technique for analyzing the composition of titanium alloys, particularly for detecting trace elements and contaminants. It bombards the sample's surface with a high-energy glow discharge, which ionizes the material and allows for precise elemental analysis. GDMS can detect even minute amounts of contamination, making it ideal for assessing the purity of titanium alloys.
X-ray and CT scanning:
X-ray and computed tomography (CT) scanning are used to inspect titanium castings for internal defects such as voids, cracks, or inclusions that could result from contamination. These non-destructive testing methods allow for the visualization of the internal structure of the part, ensuring that the casting is free of defects that could compromise its performance.
Metallographic analysis involves examining the microstructure of the titanium alloy under a microscope. By examining the grain structure, phase distribution, and the presence of any inclusions or contaminants, the metallographic analysis provides valuable insights into the overall quality of the casting. It can reveal signs of contamination that may not be detectable by other methods.
Spectrometer Analysis (ICP-OES):
Inductively Coupled Plasma Optical Emission Spectroscopy (ICP-OES) is used to quantify trace elements in titanium alloys. This method involves ionizing the sample and measuring the emitted light to identify and quantify the presence of specific contaminants. ICP-OES is particularly useful for ensuring the purity of titanium alloys and ensuring that they meet industry standards for composition.
Prototyping Process: CNC Machining and 3D Printing for Contamination Control
In addition to traditional casting, titanium alloys are increasingly being manufactured using advanced prototyping techniques such as CNC machining and 3D printing. These methods also require strict contamination control to ensure the final parts meet the required performance standards. Both processes maintain clean environments to prevent defects and ensure the parts meet stringent aerospace and industrial specifications.
Superalloy CNC Machining
CNC machining allows for the precise shaping of titanium components from billet stock. During CNC machining, it is essential to maintain a clean environment to prevent contamination from foreign particles, tools, and cutting fluids. Cleanliness in the machining area is vital, as even minor contamination can result in defects or suboptimal mechanical properties. Post-process superalloy CNC machining ensures high precision and minimal contamination risks, contributing to superior part quality. Additionally, specialized cutting tools are used to minimize tool wear and prevent contamination from tool materials.
Superalloy 3D Printing
3D printing, or additive manufacturing, is an emerging technology that allows for producing titanium parts with complex geometries that would be difficult or impossible to achieve through traditional casting. One of the benefits of 3D printing is the ability to produce components layer by layer in a controlled environment, which can help prevent contamination. However, it is essential to maintain a clean printing environment and use high-purity titanium powder to avoid contamination during the build process. Superalloy 3D printing allows for precise layer deposition, reducing the risk of contamination-related defects while enhancing material integrity.
Industry and Applications
Contamination prevention in titanium casting is critical in industries where performance, safety, and reliability are paramount. Key industries and applications include:
Aerospace
In the aerospace and aviation industry, titanium is used extensively for components like turbine blades, engine parts, and airframes. Contamination in these high-stress, high-temperature environments can lead to catastrophic failure, making rigorous contamination prevention measures essential. Precision-cast components such as jet engine turbine blades rely on contamination-free processes to ensure their performance and reliability in extreme conditions.
Automotive
Titanium is increasingly used in automotive applications, particularly in engine parts and exhaust systems, where its strength and corrosion resistance are crucial. Contamination can negatively affect the durability and performance of these components, especially in high-performance vehicles where titanium is used for parts like brake system accessories and exhaust systems. Contamination control ensures that components maintain their structural integrity over time.
Energy
In energy generation, titanium alloys are used in turbine engines, heat exchangers, and reactor components, where high-temperature performance is critical. Contamination can compromise the integrity of these parts, leading to premature failure and reduced operational efficiency. Parts like reactor vessel components and heat exchanger parts require contamination-free casting processes to ensure long-term reliability and performance.
Medical
Titanium is used in medical implants and surgical tools due to its biocompatibility and resistance to corrosion. Contamination in these sensitive applications could lead to implant failure or adverse health effects, posing significant risks to patient safety. Titanium castings for implants, such as sterilization equipment parts, must be free from contamination to ensure they meet strict safety standards and provide long-term reliability in medical applications.
Contamination prevention in titanium casting is essential across these industries, ensuring that components meet the rigorous performance, safety, and reliability standards required in high-stress and high-performance environments. By controlling contaminants, manufacturers can guarantee the longevity and functionality of critical titanium parts.
FAQs
How does contamination affect the performance of titanium alloys in aerospace components?
What are the main methods used to prevent contamination during the titanium alloy casting process?
How does Hot Isostatic Pressing (HIP) help in contamination prevention?
What are the risks of contamination in CNC machining and 3D printing for titanium components?
How do testing methods like GDMS and ICP-OES help detect contamination in titanium castings?
