Comprehensive Control Technology of Crystal Defects in Single Crystal Castings
The demand for high-performance components has driven advancements in single crystal casting in aerospace, power generation, and defense industries. These components must withstand extreme thermal and mechanical stresses, making their structural integrity critical. Crystal defects—such as grain boundaries, porosity, and inclusions—can compromise the mechanical properties of these components, leading to reduced creep resistance, lower fatigue strength, and premature failure.
Comprehensive control technologies for managing and mitigating crystal defects have transformed the casting process. By addressing the causes of defects during casting, post-processing, and testing, manufacturers can now produce components with exceptional reliability and performance. These advancements ensure that critical components meet the stringent demands of high-performance applications.
Understanding Crystal Defects in Single Crystal Castings
Crystal defects are imperfections in the material's structure that can significantly impact its performance. These defects can take various forms, including grain boundaries, inclusions, dislocations, and porosity.
Grain boundaries, for example, are regions where the crystal orientation changes, creating weak points prone to cracking under stress. Inclusions are foreign particles embedded in the material, which can act as stress concentrators. Porosity, or voids within the material, reduces its density and mechanical strength, while dislocations disrupt the uniformity of the crystal lattice, affecting its thermal and mechanical properties. Processes such as single crystal casting aim to eliminate these defects by ensuring precise control over crystal growth.
The causes of these defects are multifaceted, often stemming from inconsistencies in the casting process. Factors such as uneven thermal gradients, uncontrolled solidification rates, and contamination during casting can lead to the formation of defects. Directional solidification techniques, like those used in superalloy directional casting, help control these variables by promoting uniform crystal growth and minimizing imperfections.
Contamination during casting is another significant contributor to defects. Inadequate atmospheric control, such as the presence of oxygen or impurities, can lead to inclusions and other flaws. Techniques like vacuum investment casting are employed to prevent contamination, ensuring the production of defect-free components.
By addressing these challenges with advanced casting techniques, manufacturers can improve single-crystal components' structural integrity and performance, making them more reliable for demanding applications like aerospace turbines and power generation systems.
Technologies for Controlling Crystal Defects
Advances in technology have significantly improved the ability to control and reduce crystal defects during the casting process.
Optimized directional solidification has been a cornerstone of defect control. Modern furnaces with advanced temperature control systems allow precise management of thermal gradients. This ensures that the crystal grows in a single, uninterrupted direction, reducing the formation of grain boundaries and other structural inconsistencies. Technologies like directional solidification casting are crucial for achieving defect-free crystal structures.
Improved seeding techniques have also played a critical role. Seed crystals are the foundation for the casting process, and their quality directly impacts the final product. Methods for preparing defect-free seed crystals and aligning them precisely in the mold have reduced the occurrence of misaligned grains and dislocations. These advancements are integral to the single crystal casting process, ensuring uniformity and high performance in the final components.
Mold material and design innovations have addressed issues related to heat distribution and contamination. High-quality ceramic molds with improved thermal conductivity ensure uniform solidification, while optimized mold geometries enhance heat flow, minimizing the risk of porosity and other defects. Additionally, advanced coatings on mold surfaces prevent chemical interactions between the molten alloy and the mold material. These enhancements are often used with vacuum investment casting to maintain a clean and controlled casting environment.
Controlled atmosphere casting is another crucial technology for defect control. Casting in a vacuum or inert gas environment eliminates the risk of oxidation and contamination, ensuring a cleaner and more consistent casting process. Advanced monitoring systems maintain stable atmospheric conditions, reducing the likelihood of defect formation. These controlled environments are particularly beneficial for unique alloy casting, where purity and precision are critical.
Suitable Single Crystal Casting Superalloys
The choice of superalloy is fundamental to the success of defect-controlled single-crystal casting. Certain alloys are particularly well-suited for this process due to their mechanical and thermal properties.
Inconel Alloys
Inconel alloys, such as Inconel 713, Inconel 718, and Inconel 738, are frequently used in high-temperature applications. These materials are known for their exceptional resistance to oxidation and thermal stress. Improved casting techniques have enhanced the quality of Inconel alloys, minimizing defects and ensuring their reliability in critical components.
CMSX Series
The CMSX series represents some of the most advanced superalloys for single-crystal casting. Alloys like CMSX-4, CMSX-10, and CMSX-486 are engineered for superior creep resistance and fatigue strength. However, their complex compositions make them easier to cast with defects. Modern defect control technologies, including precise thermal management and optimized mold designs, have enabled high-quality results with these materials.
Rene Alloys
Rene alloys, such as Rene 104 and Rene 88, are widely used in demanding environments with extreme mechanical and thermal stress. These alloys benefit from advanced casting methods that reduce porosity and grain boundary formation, ensuring their durability and performance.
Specialized single-crystal alloys
Specialized single crystal alloys, including PWA 1480 and CMSX-2, are designed for the most demanding applications. These alloys require rigorous defect control during casting to maintain their structural integrity and high-temperature performance. Their use in Aerospace and power generation applications highlights the importance of flawless microstructures in critical components.
Testing and Analysis of Crystal Defects
Rigorous testing is essential to ensure that single-crystal components meet performance standards and are defects-free. Advanced testing methods have improved the ability to identify and analyze crystal defects accurately.
Non-destructive testing (NDT) techniques, including high-resolution X-ray inspection, CT scanning, and ultrasonic methods, are widely used to detect internal defects without damaging the component. These methods provide detailed insights into the material's structure, allowing manufacturers to identify and address defects early in production.
Electron Backscatter Diffraction (EBSD) is a powerful tool for analyzing grain orientation and microstructural quality. This technique helps manufacturers identify crystallographic anomalies and assess the effectiveness of defect control measures. EBSD data is invaluable for optimizing casting and post-processing parameters.
Mechanical testing, such as tensile, fatigue, and creep testing, is used to evaluate the impact of defects on the component's performance. By simulating operational conditions, these tests provide critical data on the material's reliability and durability, ensuring that only high-quality components reach the end user.
Industry Applications of Defect-Controlled Single Crystal Components
Defect-controlled single-crystal components are essential in industries where performance and reliability are paramount. These components are designed to operate in extreme conditions, delivering superior efficiency and durability.
Aerospace and Aviation

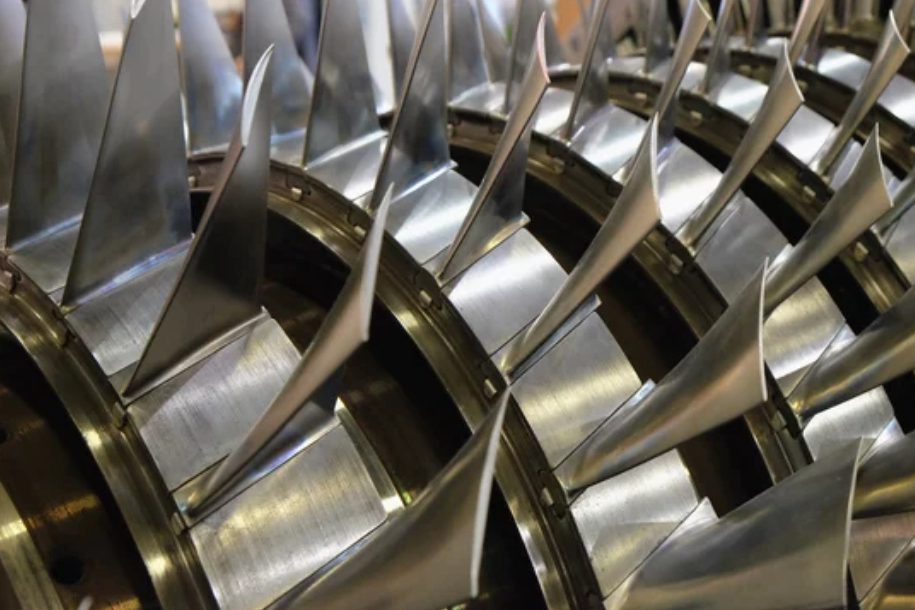

In Aerospace and aviation, single crystal turbine blades are used in jet engines to withstand high temperatures and mechanical loads. Defect control ensures the structural integrity of these components, improving engine performance and safety. Aerospace and aviation applications demand precise manufacturing techniques to meet stringent safety and performance standards.
Power Generation
Single-crystal components are vital to power generation in gas and steam turbines. Defect-free materials enable turbines to operate at higher temperatures and pressures, increasing energy efficiency and reducing maintenance requirements. Power generation facilities depend on these advanced components to enhance the reliability and performance of their turbines under extreme operational conditions.
Oil and Gas
The oil and gas industry uses defect-controlled components for high-pressure, high-temperature environments. Ensuring the reliability of these components is critical for maintaining safe and efficient operations. Oil and gas applications benefit from defect-controlled materials to minimize compressors, turbines, and pumping system failures.
Military and Defense
Single-crystal components are used in propulsion systems and advanced weaponry in military and defense applications. Their durability and resistance to extreme conditions make them indispensable for mission-critical applications. The military and defense sector relies on these defect-controlled components to ensure consistent performance in demanding environments, safeguarding critical operations.
FAQs
What are the most common crystal defects in single crystal castings, and how do they affect performance?
How do advanced directional solidification techniques reduce crystal defects?
What role does Hot Isostatic Pressing (HIP) play in mitigating casting defects?
Which testing methods are most effective for detecting and analyzing crystal defects in single crystal castings?
Why is crystal defect control critical for applications in aerospace and power generation industries?
