Benefits of SLM 3D Printing for Complex Stainless Steel Parts
SLM (Selective Laser Melting) 3D printing has revolutionized manufacturing, offering advanced solutions for creating complex stainless steel parts. This cutting-edge additive manufacturing technique provides unique advantages for industries requiring parts with intricate geometries, high strength, and durability. Unlike traditional manufacturing methods, SLM printing allows for producing high-precision, lightweight components with minimal waste, making it particularly beneficial in industries such as aerospace, automotive, chemical processing, and medical sectors.
SLM 3D Printing Manufacturing Process
SLM 3D printing is a powder bed fusion technology that uses a high-powered laser to melt and fuse metallic powders layer by layer to form solid parts. The process begins by spreading a thin layer of fine metal powder—typically stainless steel alloys—onto the build platform. The laser scans across the surface of the powder, melting it according to the design specifications, and as the molten metal solidifies, it fuses to the layer beneath it. The process is repeated, layer by layer, until the part is entirely constructed, allowing for the creation of complex and highly durable components.

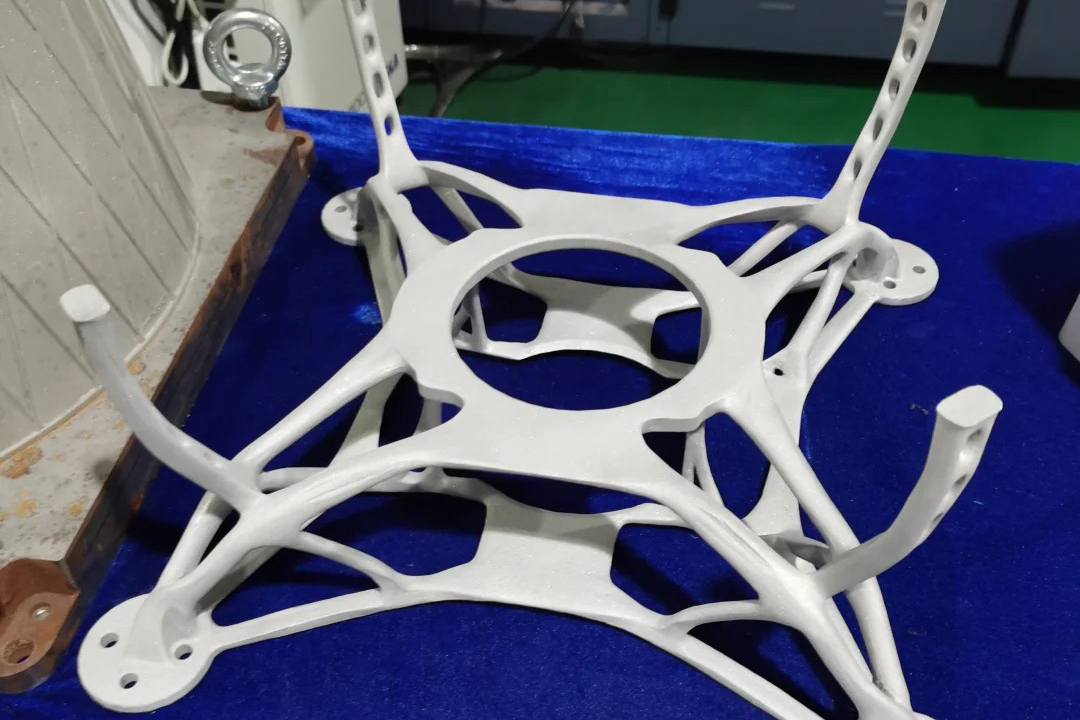

One of the key advantages of SLM is its ability to build complex geometries that would be impossible to create with traditional methods. These include internal lattice structures, intricate cooling channels, and parts with highly detailed features. The precision and control offered by the laser ensure that every layer is deposited with exacting accuracy, creating parts that are dimensionally precise and structurally sound. SLM is especially valuable for industries requiring high-performance parts, such as aerospace, where components like turbine blades or impellers must withstand extreme conditions.
Additionally, SLM technology minimizes material waste by using only the necessary powder for each part. It is precious for high-cost materials such as stainless steel alloys, which can be expensive. The ability to reuse unused powder after each print further contributes to the cost-effectiveness and sustainability of the process, making SLM a more economical choice for producing complex parts in low quantities or for prototyping.
Materials Used in SLM 3D Printing
SLM 3D printing is highly versatile, allowing for a wide range of materials. Stainless steel is one of the most popular materials due to its excellent strength, corrosion resistance, and ease of post-processing. The material's adaptability suits many industries, including aerospace, automotive, medical, and more.
316L Stainless Steel
One of the most commonly used materials in SLM printing is 316L Stainless Steel. This corrosion-resistant alloy is better than 304 and is often selected for its exceptional performance in marine, food processing, and medical environments. It’s commonly used to produce medical implants, food processing equipment, and marine components exposed to harsh environments. 316L’s resistance to oxidation, high temperatures, and corrosion makes it an ideal candidate for applications requiring durability in aggressive conditions.
17-4 PH Stainless Steel
Another popular stainless steel alloy for SLM printing is 17-4 PH stainless steel. This precipitation-hardening stainless steel offers high strength and excellent corrosion resistance, making it perfect for aerospace, automotive, and industrial applications. Parts made from 17-4 PH stainless steel can withstand high stresses and are often used in critical components like turbine blades, engine parts, and structural components in aircraft and other high-performance equipment.
15-5 PH Stainless Steel
Similar to 17-4 PH, 15-5PH stainless steel is a precipitation-hardening stainless steel alloy that offers a good balance of strength, toughness, and corrosion resistance. It is beneficial in industries requiring high-performance parts for aerospace and industrial equipment. Its high strength and fatigue resistance make it ideal for applications where parts are exposed to extreme stress and must maintain high reliability over time.
SLM technology allows manufacturers to use these stainless steel alloys in complex geometries while maintaining their material properties. The ability to manufacture intricate parts with fine details using alloys like 316L, 17-4 PH, and 15-5 PH opens up new possibilities for previously difficult or impossible parts to produce with traditional machining or casting methods.
Post-Processing in SLM 3D Printing
Once the part is completed via the SLM 3D printing process, several post-processing steps are necessary to enhance its properties, achieve the desired surface finish, and remove residual stresses. The post-processing methods depend on the part's specific requirements and application.
Heat Treatment
Heat treatment plays a crucial role in the post-processing of SLM 3D-printed parts. During the printing process, residual stresses can develop within the part due to the rapid heating and cooling of the metal powder. These stresses must be relieved to prevent warping or cracking. Heat treatment processes such as solution annealing, stress-relief annealing, and aging are commonly used to address these issues.
Solution annealing involves heating the part to a high temperature to dissolve any sediments formed during the printing process, followed by controlled cooling. This process ensures that the material achieves the desired mechanical properties and improves its toughness. On the other hand, aging involves heating the part to a moderate temperature to allow for the precipitation of hardening phases that increase the part’s strength.
Surface Finishing
While SLM 3D printing can achieve high accuracy and resolution, the surface finish of printed parts often requires further refinement. Various techniques are employed to smooth the surface, improve finish quality, and remove any roughness or striations caused by the layer-by-layer construction method.
Superalloy CNC machining, polishing, and bead blasting are joint surface finishing techniques used on SLM-printed stainless steel parts. CNC machining is typically employed to achieve tight tolerances and smooth surfaces on parts that require high precision. Polishing further improves the surface quality, providing a smooth, shiny finish that is often required for aesthetic or functional reasons. Bead blasting, on the other hand, is a standard method used to remove surface imperfections and create a uniform surface texture.
Support Removal and Cleaning
SLM 3D printing typically requires support structures to prevent the part from warping during the printing process. These supports are often made from the same material as the part itself but must be removed after printing. Support removal is a critical post-processing step and can be accomplished using mechanical, thermal, or chemical methods. In some cases, parts may be subjected to an ultrasonic cleaning process to remove any residual support material and thoroughly clean the part’s surface.
Testing and Quality Assurance
SLM 3D-printed parts must undergo thorough testing and quality assurance procedures to meet the required mechanical properties, dimensional tolerances, and performance standards. Various testing methods are employed to verify the quality and integrity of the printed parts.
Non-Destructive Testing (NDT)
Non-destructive testing methods, such as X-ray inspection, ultrasound, and CT scanning, are commonly used to detect internal defects in SLM 3D-printed parts. These methods allow manufacturers to identify porosity, cracks, or voids without damaging the part. This is particularly important for critical components in high-performance industries, where internal defects could lead to failure or reduced lifespan.
Mechanical Testing
Several mechanical testing procedures ensure the printed part meets the required mechanical properties. Tensile, hardness, and fatigue testing are used to evaluate the printed stainless steel parts' strength, hardness, and fatigue resistance. These tests are critical in industries like aerospace and automotive, where components are exposed to high stress and must maintain their mechanical integrity over time.
Microstructural Analysis
The material's microstructure is essential in determining the part’s performance. Scanning electron microscopy (SEM) and optical microscopy inspect the printed part's grain structure, phase composition, and surface finish. These tests ensure that the material’s microstructure is consistent and free from defects that could affect its performance under load or extreme conditions.
Dimensional Accuracy
Dimensional accuracy is another important factor in the quality assurance process. Coordinate measuring machines (CMM) and 3D scanning tools to verify the part’s dimensional precision and ensure it matches the design specifications. These tools provide highly accurate measurements of the part’s geometry, allowing manufacturers to detect deviations from the CAD model and make necessary adjustments.
Industry Applications of SLM 3D Printing for Stainless Steel Parts
SLM 3D printing of stainless steel parts has widespread applications across various industries due to its ability to create parts with complex geometries, high strength, and excellent corrosion resistance. Here are some key industries that benefit from SLM 3D printing:
Aerospace
In aerospace, SLM 3D printing produces lightweight, high-strength parts such as brackets, turbine blades, and housings. These parts are often exposed to extreme temperatures, pressures, and mechanical stresses, making stainless steel alloys like 17-4 PH and 316L ideal for this application. The ability to produce parts with complex internal cooling channels or lattice structures is a significant advantage in improving efficiency and performance in aerospace systems. Superalloy jet engine components can also benefit from the advanced capabilities of SLM, reducing production time and enhancing performance.
Automotive
The automotive industry also benefits from using SLM 3D printing for manufacturing parts like turbocharger components, manifolds, and brackets. Stainless steel parts produced via SLM can offer enhanced strength, heat resistance, and reduced weight, all contributing to better fuel efficiency and improved vehicle performance. Parts such as exhaust system components can be optimized through SLM technology, improving their durability and overall vehicle performance.
Medical
SLM 3D printing enables the creation of customized medical implants and surgical instruments tailored to individual patients. Stainless steel alloys such as 316L are commonly used for medical implants due to their biocompatibility and resistance to corrosion. The ability to produce highly accurate, patient-specific implants using SLM helps improve patient outcomes and reduces surgery time. Superalloy sterilization equipment parts can be produced using similar processes to ensure high hygiene and safety standards.
Chemical Processing
SLM 3D printing is widely used in the chemical processing industry to create parts like valves, filters, and pumps exposed to corrosive chemicals. Stainless steel’s excellent corrosion resistance makes it ideal for these applications, and the flexibility of SLM allows for creating parts with complex features that would be difficult to manufacture with traditional methods. Components such as reactor vessel components can be fabricated to exact specifications, ensuring longevity in harsh chemical environments.
Food and Beverage
In the food and beverage industry, SLM 3D printing produces parts for equipment such as mixers, filters, and packaging machinery. Stainless steel’s corrosion resistance makes it suitable for environments where hygiene and material integrity are crucial. SLM printing allows for the creation of complex, easily cleaned parts that improve the efficiency of production lines. Packaging machine accessories benefit from SLM in their production, providing robust solutions for food processing.
Marine
SLM 3D printing is also used in the marine industry to manufacture components exposed to harsh saltwater environments, such as propellers, pumps, and valves. Stainless steel’s resistance to corrosion in seawater makes it the ideal material for these applications, and the ability to create intricate geometries and lightweight parts adds value to marine systems. Superalloy naval ship modules are key applications that ensure marine components' durability in extreme environments.
