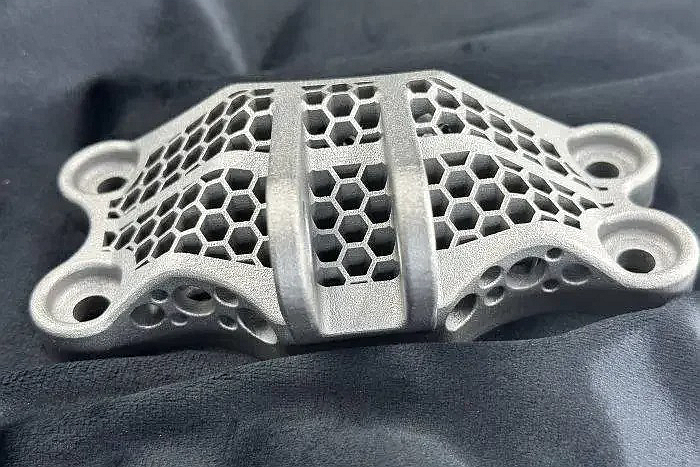

Benefits of Selective Laser Melting for Aluminum Alloy Parts
Selective Laser Melting (SLM) has revolutionized manufacturers' creation of high-performance components, particularly in industries that demand precision and material efficiency. SLM is a form of additive manufacturing, or 3D printing, that utilizes a high-powered laser to fuse aluminum alloy powders layer by layer to form intricate parts. This technology is increasingly used in aerospace, automotive, medical, and other high-performance sectors, where lightweight and durable materials are crucial. This blog will explore the process of SLM, the benefits of using aluminum alloys, suitable printing materials, post-processing techniques, testing methods, and industry applications.
Manufacturing Process for Aluminum Alloys Parts Using SLM
Selective Laser Melting (SLM) works by melting metal powders with a high-powered laser beam, which selectively fuses the powder precisely. This process builds up parts layer by layer, providing the flexibility to create complex geometries and intricate designs that are difficult or impossible to achieve with traditional manufacturing techniques. The key steps in the SLM process for aluminum alloys include material preparation, printing, and parameter adjustments.
The first step in the SLM process is preparing the aluminum powder. The powder must have the correct grain size and distribution to ensure uniform melting and bonding during printing. High-quality powder ensures the printed parts exhibit the desired mechanical properties and surface finish. Powder bed management is critical during this stage to maintain a consistent flow of material throughout the build process.
The laser is precisely controlled during printing to melt the aluminum powder and fuse it to the previous layer. This is done in a controlled environment where the temperature and atmosphere are carefully monitored to prevent oxidation or other defects. The laser parameters, such as power, scanning speed, and layer thickness, must be fine-tuned to ensure the best results. These parameters directly impact the part's mechanical properties, such as strength, ductility, and thermal conductivity.
Suitable Aluminum Alloys for SLM
The choice of Aluminum alloy plays a critical role in determining the properties of the finished part. Various aluminum alloys are suitable for the SLM process, each offering unique advantages depending on the intended application.
AlSi10Mg
AlSi10Mg is one of the most widely used alloys for SLM due to its excellent fluidity, high strength-to-weight ratio, and good mechanical properties. It is commonly used for engine parts, brackets, and structural elements in automotive and aerospace applications. AlSi10Mg also has good castability, making it ideal for complex shapes and fine details.
Al7075
Al7075, a high-strength alloy, is particularly valuable for aerospace applications due to its excellent fatigue resistance and high strength-to-weight ratio. It is often used to produce structural components, such as wing spars and fuselage frames, where high strength is essential. However, it requires careful control during the SLM process, as it is more susceptible to cracking than other alloys.
Al6061
Al6061 is one of the most versatile aluminum alloys, offering good corrosion resistance, moderate strength, and ease of machining. This makes it popular for automotive, marine, and structural components. In various industries, SLM parts made from Al6061 are often used for heat exchangers, custom tooling, and lightweight components.
AlSi12
AlSi12, an alloy with a higher silicon content than AlSi10Mg, is used for its excellent fluidity, wear resistance, and fine surface finish. AlSi12 is often employed in automotive engine components and aerospace applications, where components must withstand high temperatures and abrasive conditions.
Post-Processing for SLM Aluminum Parts
While SLM provides exceptional precision and flexibility in part design, the parts often require post-processing to achieve the desired material properties, surface finish, and dimensional accuracy. Common post-processing techniques for SLM aluminum alloy parts include heat treatment, surface finishing, machining, and stress relief.
Heat Treatment
Heat treatment is a crucial step in post-processing SLM aluminum parts. The process, such as T6 heat treatment, involves heating the parts to a specific temperature and then rapidly cooling them to enhance their mechanical properties. Heat treatment improves the printed parts' strength, hardness, and fatigue resistance, making them suitable for demanding applications such as aerospace and automotive industries. Optimizing heat treatment is key to enhancing performance and ensuring long-term durability.
Surface Finishing
Surface finishing techniques, such as polishing, bead blasting, and anodizing, are often applied to improve the part's surface quality. Polishing and bead blasting help to remove roughness, while anodizing enhances corrosion resistance and allows for the addition of color. These surface treatments are especially important in applications where the appearance and durability of the part are critical. Anodizing creates a protective oxide layer that improves the part’s wear resistance and aesthetics.
Machining
Machining is another essential post-processing step for achieving tight tolerances and fine details. While SLM produces parts with impressive resolution, CNC machining ensures that parts meet the exact specifications required for assembly and performance. CNC machining is often employed to refine features such as threaded holes, surface finishes, and fine geometries that cannot be easily achieved during printing. This step is critical for parts that require high precision and exacting standards.
Stress Relief
Stress relief is necessary for parts that experience internal stresses due to the rapid cooling during the SLM process. These residual stresses can lead to warping or cracking, particularly in high-strength alloys like Al7075. Methods such as annealing or Hot Isostatic Pressing (HIP) relieve these stresses and ensure the part's dimensional stability and mechanical integrity. These techniques help improve the dimensional stability of the component and extend its lifespan.
Testing for SLM Aluminum Parts
Testing is critical to ensure SLM aluminum parts meet the required mechanical and performance standards. Various testing methods are employed to verify the quality and reliability of the parts.
Mechanical Property Testing
Mechanical property testing includes tensile, fatigue, and hardness tests to measure SLM parts' strength, ductility, and wear resistance. These tests provide valuable data on how the parts will perform under stress, heat, and wear conditions. For example, aerospace components often undergo fatigue testing to simulate the stresses they will experience during flight.
Surface Integrity Testing
Surface integrity testing is used to detect any internal defects, such as porosity or cracks, which can affect the part's structural integrity. X-ray inspection and ultrasonic testing are commonly used to identify voids and inconsistencies within the material, ensuring that the part is free of defects that could compromise its performance.
Dimensional Accuracy Testing
Dimensional accuracy testing ensures that SLM aluminum parts meet the required tolerances. Coordinate Measuring Machines (CMM) and laser scanning are typically employed to measure the dimensions and verify the geometric accuracy of the part. Dimensional accuracy is critical in industries like aerospace and automotive, where even small deviations can lead to part failure.
Corrosion Resistance Testing
Corrosion resistance testing is important for applications in marine, automotive, and other environments where parts are exposed to harsh conditions. Salt spray testing and other methods evaluate how well SLM aluminum parts resist corrosion over time, ensuring that they maintain their performance and appearance in the field.
Industries and Applications for SLM Aluminum Alloy Parts
SLM aluminum parts are used in a wide range of industries, each benefiting from the unique properties of aluminum alloys. These parts are precious in sectors that demand lightweight, high-strength, and corrosion-resistant components.
Aerospace and Aviation
In the aerospace and aviation industries, SLM produces lightweight components such as turbine blades, engine brackets, and structural elements. Creating complex geometries with minimal material waste makes SLM an ideal solution for aerospace applications, where every gram of weight saved can significantly impact fuel efficiency and performance. For example, turbine blades and structural brackets are crucial components that benefit from the precision and design freedom offered by SLM technology.
Automotive
The automotive industry also benefits from the ability to prototype and manufacture lightweight, durable parts using SLM rapidly. Typical applications include engine components, heat exchangers, and brackets. SLM allows manufacturers to design more efficient parts with reduced weight, improving fuel efficiency and lower emissions. SLM-produced automotive brackets can be tailored to improve performance and reduce material waste.
Marine
In the marine industry, SLM aluminum parts are used for their corrosion resistance and lightweight properties. These parts are found in shipbuilding, offshore oil rigs, and underwater vehicles, where they need to withstand harsh environmental conditions while maintaining strength and reliability. Marine components like propellers and structural frames benefit from SLM’s ability to print complex designs that resist corrosion in challenging environments.
Medical
The medical industry uses SLM aluminum alloy parts for custom implants, surgical tools, and prosthetics. Creating complex and customized designs tailored to an individual’s anatomy is a significant advantage in this sector. Lightweight and biocompatible aluminum alloys offer both strength and comfort in medical devices. For instance, custom aluminum surgical tools can be designed to improve precision and patient outcomes.
Industrial Equipment
Finally, SLM manufactures specialized machine components, fixtures, and tooling in the industrial equipment sector. Parts created with SLM technology can be optimized for specific applications, improving performance and reducing production costs. Custom aluminum machine fixtures enhance productivity and efficiency in various manufacturing processes.
