Benefits of High Vacuum Dynamic Jacketed Equipment In Superalloy Castings Manufacturing
Superalloy castings are vital in industries where high performance and reliability are non-negotiable. These alloys, known for their exceptional heat, corrosion, and fatigue resistance, are indispensable in applications such as jet engines, gas turbines, and power generation systems. However, achieving the high precision and quality required for these critical components involves complex manufacturing techniques and advanced equipment.
High vacuum dynamic jacketed equipment is one such technology that has significantly improved superalloy casting. This sophisticated system enhances the casting process by offering precise temperature control, improved material purity, reduced defects, and greater efficiency. The ability to precisely regulate temperature and control the environment within the casting mold is crucial for maintaining the integrity of the superalloy during solidification, ensuring that the final product meets the stringent requirements of high-performance applications like aerospace, military, and energy sectors.
What is High Vacuum Dynamic Jacketed Equipment?
High-vacuum dynamic jacketed equipment is an advanced casting technology designed to operate in a high-vacuum environment coupled with a dynamic jacket for temperature control. In simple terms, it is a system that surrounds the casting mold with a vacuum and regulates the temperature dynamically during the casting process. The system comprises a vacuum chamber, heating elements, and a dynamic jacket that controls temperature fluctuations.
The core advantage of this setup lies in its ability to minimize contamination during the casting process while maintaining precise control over the mold temperature. This results in enhanced product quality and performance, critical for superalloy parts used in high-stress environments.
Enhanced Material Purity
One of the primary benefits of using high vacuum dynamic jacketed equipment in superalloy casting is improving material purity. The vacuum environment significantly reduces the presence of oxygen and other contaminants that could otherwise react with the molten metal. This is especially crucial for superalloys like Inconel, CMSX, and Rene alloys, which are highly sensitive to impurities such as sulfur, hydrogen, and carbon.
In traditional casting methods, oxygen in the air can lead to oxidation or the formation of undesirable phases in the alloy. These contaminants can cause internal weaknesses, reducing tensile strength, fatigue resistance, and poor corrosion resistance. By maintaining a vacuum during the casting process, high vacuum dynamic jacketed equipment ensures that the final product is free from these contaminants, delivering superalloy parts with exceptional material integrity. This is particularly important for parts that operate in extreme conditions, such as turbine blades or combustion chambers in jet engines, where even minute impurities can lead to catastrophic failures.
Precise Temperature Control
Casting superalloy components requires strict control over temperature, as the solidification process plays a crucial role in determining the material's microstructure. High vacuum dynamic jacketed equipment maintains uniform temperature across the mold, ensuring the molten superalloy solidifies evenly. The dynamic jacket surrounding the casting mold regulates temperature fluctuations, which is critical for achieving the desired grain structure and mechanical properties in superalloy components.
Precise temperature control is significant when casting alloys with complex phase diagrams, such as single crystal superalloys or multi-phase alloys used in aerospace applications. These alloys require controlled cooling rates to achieve the desired phase composition and optimize the material's high-temperature performance. A slight deviation in temperature can lead to the formation of unwanted phases, resulting in decreased mechanical strength or thermal stability. High vacuum dynamic jacketed equipment minimizes these risks by ensuring that the temperature remains within a narrow, controlled range, promoting the formation of a uniform and high-quality microstructure.
Maintaining this level of control is critical in casting turbine blades and other components that must withstand extreme conditions, where even small variations in material properties can affect performance and reliability.
Enhancing Superalloy Castings with High Vacuum Dynamic Jacketed Equipment
Superalloy castings are vital in industries where high performance and reliability are non-negotiable. These alloys, known for their exceptional heat, corrosion, and fatigue resistance, are indispensable in applications such as jet engines, gas turbines, and power generation systems. However, achieving the high precision and quality required for these critical components involves complex manufacturing techniques and advanced equipment.
High vacuum dynamic jacketed equipment is one such technology that has significantly improved superalloy casting. This sophisticated system enhances the casting process by offering precise temperature control, improved material purity, reduced defects, and greater efficiency. The ability to precisely regulate temperature and control the environment within the casting mold is crucial for maintaining the integrity of the superalloy during solidification, ensuring that the final product meets the stringent requirements of high-performance applications like aerospace, military, and energy sectors.
Faster Cooling and Solidification
The speed at which molten superalloy solidifies is a critical factor in determining the microstructure and mechanical properties of the final product. Traditional casting methods may result in slower cooling rates, leading to undesirable grain growth or the formation of coarse microstructures. High vacuum dynamic jacketed equipment accelerates cooling by creating a controlled environment that promotes faster solidification without sacrificing quality.
The faster cooling times facilitated by the vacuum environment can lead to shorter production cycles, making the casting process more efficient and reducing customer lead times. In industries like aerospace and energy, where time-to-market is a critical factor, this increase in production efficiency is precious. Moreover, the rapid cooling process ensures that the alloy solidifies with a fine-grain microstructure, which improves mechanical properties such as strength, toughness, and fatigue resistance.
Energy Efficiency and Consistency in Superalloy Casting
Energy consumption is a major concern in industrial manufacturing processes, mainly when working with high-temperature alloys. Traditional casting methods require significant energy input to maintain the high temperatures for melting and casting superalloys. High vacuum dynamic jacketed equipment helps address this issue by utilizing energy more efficiently.
The vacuum environment reduces heat loss during the casting process, as the surrounding environment has less heat dissipation. The dynamic jacket system also allows for better thermal management, reducing the need for excess heating and cooling. This leads to lower energy consumption, cost savings, and a more sustainable manufacturing process. In industries where energy costs are a significant portion of the overall production cost, such as aerospace and power generation, the energy efficiency of high vacuum dynamic jacketed equipment is a key advantage.
Maintaining consistent product quality across production batches is essential for aerospace and power generation, where safety and reliability are paramount. High vacuum dynamic jacketed equipment provides repeatability in the casting process, ensuring that each part meets the same high standards as the last.
The ability to produce components with consistent dimensions, microstructure, and mechanical properties is critical for industries that rely on superalloy castings for mission-critical applications. Whether manufacturing turbine blades for jet engines or reactor vessel components for nuclear power plants, the consistent performance of high vacuum dynamic jacketed equipment ensures that each part can withstand the demanding conditions of its respective application.
Compatibility with Complex Geometries in Superalloy Casting

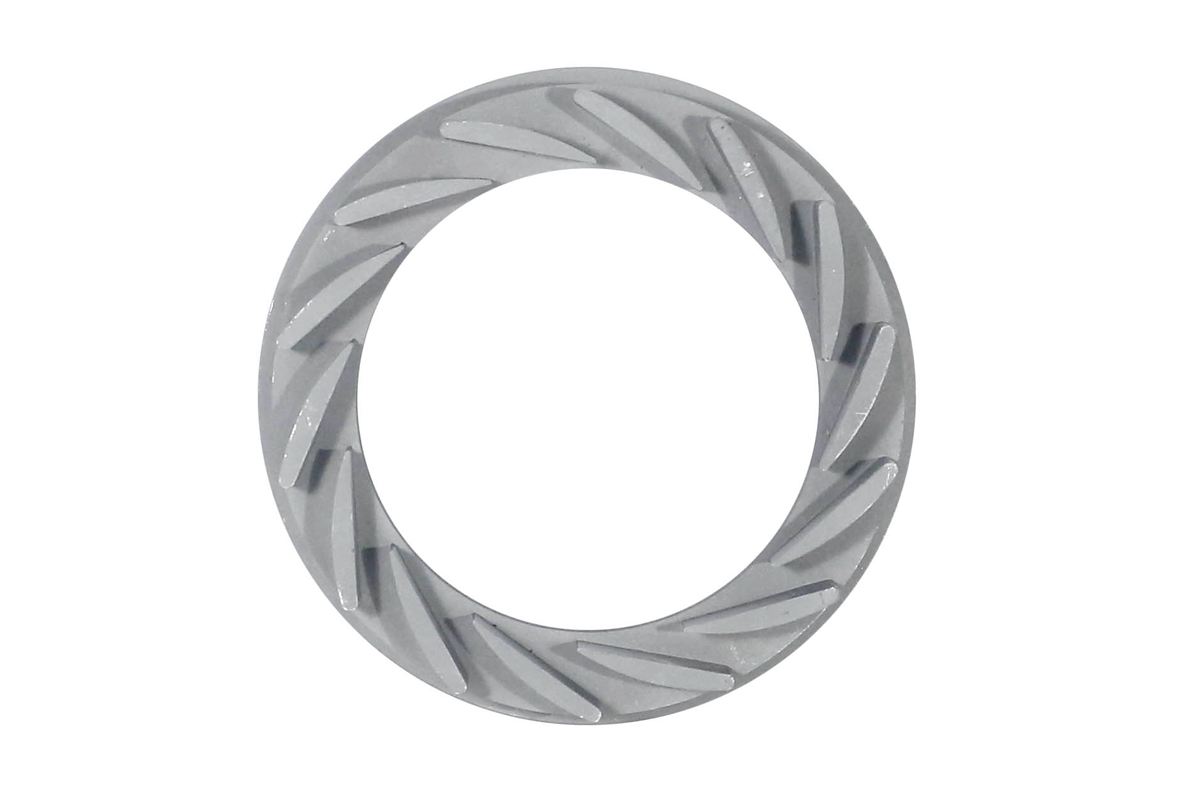

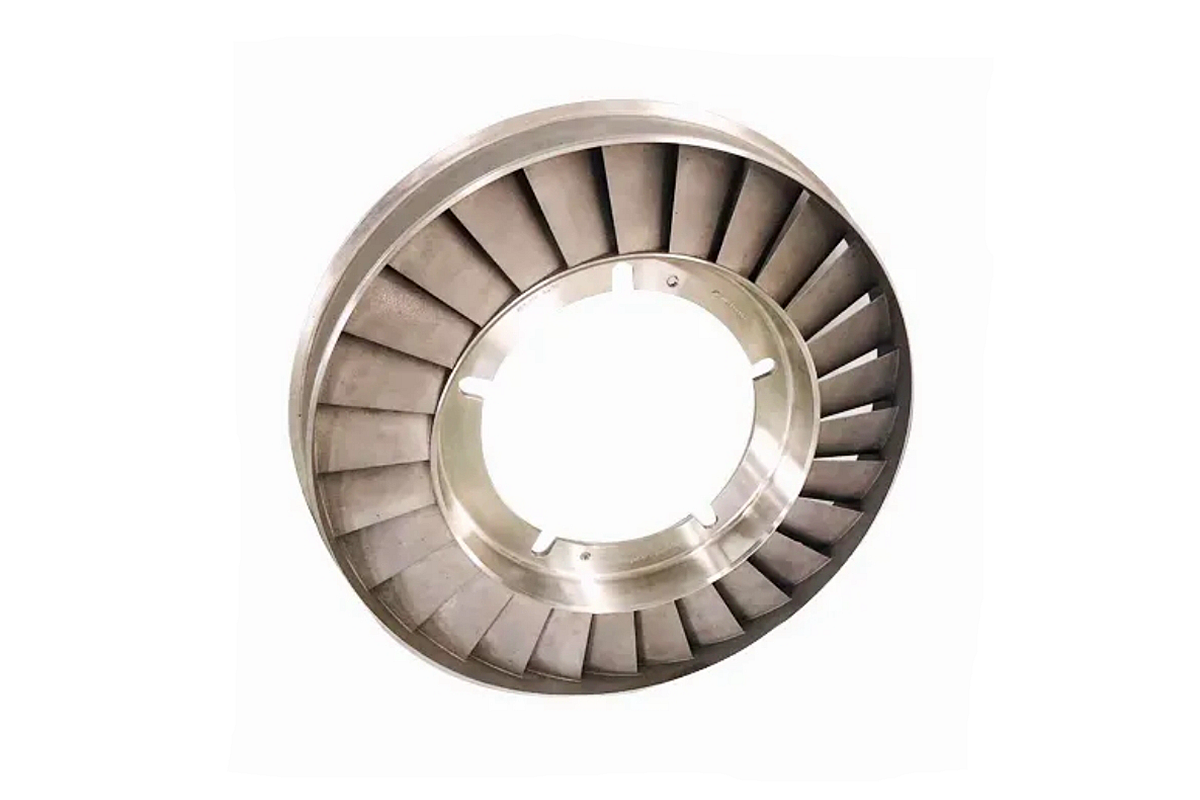

Modern superalloy components often have intricate shapes and complex geometries, which can be difficult to cast using traditional methods. High vacuum dynamic jacketed equipment is well-suited for producing components with complex designs, such as thin-walled turbine blades, nozzle rings, and other aerospace components.
The vacuum environment, combined with the precise temperature control of the dynamic jacket, allows for the creation of high-quality parts with fine details and intricate geometries. This capability is precious in industries like aerospace, where the performance of components often depends on their precise shape and dimensions. Additionally, the ability to produce such complex parts with minimal defects or inconsistencies adds value by reducing the need for extensive post-processing or rework.
FAQs
What is the role of high vacuum in dynamic jacketed equipment for superalloy casting?
How does high vacuum dynamic jacketed equipment improve material purity in superalloy castings?
What are the advantages of using dynamic jackets for temperature control in superalloy casting?
How does high vacuum dynamic jacketed equipment reduce porosity and internal defects in superalloy castings?
In what ways does high vacuum dynamic jacketed equipment improve energy efficiency in superalloy casting manufacturing?
