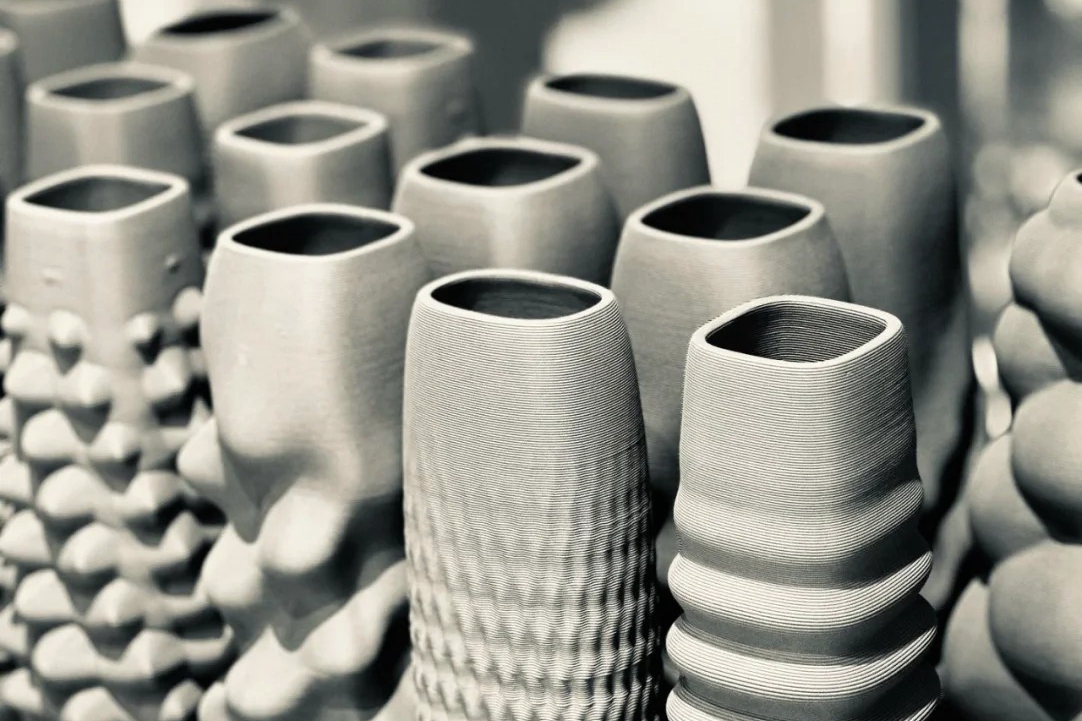

Benefits of FDM for Low-Cost Plastic Prototyping Solutions
FDM is one of the most widely used 3D printing technologies for rapid prototyping and low-volume production of plastic parts. The appeal of FDM lies in its ability to produce high-quality prototypes quickly and at a relatively low cost, which is essential for industries that require fast design iterations and functional prototypes. This blog will explore how FDM works, the materials most suitable for this technology, post-processing methods, testing and quality control procedures, and the broad range of industries that benefit from this technology.
Manufacturing Process of FDM
Fused Deposition Modeling (FDM) is an additive manufacturing process that uses thermoplastic materials to build parts layer by layer. The process begins with a digital 3D model sliced into thin cross-sections by slicing software. These layers are then printed one at a time, with the material being extruded through a heated nozzle onto a build platform. The extruder heats the material to a soft and malleable temperature, allowing it to adhere to the previous layer. As the layers accumulate, the part takes shape according to the design specifications.
What sets FDM apart from other 3D printing technologies like SLA (Stereolithography) or SLS (Selective Laser Sintering) is the material and method of deposition. FDM uses thermoplastic filaments, which come in spools loaded into the printer. This simplicity makes FDM more affordable and accessible than complex and expensive 3D printing methods. The system's modularity makes it scalable, ideal for everything from small-scale prototyping to larger, more complex parts in various industries.
Compared to technologies like SLA, which uses a laser to harden liquid resin, FDM is typically more cost-effective, particularly for more significant parts. It also allows for using a wider range of thermoplastic materials and supports multi-material printing, giving designers greater flexibility when prototyping parts with different properties.
Suitable Printing Materials for FDM
FDM (Fused Deposition Modeling) 3D printing supports various materials, each with its benefits and applications. The choice of material depends on factors such as mechanical properties, ease of use, and cost-effectiveness. Here are the most common materials used in FDM prototyping:
PLA (Polylactic Acid)
PLA is one of the most widely used materials in FDM due to its ease of use, low cost, and eco-friendly properties. Made from renewable resources like corn starch or sugarcane, PLA is biodegradable and offers a smooth surface finish, making it ideal for visual prototypes, educational models, and consumer product designs. However, it is less durable than other materials, making it less suitable for functional prototypes undergoing significant mechanical stress.
ABS (Acrylonitrile Butadiene Styrene)
ABS is a strong and durable plastic commonly used in automotive, electronics, and consumer goods. It offers excellent impact resistance and high-temperature tolerance and is easily machinable. ABS is great for functional prototypes requiring mechanical strength and heat resistance. However, it is prone to warping during printing and can emit unpleasant fumes, requiring good ventilation.
PETG (Polyethylene Terephthalate Glycol)
PET is known for its strength, durability, and ease of use. It has better chemical resistance than ABS and is less likely to warp during printing. PETG is also transparent, making it ideal for prototypes that require visibility. This material is commonly used in durable jigs, fixtures, packaging components, and prototypes that must withstand mechanical stress.
Nylon (Polyamide)
Nylon (PA) is a versatile, tough material known for its excellent abrasion resistance, flexibility, and chemical resistance. It is often used for functional prototypes like gears, bearings, and other moving parts that must withstand wear and tear. Nylon’s impact resistance makes it ideal for prototypes subjected to harsh conditions or mechanical stress.
TPU (Thermoplastic Polyurethane)
TPU is a flexible material that offers elasticity and bendability, making it ideal for parts such as seals, gaskets, and flexible housings. TPU is durable, resistant to wear and tear, and highly flexible, making it suitable for prototypes of wearable devices, footwear, and other products requiring both flexibility and strength.
Composite Materials
FDM technology also supports composite filaments reinforced with carbon fiber, glass fiber, or metal powders. These materials enhance the strength, stiffness, and dimensional stability of parts, making them ideal for applications in the automotive and aerospace industries. Carbon fiber-reinforced filaments, in particular, offer a lightweight yet strong material suitable for prototypes requiring high-performance characteristics, such as those exposed to higher loads or harsh environmental conditions.
The choice of material for FDM 3D printing depends on the specific needs of the prototype, such as strength, flexibility, or resistance to wear.
Post-Processing of FDM Parts
Once an FDM prototype is printed, post-processing is typically required to achieve the desired surface finish, strength, and performance. Post-processing can include a variety of techniques, depending on the material used and the intended application of the part.
Cleaning and Removing Support Structures
During the FDM process, support structures are often printed to support overhangs and intricate details. These supports are typically made of the prototype's material and removed after printing. In some cases, they can be snapped off manually, while in others, dissolvable support materials are used, which dissolve in a specialized bath. Support removal ensures that the final part meets the required quality and is free from post-printing artifacts.
Surface Finishing Techniques
Many FDM parts require surface finishing to improve their appearance or functionality. Standard techniques include sanding, polishing, and smoothing to reduce layer lines or rough textures left by the printing process. These methods also improve the overall aesthetic of the prototype, making it more presentable for demonstrations or presentations. Surface finishing ensures a smooth, high-quality surface, essential for applications where aesthetics and performance matter.
Chemical Smoothing
A chemical smoothing process using solvents like acetone can be employed for ABS parts to create a smooth, glossy finish. This process reduces the visible layer lines and gives the part a more professional appearance. However, this method should be handled carefully due to the potential health risks associated with the solvents. Heat treatment can also be employed for FDM parts to enhance the material more robustly.
Painting and Coating
Painting or coating is often necessary if the prototype requires a specific color, texture, or additional protection. Coatings such as UV-resistant layers can protect the part from degradation over time, especially in outdoor or high-temperature environments. Thermal barrier coatings can be applied to ensure the part’s durability and resistance to environmental factors.
Thermal or Mechanical Post-Treatment
Additional thermal or mechanical treatments can enhance the material's properties depending on the material and the application. For example, heat treatment can help relieve internal stresses in the part and improve its strength and dimensional accuracy. Superalloy CNC machining can also achieve tight tolerances and refine the final product’s features.
Testing and Quality Control in FDM Prototyping
Quality control is a critical step in prototyping, ensuring that the parts meet the required specifications and function as intended. Various testing methods can be used to evaluate the accuracy and durability of FDM parts.
Dimensional Accuracy and Precision Testing
Dimensional accuracy is one of the most critical factors in 3D printing. Parts must adhere to the design specifications with minimal deviation. Coordinate Measuring Machines (CMM) Checking or optical measurement systems can be used to check the dimensions of the printed parts to ensure they meet the required tolerances. This step ensures that parts conform precisely to CAD models.
Mechanical Property Testing
Depending on the material used, mechanical testing such as tensile strength, impact resistance, and fatigue testing may be necessary to ensure that the part will perform under real-world conditions. These tests provide insights into how the material will behave when subjected to stress or load, which is crucial for functional prototypes. Tensile testing is particularly valuable for determining the strength and ductility of the material.
Visual Inspection for Defects
Visual inspection is used to identify any issues with the appearance of the part, such as warping, cracks, or layer misalignment. This can be done manually or with the help of high-resolution cameras or scanners. Stereo Microscope Checking can also be used for detailed surface inspections to detect fine-scale defects in FDM parts.
Functional Testing
In many cases, prototypes are tested for their intended use, especially if they are meant to simulate real-world performance. This might involve testing a moving part, evaluating the prototype’s fit within an assembly, or using it in a specific environment to check for compatibility. Finite Element Analysis (FEA) often supports functional testing to predict how the part will behave under various real-world conditions.
Industry Applications of FDM for Plastic Prototyping
FDM (Fused Deposition Modeling) is utilized across many industries for rapid prototyping, enabling engineers and designers to quickly validate their concepts, test functionality, and explore design variations before moving to production. Some of the key industries and applications for FDM prototyping include:
Aerospace
FDM is widely used in the aerospace industry for prototyping parts such as airframe components, engine components, and test fixtures. The ability to quickly iterate designs and test prototypes in real-world conditions makes FDM an essential tool in the aerospace and aviation sector. This technology accelerates development and ensures that parts meet stringent quality standards.
Automotive
FDM creates custom parts, functional prototypes, and design iterations in the automotive industry. Prototypes such as dashboard components, engine parts, and interior features are frequently made using FDM technology to accelerate development. Automotive manufacturers leverage FDM to test designs quickly and reduce development timelines for vehicle components.
Consumer Electronics
Prototyping enclosures, cases, and other components for consumer electronics is one of the most common uses of FDM technology. Manufacturers use FDM to produce functional prototypes for rapid testing and refinement. The electronics sector benefits from FDM by enabling fast, iterative prototyping for smartphone cases, connectors, and housings.
Healthcare
FDM is increasingly used in healthcare to create custom medical devices, surgical instruments, and patient-specific models for pre-surgical planning or training purposes. In medical applications, FDM allows for rapidly creating highly customized devices that improve patient outcomes and streamline development.
Industrial Manufacturing
Jigs, fixtures, and tooling for manufacturing lines are often prototyped using FDM to improve productivity and reduce costs in the production process. The industrial manufacturing industry uses FDM to create precise tools for assembly, testing, and production, reducing lead times and increasing operational efficiency.
Education
FDM is widely used in academic settings, particularly in design and engineering programs, where students use it to prototype educational models, teaching aids, and design projects. In consumer goods, FDM allows students and educators to test concepts quickly, fostering creativity and innovation.
Consumer Goods
Designers in the consumer goods industry use FDM technology to prototype everything from household products to wearables, providing valuable insights into design, usability, and material selection before moving to full production. Consumer goods manufacturers utilize FDM for rapid iteration on product designs, reducing time and costs in the development phase.
