Benefits of a Contamination-Free Environment for Increasing Yield in Superalloy Casting

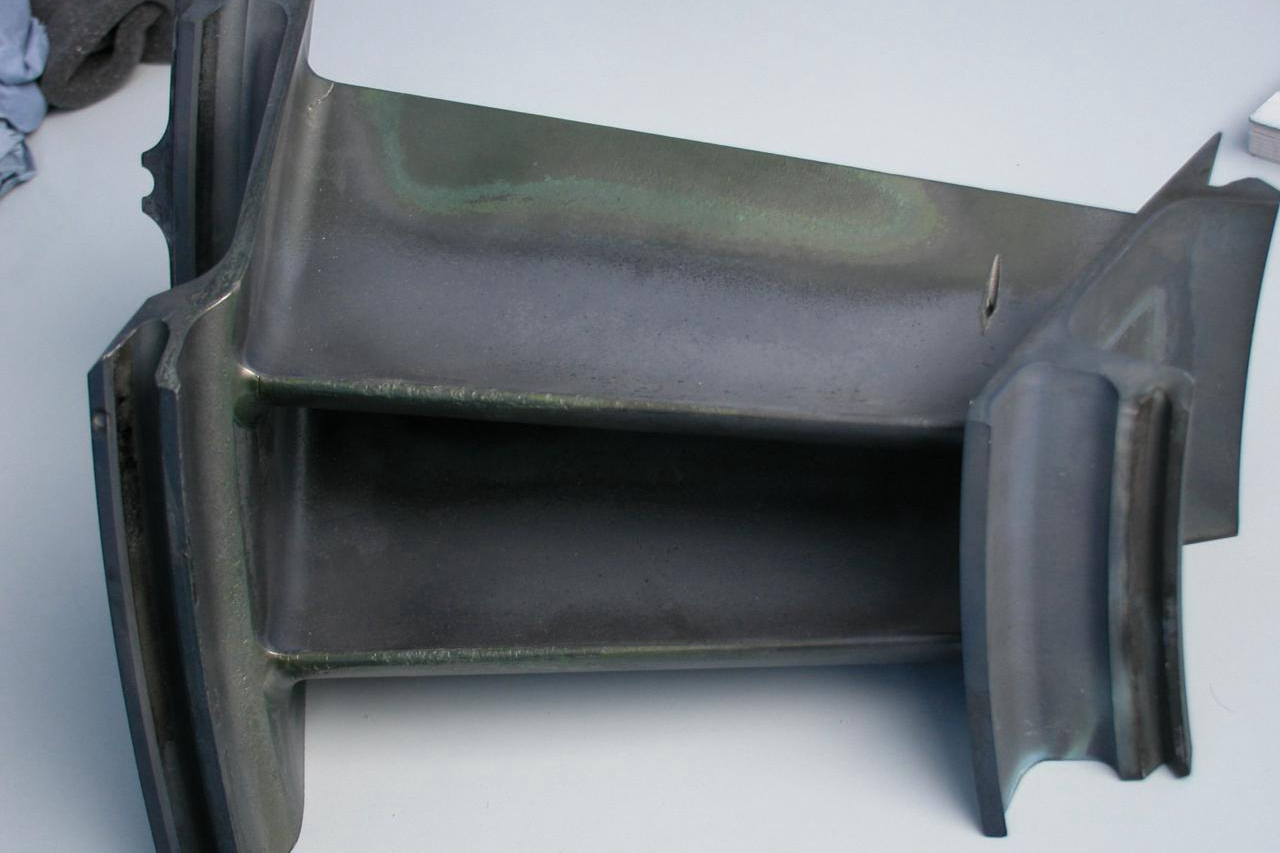

The performance of superalloy castings, especially in aerospace, power generation, and defense industries, heavily depends on the purity of the materials used in their production. Contaminants, even in trace amounts, can significantly affect the mechanical properties of superalloys, resulting in defects such as cracks, reduced fatigue resistance, and poor thermal stability. Ensuring a contamination-free environment during the superalloy casting process is critical for producing high-quality parts that meet stringent performance standards.
This blog explores the benefits of maintaining a contamination-free environment during superalloy casting, including the impact on manufacturing processes, alloy quality, post-processing, testing, and prototyping, ultimately contributing to increased yield and product reliability.
Manufacturing Process
At NewayAero, various advanced casting techniques produce high-performance superalloy components. These include Vacuum Investment Casting, Single Crystal Casting, Directional Casting, and Equiaxed Crystal Casting, all tailored to ensure minimal contamination throughout manufacturing.
Vacuum Investment Casting is one of the most common methods used for superalloy parts, particularly for precision applications like turbine blades and other critical aerospace components. During this process, the alloy is melted in a vacuum, creating a controlled atmosphere that helps eliminate the presence of gases and impurities. This significantly reduces oxidation and contamination from the surrounding environment. The molten metal is then poured into a mold and treated to ensure a contamination-free casting environment. In such a controlled setting, the cast parts exhibit superior integrity, as impurities like oxygen, nitrogen, and sulfur are kept to a minimum, allowing the alloy’s natural properties to shine. Eliminating these contaminants for high-performance alloys like Inconel 718 or CMSX series ensures that the final product performs at its highest potential. The vacuum environment is essential for preventing defects such as oxidation and ensuring high material purity.
Similarly, Single Crystal Casting is crucial for producing superalloy components like turbine blades, which require a flawless, grain-free structure for enhanced mechanical properties under extreme thermal and mechanical stresses. This casting method encourages the growth of a single crystalline structure, which offers significantly better resistance to high-temperature creep and fatigue than polycrystalline structures. However, even slight contamination in the form of non-metallic inclusions can disrupt the formation of a single crystal, leading to weak spots and potential failure. In a contamination-free environment, the single crystal structure is more likely to form correctly, leading to a higher yield of quality parts. Electrostatic impurity removal during the casting process plays an essential role in maintaining the purity of the molten metal, ensuring a high-quality single-crystal structure.
Directional and Equiaxed Crystal Casting methods also play vital roles in producing superalloy parts with specific grain structures, optimizing strength and performance. These methods control the molten metal's cooling rate to influence the crystals' orientation and distribution in the alloy. Impurities present during the solidification process can cause irregularities in crystal growth, resulting in defects such as porosity or reduced tensile strength. Maintaining a contamination-free environment can optimize these casting techniques to produce parts with superior grain structure, ensuring high yield and mechanical reliability. Electrostatic cleaning further enhances this process by eliminating contaminants from the melt, ensuring that the final product meets the stringent performance requirements of aerospace and energy generation industries.
Typical Superalloys Used in High-Temperature Applications
Superalloys like Inconel, CMSX series, Monel, and Titanium-based alloys are commonly used in high-performance applications due to their exceptional strength, oxidation resistance, and ability to withstand extreme temperatures. These alloys, particularly those used in aerospace and power generation, are sensitive to contamination, which can significantly affect their performance.
Nickel-Based Alloys
Nickel-based alloys such as Inconel 718, Inconel 625, and Inconel 718C are widely used in turbine blades, combustion chambers, and other high-temperature components in gas turbines. These alloys exhibit excellent thermal resistance and strength, but even small amounts of oxygen, sulfur, or other contaminants during casting can degrade these properties. For example, sulfur can cause the formation of brittle phases that reduce ductility, while oxygen can lead to oxides that act as crack initiation sites. Maintaining a contamination-free environment during casting ensures the alloy maintains its desired strength, oxidation resistance, and overall performance under high heat.
Titanium Alloys
Titanium alloys, such as Ti-6Al-4V and Ti-6Al-2Sn-4Zr-6Mo, are used in aerospace, automotive, and medical applications due to their high strength-to-weight ratio and corrosion resistance. However, titanium is highly reactive with oxygen and nitrogen, and contamination can lead to embrittlement, weakening the alloy. A contamination-free environment during casting is crucial for ensuring the final titanium parts retain their desired properties, particularly in critical aerospace applications where part failure could have catastrophic consequences.
Cobalt-Based Alloys
Cobalt-based alloys, like Stellite 6B, are another category of superalloys used in applications where wear and corrosion resistance are critical, such as in marine environments, oil and gas, and chemical processing. Contamination can introduce impurities that alter cobalt alloys' phase composition and wear characteristics, reducing their effectiveness in these demanding applications. The purity of cobalt-based superalloys is critical for ensuring optimal performance, and a contamination-free casting environment helps preserve these properties.
Post-Processing Techniques for Defect Prevention
Once superalloy castings are produced, several post-processing techniques are employed to minimize defects and optimize the material properties. These techniques include Hot Isostatic Pressing (HIP), heat treatment, and precision machining.
Hot Isostatic Pressing (HIP) is a post-processing method that involves applying high pressure and temperature to the cast superalloy part in an inert gas environment. This process helps to eliminate any internal porosity or voids that may have formed during casting, increasing the material's density and improving its mechanical properties. HIP is handy for removing defects that may have been missed during the casting process, ensuring that the superalloy parts are free from any internal flaws that could affect their performance. This process is essential in aerospace and energy industries, where part integrity is critical.

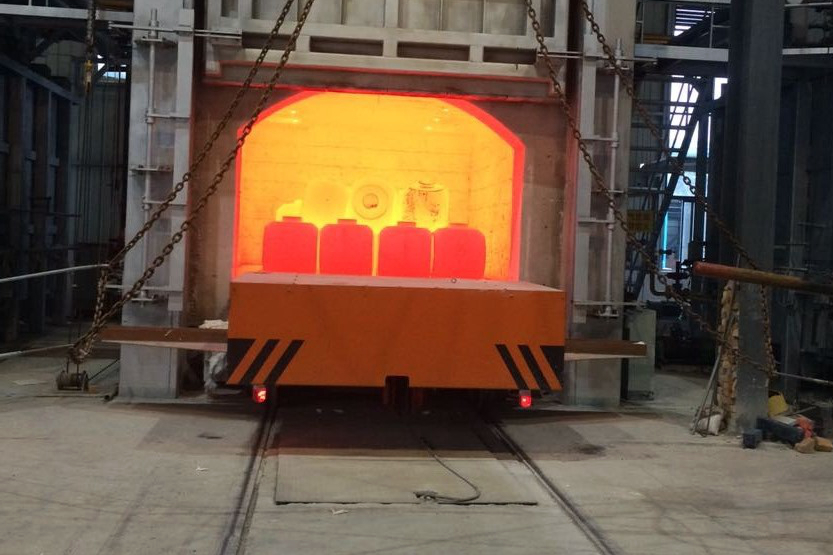

Heat treatment is another crucial post-process used to optimize the mechanical properties of superalloy parts. Heat treatment involves carefully controlled heating and cooling cycles that alter the material's microstructure to enhance its strength, toughness, and resistance to thermal fatigue. The heat treatment process can also help relieve stresses that may have built up during casting, reducing the risk of cracking or warping. This process is vital for ensuring long-term durability in high-temperature applications, such as turbine blades.
Precision machining, including CNC machining, is often used to achieve the desired geometry and surface finish for superalloy components. After casting, CNC machining removes any excess material and refines the part to meet the required specifications. This process is essential for ensuring that the superalloy part fits within tight tolerances and performs reliably in its intended application. CNC machining is crucial in complex geometries and precise dimensional accuracy applications.
Electrostatic impurity removal complements these post-processing techniques by ensuring the casting is free from impurities before further processing. By removing contaminants at the casting stage, electrostatic impurity removal reduces the likelihood of defects appearing during post-processing, making achieving a high-quality final product easier. This method is especially effective in reducing the introduction of foreign particles that can compromise the structural integrity of the final part.
Testing for Quality Assurance
Quality assurance is crucial in superalloy casting, especially for components used in high-stress, high-temperature applications. Various testing methods, including X-ray inspection, Metallographic Microscopy, Tensile Testing, and others, ensure that superalloy parts meet the required standards. However, contamination can significantly impact the reliability of testing results.
X-ray inspection commonly detects internal defects such as voids, cracks, or inclusions. Castings produced in a contamination-free environment are less likely to contain these internal defects, making X-ray inspection results more reliable. On the other hand, castings with higher levels of contamination may display irregularities that could be misinterpreted as defects, leading to unnecessary rework or scrapping of parts. This makes X-ray inspection an essential method for confirming the structural integrity of superalloy castings.
Metallographic microscopy is used to examine the microstructure of superalloy parts and identify any inclusions, phase imbalances, or other issues that could affect performance. Impurities present in the cast material can disrupt the alloy’s microstructure, leading to weak spots or poor material properties. A contamination-free casting ensures that the microstructure is uniform and consistent, resulting in better mechanical properties and fewer failures during testing. Metallographic microscopy is vital in assessing the material's consistency and the distribution of phases.
Tensile testing assesses the strength and flexibility of superalloy parts under stress. Castings produced in a contamination-free environment typically exhibit more predictable and reliable tensile testing results, as the absence of impurities ensures the alloy behaves as expected under stress. Contaminants can cause unexpected failures, such as premature cracking or reduced flexibility, which can be mitigated by maintaining a contamination-free casting process. Tensile testing provides critical insights into the material’s load-bearing capacity and behavior under stress.
By using these testing methods effectively, manufacturers can ensure that superalloy parts meet stringent requirements for safety and performance. Contaminant-free casting processes are key to achieving accurate and reliable test results, reducing the likelihood of defects and enhancing the overall quality of the final components.
