Automated Shell Building: Efficient Ceramic Coating for Superalloy Casting Molds
In the precision investment casting of superalloys, the quality of the mold directly impacts the quality of the final cast part. Creating a high-quality mold requires multiple steps, one of the most crucial being the shell-building process. Traditionally, shell building was labor-intensive and depended heavily on the skill and experience of the operators. However, advances in automation have transformed this process, resulting in more consistent, reliable, and efficient casting outcomes.
This blog will explore the automated shell-building process, typical superalloys used, a comparison of manual versus automated post-processes, testing methods, and industry applications that benefit from this advanced technology.
Manufacturing Process
Investment casting is a highly detailed process for producing precision parts, especially when working with complex geometries or high-performance superalloys. One critical step in this process is the creation of a ceramic shell around a wax pattern. This shell becomes the mold that will receive the molten metal, so it must be strong enough to maintain its shape under extreme temperatures and pressures. The integrity and quality of this shell determine whether the final casting will meet its stringent requirements. Processes like automated shell building and advanced casting techniques are pivotal in achieving these requirements.
Automated shell building has revolutionized the ceramic coating process in investment casting by offering several clear advantages over traditional manual methods. The shell-building process involves dipping the wax pattern in a ceramic slurry, draining the excess, and then coating it with sand. These steps are repeated multiple times to build up a ceramic shell that is sufficiently thick and strong to withstand the casting process. A consistent coating throughout these layers is essential, as any variation can lead to defects in the final part. Innovations like precision wax pattern creation and dimensional control in investment casting ensure better consistency in each process stage.
Manual shell building relies heavily on the expertise of the operators, with variances in layer thickness and adhesion possible due to differences in technique and environmental conditions. Automated systems, however, control every aspect of the shell-building process, ensuring uniformity in each layer. This includes controlling the viscosity of the slurry, the dip time, and the environmental conditions during drying. Such precision guarantees that the shell has a consistent thickness, free from weak spots or imperfections that could compromise the quality of the casting. Technologies like automatic shell line processes and controlled ceramic coating techniques are vital for meeting such stringent demands.
Automated dipping, draining, and drying processes are key elements of automated shell building. These automated processes ensure that the wax patterns are uniformly dipped in the slurry, drained evenly, and dried under optimal conditions. A solid ceramic shell can reliably hold its shape when molten metal is poured into it. By maintaining strict control over every parameter, automated shell lines can produce ceramic molds with far fewer defects, resulting in better-quality castings with higher yields. Adopting automated wax press solutions and wax pattern recycling processes further enhances both quality and sustainability in production.
Another benefit of automation is the speed and scalability of the process. Automated shell-building lines can process multiple wax patterns simultaneously, significantly increasing production capacity. This increased efficiency is invaluable in industries that demand high throughput while maintaining quality, such as aerospace and power generation. Implementing automated operations in casting and boosting efficiency in superalloy production provides a critical competitive advantage for these demanding industries.
Typical Superalloys
Superalloys are materials designed to withstand extreme environments, making them well-suited for applications involving high temperatures, mechanical stress, and corrosive atmospheres. These alloys are commonly used in industries like aerospace, power generation, and defense, where the demands on materials are exceptionally high.
Some of the most frequently used superalloys in investment casting include nickel-based, cobalt-based, and iron-based alloys. Each has distinct properties that make it suitable for particular applications:
Nickel-Based Superalloys
Nickel-based superalloys such as Inconel, Rene alloys, and CMSX series are among the most widely used in high-performance environments. These materials offer excellent heat, corrosion, and mechanical stress resistance, making them ideal for applications like turbine blades and other jet engine components. The automated shell-building process helps to create a mold that perfectly replicates the intricate features of these complex parts, ensuring dimensional accuracy and structural integrity.
Cobalt-Based Superalloys
Alloys like Stellite are commonly used for their exceptional wear resistance and ability to maintain mechanical strength at elevated temperatures. These materials are often used in components exposed to high wear, such as valve seats in gas turbines. Precision in shell building is essential with cobalt-based superalloys, as any inconsistency in the mold can lead to wear defects that reduce the component's life.
Iron-Based Superalloys
Iron-based alloys like Nimonic are often used in applications where heat resistance and cost-effectiveness are needed. They are typically utilized in industrial and energy sectors for components like heat exchangers and exhaust systems. Uniform ceramic shell coatings ensure these components have the structural properties necessary to perform well in demanding environments.
Role of Automated Shell Building
Automated shell building plays a key role in ensuring that these superalloys are cast to the highest standards. The ability to create defect-free ceramic molds is crucial for maintaining the mechanical properties of the final part, especially for materials used in safety-critical applications.
Post-Processes Comparison
Building the ceramic shell around the wax pattern can be done manually or using an automated shell line. Each approach has distinct differences, particularly in efficiency, consistency, and the potential for defects. Post-processing is significant in improving the quality of final castings as it ensures that the component meets all necessary performance criteria and quality standards.
Manual shell building requires skilled operators to dip each wax pattern into the ceramic slurry and then apply a layer of sand. This process is repeated multiple times until the shell is thick enough to withstand the molten metal. The challenges associated with manual shell building include inconsistencies in the thickness of the shell, variations in drying time, and environmental factors that can affect adhesion between layers. These inconsistencies often result in shell cracking, weak spots, or other defects that can compromise the quality of the final casting. Post-processing methods such as Hot Isostatic Pressing (HIP) are essential to address these inconsistencies by eliminating internal voids and increasing the component's overall strength.
In contrast, automated shell lines are designed to eliminate these variabilities. The ceramic slurry is applied evenly, and the drying process is tightly controlled to ensure that each layer adheres perfectly. This consistency makes a much stronger shell-less likely to crack or fail during casting. Automation also reduces the labor required and shortens the time it takes to build each shell, increasing productivity and reducing costs. Techniques like thermal barrier coatings (TBC) further enhance the quality of castings by protecting the surface from high temperatures and oxidation.
Reducing rework and defect rates is another major advantage of automated shell building. Manual processes often result in shells with weak points, leading to casting defects such as porosity, shrinkage, or even catastrophic failure during the casting process. Automated shell building significantly minimizes these issues, leading to higher-quality castings and reduced waste. Furthermore, applying heat treatment after casting helps to refine the microstructure of superalloy components, enhancing their durability and mechanical performance.
Furthermore, automated systems can easily be scaled to accommodate higher production volumes. Increasing production without sacrificing quality is a significant advantage in industries where demand is growing. Precision CNC machining during the post-processing phase ensures that the final components adhere to the required dimensional tolerances even at high volumes, improving their overall performance and reliability.
Testing
Testing is critical to the investment casting process, particularly when casting high-performance superalloy components. Ensuring the quality of both the mold and the final casting requires various testing techniques to verify that the components meet the necessary specifications.
Testing for Ceramic Shell Quality
Testing for ceramic shell quality is the first step in the process. The shell must be uniform in thickness and free from cracks or other defects that could compromise its ability to hold molten metal. Techniques like visual inspection, laser thickness measurement, and stress testing are used to verify that the shell is of high quality before moving on to the casting phase. Automated shell building greatly enhances the reliability of these tests, as it produces shells with consistent quality and minimal defects.
Non-Destructive Testing (NDT)
After the casting is complete, non-destructive testing (NDT) methods are used to verify the integrity of the final part. X-ray and ultrasonic testing are commonly employed to detect internal defects, such as cracks, voids, or inclusions, which could compromise the part's strength. Automated shell building helps reduce the likelihood of these defects by creating shells free from inconsistencies and weak points.
Mechanical Testing
In addition to NDT, mechanical tests like tensile testing, fatigue testing, and hardness testing are performed on superalloy castings to ensure they meet the mechanical requirements for their intended application. Automated shell building helps improve the pass rate for these tests by reducing casting defects and ensuring that the mold produces parts that meet tight tolerances and specifications.
Industry and Application
Industries that rely on high-quality superalloy castings benefit greatly from automated shell-building technology. This technology enhances the casting process's precision, repeatability, and overall quality, which is crucial in sectors like aerospace, power generation, defense, automotive, and chemical processing. The ability to produce components that can withstand extreme conditions ensures the reliability and longevity of these high-performance parts.
Aerospace and Aviation

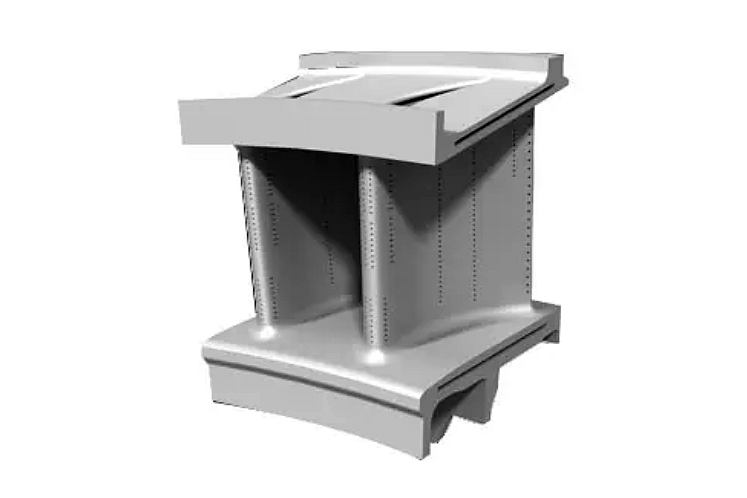

In the aerospace industry, precision investment casting is essential for producing turbine blades, nozzle guide vanes, and other jet engine components. These parts must endure high temperatures, extreme pressures, and mechanical stresses. Automated shell-building technology ensures that the molds used for casting are of the highest quality, resulting in superalloy jet engine components that perform reliably in demanding environments. Improving mold consistency minimizes casting defects, which are critical for ensuring performance and safety in aircraft operations.
Power Generation
The power generation sector also relies heavily on superalloy castings for components used in gas turbines, steam turbines, and heat exchangers. The efficiency and durability of these parts are directly related to the quality of the casting process. Automated shell building improves the consistency of the molds, resulting in components with superior mechanical properties and longer lifespans. This, in turn, enhances the overall efficiency of power generation systems, ensuring that parts like superalloy heat exchanger parts can withstand high temperatures and pressures while maintaining optimal performance.
Defense and Military
In the defense and military sectors, high-quality superalloy castings are required for critical applications such as missile components, armor systems, and propulsion units. These parts must operate in extreme conditions, including high temperatures, high pressures, and mechanical stress. Automated shell-building technology ensures that the molds for these components are produced with the precision necessary to meet the stringent durability and performance requirements. For instance, superalloy missile segments must be cast to exact specifications to ensure reliable performance in mission-critical scenarios.
Automotive
The automotive industry also benefits from automated shell-building technology, particularly in producing turbochargers, exhaust systems, and other high-performance engine components. Components made from superalloys are essential for improving engine efficiency and durability, especially in high-performance or military-grade vehicles. Automated shell-building technology ensures that these parts are produced with high precision and consistency, contributing to the overall reliability and performance of engines. For example, superalloy exhaust system parts benefit from this technology by ensuring they can withstand high temperatures and mechanical stresses in demanding automotive environments.
Marine and Chemical Processing
Superalloys are also crucial in marine and chemical processing applications, where components must resist corrosion and maintain mechanical strength under extreme conditions. In the marine industry, superalloy castings are used in turbines, propellers, and other critical components that must endure harsh ocean environments. Similarly, in chemical processing, superalloys are used in reactors, pumps, and valves, which must resist high temperatures and corrosive chemicals. Automated shell-building technology ensures that these components are produced with the necessary durability and precision to perform safely and efficiently, whether in superalloy reactor vessel components or marine turbines.
The precision and consistency offered by automated shell-building technology help industries that rely on superalloy castings meet the rigorous standards required for high-performance, mission-critical components. This technology is pivotal in producing parts that deliver optimal performance under extreme conditions, whether for aerospace, power generation, defense, automotive, or chemical processing.
