Anisotropic Material Modeling for Improved Blade Design
Anisotropic Material Modeling for Improved Blade Design

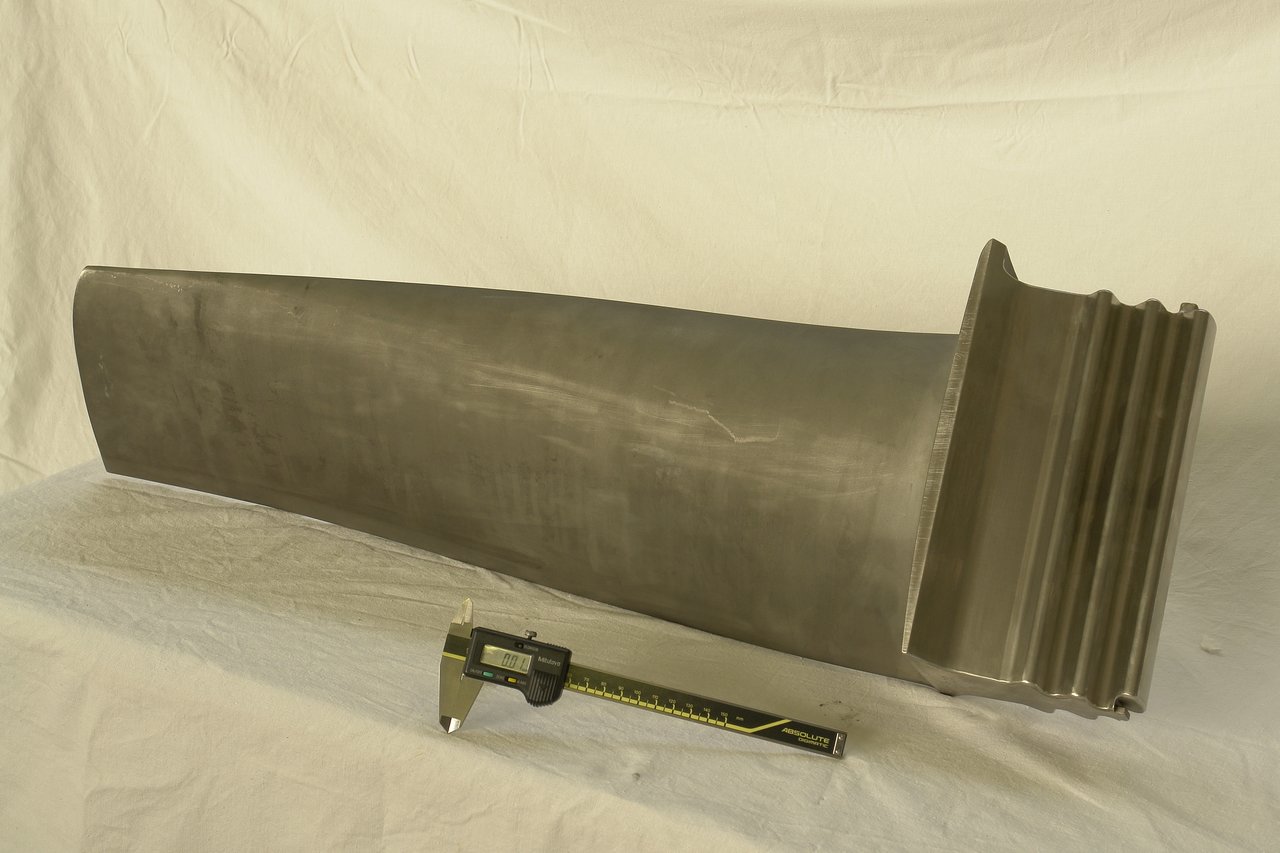

Turbine blades are critical in high-performance systems like jet engines, power generation turbines, and military propulsion systems. These blades are subjected to extreme mechanical and thermal stresses, making their design and material choice vital for reliability and performance. One of the critical factors in turbine blade performance is the anisotropic behavior of the materials used in their construction. Anisotropic materials have directional properties, meaning their behavior under stress and temperature varies depending on the direction in which the force or heat is applied.
In the case of turbine blades, single-crystal superalloys are frequently used because of their excellent performance in high-stress and high-temperature environments. However, to optimize their design and functionality, it's crucial to understand and predict how these materials behave under real-world operating conditions. Anisotropic material modeling is the tool that helps engineers simulate, design, and validate turbine blades with superior properties, enhancing their resistance to thermal and mechanical fatigue.
Anisotropic Behavior in Turbine Blades
Anisotropy in materials refers to the variation in their properties depending on the direction in which they are tested. The material might exhibit different mechanical strengths, thermal conductivities, and resistance to deformation in different directions for turbine blades. In the case of single-crystal superalloys, the crystallographic structure plays a significant role in creating this anisotropy.
As the name implies, single-crystal turbine blades are made from a single, continuous crystal structure. The crystal’s alignment and growth direction are controlled during the casting process, and this directionality influences the material’s properties. For example, in a single crystal structure, the strength along the grain boundaries is often higher compared to polycrystalline materials because there are no grain boundaries to serve as sites for material failure. However, the material properties like fatigue resistance and creep behavior can vary depending on the orientation of the crystals.
Understanding and modeling this anisotropic behavior is essential for turbine blade design, as it allows engineers to predict how the blade will respond to real-world stresses such as thermal cycling and high centrifugal forces. It is especially important in applications like jet engines and power generation turbines, where turbine blades are subjected to rapidly changing temperature gradients and significant mechanical loads.
Casting Process for Single Crystal Blades
The process used to create turbine blades significantly impacts their material properties, particularly their anisotropic behavior. Single crystal casting is the method for producing high-performance turbine blades from superalloys. This process begins with mold formation, typically using a vacuum investment casting method. A ceramic shell is built around a wax pattern, which is melted away to leave a cavity for the molten metal.
Once the mold is prepared, molten metal, often a high-temperature superalloy like Inconel 718, Rene 41, or CMSX-10, is poured into the mold under controlled conditions. The critical part of the process is directional solidification, which controls the alignment of the crystals as the molten metal cools. The goal is to create a single, uninterrupted crystal structure that grows in the desired direction. This directional casting is crucial for achieving the anisotropic properties needed for high performance.
The single crystal casting process is delicate and must be controlled precisely to ensure the correct crystallographic orientation and avoid defects like misorientation, which can significantly affect the blade's performance. The orientation of the crystals, often along the axis of the turbine blade, contributes to its mechanical strength, fatigue resistance, and ability to withstand high thermal gradients without failure.
Suitable Superalloys for Anisotropic Material Behavior
The materials chosen for turbine blades play a central role in their performance. Superalloys are the material of choice because of their excellent resistance to high temperatures, oxidation, and thermal fatigue. Some of the most commonly used superalloys for single crystal casting include the CMSX Series, Rene Alloys, and Inconel Alloys.
CMSX Series
Alloys like CMSX-10 and CMSX-4 are widely used in turbine blade applications because of their excellent creep resistance and ability to maintain strength at high temperatures. These alloys are explicitly designed for single-crystal casting, and their anisotropic properties make them ideal for directional solidification processes. The alignment of their crystal structure during casting ensures enhanced mechanical performance, especially in the high-temperature environments found in turbine blades.
Rene Alloys
Superalloys like Rene 41, Rene 65, and Rene 108 are known for their outstanding high-temperature strength and oxidation resistance. These alloys are used in critical turbine blade applications with expected extreme thermal conditions and mechanical loads. The unique properties of these alloys, combined with single crystal casting, allow for superior resistance to thermal fatigue and creep, which is essential for long-lasting turbine blade performance.
Inconel Alloys
Inconel 718, Inconel X-750, and other Inconel alloys are frequently used in turbine blades for jet engines and power plants. These alloys exhibit excellent strength at high temperatures and resist oxidation and corrosion, making them suitable for high-stress, high-temperature environments. Inconel 718 is especially notable for its ability to withstand extreme thermal gradients, making it an ideal choice for high-performance turbine blades in aerospace and power generation applications.
Post-Processing Techniques for Enhancing Anisotropic Properties
Once the single crystal blades are cast, they undergo post-processing treatments to enhance their mechanical properties and optimize their anisotropic behavior. These post-processing techniques include heat treatment, hot isostatic pressing (HIP), and the application of thermal barrier coatings (TBC).
Heat Treatment: Heat treatment plays a critical role in refining the microstructure of turbine blades, enhancing their mechanical properties. For example, aging treatments precipitate fine particles within the alloy, improving its strength. Heat treatment can also help reduce the residual stresses introduced during the casting process, ensuring the anisotropic behavior is consistent across the blade.
Hot Isostatic Pressing (HIP): Hot Isostatic Pressing (HIP) is used to reduce internal porosity and improve the overall homogeneity of the material. In turbine blades, this is crucial for ensuring that no internal defects could lead to failure under the extreme stresses that blades experience during operation. HIP also helps improve the uniformity of the anisotropic material properties, ensuring the blades perform consistently.
Thermal Barrier Coatings (TBC): Thermal Barrier Coatings (TBC) are applied to the surface of the turbine blades to protect them from extreme temperatures. These coatings are typically made from ceramics and provide an insulating layer that helps reduce the thermal load on the blade. TBCs can also reduce the thermal gradients within the blade, enhancing its overall performance and lifespan.
By applying these advanced post-processing techniques, manufacturers can significantly enhance the anisotropic properties of turbine blades, ensuring they meet the demanding requirements of high-performance applications.
Simulation and Modeling of Anisotropic Materials
Simulation is invaluable for understanding how anisotropic materials behave under various loading conditions. Finite Element Analysis (FEA) and Computational Fluid Dynamics (CFD) are widely used in designing and testing turbine blades. These simulation tools allow engineers to model the material’s response to thermal and mechanical stresses, predicting the blade's performance and lifespan before physical testing.
FEA helps assess how the material's anisotropic properties affect the overall stress distribution and potential failure points in the turbine blade. Simulation models can also be used to predict how the blade will respond to thermal cycling, centrifugal forces, and high-pressure conditions, allowing for the optimization of blade geometry and material selection. For more information on finite element analysis in superalloy castings, this method helps identify critical stress points.
Testing and Validation of Anisotropic Behavior
The final stage of turbine blade design involves validating the material properties through various testing methods. Mechanical testing, such as tensile, creep, and fatigue, is essential for understanding how the blade will perform under operational conditions. These tests simulate the thermal and mechanical stresses the blade will face during its service life.
Additionally, microstructural analysis through tools like Scanning Electron Microscopy (SEM) and X-ray Diffraction provides insights into the material’s microstructure and helps validate the anisotropic properties. Techniques such as electron backscattering diffraction (EBSD) study the crystallographic orientation and ensure that the grain structure aligns as expected for optimal performance.
Industry Applications of Anisotropic Material Modeling in Blade Design
Anisotropic material modeling has vast applications in industries that rely on high-performance turbine blades. In the aerospace and aviation industries, turbine blades are subjected to high mechanical stresses and thermal cycling, where anisotropic material modeling can help optimize performance and increase the service life of engine components. The advanced materials and manufacturing techniques used in turbine blades, such as those found in jet engine components, are designed to withstand these harsh conditions.
In power generation, turbine blades made from superalloys like CMSX-10 and Inconel 718 are used in gas turbines, where their ability to withstand high thermal and mechanical stresses directly impacts plant efficiency and reliability. For instance, superalloy heat exchanger parts and fuel system modules can benefit from anisotropic modeling to enhance durability and performance under extreme operating conditions.
Similarly, military applications, including jet engines and naval propulsion systems, benefit from blades with superior anisotropic properties that ensure reliability under extreme operating conditions. Components like superalloy armor system parts and turbine blades used in military engines are critical for ensuring mission success and resilience.
