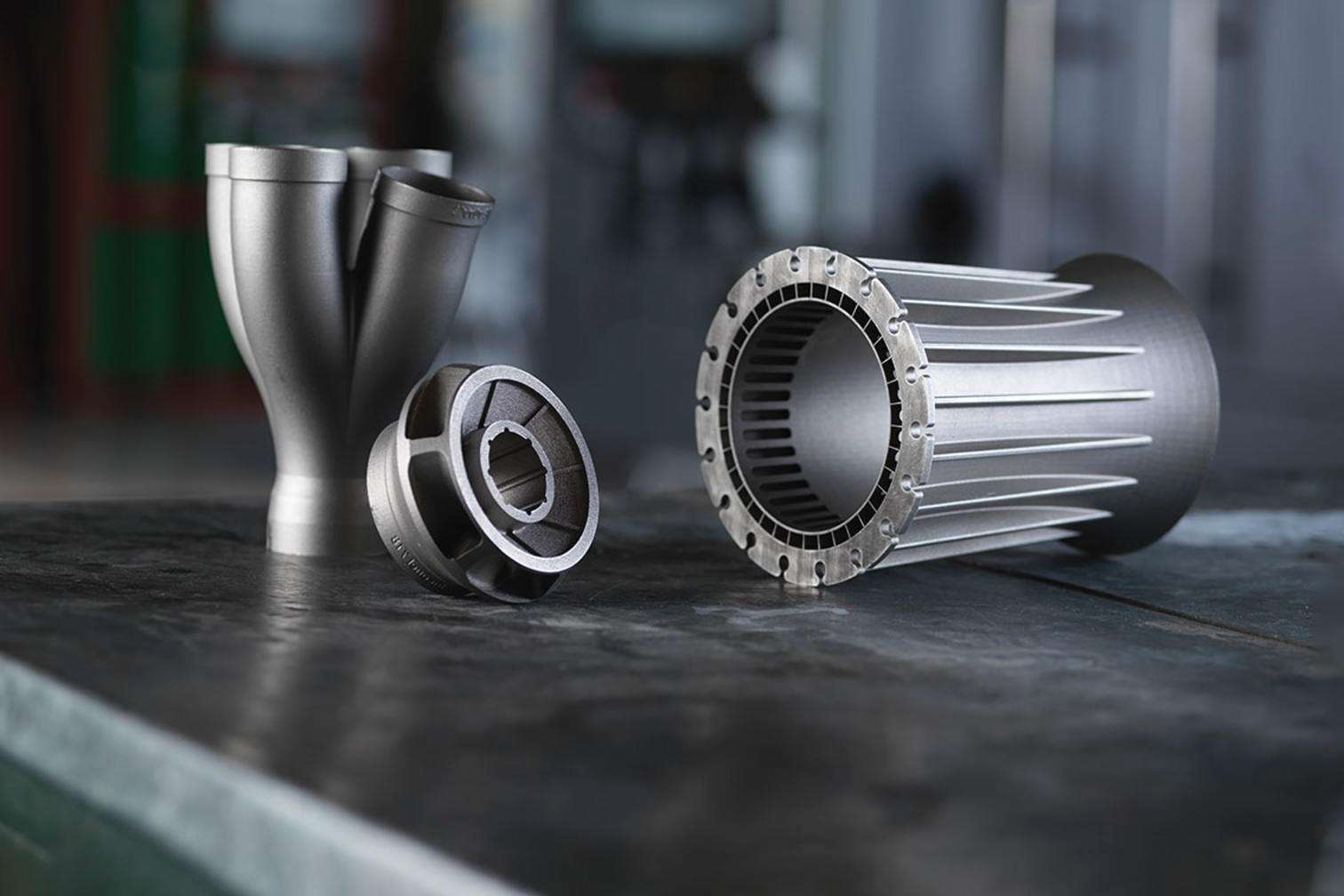

Advantages of SLM 3D Printing for High-Temperature Alloy Parts
Selective Laser Melting (SLM) is an advanced additive manufacturing technology that has transformed the production of high-temperature alloy parts. This technique uses a laser to melt and fuse metallic powders into precise, complex geometries, layer by layer. SLM 3D printing has become particularly valuable in industries where high-performance materials are needed for extreme environments, such as aerospace, power generation, and chemical processing. This blog explores the SLM process, suitable materials like Inconel, Monel, Hastelloy, and Titanium alloys, the post-processing methods used to enhance the quality of printed parts, testing techniques, and critical applications across different industries.
SLM 3D Printing Process for High-Temperature Alloys
The SLM 3D printing process begins with preparing the metallic powder spread across a powder bed. A high-powered laser then selectively melts the powder, fusing it to the layer below. The process is repeated layer by layer, each fused to the previous one as the build progresses. SLM allows for the creation of intricate, highly detailed parts with superior dimensional accuracy, something traditional manufacturing methods cannot quickly achieve. It is ideal for high-performance alloys like Inconel and CMSX, which are often used in aerospace and energy applications.
One of the significant advantages of SLM is its precision. With the ability to create parts directly from digital models, complex geometries such as internal channels, cooling features, and lattice structures can be designed and manufactured without the need for additional tooling or assembly. This flexibility allows for creating parts that would be difficult, if not impossible, to produce using traditional casting techniques or machining processes. In particular, SLM produces high-temperature components such as turbine blades and combustion chambers, where intricate designs are crucial for performance.
SLM also enables control over the material properties, such as part density and mechanical strength, which can be optimized for specific applications. Parts printed using SLM have near-zero porosity, reducing the risk of internal defects and ensuring that the final component meets stringent requirements for strength, fatigue resistance, and durability. The ability to tailor the material properties during the build is essential for superalloy applications like Inconel 718 and Titanium alloys, which must withstand extreme environmental conditions, such as high temperatures and pressures.
Suitable Superalloy Materials for SLM
SLM (Selective Laser Melting) is compatible with a wide range of high-temperature alloys, each offering distinct properties that make them suitable for different industrial applications. Among the most commonly used materials for high-temperature alloy printing are Inconel, Monel, Hastelloy, and Titanium alloys.
Inconel Alloys
Inconel alloys, particularly those in the 700-series, such as Inconel 718 and Inconel 625, are widely used in aerospace, power generation, and other high-performance applications. These alloys are known for their exceptional resistance to oxidation and corrosion at elevated temperatures. Inconel 718, for example, is commonly used in turbine blades, turbine discs, and other components exposed to extreme thermal stresses. Inconel 625, with its superior weldability and resistance to seawater corrosion, is commonly used in marine and chemical processing industries.
The high strength, fatigue resistance, and excellent thermal stability of Inconel alloys make them ideal candidates for SLM 3D printing. Their ability to withstand temperatures exceeding 1000°C makes them invaluable in applications like jet engine components, heat exchangers, and exhaust system parts.
Monel Alloys
Monel alloys, such as Monel 400 and Monel K500, are primarily used for their excellent corrosion resistance, particularly in aggressive environments like marine and chemical processing. These alloys offer superior strength and resistance to pitting and stress corrosion cracking, making them ideal for parts exposed to harsh conditions such as seawater and acids.
In SLM, Monel alloys print components like pump parts, valves, and heat exchangers. SLM's precision and design flexibility allows for manufacturing complex geometries that can improve performance in such critical applications. For instance, internal flow channels and intricate cooling systems can be designed to optimize the performance of pump components under high-stress conditions.
Hastelloy Alloys
Hastelloy alloys, such as Hastelloy C-276 and Hastelloy X, are known for their outstanding resistance to corrosion and high-temperature strength. These superalloys perform well in environments subject to severe corrosive attacks, such as chemical processing and power generation. Hastelloy C-276, in particular, offers excellent resistance to pitting, stress corrosion cracking, and oxidation at high temperatures, making it ideal for reactors, heat exchangers, and other critical components in the chemical industry.
Hastelloy's high-strength properties and excellent thermal stability make it well-suited for SLM 3D printing. Parts manufactured from Hastelloy alloys are capable of withstanding the rigors of extreme temperatures and aggressive chemical environments, ensuring longevity and reliability in applications like gas turbines and reactors.
Titanium Alloys
Ti-6Al-4V titanium alloy is widely used in aerospace and medical applications due to its lightweight, high strength, and excellent oxidation resistance. Titanium alloys offer outstanding performance in high-temperature and low-temperature environments, making them ideal for jet engine components, aerospace structural components, and even medical implants.
The ability to print complex, lightweight structures with SLM has made Titanium alloys particularly desirable for aerospace applications, where reducing weight while maintaining strength is a critical design goal. Furthermore, the ability to print precise geometries such as internal cooling channels makes SLM an attractive option for parts like turbine blades, which require cooling at high operational temperatures.
Benefits of SLM for High-Temperature Alloy Parts
SLM 3D printing offers several critical advantages for manufacturing high-temperature alloy parts.
Complex Geometries and Design Flexibility
One of the standout benefits of SLM is its ability to create complex geometries that are not feasible with traditional manufacturing methods. With SLM, it is possible to design parts with intricate internal structures such as cooling channels, lattice frameworks, and conformal shapes that optimize thermal performance. This ability significantly reduces the need for additional machining or assembly steps and allows design innovation to improve part functionality.
For example, cooling channels within turbine blades can be designed in shapes and configurations that improve heat dissipation and performance without adding extra weight. It is a significant advantage in industries like aerospace, where even minor improvements in design can yield substantial gains in fuel efficiency and overall performance.
Material Efficiency and Waste Reduction
SLM is a material-efficient process because it only uses the exact amount of material required to build the part layer by layer. Unlike traditional subtractive manufacturing methods, which generate significant material waste through cutting, grinding, or casting, SLM uses a powder bed, and excess powder can often be recycled. SLM is a cost-effective option for high-value materials like Inconel, Hastelloy, and Titanium alloys, which are typically expensive.
Rapid Prototyping and Production Speed
SLM is also ideal for rapid prototyping. Since the process is digital, prototypes can be quickly developed, tested, and modified, allowing for shorter lead times than traditional manufacturing methods. It is especially beneficial in industries like aerospace, where prototyping and testing are critical stages of the product development cycle. Furthermore, SLM’s capability to produce low-volume, high-complexity parts makes it perfect for industries that require custom solutions, like automotive, medical, and defense.
Customization and Low-Volume Production
SLM enables the production of customized parts for low-volume manufacturing. In sectors such as aerospace and defense, where specialized parts are often required in limited quantities, SLM allows manufacturers to create tailored solutions without needing expensive molds or tooling. It also opens up the possibility for small-batch production, reducing inventory costs and enabling just-in-time manufacturing. Superalloy CNC machining is another solution that pairs well with SLM for post-processing and ensuring high precision in low-volume runs.
Post-Processing for SLM 3D Printed High-Temperature Alloys
While SLM produces high-quality parts with excellent mechanical properties, post-processing is often required to enhance part performance further. The most common post-processing techniques include:
Hot Isostatic Pressing (HIP)
Hot Isostatic Pressing (HIP) is used to eliminate internal porosity and enhance the overall density of printed parts. This process uses high pressure and temperature to improve the part's mechanical properties, making it more suitable for high-stress applications such as turbine discs and engine components. HIP is particularly beneficial for high-temperature alloys, ensuring they meet the necessary strength and durability requirements.
Heat Treatment
Heat treatment processes, including solutionizing, aging, and annealing, optimize the microstructure and improve the part's mechanical properties, such as strength, fatigue resistance, and toughness. It is essential for alloys like Inconel and Hastelloy, which must perform under extreme temperatures. Heat treatment ensures that the alloy reaches its peak performance in high-temperature environments.
Surface Finishing
Surface finishing techniques, including polishing, grinding, or coating, are applied to achieve the desired surface quality and functionality. For example, parts exposed to high temperatures and corrosive environments may require thermal barrier coatings (TBC) to improve oxidation resistance. These finishing techniques enhance the part’s durability and longevity in demanding applications.
Welding and Repair
SLM can also be combined with superalloy welding techniques to repair or join printed parts. It is beneficial in applications where parts are exposed to high-stress conditions and must be repaired or customized further. By using superalloy welding, manufacturers can extend the life of printed components and ensure they meet the required performance standards.
Testing and Quality Assurance
Rigorous testing is essential to ensure that SLM-produced parts meet the required specifications. Various methods assess material composition, mechanical properties, and structural integrity. These include:
Material Testing
Glow Discharge Mass Spectrometry (GDMS) and X-ray fluorescence are used to verify the material composition of high-temperature alloys to ensure that they meet the required standards for performance.
Mechanical Property Testing
Tensile testing, fatigue testing, and hardness testing are carried out to verify that parts can withstand operational stresses and high-temperature environments.
Microstructural Testing
Scanning Electron Microscopes (SEM) and Metallographic Microscopy are used to inspect the material's microstructure and identify defects such as porosity, cracks, or inclusions.
Non-Destructive Testing (NDT)
Techniques like X-ray testing, ultrasonic, and CT scanning are employed to detect any internal flaws in the part, ensuring its reliability and performance under real-world conditions.
FAQs
What are the key advantages of using SLM 3D printing for high-temperature alloy parts?
How does SLM compare to traditional manufacturing techniques in terms of material efficiency?
What are the most common high-temperature alloys used in SLM 3D printing?
How is post-processing used to improve the quality of SLM-printed high-temperature alloy parts?
What industries benefit the most from using SLM 3D printing for high-temperature alloy parts?
