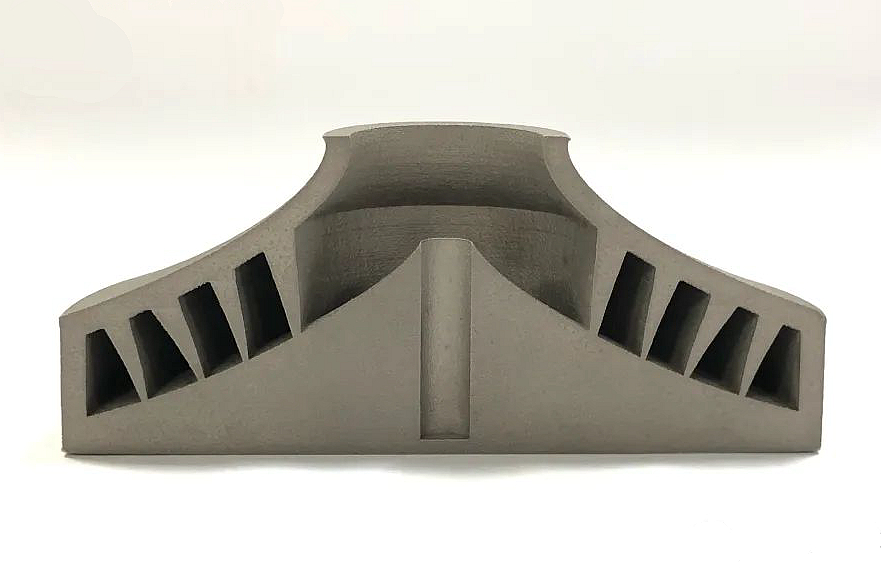

Advanced LENS Printing Capabilities for Titanium Alloy TA15
LENS (Laser Engineered Net Shaping) technology has revolutionized additive manufacturing by offering a flexible and efficient way to produce metal components directly from 3D CAD data. LENS enables the creation of complex, high-performance parts by using high-powered lasers to melt and deposit metal powders layer by layer. For industries where strength, durability, and resistance to extreme conditions are paramount, Titanium Alloy TA15 stands out as a precious material, especially when paired with LENS technology. TA15’s unique properties make it highly suitable for applications requiring exceptional strength, corrosion resistance, and thermal stability.
Materials Suitable for Advanced LENS Printing
Titanium Alloys
Among the materials compatible with LENS printing, Titanium alloys like TA15 are favored for their impressive balance of strength, lightweight, and corrosion resistance. TA15 is an alpha-beta alloy with added aluminum and tin, enhancing its stability at high temperatures and making it highly suitable for demanding applications. TA15 also exhibits excellent weldability and workability, which are essential properties for LENS processes where precision is critical. Compared to other titanium alloys, TA15 offers a superior combination of tensile strength and thermal stability, ideal for components exposed to cyclic loads and high temperatures.
Inconel
Another popular choice for LENS printing is Inconel, a family of nickel-chromium-based superalloys known for their outstanding heat resistance and ability to maintain mechanical integrity at high temperatures. Inconel 718 and Inconel 625 are frequently used in LENS processes for parts that demand high tensile strength, excellent weldability, and resistance to corrosion, particularly in harsh environments. Inconel alloys are commonly applied in aerospace, automotive, and power generation industries, where they perform well under extreme thermal and oxidative stresses.
Hastelloy
Hastelloy alloys are a group of high-performance nickel-molybdenum alloys with exceptional resistance to oxidation, corrosion, and stress corrosion cracking. Hastelloy’s resilience makes it a prime choice for chemical processing and environments that involve exposure to aggressive chemicals. The Hastelloy family, including grades like Hastelloy C-276 and Hastelloy X, is widely used in LENS applications where parts are subjected to high temperatures and corrosive conditions. These alloys’ exceptional stability and durability make them crucial for manufacturing components that require longevity in chemically intensive and high-stress environments.
Manufacturing Process of Titanium Alloy TA15 Using LENS Technology
The LENS printing process is a unique additive manufacturing method that uses laser energy to create highly complex structures from metal powders. For TA15, the process begins with the precise delivery of metal powder to the laser focal point, where it is melted and solidified layer by layer. This process allows manufacturers to build near-net shapes with high accuracy, saving time and reducing material waste compared to traditional subtractive methods.
The laser in LENS printing is directed onto the metal powder in a controlled environment, ensuring minimal oxidation and contamination. As the laser melts each layer, the molten material fuses and solidifies instantly, creating a dense, uniform structure with minimal internal defects. For TA15, this rapid solidification helps achieve a delicate, homogenous microstructure that enhances the alloy’s strength and fatigue resistance.
One of the main advantages of using LENS technology for TA15 is its flexibility in producing complex geometries and internal structures. LENS is handy for creating hollow structures, intricate lattice designs, and conformal cooling channels that would be challenging or impossible to achieve through traditional manufacturing. Additionally, TA15’s excellent weldability ensures strong inter-layer bonding, further enhancing the integrity of the final component.
Challenges exist in LENS printing with TA15, particularly in maintaining dimensional accuracy and controlling thermal distortions due to the alloy’s high thermal conductivity. Careful control of process parameters, such as laser power, scan speed, and powder feed rate, is essential to address these challenges. Temperature control throughout the process is critical to prevent warping or residual stresses, ensuring that each layer is accurately deposited without compromising the part’s overall dimensions or mechanical properties.
Post-Processing Techniques for LENS-Printed Titanium Alloy TA15
Heat Treatment
After the initial LENS printing, heat treatment is often necessary to enhance the mechanical properties of TA15. Heat treatment of TA15 typically involves annealing or aging to relieve internal stresses and improve strength, hardness, and fatigue resistance. The specific heat treatment cycle depends on the component's intended application and performance requirements. Manufacturers can achieve optimal grain structure and phase composition by carefully controlling temperature and duration, which is critical for high-performance parts.
Hot Isostatic Pressing (HIP)
Hot Isostatic Pressing (HIP) is a crucial post-processing technique for LENS-printed components, particularly for TA15 parts used in high-stress environments. HIP involves
subjecting the part to high pressures and elevated temperatures in an inert gas environment,
eliminating internal voids,
reducing porosity and
improving overall material density.
For TA15, HIP processing is particularly beneficial as it enhances the alloy’s fatigue resistance, making it suitable for applications in the aerospace and automotive industries.
Thermal Barrier Coating (TBC)
In cases where TA15 components are exposed to extreme temperatures, such as in aerospace applications, thermal barrier coatings (TBCs) are applied to increase their heat resistance further. TBCs are ceramic-based coatings that act as an insulating layer, reducing the temperature experienced by the underlying metal. For TA15, TBCs can significantly extend the lifespan of components exposed to intense thermal cycles, reducing oxidation and preventing thermal degradation.
Surface Finishing (Machining and Polishing)
After the LENS process, TA15 parts may require surface finishing to achieve the desired smoothness and dimensional accuracy. Machining and polishing are common post-processing steps to remove surface irregularities and achieve tight tolerances. It is essential for aerospace and defense applications where smooth surfaces reduce drag and improve aerodynamic performance. Additionally, polished surfaces improve corrosion resistance by minimizing surface defects where corrosion could initiate.
Testing and Quality Assurance of LENS-Printed Titanium Alloy TA15 Parts
Metallographic Microscopy and Microstructure Analysis
Metallographic microscopy is used to examine the microstructure of TA15 components to ensure that the LENS process has produced a uniform, defect-free structure. Microstructure analysis helps identify grain boundaries, phase distribution, and any signs of internal defects that could compromise performance. For TA15, achieving a homogenous microstructure is essential to meet industry standards for high-stress applications.
Tensile and Fatigue Testing
Tensile testing measures the strength and flexibility of TA15 components to ensure they meet specifications. Fatigue testing, however, evaluates the component’s ability to withstand cyclic loading without failure. Since TA15 is often used in environments with high mechanical stresses, these tests are crucial for validating the material’s suitability for aerospace, automotive, and power generation applications.
X-ray and Ultrasonic Testing
Non-destructive testing methods like X-ray and ultrasonic testing detect internal flaws such as porosity, cracks, or inclusions. These methods allow for thorough inspection without compromising the integrity of the TA15 part. In industries such as aerospace, where safety is paramount, non-destructive testing ensures that only flawless components are put into service.
Coordinate Measuring Machine (CMM) Testing
CMM testing provides high-precision measurements of the part’s dimensions, verifying that it conforms to design specifications. Accurate dimensional testing is essential for parts that require tight tolerances, such as those used in engines or structural applications. For TA15 parts, CMM testing ensures that each component meets exacting standards for fit and function.
Industries Benefiting from LENS-Printed Titanium Alloy TA15
Aerospace and Aviation
LENS-printed TA15 components are used in aerospace and aviation for lightweight structural components, jet engine parts, and exhaust systems. The alloy’s high strength-to-weight ratio and its corrosion resistance make it ideal for the extreme conditions encountered in flight. TA15’s high-temperature stability allows it to withstand the thermal stresses in jet engines and turbine applications, enhancing performance and fuel efficiency.
Automotive and Motorsports
In the automotive industry, particularly in high-performance motorsports, TA15 is used for components that must withstand high stresses and temperatures while keeping weight to a minimum. Components like engine parts, transmission assemblies, and suspension elements benefit from TA15’s strength, lightweight, and durability. LENS printing rapidly produces custom or small-batch parts, allowing for quicker design iterations and improvements.
Energy and Power Generation
In power generation, TA15’s resistance to oxidation and high temperatures makes it suitable for use in turbines, heat exchangers, and other equipment that operates under extreme conditions. The alloy’s stability at high temperatures and durability ensures that components can endure the thermal and mechanical stresses associated with energy production.
Medical Implants
Although TA15 is less commonly used in medical implants compared to other titanium alloys, its strength and corrosion resistance offer potential for surgical instruments and implantable devices. Titanium’s biocompatibility makes it a valuable choice for medical applications, though TA15’s specific applications remain more niche in this field.
Applications of LENS-Printed Titanium Alloy TA15
Structural and Load-Bearing Components
LENS-printed TA15 components are used in structural and load-bearing parts where weight reduction and strength are critical. Examples include aerospace brackets, beams, and support structures, which must endure high mechanical loads while maintaining a minimal weight.
Engine and Turbine Parts
TA15’s ability to withstand high temperatures and mechanical stresses makes it an ideal material for engine and turbine components. Engine components such as turbine blades, housings, and exhaust systems benefit from LENS technology, which enables the production of parts that can handle these applications' intense thermal and mechanical demands.
Specialized Military and Defense Equipment
TA15 is also used in military and defense applications, including armor plating, missile components, and other parts where lightweight strength and durability are crucial. The alloy’s resistance to corrosion and ability to perform under high-stress conditions make it suitable for demanding environments often encountered in defense applications.
Custom Prototypes and Complex Geometries
One of the main advantages of LENS technology is its ability to produce complex geometries and custom prototypes quickly and cost-effectively. For TA15, this capability is precious in research and development, allowing engineers to test various designs and configurations without the need for expensive tooling or molds. Complex lattice structures, conformal cooling channels, and internal cavities can all be easily created using LENS, pushing the boundaries of design possibilities.
