5 Benefits of Vacuum Induction Melting Furnace In Superalloy Parts Manufacturing
Vacuum Induction Melting (VIM) is a cutting-edge method for producing high-quality superalloy parts. It is commonly used in industries that demand exceptional strength, corrosion resistance, and durability from their materials, such as aerospace, power generation, and military applications. This blog will explore how the VIM furnace works, its benefits in superalloy parts manufacturing, the alloys suitable for the process, and the subsequent post-processing and testing necessary to ensure the highest quality standards.
Manufacturing Process of Vacuum Induction Melting Furnace
The vacuum induction melting process starts with carefully selecting raw materials for their desired properties in the final product. These materials are placed in a crucible inside the vacuum chamber of the VIM furnace. The chamber is then evacuated to create a vacuum environment, and the furnace's induction coil begins generating heat, which causes the metals to melt.
One of the main advantages of the vacuum environment is the reduction of oxidation during the melting process. Usually, metals like nickel, cobalt, and titanium are highly reactive at high temperatures and can easily oxidize when exposed to air. In the VIM furnace, the absence of air prevents this, allowing the metal to retain its purity and integrity. This is especially crucial for superalloy parts that demand high performance in extreme conditions.
The induction coil generates heat through electromagnetic induction, which causes the metal to heat up and melt. The temperature is carefully controlled, often reaching up to 1,600°C (2,912°F) or higher, depending on the alloy. The VIM furnace also allows for precise control over the alloy's composition. By adding specific elements or alloys to the molten metal, manufacturers can customize the material to meet the specifications required for a particular application, such as in vacuum investment casting.
Once the molten metal reaches the desired temperature and composition, it is poured into a mold or casting, ready for solidification. The result is a superalloy part with exceptional purity and uniformity, which forms the foundation for further processing and machining.
Superalloys Suitable for VIM Furnace
VIM furnaces are particularly effective for producing high-performance superalloys in demanding applications, such as turbine blades, heat exchangers, and reactor vessel components. The following superalloys are most commonly processed using VIM:
Nickel-based Superalloys
These alloys, such as jet engines and gas turbines, are widely used in high-temperature environments. Common examples include Inconel alloys, such as Inconel 718 and Inconel X-750, which offer excellent strength and oxidation resistance at elevated temperatures. Also, CMSX series alloys, designed for single-crystal turbine blade production, are widely processed in VIM furnaces.
Cobalt-based Alloys
Stellite alloys, known for their exceptional wear resistance and ability to withstand high temperatures, are commonly processed in VIM furnaces for applications requiring durability under extreme conditions.
Titanium-based Alloys
These alloys, such as Ti-6Al-4V, are known for their lightweight yet strong properties. They are used in applications requiring low weight and high strength, such as aerospace structural components and medical implants.
Other Superalloys
Rene alloys, and other high-performance alloys designed for specific applications, like turbine blades and other hot-end components in power generation and aerospace, are also suitable for VIM processing.
These superalloys are ideal for applications that demand strength, heat resistance, corrosion resistance, and durability. The VIM furnace’s ability to precisely control alloy composition ensures that these materials meet the stringent requirements for high-performance applications.
Post-processes in Superalloy Parts Manufacturing After VIM
Once superalloy parts are cast using the VIM process, they undergo several post-processing steps to enhance their properties further and ensure they meet the necessary standards for their specific application. These post-processes are crucial for achieving mechanical properties, surface finish, and dimensional accuracy.
Hot Isostatic Pressing (HIP)
Hot Isostatic Pressing (HIP) is a process used to eliminate any porosity or voids that may remain in the cast part. The part is placed in a high-pressure, high-temperature chamber, and isostatic pressure is applied evenly. This helps to remove internal defects and improve the material's overall density and integrity. HIP’s role is vital for ensuring the mechanical properties meet the high standards for turbine blades and aerospace components.
Heat Treatment
Heat treatment processes, such as solution annealing and aging, optimize the mechanical properties of superalloy parts. Heat treatment enhances properties like tensile strength, fatigue resistance, and creep resistance, which are crucial for components used in high-stress environments. Heat treatment ensures that superalloy parts can withstand the extreme conditions in aerospace and power generation applications, where strength and durability are paramount.
CNC Machining
Superalloy parts are often machined after casting and heat treatment using CNC machining to achieve precise dimensions and surface finishes. This is particularly important for parts used in aerospace or military applications, where precision is critical. CNC machining allows for tight tolerances and complex geometries, ensuring that every component performs to specification.
Superalloy Welding
Components may sometimes require welding to join parts or repair damaged sections. Superalloy welding techniques ensure that the welded areas retain the same high-performance properties as the original material. This is especially important for repairing turbine blades and other critical components exposed to extreme stresses, where weld integrity is key to maintaining reliability and performance.
Thermal Barrier Coating (TBC)
Thermal barrier coatings (TBC) are applied to superalloy parts to protect them from the extreme heat of high-temperature environments, such as those in jet engines and gas turbines. These coatings help extend the parts' life by reducing thermal fatigue and oxidation. TBC applications are crucial in ensuring that components can endure the thermal challenges they face in the harsh operating environments of aerospace and energy industries.
These post-processing steps are essential to producing superalloy parts that meet the stringent standards required for high-performance applications in aerospace, power generation, and defense industries.
Testing and Inspection of VIM-Manufactured Superalloy Parts
After manufacturing, superalloy parts undergo extensive testing and inspection to ensure they meet all required specifications. These tests evaluate the materials' chemical composition and mechanical properties to ensure they perform as expected in real-world applications.
Chemical Composition Testing: One of the first steps in the testing process is to verify the alloy’s composition. This is done using advanced techniques such as Glow Discharge Mass Spectrometry (GDMS) and Inductively Coupled Plasma Optical Emission Spectrometry (ICP-OES). These methods allow manufacturers to accurately measure the amounts of various elements in the alloy, ensuring that the final product meets the required standards. ICP-OES analysis is critical for ensuring the alloy's elemental composition aligns with specifications and ensures part reliability in extreme environments.
Mechanical Testing: Tensile testing, fatigue testing, and creep testing are commonly performed on superalloy parts to evaluate their strength and durability. Tensile testing measures a material's ability to withstand tension, while fatigue testing evaluates how well the material performs under cyclic loading conditions. Creep testing assesses the material’s ability to resist deformation under constant stress at high temperatures, which is critical for parts used in engines and turbines. Dynamic and static fatigue testing helps simulate real-world stresses to ensure parts remain durable under repeated loading conditions.
Non-destructive Testing (NDT): Techniques such as X-ray inspection, ultrasonic testing, and 3D scanning detect internal defects, such as porosity or cracks, that may not be visible on the surface. These methods ensure the parts are free from defects that could compromise their performance. Water immersion ultrasonic testing is particularly effective in detecting internal flaws without compromising the integrity of the material.
Microstructure Evaluation: Metallographic microscopy and Scanning Electron Microscopy (SEM) are used to examine the microstructure of the superalloy parts. These techniques provide detailed images of the alloy's grain structure and surface, allowing manufacturers to detect any irregularities or areas of concern that could affect the part's performance. SEM analysis is crucial in identifying microstructural defects, cracks, and other issues that may lead to fatigue or failure over time.
Industry and Application of Superalloy Parts Made Using VIM
Superalloy parts produced using the Vacuum Induction Melting (VIM) process are integral to industries where high-performance materials ensure safety, reliability, and efficiency in extreme environments. The VIM process provides precise control over alloy composition, enabling the production of superalloy components with exceptional material properties. Key industries and applications include:
Aerospace and Aviation

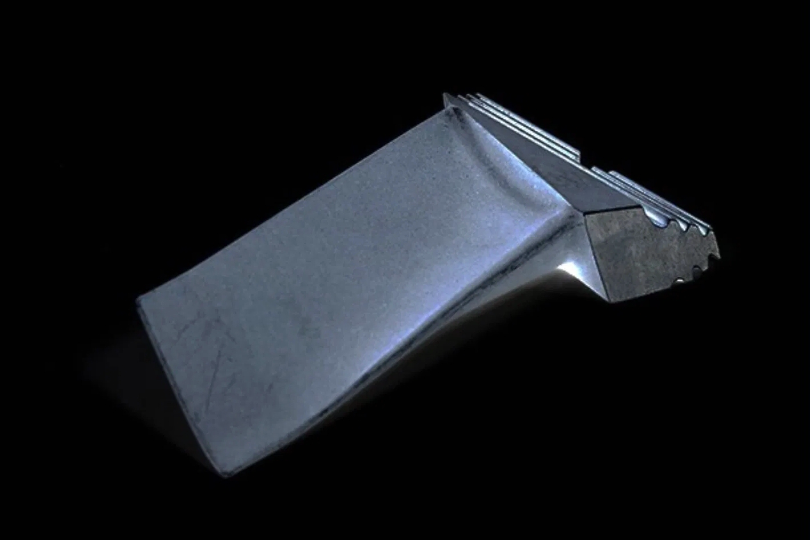

Superalloy turbine blades, jet engine components, and exhaust system parts are crucial in aerospace and aviation. These components must withstand extremely high temperatures and pressures while maintaining strength and resistance to fatigue. VIM-produced superalloy jet engine components ensure optimal performance under such demanding conditions, where material integrity is critical for both safety and efficiency.
Power Generation
Superalloy parts such as turbine discs, heat exchangers, and reactor vessel components are essential in power plants. These parts must endure high temperatures and corrosive environments while maintaining structural integrity and performance. The VIM process enables precise alloy composition control, ensuring that these critical components meet the demanding specifications for durability and efficiency in power generation systems.
Oil and Gas
In the oil and gas industry, superalloy parts are used in drilling equipment, pumps, and valves that must perform in harsh, high-pressure environments. The VIM process ensures these parts are free from defects and possess the strength and resistance necessary for high performance in extreme conditions. High-temperature alloy pump components produced using VIM are an example of how this technology improves the longevity and reliability of equipment in challenging oil and gas operations.
Military and Defense
Superalloy parts are used in missiles, armor systems, and firearm components, where strength, toughness, and reliability are paramount. The VIM process allows for precise control over alloy properties, producing materials that meet the rigorous demands of military applications. Superalloy armor system parts exemplify how VIM-produced components provide the toughness and heat resistance necessary for critical defense applications.
Marine
Superalloy parts such as naval ship modules and corrosion-resistant piping are essential in the marine industry. These components must withstand harsh, corrosive environments while maintaining structural integrity. The VIM process ensures the production of parts with excellent resistance to corrosion and thermal stability, which are essential for the durability and safety of superalloy naval ship modules and other marine applications.
