5 Benefits of Single Crystal Furnace In Single Crystal Alloy Castings Turbine Blades

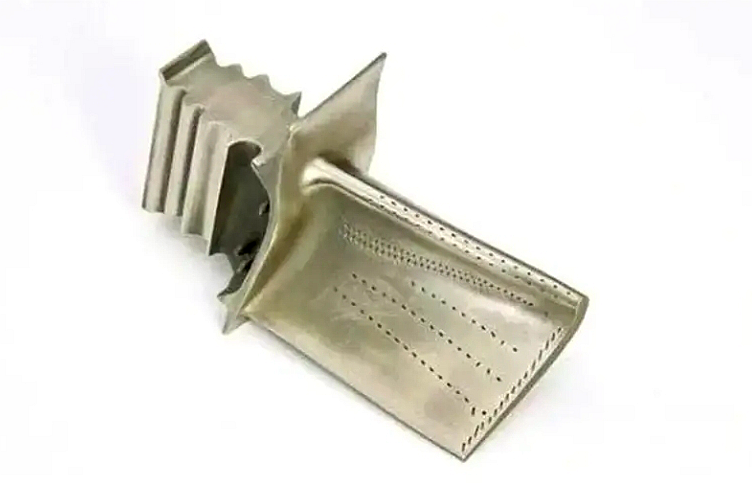

Single crystal turbine blades are essential in modern high-performance jet engines, gas turbines, and other power generation systems. These blades are crafted from specialized alloys that offer superior mechanical properties, particularly under extreme conditions. The manufacturing process of single crystal turbine blades, especially using a single crystal furnace, plays a crucial role in producing parts that can withstand the extreme temperatures and stresses encountered during operation.
In this blog, we’ll delve into the benefits of using a single crystal furnace in producing turbine blades, typical superalloys, post-processing techniques, testing methods, and prototyping.
The Manufacturing Process of Single Crystal Alloy Castings
Single crystal turbine blades are produced using the investment casting process, where a precise wax pattern of the blade is created, coated with a ceramic shell, and then the wax is melted away. The result is a hollow ceramic mold into which molten metal is poured. In the case of turbine blades, the process is particularly sophisticated because the blade must be solidified to form a continuous grain structure. Single crystal casting ensures that the final product meets the demanding requirements of high-temperature environments.
A key component of this process is the single-crystal furnace. The furnace controls the temperature, atmosphere, and cooling rate to ensure that the molten metal solidifies to produce a single, uninterrupted crystal structure. This is achieved by introducing a small seed crystal into the mold, which serves as the foundation for the crystal growth. The controlled environment of the furnace ensures that the crystal grows in a single direction, minimizing grain boundaries and optimizing the mechanical properties of the final blade. Seed crystal method is essential in maintaining this high level of precision during the casting process.
The furnace must maintain precise temperature control during the cooling process to ensure that the grain structure forms optimally. Directional solidification, a process where the metal cools from the blade's root to the tip, ensures that the grains grow in alignment with the stresses the turbine blade will face during operation. A single crystal furnace ensures the cast blade is free of defects such as porosity or cracks that could compromise its performance. Directional solidification is key to achieving the strength and durability required in critical aerospace components.
Typical Superalloys Used in Single Crystal Turbine Blades
The performance of turbine blades depends heavily on the materials used to produce them. The most common materials for single-crystal turbine blades are nickel-based superalloys. These alloys are chosen for their ability to withstand extreme temperatures, resist oxidation, and maintain strength over extended periods of operation. Some of the most popular nickel-based superalloys used in turbine blade production include:
Inconel 718
Known for its high strength, excellent fatigue and thermal-fatigue strength, and good weldability. This alloy is commonly used for turbine blades in power generation.
Inconel X-750
This alloy is a high-strength material resistant to high-temperature oxidation and corrosion, making it suitable for turbine blades in harsh operating environments.
CMSX-10
A single crystal superalloy designed explicitly for high-performance turbine blades. It offers superior thermal fatigue resistance and can operate at extremely high temperatures.
Rene 41
Known for its exceptional strength and creep resistance at high temperatures, this alloy is used in critical aerospace applications.
These superalloys are designed to operate in environments where temperatures can exceed 1,000°C, and they must maintain their strength and structural integrity under intense mechanical stresses. The development of new superalloys continues as the demand for more efficient and durable turbine engines grows.
Post-Processing Comparison: Heat Treatment, HIP, and TBC
After the turbine blade is cast using the single crystal furnace, it typically undergoes several post-processing steps to enhance its performance further. Each of these post-processing techniques plays a specific role in improving the material properties of the blade. Processes such as Hot Isostatic Pressing (HIP) and thermal barrier coatings help to improve the overall reliability and performance of turbine blades in high-stress environments.
Heat Treatment
Heat treatment is crucial for optimizing the mechanical properties of the turbine blade. This process involves heating the blade to a specific temperature and then cooling it in a controlled manner. Heat treatment can improve the alloy's strength, flexibility, and fatigue resistance, all critical properties for turbine blades. The heat treatment process also refines the microstructure, helping to achieve the desired mechanical properties like tensile strength, toughness, and creep resistance. Heat treatment plays a key role in boosting performance by modifying the material's microstructure for improved high-temperature durability.
Hot Isostatic Pressing (HIP)
HIP is a post-processing method to eliminate internal porosity and ensure the material's integrity. During this process, the turbine blade is placed under high pressure and heated in an inert gas atmosphere, typically argon. This process helps to consolidate the material and eliminate any defects that may have formed during casting. HIP ensures that the final product is free from internal voids that could cause catastrophic failures in service. HIP significantly eliminates gas porosity, improves strength, and ensures dimensional stability.
Thermal Barrier Coatings (TBC)
After casting and heat treatment, turbine blades are often coated with a thermal barrier coating (TBC). These ceramic-based coatings are applied to the blade’s surface to protect it from extreme temperatures during operation. TBCs act as insulation, reducing the heat that reaches the blade and prolonging its service life. This is particularly important in modern engines, where temperatures inside the combustion chamber can exceed the material’s melting point without the protection of a TBC. Applying thermal barrier coatings improves the durability and efficiency of turbine blades by enhancing heat resistance and reducing thermal fatigue.
The comparison between these post-processing methods is essential as each step serves a different purpose in optimizing the performance of the turbine blade. Heat treatment refines the microstructure, HIP ensures material integrity, and TBC provides additional protection against extreme temperatures, all contributing to the blade’s longevity and reliability in demanding aerospace and energy applications.
Testing of Single Crystal Turbine Blades
Given the critical role of turbine blades in aerospace, power generation, and military applications, each blade must undergo rigorous testing to ensure it meets performance standards.
Non-Destructive Testing (NDT)
The first step in testing turbine blades is non-destructive testing (NDT). X-ray inspection, ultrasonic testing, and industrial CT scans are commonly used to check for internal defects, cracks, and porosity that may have formed during the casting process. These techniques ensure that the part meets safety and performance standards before being put into service.
Scanning Electron Microscopy (SEM) and Electron Backscatter Diffraction (EBSD)
SEM is used to examine the surface and microstructure of the blade at a very high magnification. This allows engineers to identify grain boundaries, phase structures, and potential areas of weakness in the material. EBSD provides even further insights into the orientation and crystallography of the material, allowing for the assessment of the single crystal structure.
Tensile Testing
Tensile testing is a critical part of the mechanical testing process. This test measures the material's ability to withstand stretching or pulling forces without breaking. The tensile strength of the superalloy is an important factor in determining the blade’s ability to perform under high-stress conditions, such as those experienced during jet engine operation.
Fatigue Testing
Fatigue testing involves subjecting the turbine blade to repeated loading and unloading cycles to simulate the stresses it will experience over its service life. This test helps to assess how well the blade can withstand long-term stress and thermal cycling without developing cracks or other failures.
These testing methods ensure that each turbine blade is of the highest quality and can operate safely and effectively in its intended application.
Prototyping Process: Superalloy CNC Machining and 3D Printing
Once a turbine blade has passed the casting and post-processing stages, it often requires fine-tuning to ensure it meets precise dimensional requirements. Two key prototyping processes are used: CNC machining and 3D printing.
Superalloy CNC Machining
After casting, turbine blades are often machined to exact specifications using CNC (Computer Numerical Control) machining. CNC machines are capable of exact cutting, drilling, and grinding, ensuring that the final part matches the exact design specifications. This process is particularly useful for producing fine details, such as cooling channels or intricate geometries, which are common in turbine blades. Superalloy CNC machining is especially important for achieving high dimensional accuracy and surface finish, both of which are critical for aerospace applications.
Superalloy 3D Printing
3D printing or additive manufacturing is increasingly being used to prototype turbine blades, especially in aerospace applications. 3D printing allows for creating highly complex shapes that would be difficult, if not impossible, to achieve using traditional manufacturing methods. It also offers the advantage of rapid prototyping, allowing designers to quickly iterate on their designs before moving to full-scale production. Superalloy 3D printing provides flexibility in design and faster development cycles, making it an ideal choice for projects requiring quick iterations.
Both CNC machining and 3D printing have their unique advantages. CNC machining provides highly accurate parts with excellent surface finishes, while 3D printing allows for greater design flexibility and faster production times. The choice between these two methods depends on the turbine blade's specific requirements and the production stage.
Industry and Application of Single Crystal Alloy Turbine Blades
Single crystal turbine blades are critical components in industries where high performance, safety, and reliability are essential. These blades offer superior strength and durability in extreme temperatures and mechanical stresses. Key industries and their applications include:
Aerospace and Aviation
In the aerospace and aviation industry, turbine blades are among the most demanding components. Single crystal turbine blades are essential for jet engines due to their high-temperature resistance, fatigue strength, and structural integrity. These properties are crucial for ensuring the efficiency and safety of commercial and military aircraft engines. Single crystal blades enable engines to operate at higher temperatures, which improves fuel efficiency and performance while reducing emissions. These components are integral to the performance of jet engine components and contribute to the reliability of the entire propulsion system.
Power Generation
In the power generation sector, single crystal turbine blades are employed in gas turbines for electricity production. The use of single-crystal alloys enables these turbines to operate at higher temperatures, improving overall turbine efficiency, reducing fuel consumption, and lowering emissions. Single crystal blades are critical in maximizing the performance of turbines in modern power plants, making them a key component in enhancing energy production. Their ability to withstand the harsh operating conditions in gas turbines makes them indispensable for gas and steam turbines in thermal power plants.
Military and Defense
Single crystal turbine blades are also crucial in military and defense applications. In military engines, such as those used in fighter jets and missile propulsion systems, these blades are exposed to extreme conditions, including high speeds and temperatures. The ability of single crystal turbine blades to maintain their structural integrity under such stresses ensures the operational reliability and longevity of defense systems. These components are critical for ensuring the performance and durability of engines in both military aircraft engines and other advanced defense systems.
Marine Propulsion
In the marine industry, single crystal turbine blades are used in propulsion systems for naval ships and submarines. These blades ensure marine turbines can operate reliably in high-pressure underwater environments and extreme temperatures. Single crystal turbine blades' corrosion resistance and fatigue strength are vital for the longevity and performance of marine propulsion systems, such as those used in naval ship components.
Advanced Manufacturing and Other Industries
Single crystal turbine blades are also used in advanced manufacturing sectors where high-performance, high-reliability components are required. These applications include industries like advanced gas turbines for industrial machinery, and high-tech manufacturing systems that require materials capable of withstanding extreme conditions. The versatility and robustness of single-crystal turbine blades make them suitable for any sector demanding exceptional strength and temperature resistance.
