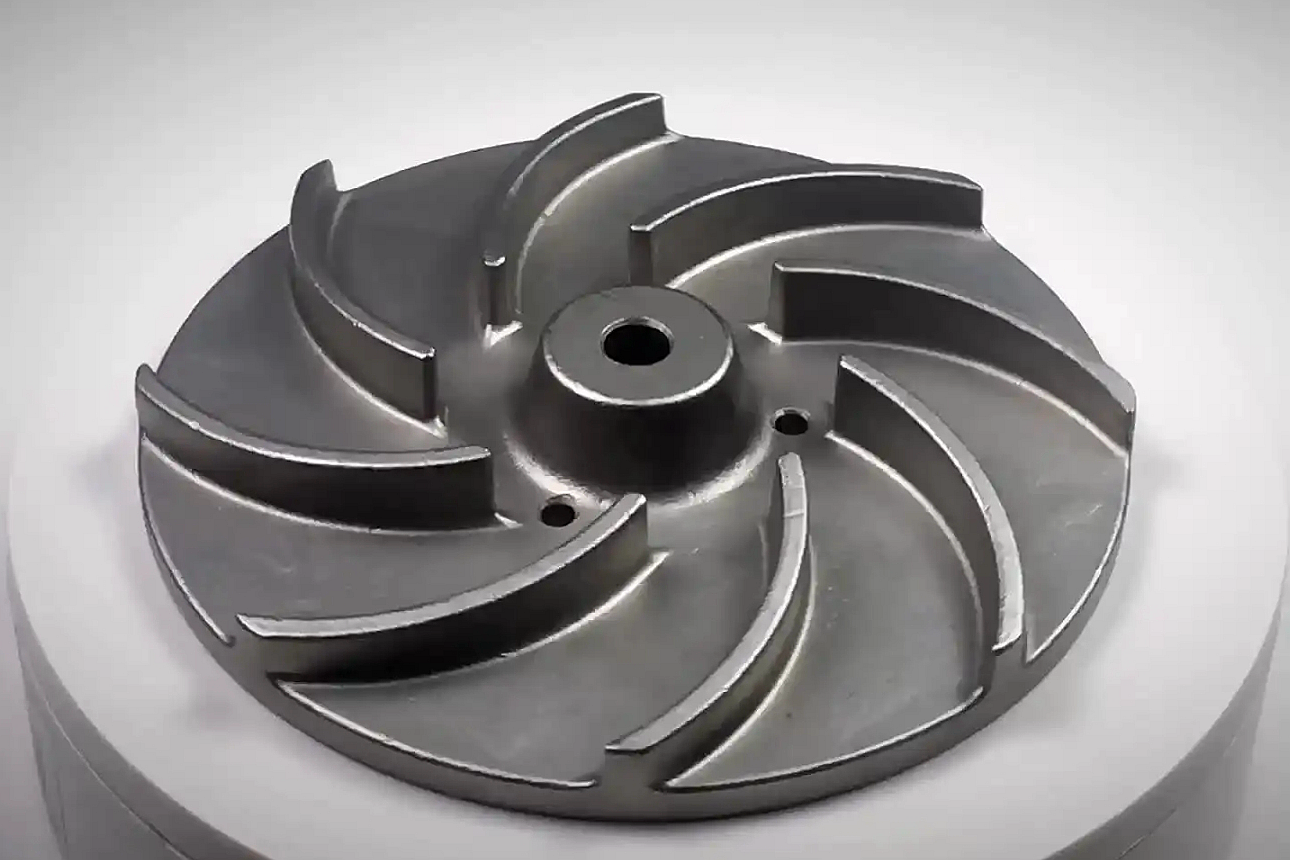

5 Benefits of Automatic Dewaxing Kettle In Manufacturing Superalloy Investment Castings

The investment casting process is highly valued for its ability to create intricate geometries and complex parts, especially when dealing with superalloys that must withstand extreme conditions. Dewaxing is a critical step in investment casting, where the wax pattern is removed from the ceramic mold to create a hollow cavity that can be filled with molten metal.

Traditionally, dewaxing was a manual process prone to variability, inefficiency, and increased mold breakage. However, introducing the automatic dewaxing kettle has significantly transformed this stage in superalloy casting by making it more efficient, consistent, and reliable. This blog explores the automatic dewaxing process, the types of superalloys involved, post-processing techniques, testing methods, and industry applications.

Manufacturing Process: Automatic Dewaxing in Investment Casting

Dewaxing is crucial in investment casting as it removes the wax pattern used to create the ceramic mold for casting superalloys. In this process, the wax model is melted out of the ceramic shell, leaving behind a detailed cavity filled with molten metal. This step must be done carefully to ensure the ceramic mold remains intact, as even minor damage can lead to casting defects and expensive rework. Technologies like automatic dewaxing kettles and controlled wax removal processes play a critical role in ensuring the precision of this step.

The automatic dewaxing kettle is designed to bring consistency and precision to the dewaxing step. It utilizes steam and heat to melt the wax from the ceramic mold without damaging the shell, ensuring that the final mold retains all the intricate details of the original pattern. This process starts by placing the wax-coated ceramic shell into the dewaxing kettle. The kettle is sealed, and steam is injected to melt the wax at controlled temperatures. As the wax melts, it drains from the mold, leaving behind a clean and detailed ceramic shell. Enhancements like automated steam systems and precision dewaxing techniques ensure process efficiency and mold integrity.

Process efficiency is one of the significant benefits of using an automatic dewaxing kettle. The automation of this stage ensures that the wax is consistently removed, eliminating the risk of variability between different batches. Using a controlled steam environment helps thoroughly melt the wax without the need for excessive heat that could compromise the ceramic mold's integrity. Consistent performance systems and optimized heat control technologies further enhance these advantages.

Another benefit is the reduction in wax residues within the mold. Residual wax can affect the casting's final quality by causing unwanted inclusions or altering the mold's temperature distribution. With the automatic dewaxing kettle, the wax removal process is comprehensive, leaving minimal residue and thus maintaining the quality of the mold. This leads to cleaner castings and fewer defects, ultimately improving the performance and reliability of the finished superalloy components. Integrating wax recycling techniques and defect minimization practices ensures greater sustainability and quality in production.

Typical Superalloys Processed Through Investment Casting

Investment casting is used to manufacture complex superalloy components, especially for industries where high temperature, stress, and corrosion resistance are critical. The automatic dewaxing kettle is instrumental in ensuring that molds for these alloys are of the highest quality, contributing directly to the finished product's performance. Some of the typical superalloys used in investment casting include:

Nickel-Based Superalloys

Nickel-based superalloys, such as Inconel 718 and Inconel 625, are some of the most widely used materials in high-performance applications. These alloys are known for their excellent resistance to oxidation and corrosion and their ability to maintain strength at elevated temperatures. When using an automatic dewaxing kettle, the molds for these components are cleaner and more accurate, ensuring that these alloys are cast with minimal defects, leading to reliable high-temperature parts such as turbine blades and exhaust components.

Cobalt-Based Superalloys

Cobalt-based superalloys like Stellite are also typical in investment casting due to their wear-resistant properties. These alloys are used for components that experience high friction levels, such as valve seats and mechanical seals. The cleanliness and accuracy achieved through automatic dewaxing ensure that these wear-resistant parts have the necessary integrity and detail to perform effectively under harsh conditions.

Titanium Alloys

Titanium alloys, such as Ti-6Al-4V, are commonly used in aerospace and medical applications due to their high strength-to-weight ratio and biocompatibility. The automatic dewaxing kettle helps produce molds with minimal surface defects, which is particularly important for thin-walled titanium parts that require precision and minimal post-processing.

Rene and CMSX Series Superalloys

Rene and CMSX series superalloys, known for their use in high-performance turbine blades and vanes, also benefit significantly from precise dewaxing. These alloys are often cast in complex shapes with intricate cooling channels, and any imperfection in the mold can lead to decreased efficiency or failure. The automated dewaxing process ensures that molds for these critical parts are free from defects and can produce components that meet stringent quality requirements.

Post-Processes in Superalloy Investment Casting

Investment casting alone only sometimes yields components with the properties needed for high-performance applications. Therefore, several post-processes are used to refine the properties of the cast superalloys. The automatic dewaxing kettle plays a foundational role in this sequence by ensuring the initial mold is clean and defects-free, leading to more effective post-processing.

Hot Isostatic Pressing (HIP)

Hot Isostatic Pressing (HIP) is a post-process used to remove internal porosity and improve the structural integrity of the cast superalloy. The HIP process involves applying high temperature and pressure to the component, which densifies the material and eliminates voids. By starting with a clean and defect-free mold made possible by effective dewaxing, the HIP process can be more efficient, with fewer defects needing to be addressed. The role of HIP in enhancing mechanical strength is particularly important for ensuring reliable performance in high-stress applications like aerospace.

Heat Treatment

Heat treatment is another post-process commonly used to modify the microstructure of superalloys, thereby improving their mechanical properties. The cleanliness of the mold directly affects how well the alloy responds to heat treatment, as impurities or inconsistencies in the mold can cause unpredictable results. By using an automatic dewaxing kettle, manufacturers can ensure that the mold is of the highest quality, which leads to better, more consistent heat treatment outcomes. Microstructure refinement through heat treatment is crucial for maximizing durability and performance, especially in critical environments.

Surface Treatment and Machining

Surface treatment and machining are necessary to achieve the final dimensions and surface characteristics of superalloy components. CNC machining is used to remove any excess material and achieve tight tolerances. The automated dewaxing process contributes to this step by providing a cleaner, more accurate casting that requires less machining to reach the desired specifications. This ultimately reduces the cost and time required for post-processing. Achieving tight tolerances is essential for components that must meet rigorous design standards and operate effectively in demanding applications.

Thermal Barrier Coatings (TBC)

Another crucial post-process is the Thermal Barrier Coatings (TBC) application, particularly for components used in high-temperature environments, such as gas turbines. The effectiveness of TBCs is highly dependent on the surface quality of the part. A cleaner casting surface, achieved through effective dewaxing, ensures better coating adhesion and improves the performance and durability of the thermal barrier. Proper TBC application significantly extends the lifespan of superalloy components, allowing them to function reliably under extreme heat conditions.

Testing of Dewaxed Superalloy Components

Testing is crucial to ensuring that the investment-cast components meet the required quality, performance, and reliability standards. The dewaxing process's quality directly impacts these testing methods' effectiveness.

Dimensional and Visual Inspection

Dimensional and visual inspection are typically the first steps in evaluating the quality of dewaxed superalloy components. Dimensional accuracy is verified using tools like Coordinate Measuring Machines (CMMs) to ensure that the part meets specified tolerances. Visual inspection is also conducted to identify any visible defects, such as cracks or residual wax, which could affect the casting's quality. Automated dewaxing ensures consistency in the mold quality, resulting in fewer defects and more reliable dimensional accuracy.

Non-Destructive Testing (NDT)

Non-Destructive Testing (NDT) is essential for evaluating the internal quality of the cast superalloy components without damaging them. X-ray inspection, CT scanning, and ultrasonic testing detect internal defects like porosity, voids, or inclusions. A clean and adequately dewaxed mold minimizes the occurrence of such defects, allowing NDT methods to be more effective in confirming the component’s integrity.

Mechanical Property Evaluation

Mechanical property evaluation, including tensile and fatigue testing, ensures that the cast superalloy components can withstand the stresses they will encounter in their operational environment. Proper dewaxing is crucial in ensuring the casting is free from defects that could compromise its mechanical properties. Consistent dewaxing allows for uniform properties across different components, essential for reliability in critical applications such as aerospace and power generation.

Surface Finish Analysis

Surface finish analysis is another critical testing procedure for dewaxed superalloy components. The surface quality of the cast component affects its performance, particularly in applications involving high temperatures and friction. The automated dewaxing kettle ensures a clean surface finish, resulting in lower surface roughness and better overall part quality. This is especially important for components like turbine blades, where a smooth surface is essential for optimal aerodynamic performance.

Industry Applications and Benefits of Automatic Dewaxing Kettle

The automatic dewaxing kettle is critical in ensuring the quality of investment-cast superalloy components used in various industries. Its ability to provide consistent and clean molds contributes significantly to the reliability and performance of these components across demanding applications. By automating the dewaxing process, manufacturers can reduce casting defects, improve surface quality, and enhance the mechanical properties of the final products.

Aerospace and Aviation

In the aerospace and aviation industries, investment casting produces complex parts such as turbine blades, guide vanes, and casings. These components require exceptional accuracy and surface quality to perform reliably under high temperatures and pressures. The automatic dewaxing kettle ensures that the molds used to create these parts are free from defects, resulting in castings that meet the stringent standards of the aerospace industry. For example, superalloy jet engine components rely heavily on high-quality molds to ensure structural integrity and consistent performance during extreme operational conditions.

Power Generation

The power generation industry also benefits from using automatic dewaxing in investment casting. Components such as turbine blades, heat exchangers, and combustion parts must withstand extreme temperatures and thermal cycling. The clean, defect-free molds produced through automatic dewaxing contribute to these parts' high quality and durability, ensuring efficient and reliable power generation. Parts like superalloy heat exchanger parts require clean molds to ensure superior heat transfer performance and minimize maintenance requirements over the component's lifespan.

Automotive and Defense

In the automotive, defense, and military sectors, lightweight, high-strength components are essential for enhancing vehicle performance and reliability. Investment casting creates components such as turbocharger housings, transmission parts, and engine components, where precision and material integrity are crucial. The automatic dewaxing kettle contributes to these industries by ensuring that the molds used in casting are of the highest quality, leading to fewer defects and higher-performing parts. Components such as superalloy exhaust system parts benefit from this technology by ensuring consistency in high-temperature environments, ultimately leading to improved fuel efficiency and reduced vehicle emissions.

Oil and Gas

In the oil and gas industry, valve bodies, pump components, and downhole tools must withstand high pressures and corrosive environments. The quality of the mold directly affects the performance of these components, and the automatic dewaxing kettle ensures that castings are produced with minimal defects. This results in components with improved corrosion resistance and longer service life, which are essential for reducing maintenance costs and ensuring operational safety in harsh environments. For instance, superalloy pump system assemblies benefit from defect-free casting to maintain performance reliability during high-pressure operations.

Medical and Marine

The medical and marine industries also use investment casting for critical components such as surgical implants and marine engine parts. In medical applications, precision and biocompatibility are crucial, and any casting defects could compromise the safety and performance of the implant. The automated dewaxing process ensures that the molds used for these components are free from defects, contributing to better patient outcomes and reliable performance. In marine applications, corrosion resistance and durability are key factors. The clean casting achieved through automatic dewaxing ensures that parts, such as superalloy naval ship modules, can withstand harsh marine environments while maintaining their structural integrity over long periods.

Summary

The automatic dewaxing kettle is crucial in ensuring the quality and reliability of investment-cast superalloy components across multiple industries. By producing clean, defect-free molds, this technology enhances the performance characteristics of parts used in aerospace, power generation, automotive, defense, oil and gas, medical, and marine sectors. It ensures precision casting, improves mechanical integrity, reduces production defects, and ultimately leads to higher-performing, durable, and efficient components that meet the rigorous demands of their respective applications.
