Hot Isostatic Pressing (HIP) is a critical post-processing technique to manufacture high-performance superalloy castings. This process applies high pressure and temperature in an inert gas environment, resulting in several advantages that improve the cast parts' mechanical properties, structural integrity, and dimensional accuracy. HIP is particularly beneficial for complex and mission-critical superalloy components used in aerospacepower generation, and automotive industries, where material quality is paramount.

This blog will explore the five key advantages of using a HIP furnace to produce and post-process superalloy castings.

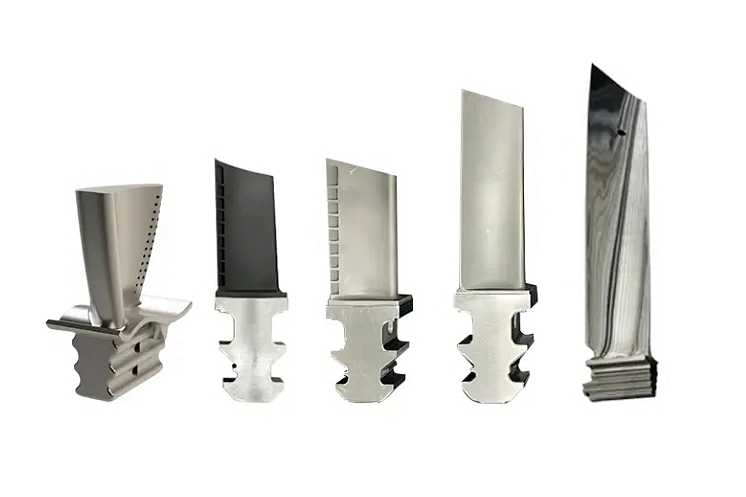

5-advantages-of-hot-isostatic-pressing-furnace-in-produce-and-post-process-superalloy-castings

Elimination of Porosity and Internal Defects

One of the primary advantages of using an HIP furnace to produce superalloy castings is that it effectively eliminates porosity and internal defects. During the casting process, it is common for materials to form microscopic voids or bubbles due to air pockets trapped during solidification or gas entrapment from the molten metal. These internal defects can weaken the final component, leading to reduced performance, especially in critical applications requiring high strength and reliability.

HIP helps resolve this issue by applying uniform high-pressure forces that close these porosities and voids, achieving near-perfect material density. The pressure forces the gas or trapped air out of the metal, causing the casting to densify and eliminate the voids that would otherwise reduce the mechanical properties of the superalloy. This results in a fully dense part with significantly improved strength, fatigue resistance, and reliability.

In industries like aerospace, where turbine blades and engine components experience extreme forces and high temperatures, eliminating porosity is essential to ensure that components perform at their best and last longer under demanding conditions. By removing internal defects, HIP contributes to these critical parts' overall reliability and durability. This process ensures that even highly complex geometries, which may be prone to porosity, are free from internal defects, thereby increasing the performance and lifespan of superalloy components.

Improved Mechanical Properties

Another significant advantage of HIP is its ability to improve the mechanical properties of superalloy castings. Superalloys are designed to operate in extreme environments, such as high-temperature, high-stress applications. However, casting defects, like porosity and voids, can significantly affect their strength and fatigue resistance. HIP enhances the mechanical properties of superalloy castings by promoting a uniform microstructure and ensuring a more homogeneous distribution of alloying elements.

The high-pressure environment of the HIP process encourages the diffusion of atoms in the material, which results in a finer, more uniform grain structure. This refined grain structure helps improve the tensile strength, fatigue resistance, and creep resistance of the final casting. The grain refinement achieved by HIP is especially critical for parts subjected to cyclic loads or long-term stress, such as turbine blades, which must resist deformation over extended periods.

Moreover, improving mechanical properties allows for better performance in high-temperature environments. Superalloys are often subjected to temperatures exceeding 1000°C, and their ability to retain mechanical strength at such extreme temperatures is vital for the performance of aerospace and power generation components. HIP enhances this high-temperature strength, producing components that maintain their integrity even in the harshest conditions.

Enhancing Dimensional Accuracy and Surface Finish

HIP also plays a key role in improving superalloy castings' dimensional accuracy and surface finish. Traditional casting processes can result in slight distortions or surface imperfections due to uneven cooling, shrinkage, or internal stresses. These distortions can lead to additional machining and surface finishing to meet the precise specifications of high-performance components.

HIP helps minimize these issues by subjecting the casting to a uniform, high-pressure environment, which helps reduce or eliminate the warping and dimensional inconsistencies that often arise during traditional casting. This results in improved part accuracy, reducing the need for extensive machining and post-processing work.

The pressure applied during HIP also contributes to the refinement of the surface finish. Parts that have undergone HIP treatment typically have smoother surfaces, with fewer irregularities or defects, which reduces the need for additional finishing processes. This is particularly beneficial in industries such as aerospace, where components must meet tight tolerances and surface quality requirements to ensure proper fit and function. The result is a more efficient manufacturing process with reduced post-processing time and cost.

Strengthening Fatigue and Creep Resistance

HIP-treated superalloy castings exhibit significantly enhanced resistance to fatigue and creep, two critical failure modes for components exposed to high stresses and elevated temperatures. Fatigue occurs when a material is subjected to repeated loading and unloading cycles, developing cracks or fractures over time. Creep, however, refers to the slow deformation of a material under constant stress at high temperatures.

In high-performance applications, such as gas turbines, aerospace engines, and power plant turbines, components are often exposed to cyclic loads and high temperatures for extended periods. Materials may exhibit signs of fatigue or creep without proper treatment, leading to premature failure. HIP treatment improves superalloy castings' fatigue and creep resistance by removing internal voids, refining the grain structure, and increasing the material's overall density.

By enhancing the microstructure and ensuring a uniform distribution of alloying elements, HIP helps to minimize weak points in the material that could otherwise lead to fatigue crack initiation or creep deformation. This improvement in fatigue and creep resistance is crucial for ensuring superalloy components' long-term reliability and performance in mission-critical aerospace and energy applications.

Cost Efficiency in Post-Processing

While HIP is an advanced and sophisticated process, it can also contribute to cost savings in producing and post-processing superalloy castings. Although the initial investment in HIP furnaces may be significant, the process helps reduce the need for extensive machining and finishing operations, which can be costly and time-consuming.

By eliminating porosity and improving the mechanical properties, HIP-treated parts often require fewer secondary operations, such as machining, polishing, or welding. This reduces material waste, minimizes the time spent on finishing, and increases the yield of high-quality parts. The result is more cost-efficient production processes that lead to lower overall manufacturing costs, especially in industries with high-volume production runs.

Additionally, the improved material properties of HIP-treated castings can result in fewer failures or rejections in the field, reducing warranty claims and the costs associated with component replacements. In industries like aerospace, where the cost of failure can be astronomical, HIP offers a cost-effective solution for ensuring the durability and performance of critical components.

Applications in Industry

Hot Isostatic Pressing (HIP) is particularly valuable in industries where superalloy castings are used for high-performance applications. The process enhances material properties by improving density, eliminating defects, and refining microstructures, which ensures superior performance and reliability in critical components. Some key industry applications of HIP include:

Aerospace

In the aerospace and aviation industry, HIP is widely used for turbine blades, engine components, and other mission-critical parts that must withstand extreme temperatures and mechanical stresses. The improved mechanical properties and the elimination of defects ensure that these components perform reliably throughout their operational life. For example, superalloy turbine blades benefit significantly from HIP, which enhances their fatigue resistance and prevents failure during high-stress operations in jet engines and gas turbines.

Power Generation

In power generation, HIP is used for turbine components exposed to high thermal and mechanical loads. By improving the fatigue resistance and creep properties of these parts, HIP helps extend the service life of turbines, reducing maintenance costs and improving overall efficiency. Components like superalloy heat exchanger parts and reactor components undergo HIP treatment to improve their resistance to thermal fatigue, enhancing performance in power plants operating at elevated temperatures and pressures.

Automotive

The automotive industry also benefits from HIP when manufacturing high-performance engine components that meet strict durability requirements. For example, turbine rotors and valve components benefit from the increased strength and resistance to thermal fatigue provided by HIP treatment. Improving the mechanical properties of these parts ensures they can withstand the demanding conditions of high-performance engines, such as those found in turbocharged vehicles and racing engines.

Oil & Gas

The oil and gas industry uses HIP for components exposed to extreme pressures and temperatures, such as pump housings, valves, and heat exchangers. The ability of HIP to densify and improve the material’s resistance to corrosion, wear, and high-pressure environments makes it ideal for these demanding applications. Superalloy parts like pump components benefit from HIP treatment, which enhances their durability and ensures they can operate reliably in the harsh environments encountered during oil extraction and transportation.
