5 Advantages of Automatic Shell Line In Superalloy Precision Investment Casting
Creating a flawless mold is critical in precision investment casting, particularly for high-performance superalloy components. In investment casting, the shell or mold is crucial for defining the final part's geometric accuracy and structural integrity. Traditional shell creation methods were labor-intensive, prone to inconsistencies, and susceptible to human error. With technological advancements, automatic shell lines have revolutionized the investment casting process, significantly improving efficiency, precision, and consistency.
Manufacturing Process: The Advantages of Automatic Shell Line in Investment Casting
The investment casting process, also known as lost-wax casting, involves creating a shell around a pattern, which is later removed to leave a cavity for molten metal. The shell-building phase involves coating the wax pattern with several thick ceramic slurry layers, which are then hardened. The resulting shell holds the shape of the part being cast and must be strong and uniform to withstand the molten metal's heat and pressure during the pouring phase.
The introduction of automatic shell lines has streamlined and optimized this process. Traditional manual shell-building required significant labor and expertise to dip and dry the shell layers. This approach, while effective, was prone to inconsistencies in the thickness and strength of the shells, resulting in potential casting defects. Automation in shell creation, however, offers numerous advantages. An automatic shell line operates with precision, allowing for a uniform application of each layer. The consistency in layer thickness ensures that the shell’s strength is consistent, reducing the risk of failures during casting.
The wax pattern is typically loaded onto a conveyor or similar automated system in an automatic shell line, and computers fully control the process. The slurry is applied evenly, and the shells are dried and hardened under controlled conditions. Automation reduces the variability inherent in manual processes, leading to more reliable and repeatable outcomes. Additionally, automation increases throughput, enabling faster turnaround times and higher productivity. The precision and repeatability of the automatic shell line contribute to higher-quality superalloy components, which is critical for industries like aerospace and energy, where component reliability is paramount.
Typical Superalloys Used
Superalloys, especially those based on nickel, cobalt, and iron, are commonly used in industries that require components capable of performing under extreme conditions, such as aerospace, power generation, and defense. These materials, including well-known alloys like Inconel, CMSX, Rene, Stellite, and Nimonic, are designed to withstand high temperatures, corrosion, and mechanical stresses.
Achieving uniform shell quality is essential when manufacturing precision components for these demanding applications. Superalloys are particularly sensitive to casting defects such as cracks, shrinkage, and porosity, which can lead to part failure under operating conditions. A uniform shell is critical for producing high-performance castings with stringent mechanical and thermal properties.
An automatic shell line helps achieve this uniformity. Superalloys such as Inconel 718, Rene 80, and CMSX-10 require molds with high precision to ensure that the final castings exhibit the necessary structural integrity and resistance to thermal stresses. The automation in shell creation ensures that these alloys, which are difficult to cast manually, are given the best chance for success by eliminating inconsistencies in the mold that could otherwise result in defective parts.
Post-Processes Comparison
In traditional manual shell building, operators would apply ceramic slurry by hand and allow it to dry over a series of applications. Although effective, this method often resulted in variable shell quality. The drying process, in particular, was difficult to control manually, leading to uneven shell thicknesses and potential weaknesses in some regions of the mold. Post-processing techniques like thermal barrier coatings help mitigate issues like material inconsistencies by reinforcing the component's surface after casting.
Automatic shell lines provide several advantages over manual processes. The primary benefit is consistency. With automated control over the slurry application, the thickness and uniformity of the shell can be adjusted and monitored with great precision. This consistency reduces the occurrence of defects such as shell cracking, which can lead to catastrophic failures during casting. Post-processing methods such as Hot Isostatic Pressing (HIP) are often employed after casting to eliminate porosity and further ensure the structural integrity of the final component.
Furthermore, the shell-building cycle is considerably faster when automated. In manual processes, the time required for each dip and drying cycle was extended due to operators needing to continually adjust and monitor the process. Automated systems reduce cycle time by consistently applying layers and managing the drying process. This improvement is especially beneficial when casting high-volume orders or when quick turnaround is required. With advanced precision machining, post-casting processes can further optimize the final part's dimensional accuracy and surface finish, reducing the need for extensive manual intervention.
Another key advantage of automatic shell lines is their ability to create shells with high precision. Manual shell-building techniques rely on the skill and judgment of the operator, which can introduce human error. In contrast, automated systems rely on algorithms and sensors to control each process step, ensuring that all shells are identical in thickness and strength. This precision is essential when casting high-performance superalloy components that adhere to tight tolerances and mechanical properties. Techniques like Electrical Discharge Machining (EDM) further refine these components, achieving the specifications for critical aerospace and energy applications.
Testing
Once the shell is created, testing is the next phase in the investment casting process. Ensuring the integrity of the mold is essential before the molten metal is poured. Testing methods include visual inspections, X-ray inspections, and ultrasonic testing, all of which help to ensure that the shell is free from cracks, voids, and other defects.
Using automatic shell lines results in fewer defects, reducing the need for extensive testing. With a manual process, shell thickness and strength inconsistencies could result in cracking or mold failure, leading to costly rework and potential delays. Automated systems ensure that shells are consistently uniform, reducing the likelihood of defects during testing and eliminating the need for corrective measures. This allows for faster cycle times and higher yields, reducing production costs.
Another benefit of the automated shell line in testing is its ability to produce molds more resilient to molten metal. Superalloy components are often cast using extremely high temperatures, making it crucial that the shell can withstand the stress of the pouring process. The uniformity and strength of the shell created by automatic shell lines enhance the likelihood that the mold will perform as expected during testing.
Industry and Application
Automatic shell lines are precious in industries that rely on high-performance superalloy components, where precision and reliability are paramount. The technology improves the casting process's consistency, speed, and accuracy, making it essential in aerospace, defense, power generation, and automotive manufacturing. The ability to produce complex superalloy components with tight tolerances and minimal defects contributes significantly to the performance and longevity of critical parts.
Aerospace and Aviation

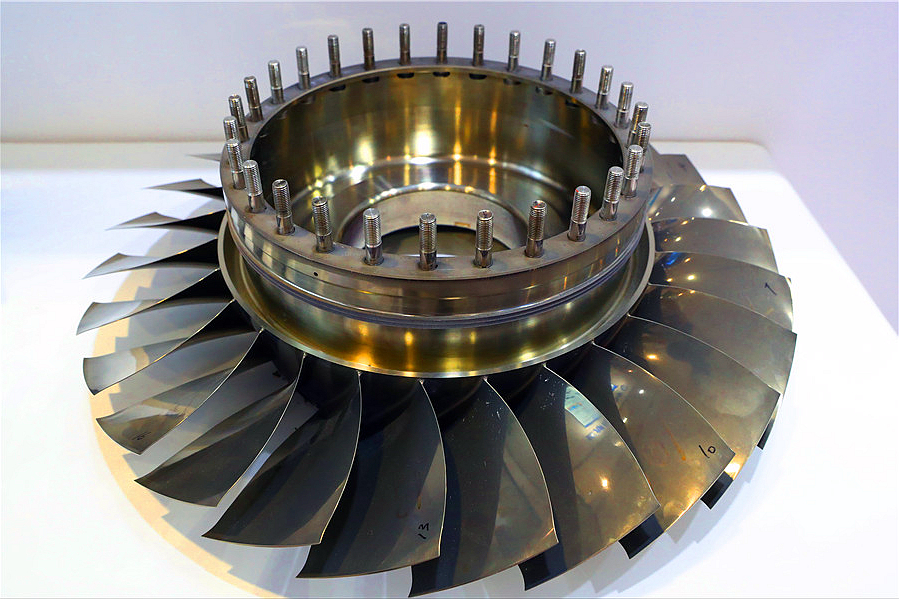

In the aerospace and aviation industries, automatic shell lines are used extensively to produce turbine engines, combustion chambers, and other components that must operate at extremely high temperatures and pressures. Superalloys, which offer exceptional strength and heat resistance, are essential for superalloy jet engine components. Precision investment casting via automatic shell lines ensures these parts are fabricated to exacting standards, reducing the risk of errors and ensuring the components perform reliably under demanding flight conditions.
Power Generation
The power generation industry also benefits from the advantages of automatic shell lines. Gas turbines, heat exchangers, and other critical components must be fabricated precisely to ensure efficient performance and long operational life. Automatic shell lines minimize casting defects, improving the reliability of these components, such as superalloy heat exchanger parts. In high-temperature environments like power plants, where downtime can be costly, the precision provided by automated systems ensures components perform at optimal levels over extended periods.
Defense and Military
In the defense and military sectors, precision is crucial for producing missile components, armor systems, and other high-performance parts. Automatic shell lines are instrumental in creating components like superalloy missile segments, ensuring they meet the rigorous standards for durability and performance in extreme conditions. The consistency and reliability of shell-building technology are essential for maintaining the integrity of defense components that must withstand high-stress and high-temperature environments.
Automotive
The automotive industry also benefits from automated shell-building technology, particularly in producing turbochargers, exhaust systems, and other high-performance engine components. Parts made from superalloys must meet stringent requirements for precision and durability. For example, superalloy exhaust system parts benefit from the consistency and speed of automatic shell lines, ensuring they perform reliably in high-temperature environments while maintaining structural integrity.
Other Industries
Beyond aerospace, defense, power generation, and automotive, automatic shell lines also support industries like medical device manufacturing, chemical processing, and marine applications. These sectors often require superalloy components that perform under harsh conditions, whether in medical equipment exposed to sterilization cycles or marine turbines operating in corrosive environments. Using automatic shell lines allows manufacturers in these fields to produce high-quality molds with faster cycle times, improving both performance and cost-efficiency. For example, superalloy reactor vessel components in chemical processing and nuclear applications benefit from the precision and repeatability provided by automated shell-building technology.
Automatic shell lines are a key innovation for industries that rely on superalloy components. By ensuring high precision, minimizing defects, and speeding up the production process, this technology contributes to critical components' efficiency, reliability, and cost-effectiveness in aerospace, power generation, defense, automotive, and beyond.
FAQs
What are the key advantages of using an automatic shell line in superalloy investment casting?
How does an automatic shell line improve the consistency and precision of the mold?
What superalloys are commonly used in investment casting and how does automation benefit these materials?
How do automatic shell lines affect the post-casting testing and inspection process?
In which industries is the use of automatic shell lines most beneficial for superalloy casting?
