Superalloy 3D Printing: Revolutionizing Industries

In recent years, 3D Printing has revolutionized industries by offering unprecedented design flexibility, reduced lead times, and the ability to manufacture complex, high-performance parts for demanding applications. Superalloy 3D printing has further elevated these benefits, particularly for aerospace, power generation, defense, and chemical processing industries, where materials must withstand extreme temperatures, pressures, and environmental conditions. The ability to 3D print superalloy components allows companies to create lighter, more vital parts that can perform better and last longer than traditionally manufactured ones.

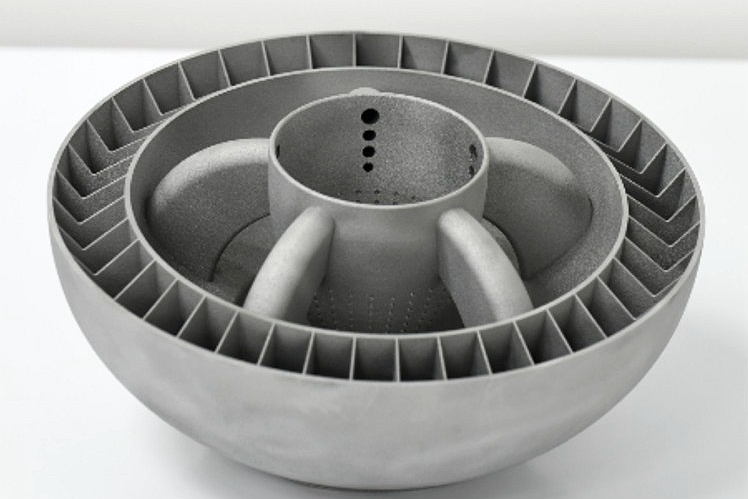

4-common-superalloy-3d-printing-technology-and-service

While additive manufacturing technologies have been used for years, superalloy 3D printing has gained significant traction due to the material's excellent properties—such as resistance to high temperatures, oxidation, and corrosion. These properties make superalloy 3D-printed parts well-suited for applications such as jet engine components, turbine blades, heat exchangers, etc. What sets superalloy 3D printing apart from traditional manufacturing methods is its ability to produce complex geometries with minimal material waste, making it cost-effective and efficient for producing parts that would be difficult or impossible to achieve through casting, forging, or machining.

Standard Superalloy 3D Printing Technologies

Selective Laser Melting (SLM)

Selective Laser Melting (SLM) is one of the most widely used 3D printing technologies for superalloys. In this process, a high-powered laser selectively melts layers of fine metal powder to create a fully dense, three-dimensional part. The laser heats the powder until it reaches its melting point, allowing it to fuse and form a solid structure. The process is repeated layer by layer, creating a complex part from the ground up. This technique is highly beneficial for creating parts from materials like Inconel alloy and Monel alloy, which are known for their excellent strength-to-weight ratio and resistance to oxidation.

SLM is particularly beneficial when working with high-performance materials like Inconel, Monel, Hastelloy, and Titanium alloys. These materials, known for their excellent strength-to-weight ratio and ability to resist oxidation and thermal degradation, are often used in aerospace, power generation, and chemical processing applications. One of the critical advantages of SLM is its precision in creating intricate geometries that would be extremely difficult or time-consuming to manufacture with traditional methods. The parts produced are dense and have minimal porosity, ensuring superior strength and reliability, similar to processes in superalloy CNC machining.

Electron Beam Melting (EBM)

Electron Beam Melting (EBM) is another advanced additive manufacturing technology that utilizes an electron beam instead of a laser to melt metal powder in a vacuum chamber. EBM is typically used for aerospace applications, where parts need to withstand extreme temperatures and mechanical stresses. The vacuum environment helps eliminate oxidation, while the electron beam provides precise control over the melting process. EBM is also commonly applied to superalloys like CMSX series in aerospace industries where high-density, high-strength properties are critical.

EBM is particularly suitable for superalloys such as Inconel and Titanium, which require high-density, high-strength properties for demanding applications like turbine blades and other high-stress components. The primary advantage of EBM is its ability to work at a faster pace than SLM, making it ideal for larger builds and faster prototyping. Moreover, the technology's precision and efficiency help minimize material waste, making it cost-effective in prototype development and low-volume production runs, much like the efficiency seen in powder metallurgy turbine disc manufacturing.

Direct Energy Deposition (DED)

Direct Energy Deposition (DED) is a highly versatile 3D printing process that uses focused energy—such as a laser, electron beam, or plasma arc—to melt and deposit material onto a substrate. Unlike SLM and EBM, which build parts layer by layer, DED allows material to be added to existing parts. This makes it an excellent option for repair applications and manufacturing complex geometries with different material properties. DED is widely used with superalloys like Inconel alloy to repair and manufacture high-performance components such as turbine blades and combustion chambers.

DED is commonly used with superalloys like Inconel, Monel, and Titanium due to their high performance in extreme environments. The process offers several advantages, including repairing parts in service by adding material to worn or damaged areas or combining multiple materials in a single build. It makes it ideal for industries such as aerospace and automotive, where part durability and repairability are essential. DED also allows for fast deposition rates, significantly reducing the time required to produce a part, similar to the quick turnaround in superalloy-free forging.

Laser Metal Deposition (LMD)

Laser Metal Deposition (LMD) is another popular additive manufacturing process that utilizes a laser to melt metal powder or wire as it is deposited onto a substrate. LMD is particularly well-suited for superalloys because it provides high precision and can produce parts with complex shapes, intricate features, and high mechanical properties. LMD is commonly used in aerospace and energy sectors to repair components such as turbine blades, similar to techniques used in superalloy welding.

One of the critical advantages of LMD is its ability to join materials or repair parts, making it ideal for applications such as turbine blades and jet engine components, where repairs are common due to wear and tear. Additionally, LMD offers high accuracy in producing thin layers of metal, ensuring that the parts have excellent structural integrity. The technology is also highly effective when combined with other additive techniques, such as SLM, for the production of multi-material parts that require different properties in various regions of the same component, similar to the integration seen in superalloy precision forging.

Suitable Superalloy Materials for 3D Printing

Superalloys are materials designed to perform at high temperatures and resist wear, oxidation, and thermal degradation. These alloys are essential for industries where components are subjected to extreme conditions, and 3D Printing allows for the creation of parts with complex geometries that would be challenging to produce through traditional methods.

Inconel Alloys

Inconel alloys such as Inconel 718 and Inconel 625 are among the most commonly used superalloys for 3D Printing. These nickel-based alloys exhibit excellent high-temperature strength, oxidation, and corrosion resistance, making them ideal for applications in aerospace, power generation, and chemical processing. Inconel 718, in particular, is widely used for turbine blades, jet engine components, and exhaust system parts, where its ability to withstand extreme heat and mechanical stress is crucial.

Monel Alloys

Monel alloys, such as Monel 400 and Monel K500, are known for their excellent corrosion resistance, particularly in seawater and other harsh environments. These alloys are often used in marine applications, chemical processing, and oil and gas industries, where parts are exposed to aggressive chemicals and extreme temperatures. Monel alloys can be effectively printed using SLM and DED, enabling the production of corrosion-resistant components like pumps, valves, and other critical parts.

Hastelloy Alloys

Hastelloy alloys, such as Hastelloy C-276 and Hastelloy X, are widely used in chemical processing, aerospace, and nuclear applications due to their exceptional resistance to high temperatures and corrosion. These alloys are particularly useful for components exposed to aggressive chemicals or high-temperature environments. Hastelloy C-276, for example, is commonly used for reactor vessel components and heat exchangers, making it a valuable material for industries that require high-performance materials for critical parts.

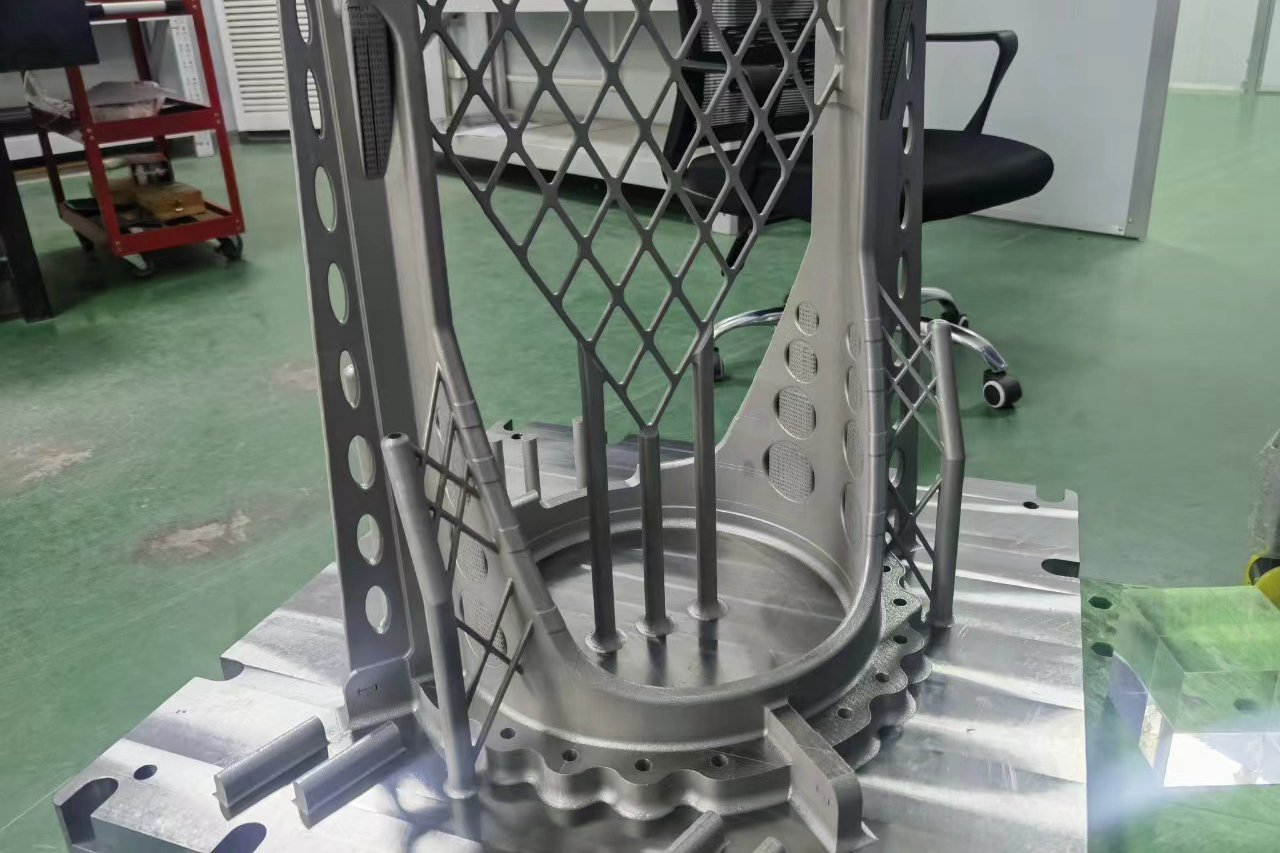

Titanium Alloys

Ti-6Al-4V titanium alloy is known for its excellent strength-to-weight ratio, corrosion resistance, and high-temperature stability. These alloys are frequently used in aerospace, medical, and automotive applications where both strength and lightness are essential. Titanium alloys are often used to produce complex parts, such as engine components, medical implants, and high-performance automotive parts, through superalloy 3D printing techniques.

Post-Processing for Superalloy 3D Printed Parts

While 3D Printing provides significant design flexibility and material efficiency advantages, the parts produced often require post-processing to achieve optimal mechanical properties and surface finishes.

Hot Isostatic Pressing (HIP)

Hot Isostatic Pressing (HIP) is a post-processing technique used to eliminate internal porosity in 3D printed parts, enhancing their density and strength. During the HIP process, parts are subjected to high temperatures and pressure in a vacuum or inert gas environment, ensuring that any trapped gas bubbles are removed. It is essential for superalloys, which must perform reliably under extreme stress and temperature conditions in aerospace and power generation applications.

Heat Treatment

Heat treatment is essential for controlling the microstructure of 3D-printed superalloy parts. Manufacturers can enhance properties such as tensile strength, fatigue resistance, and toughness by carefully controlling the heating and cooling processes. Heat treatment is essential for alloys like Inconel 718 and Hastelloy X, which require specific thermal processing to achieve the desired mechanical properties for high-performance applications.

Superalloy Welding

Superalloy welding is used to join 3D-printed parts or repair existing components. This process is typically used in aerospace and power generation industries, where parts are subject to wear and tear. By using superalloy welding, manufacturers can extend the life of components and ensure their performance in demanding environments.

Surface Finishing

Surface finishing processes, such as grinding, polishing, and coating, are often used to improve the surface quality of 3D-printed parts. These techniques help to remove any imperfections that may have formed during the printing process and ensure that the parts meet the required specifications for mechanical and thermal performance, ensuring a smooth, defect-free surface for critical applications.

Testing and Quality Assurance

To ensure that 3D-printed superalloy parts meet the stringent requirements of industries such as aerospace and defense, thorough testing is essential. Various testing methods, including tensile testing, fatigue testing, and microstructural analysis, are used to evaluate the parts' mechanical properties and structural integrity.

Material Testing

Methods such as Glow Discharge Mass Spectrometry (GDMS) and Carbon Sulfur Analyzer Testing are used to confirm the composition of the superalloy materials. Ensuring the correct material properties is critical for high-performance parts that must withstand extreme conditions.

Structural Testing

Tensile testing, fatigue testing, and Scanning Electron Microscopy (SEM) are used to assess the strength, durability, and microstructure of 3D printed parts. These tests help verify that the parts can perform as expected under real-world conditions.

Non-Destructive Testing (NDT)

Techniques like X-ray testing, ultrasonic testing, and industrial CT scanning are commonly used to detect internal defects in 3D-printed parts without damaging them. These methods are essential for ensuring that the parts meet the highest standards of quality and reliability.

Industries and Applications for Superalloy 3D Printed Parts

Superalloy 3D printing has applications across various industries, requiring parts that can withstand high temperatures, pressure, and corrosion. Some primary industries benefiting from this technology include aerospace, power generation, oil and gas, and military.

Aerospace

In aerospace, superalloy 3D printing is used to manufacture jet engine components, turbine blades, and exhaust system parts. These components require materials that can withstand extreme temperatures and mechanical stress, ensuring high performance in flight and operational efficiency.

Power Generation

In the power generation industry, superalloys are used for critical components such as heat exchangers, turbine discs, and pump parts. These components need to perform reliably under high temperatures and pressures, contributing to the efficiency and longevity of power plants.

Military and Defense

Superalloy 3D printing is also utilized in the military and defense sectors to produce parts such as missile segments, armor systems, and naval ship modules. These components must meet stringent performance standards for strength, durability, and resistance to extreme environmental conditions, ensuring operational readiness.

Chemical Processing and Nuclear Power

Other industries benefiting from superalloy 3D printing include chemical processing and nuclear power. In these sectors, parts such as reactor vessel components and distillation equipment require the superior properties of superalloys to function effectively in harsh, high-temperature environments.

Automotive

Additionally, automotive manufacturers use superalloy 3D printing to produce high-performance engine components and other parts that must withstand extreme operating conditions, ensuring durability and efficiency.

FAQs

  1. What are the key advantages of using superalloy 3D printing over traditional manufacturing methods?

  2. How does Electron Beam Melting (EBM) compare to Selective Laser Melting (SLM) for 3D printing superalloys?

  3. What are the most common post-processing techniques used for 3D-printed superalloy parts?

  4. Which superalloy materials are most suitable for high-temperature applications?

  5. What industries benefit the most from superalloy 3D printing technologies?
